Presenter Mixer System Handbook
This handbook is for use with the following product:

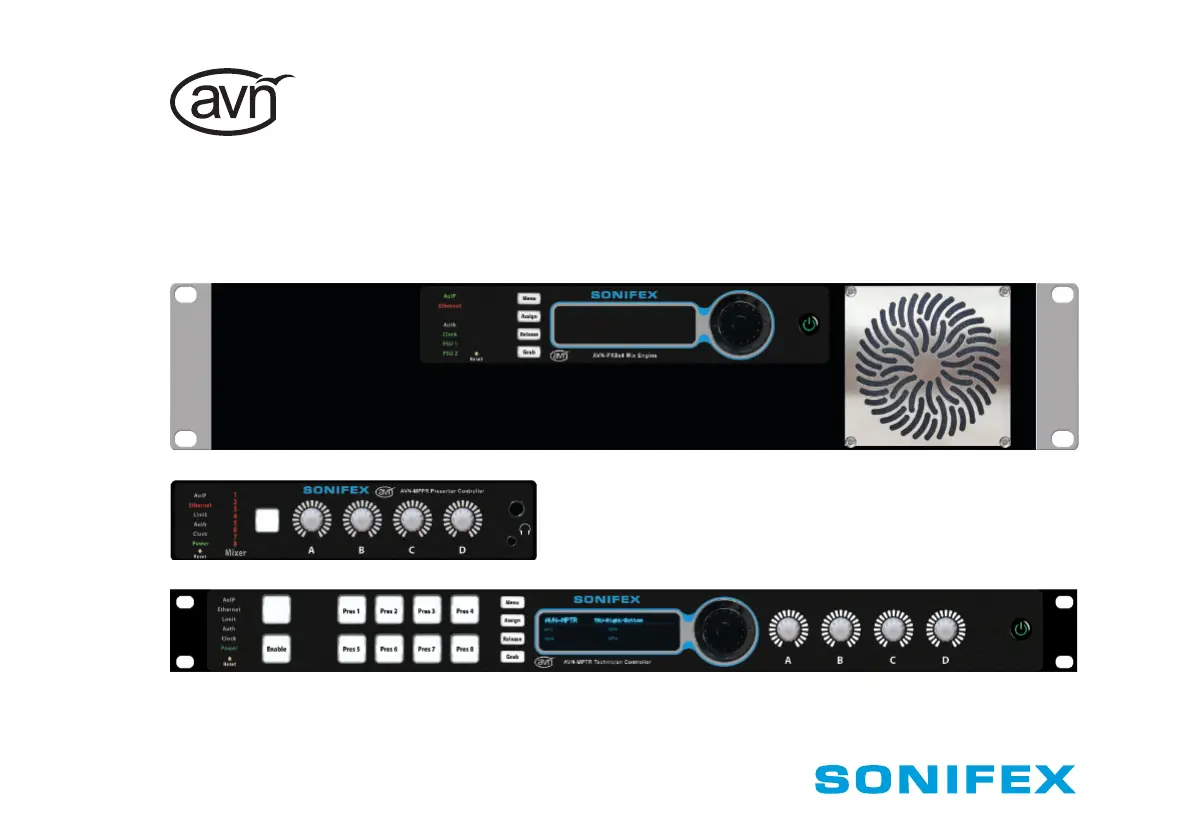

Sonifex Presenter Mixer System, consisting of the AVN-PX8x4C Mix Engine Rack,
AVN-MPPR Presenter Remote Unit & AVN-MPTR Technician Remote Unit
Revision 1.03 Novembert 2021
©Sonifex Ltd, 2021
All Rights Reserved
Sonifex Ltd, 61, Station Road, Irthlingborough,
Northants, NN9 5QE, England.
Tel: +44 (0)1933 650 700
Fax: +44 (0)1933 650 726
Email: sales@sonifex.co.uk
Website: https://www.sonifex.co.uk
Information in this document is subject to change without notice and does not represent a
commitment on the part of the vendor. Sonifex Ltd shall not be liable for any loss or damage
whatsoever arising from the use of information or any error contained in this manual.
No part of this manual may be reproduced or transmitted in any form or by any means, electronic or
mechanical, including photocopying, recording, information storage and retrieval systems, for any
purpose other than the purchaser’s personal use, without the express written permission of Sonifex
Ltd. Unless otherwise noted, all names of companies, products and persons contained herein are
part of a completely fictitious adaptation and are designed solely to document the use of Sonifex
product.
Made in the UK by
For the latest Sonifex handbook information please visit the
Sonifex website at www.sonifex.co.uk
Contents
Product Warranty - 2 Year Extended i
Sonifex Warranty & Liability Terms & Conditions i
1. Definitions i
2. Warranty i
Unpacking Your Product ii
Repairs & Returns iii
CE Conformity iii
Safety & Installation of Mains Operated Equipment iii
Voltage Setting Checks iii
Fuse Rating iii
Power Cable & Connection iii
WEEE Directive iv
Atmosphere/Environment iv
1. Sonifex Presenter Mixer System Manual 1
Overview 1
2. AVN-PX8x4C Mix Engine Rack 2
Front Panel Controls 3
Status LEDs 3
OLED Display 3
Menu fast keys 3
Power button 3
Reset button 3
Rear Panel Connections 4
Network Ports 4
Standard GPIO Connector 4
Analogue Audio Inputs & Outputs 5
Audio Levels and dBFS equivalences 5
3. AVN-MPPR Presenter Remote Unit 6
Front Panel Controls 7
Status and Mixer ID LEDs 7
Rotary Controls 8
Headphone sockets 9
GPO button 9
Reset button 10
IP address reset 10
Rear Panel 10
Network Connector 10
Mix Output Mono Analogue Output 10
Standard GPIO Connector 10
Hardware ID Settings 10
