Side 1/2
© 2023 MSE Audio, and SoundTube Entertainment, Inc. All rights reserved. | Rev 04.03.2023
1.855.663.5600
|
www.soundtube.com
Do not spec or install speaker near support beam, ventilation duct or
other structure that may interfere with speaker function or dispersion.
Warning Warning
SoundTube speakers must be installed by a professional audio installer/contractor. For safety and for
optimum audio performance, installer must follow all directions issued by SoundTube Entertainment.
+100 V
+70.7 V
Common
Constant
Volt age
Conection
Low
Impedance
Connection
Audio Isolation
Transformer
AC-P350-XFMR
40 Vrms Max .
+
For use with PhaseTech P350 Amplier
The AC-P350-XFMR allows the PhaseTech P350 low-impedance amplier
to be converted to a constant-voltage amplier with a 70.7V or 100V
speaker output for distributed audio systems.
Equipment Rack Mounting
The AC-P350-XFMR can also be mounted in an equipment/server rack.
The mounting holes on the chassis's ange accept standard rack mount
screws and align with standard rack rail hole spacing.
70.7V / 100V loudspeakers wired
in parallel (daisy-chained) PhaseTech P350 Amplier
+ + +
— — —
IN P U T 12V TRI GGER
UNBALANCEDBALANCED
OUTPUT
TRIGGER
MO DEIN OUT
MUSI C
ON 12V
4-16 OHM S
INPUT
VOL TAGE
POWER
ON OF F
115V 60 Hz/ 230V 50 Hz
AC INPUT 600W MAX
PUSH
115V
AC-P350-XFMR Installation Instructions
LA880i-II Back-Panel Mounting
The AC-P350-XFMR can be mounted to the back panel of the LA880i-II or LA808i-II.
The chassis is designed to mount directly beneath the input panel with
(3) 1/4"-20 X 5/8" machine screws (not included).
© 2023 MSE Audio, and SoundTube Entertainment, Inc. All rights reserved. | Rev 04.03.2023
1.855.663.5600
|
www.soundtube.com
Do not spec or install speaker near support beam, ventilation duct or
other structure that may interfere with speaker function or dispersion.
Warning Warning
SoundTube speakers must be installed by a professional audio installer/contractor. For safety and for
optimum audio performance, installer must follow all directions issued by SoundTube Entertainment.
CH1 CH2 CH3 CH4
CH1 C H2
H3 4 CH3 CH4
LEVEL S
OU T PUT
POWER
ON
ON/OFF
1-HI-Z /LOW-Z
2-4 Ohm / 8 Ohm
3-HI-Z 25V/70V
4-HI-Z 100V
5-SUB-1
6-SUB-2
1-HPF 70Hz /120Hz SUB
2-SLEE P
3-AMP STATUS
4-CH3 TO C H4
5-CH2 TO C H3
6-CH1 TO C H2
DEEP
SLEEP AMP
STATUSG
123456
ON
123456
CH1
INPUT
CH2
GG
913.663.560 0 | www.msea udio.c om
+100 V
+70 .7 V
Common
Constant
Volt a ge
Conect ion
Low
Impedance
Connection
Audio Isolation
Tr ansformer
AC-P350-XFMR
40 Vrms Max.
+

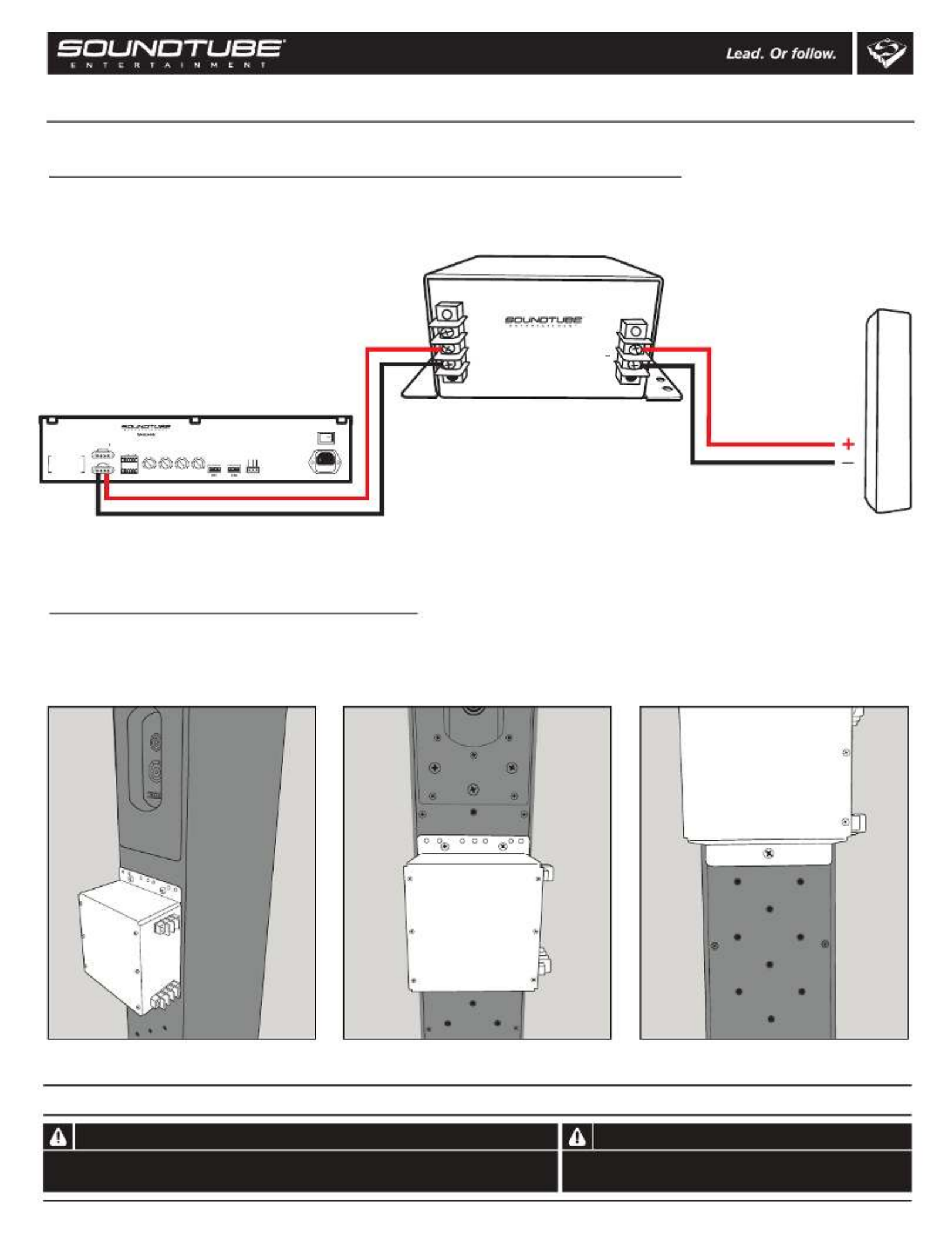

SoundTube MCA2004t Amplier
or other 70.7V / 100V equivalent
SoundTube
LA880i-II
Speaker
For use with SoundTube LA880i-II Line Array Speaker
The AC-P350-XFMR can act as a step-down transformer to allow
the SoundTube LA880i-II Line Array Speaker to be used in
70.7V or 100V distributed audio systems.
AC-P350-XFMR Installation Instructions
