Box Contents

1 Speaker

1 Mounting bracket

1 Safety cable

1 Safety cable anchor screws

1 Grille-mounted tap switch cover

Installation instructions for:

IPD-SM500i-II

1.913.663.5600

855. 663.5600

www.soundtube.com

IPD-SM5 Series

1 Allen hex key

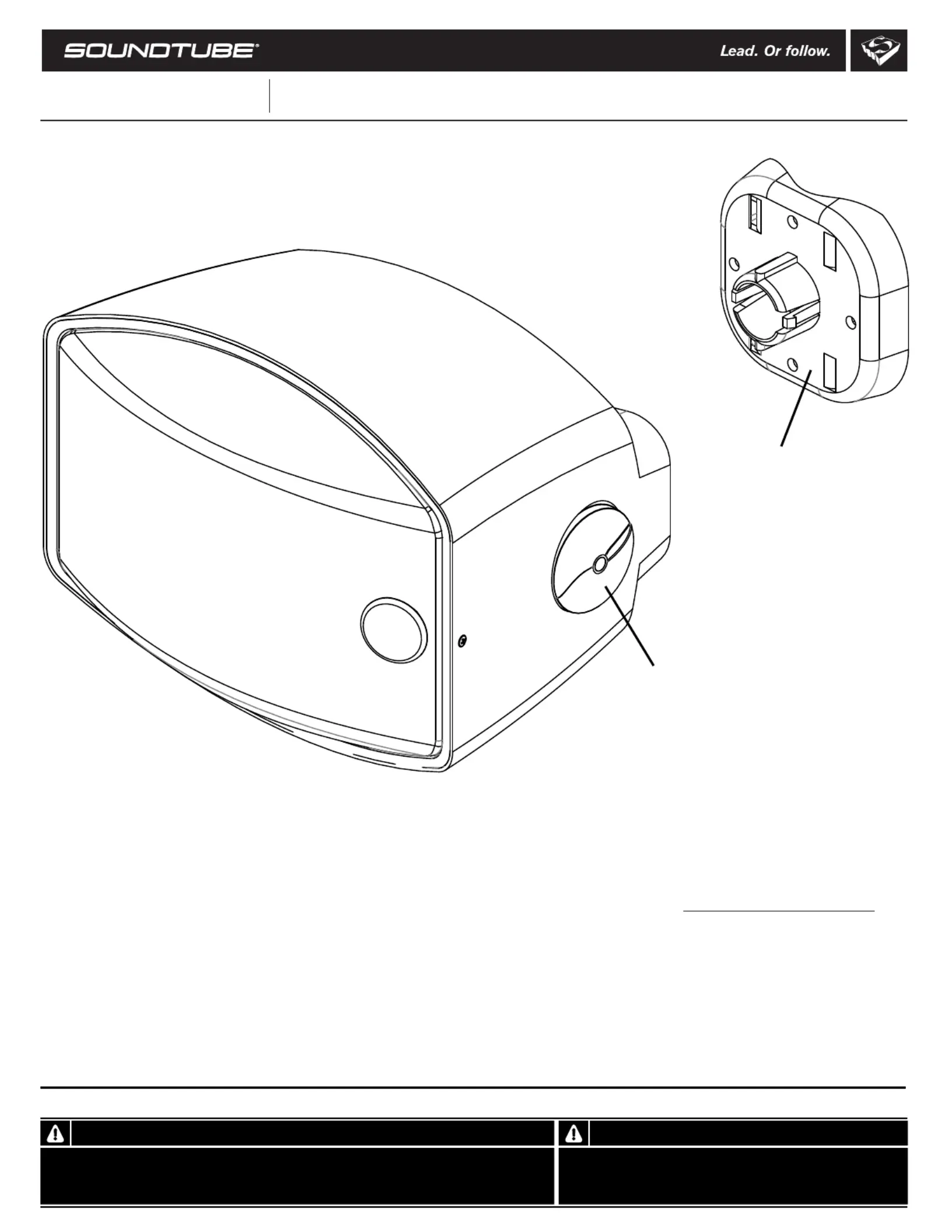

Clamp Knob

Mounting Bracket

Do not spec or install speaker near support beam, ventilation duct or other

structure that may interfere with speaker function or dispersion.

Warning Warning

SoundTube speakers must be installed by a professional audio installer/contractor. For safety and for optimum audio

performance, installer must follow all directions issued by SoundTube Entertainment.

Ne spéciez pas ou installer haut-parleur près de poutre de support, une

conduite d'aération ou une autre structure qui pourrait interférer avec la fonction

haut-parleur ou de dispersion.

Haut-parleurs SoundTube doivent être installés par un installateur / contracor de l'audio professionnel. Par mesure de

sécurité et pour des performances audio optimales, l'installateur doit suivre toutes les directives émises par SoundTube

Entertainment.

1.913.663.5600

855. 663.5600

www.soundtube.com

Installation instructions for:

IPD-SM500i-II

IPD-SM5 Series

Important Safety Instructions



1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in accordance with the

manufacturer's instructions.

8) Do not install near any heat sources such as radiators, heat registers, stoves, or

other apparatus (including ampliers) that produce heat.

9) Only use the attachments/accessories specied by the manufacturer.

10) Unplug this apparatus during lightning storms or when unused for long periods

of time.

11) Refer all servicing to qualied service personnel. Servicing is required when the

apparatus has been damaged in any way, such as power-supply cord or plug is

damaged, the apparatus has been exposed to rain or moisture, does not operate

normally, or has been dropped.

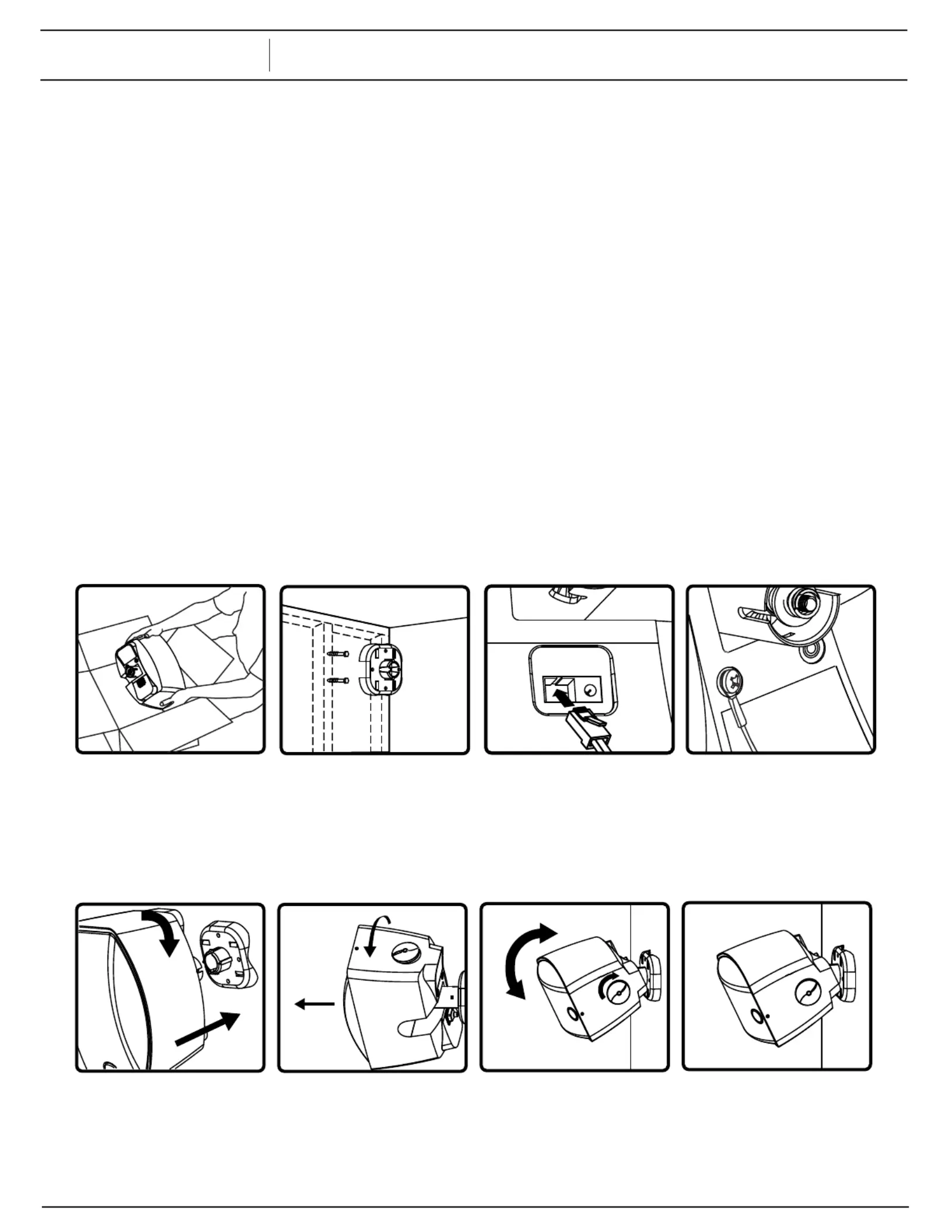

1. Unpack speaker and mounting

hardware.

2. Choose a secure mounting

surface with sufcient strength to

reliably hold the speaker. Note:

Bracket orientation does not

matter for installation of the

mounting bracket.

3. Plug ethernet cable into RJ45

jack. If local power is required at

speaker (non-POE installation),

connect appropriate DC power

supply to barrel connector on

speaker input panel. Contact

SoundTube for questions about

installations requiring local power.

4. Use supplied safety screw to

connect the safety cable to one of

the inserts on the rear panel of the

speaker. Connect other end of the

safety cable to a secure mounting

point.

5. Line up bracket ribs with

mounting tube slots and press

speaker onto bracket. Twist

clockwise until speaker clicks.

Speaker is now locked in place.

6. Firmly grip speaker and pull it

away from the wall to rotate to

desired mounting angle about the

mounting shaft axis. Simply

release speaker back toward the

wall to lock into place.

7. Make sure knob is loose, and

aim speaker in desired direction (0

to 90). Tighten the knob to lock

the speaker in place. FINGER

TIGHT IS SUFFICIENT-DO NOT

OVER TIGHTEN.

To loosen, use included hex key.

8. Done.

Consignes de sécurité importantes



1) Lisez ces instructions.

2) Conservez ces instructions.

3) Respectez tous les avertissements.

4) Suivez toutes les instructions.

5) Ne pas utiliser cet appareil près de l'eau.

6) Nettoyer seulement avec un chiffon sec.

7) Ne pas bloquer les ouvertures de ventilation. Installer conformément aux

instructions du fabricant.

8) Ne pas installer près de sources de chaleur telles que des radiateurs, registres de

chaleur, poêles ou autres appareils (incluant les amplicateurs) qui produisent de la

chaleur.

9) Utiliser uniquement les xations / accessoires spéciés par le fabricant.

10) Débranchez cet appareil pendant les orages ou si inutilisé pendant de longues

périodes de temps.

11) Conez toute réparation à un personnel qualié. Une réparation est nécessaire

lorsque l'appareil a été endommagé de quelque façon que ce cordon d'alimentation

ou la che est endommagé, l'appareil a été exposé à la pluie ou à l'humidité, s'il ne

fonctionne pas normalement ou s'il est tombé.
