Do not spec or install speaker near support beam, ventilation duct or

other structure that may interfere with speaker function or dispersion.

Warning Warning

SoundTube speakers must be installed by a professional audio installer/contractor. For safety and for

optimum audio performance, installer must follow all directions issued by SoundTube Entertainment.

Speaker brackets

Mounting screws

Corner-mount bracket

Note: Speaker ships separately.

Security screw

Box contents: Corner-mount kit

1 Corner-mount bracket

2 Speaker brackets

8 Fasteners (1/2 inch wood screws)

1 Security screw

For wiring instructions, consult SM1001p installation instructions.

Alternate optional accessory is a surface mount bracket (AC-SM1001p-S).

4. For a safety cable

attachment, screw the

forged eyebolt into the

1/4-20 insert on the back of

the speaker and attach

included safety cable from

forged eyebolt to a secure

mounting point on the

structure. Installer to supply

fasteners to structure.

6. Slide speaker onto

pre-mounted bracket.

1. Unpack subwoofer and

unscrew 4 feet. Remove

screws from rubber plugs

and replace screws to fill

holes.

5. Run wires through hole

in top or bottom of bracket.

Connect wires and set gain

and filters as described in

the SM1001p installation

instructions.

2. Choose a secure corner

and mount bracket with

tabs pointing up. Corner

mount bracket must be

mounted at least 3 inches

below ceiling, beam or other

top structure. Bracket

accepts up to 1/4 inch lag

bolts (installer supplies

fasteners). Be sure

mounting tabs point up.

3. Mount speaker brackets

to back of speaker with tabs

down. Use included 1/2

inch wood screws.

7. Install security screw.

8. Done!

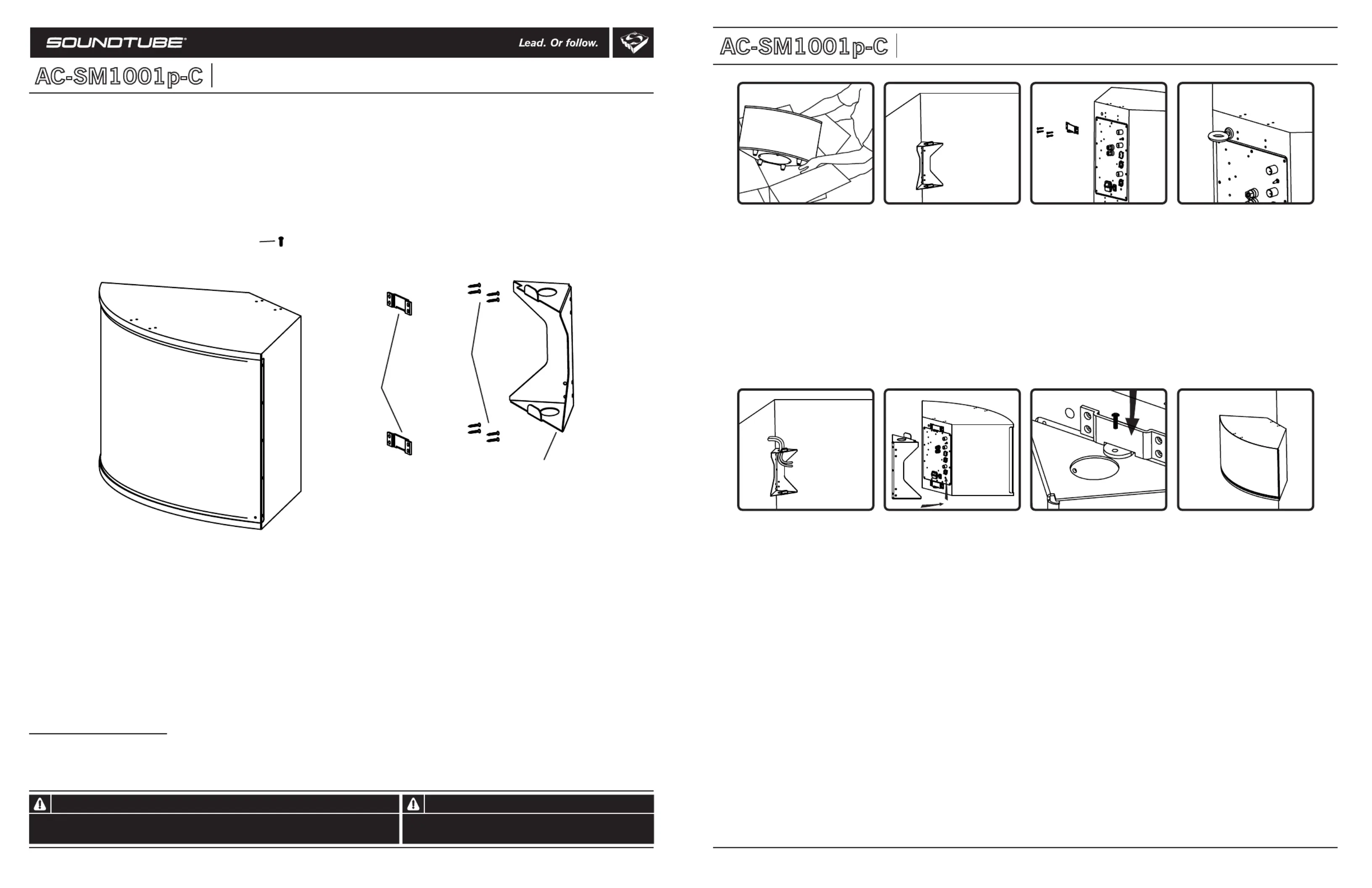

AC-SM1001p-C

Corner-mount Installation For:

SM1001p Powered Subwoofer

1.435.647.9555

| | 800.647.TUBE

www.soundtube.com

Install Instructions For:

SM1001p Powered Subwoofer Corner Mount Bracket

AC-SM1001p-C
