Side 1/4

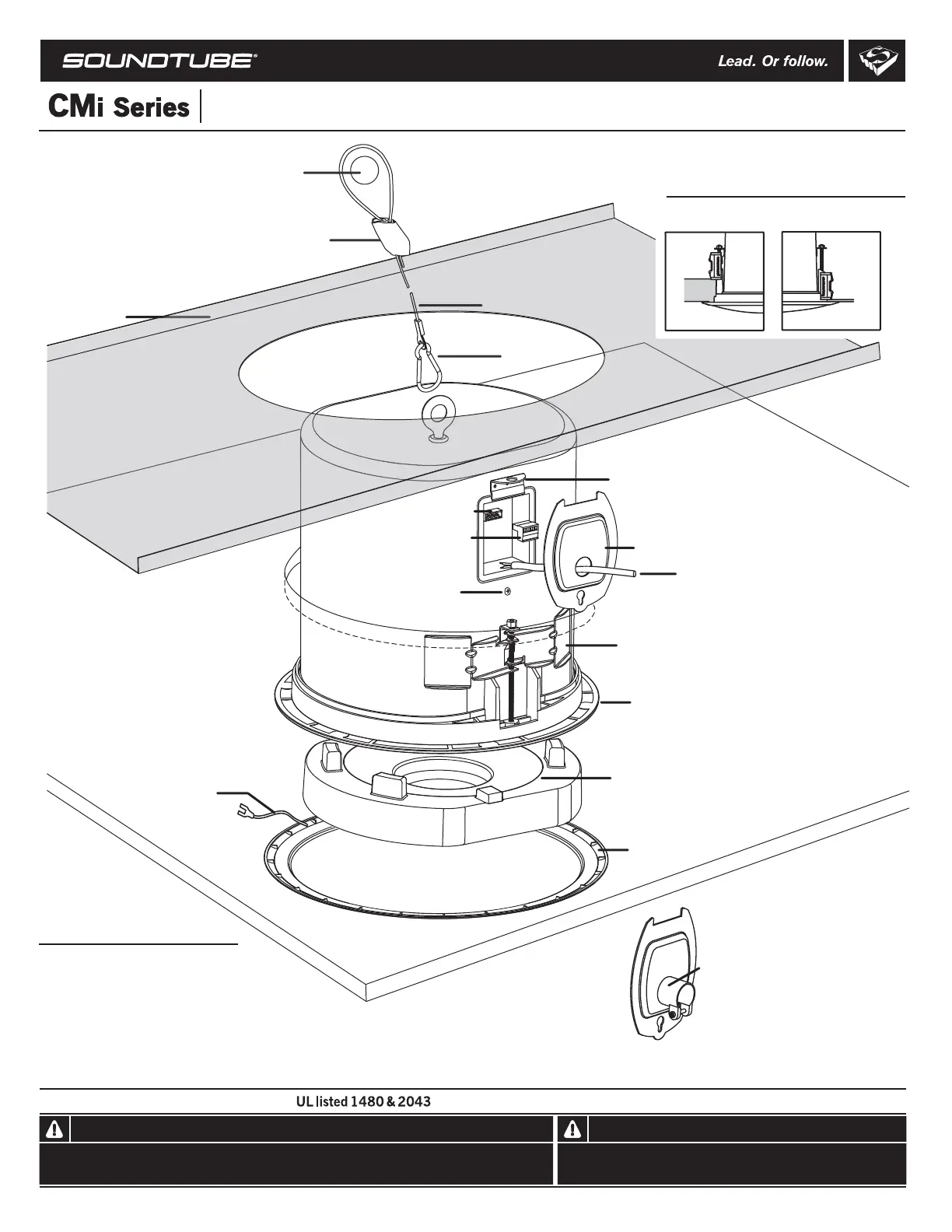

CMi Series
If not painting
If painting
Seismic restraint anchor tab
Euroblock connector
Conduit cover plate
Strain relief (not included)
may be used with conduit cover plate.
Tile bridge
Euroblock jack
Baffle
Grille and bezel
Styrofoam installation aid/paint mask
Speed Wing™ mounting arms
Cover plate clamping screw
Box contents
CM800d, CM890d, and CM1001d-
1 Speaker
1 Euroblock connector
1 Grille and bezel
1 Styrofoam installation aid/paint mask
1 Conduit cover plate
1 Tile bridge
1 Suspension cable
Install Instructions For:
CM800d, CM890d and CM1001d speakers
Do not spec or install speaker near support beam, ventilation duct or
other structure that may interfere with speaker function or dispersion.
Warning Warning
SoundTube speakers must be installed by a professional audio installer/contractor. For safety and for
optimum audio performance, installer must follow all directions issued by SoundTube Entertainment.
© 2008 SoundTube Entertainment, Inc. All rights reserved. PN INS-CMd Rev09.15.08
1.435.647.9555
| 800.647.TUBE |
www.soundtube.com
Signal wire
Min
6.4 mm (0.25 in)
Max
42.9 mm (1.69 in)
Ceiling thickness tolerances
Grille and bezel
seismic restraint
Suspension cable
Carabiner
SpeedClamp™
Secure anchor point
CMi Series
2. Keep Styrofoam
installation aid/paint
mask attached to speaker
until speaker installation
is complete.
If not painting
If painting

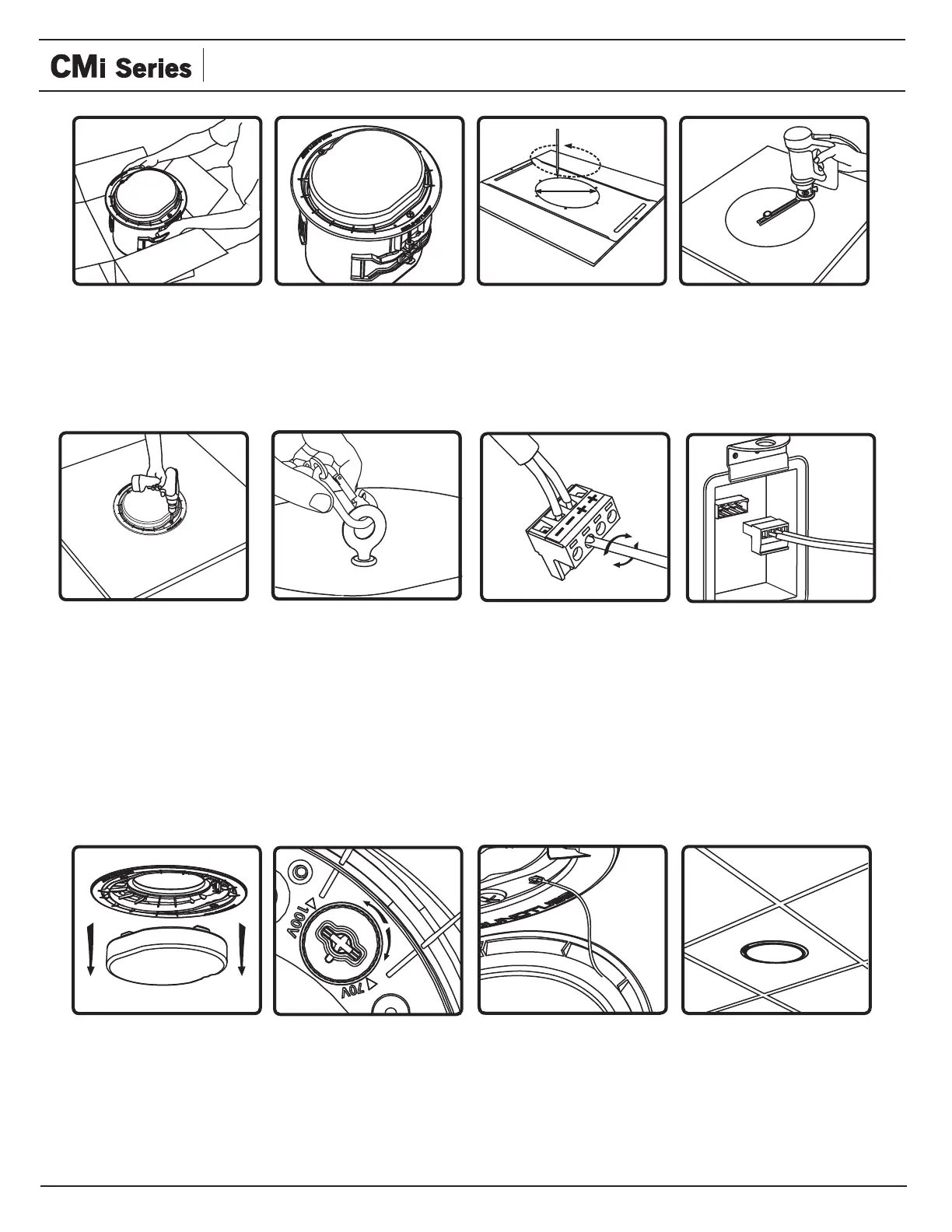

1. Unpack speaker & set
aside grille assembly.
3. Use included tile bridge
to mark cutout in tile.
4. Use Rotozip or other tool
to cut hole. Hole diameter
325.1 mm (12.80 in)
11. Select the tap position
by adjusting rotary switch
to desired high impedance
value or voice coil bypass
mode. Switch is preset to
maximum tap setting in
70.7 V mode.
12. Attach grille & bezel
seismic restraint to baffle
with provided screw .
5. Insert speaker into
mounting hole on ground
with installation aid in
place. Tighten both bolts
located on the baffle face to
actuate the mounting wings.
Firmly secure both sides –
do not over-tighten. Replace
assembled tile and speaker
into tile grid.
6. For added support attach
eyelet end of suspension cable
to the rear of speaker using
the carabiner. Attach the other
end of support cable to secure
structure using speedclamp. If
required, attach the seismic
restraint system to the
sheet-metal tab on the side
of speaker (seismic restraint
not included).
7. Thread signal wire through
conduit cover plate. Connect
signal wire to 4-pin Euroblock
plug. Tighten unused terminal
screws. Use inside positive
and negative inputs for either
voice coil or distributed
systems. For daisy chaining,
use outside positive and
negative terminals. Euroblock
must be plugged in for dasiy
chain to function.
8. Insert the Euroblock plug
into the Euroblock jack on
side panel of speaker and
replace conduit cover plate.
For UL-compliant installations
strain relief (not supplied)
may be inserted into hole
in conduit cover plate.
1.435.647.9555
| 800.647.TUBE |
www.soundtube.com
Droptile Ceiling Install Instructions For:
CM800d, CM801d, CM890d and CM1001d speakers
13. Attach grille – position the
grille over the baffle and allow
magnets to attract grille into
place. Be sure grille is properly
centered over baffle.
9. If you are not painting the
ceiling, remove & discard the
paint mask.
10. If you are painting the
ceiling after the speaker is
installed, leave the paint mask
in place until paint is dry.
