Side 1/8

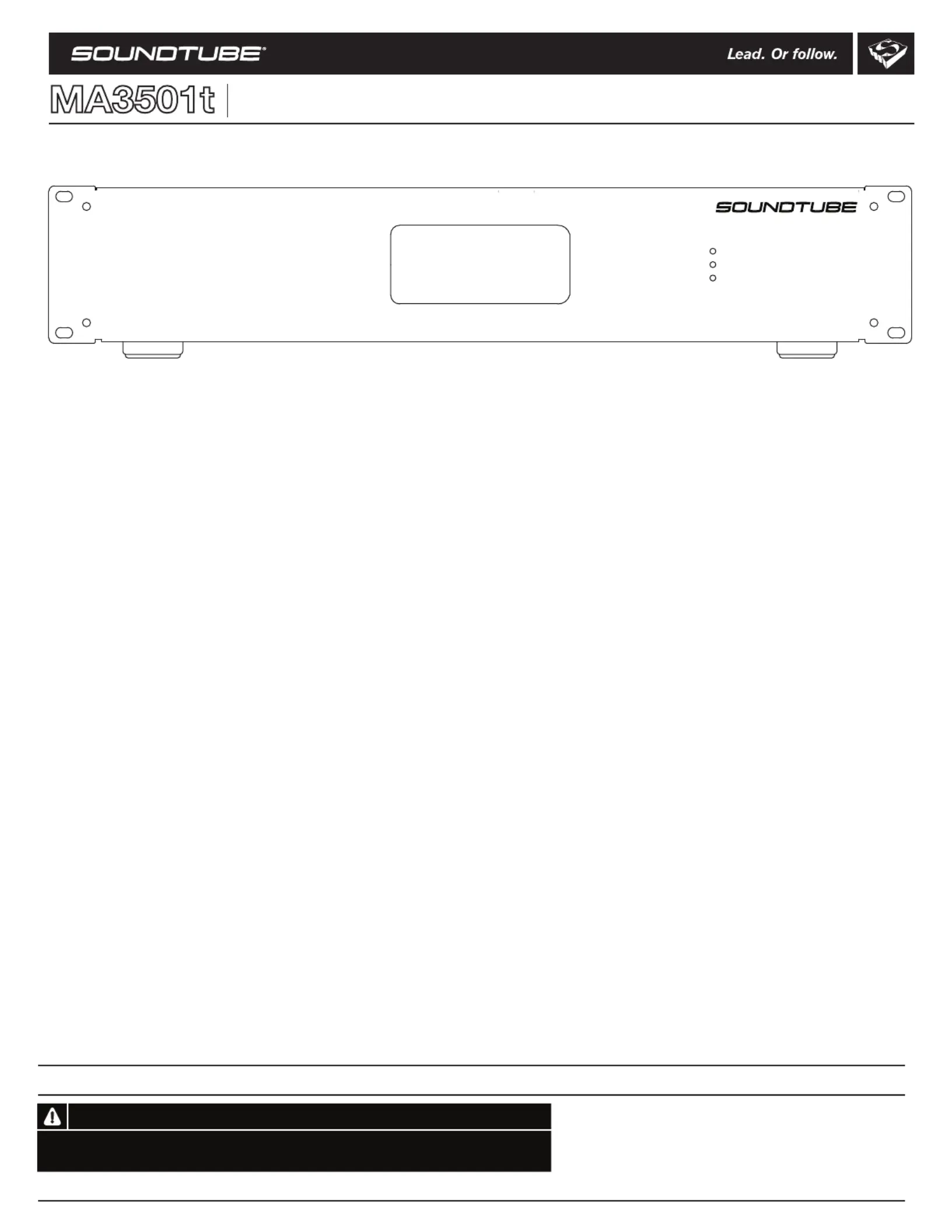

Install Instructions For:

MA3501t

1.435.647.9555

800.647.TUBE

www.soundtube.com

Warning

SoundTube products must be installed by ofessional audio installer/contracto a pr r. For safety and for

optimum audio performance, installer must follow all di ections issued by Sound r Tube Entertainment .

MA3501t

PROTECT

CLIPPING

POWER

MA3501t

MA3501t, AUDIO DISTRIBUTION AMPLIFIER INSTALLATION MANUAL

FEATURES:

• 350W at 4 ohms direct or 25V, 70V, 100V isolated outputs

• Efcient Class G high current mono-block amplier

• Large Torroidal power transformer and audio output transformer

• Selectable high pass/subsonic lter

• Euro block balanced and dual unbalanced RCA inputs

• Selectable 12V and auto signal sense remote turn on and stand

by options

• Selectable peak/clipping limiter

• High current euro block output connectors

• Dual 115VAC/230VAC operation

• Wind tunnel ow through cooling with variable speed

thermostatically controlled fan

• Overload, short circuit and thermal protection circuits

• Power/standby, clipping and protection LED indicators

• Compact 2U Rack space chassis

DESCRIPTION:

The audio distribution amplier is a high SOUNDTUBE MA3501t

performance audio amplier that is designed for continuous use in

commercial applications. The high efciency Class “G” amplier

design offers high performance in a compact design and utilizes 2

large and efcient toroidal transformers in the amplier power and

audio output sections. The power transformer is a very high current

design for sustained high power output and can operate with

multiple input mains voltage and is thermally protected.

The audio output transformer is a very low distortion design that

provides very clean audio output at high power levels for 25V, 70V

or 100V audio distribution systems.

The amplier also has a direct speaker output option that MA3501t

bypasses the transformer for those applications where it is

necessary to operate 4-16 ohm speaker systems. All of this

performance is in an amplier that is only 2RU in height.

Other application and performance features of the SOUNDTUBE

MA3501t amplier are exible audio inputs connections for both

balanced and unbalanced audio signals. The balanced input

features a Euro Block, Phoenix style connector and the

unbalanced inputs are 2 RCA style jacks that will allow the mix

down of a stereo input signal to a summed mono output.

The amplier offers a switchable peak limit anti-clipping circuit to

help keep the audio clean and undistorted at high output levels

and also a switchable high pass lter to avoid over driven bass

distortion and speaker line transformer saturation from low

frequencies. The also provides the installer with remote MA3501t

turn on and off provisions that can either be switched by an

external 12VDC source with loop through provisions or set to a

program input sensing position that provides turn on and standby

operations in the presents or absents of an audio signal. Both of

the remote features mute the amplier audio output when no signal

is present to avoid any stray hum or noise being reproduced in the

standby mode.

The amplier is designed to provide long SOUNDTUBE MA3501t

term reliability of operation and includes several features to insure

many years of trouble free operation. Besides the oversized

torroidal power and audio transformers the amplier features a

thermostatically controlled cooling fan with ducted heat sink

cooling for the power stage. The protection circuitry includes

thermal shut down over temperature protection for the power

transformer and the power amplier, input power overload

protection, short circuit, DC output and over load protection and

low impedance protection with relay switching to kill the speaker

output and provide protection for speakers systems connected to

the amplier.

Install Instructions For:

MA3501t

SAFETY INSTRUCTIONS

The lightning ash with arrowhead symbol, within an

equilateral triangle, is intended to alert you to the presence of

un-insulated “dangerous voltage: within the product’s

enclosure that may be off sufcient magnitude to constitute a

risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended

to alert you to the presence of important operating and

maintenance (servicing) instructions in the literature

accompanying the appliance.

Explanation of Graphical Symbols

1. Read Instructions - All the safety and operating instructions should be read before the appliance is operated.

2. Retain Instructions - The safety and operating instructions should be retained for future reference.

3. Heed Warnings - All warnings on the appliance and in the operating instructions should be adhered to.

4. Follow Instructions - All operating and other instructions should be followed.

5. Water and Moisture - The appliance should not be used near water - for example, near a bathtub, washbowl, kitchen sink, laundry tub, in a

wet basement, or near a swimming pool, etc.

6. Carts and Stands - The apparatus should be used only with a cart or stand that is recommended by the manufacturer.

PORTABLE CART WARNING

7. Wall or Ceiling Mounting - The apparatus should bemounted to a wall or ceiling only as recommended by the manufacturer.

8. Ventilation - The apparatus should be situated so that its location or position does not interfere with its proper ventilation. For example, the

apparatus should not be situated on a bed, sofa, rug, or similar surface that may block the ventilation openings; or placed in a built-in

installation, such as a bookcase or cabinet that may impede the ow of air through the ventilation openings.

9. Heat - The apparatus should be situated away from heat sources such as radiators, stoves, or other appliances that produce heat.

10. Power Source - The apparatus should be connected to a power supply only of the type described in the operating instructions or as

marked on the apparatus.

11. Power Cord Protection - Power supply cords should be routed so that they are not likely to be walked on or pinched by items placed up

or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the apparatus.

12. Cleaning - The apparatus should be cleaned only as recommended by the manufacturer.

13. Nonuse Periods - The power cord of the apparatus should be unplugged from the outlet when left unused for a long period of time.

14. Object and Liquid Entry - Care should be taken so that neither objects fall nor liquids spill into the inside of the apparatus.

15. Damage Requiring Service - The apparatus should be serviced by qualied service personnel when:

16. Servicing - The user should not attempt to service the apparatus beyond those means described in the operating instructions. All other

servicing should be referred to qualied service personnel.

17. Protective earthing terminal. The apparatus should be connected to a mains socket outlet with a protective earthing connection.

a. the power supply cord or the plug has been damaged,

b. objects have fallen onto or liquid has been spilled into the apparatus,

c. the apparatus has been exposed to rain,

d. the apparatus does not appear to operate normally or exhibits a marked change in performance, or

e. the apparatus has been dropped or the cabinet damaged,

f. WARNING: The mains plug (apparatus coupler) is used as disconnect device, the disconnect device shall remain readily operable.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION

AVIS

RISQUE CHOC ELECTRIQUE NE

PAS OUVRIR
