Box contents

1 Surface-mount bracket

1 Safety cable

Install Instructions For:

1.435.647.9555

| 800.647.TUBE |

www.soundtube.com

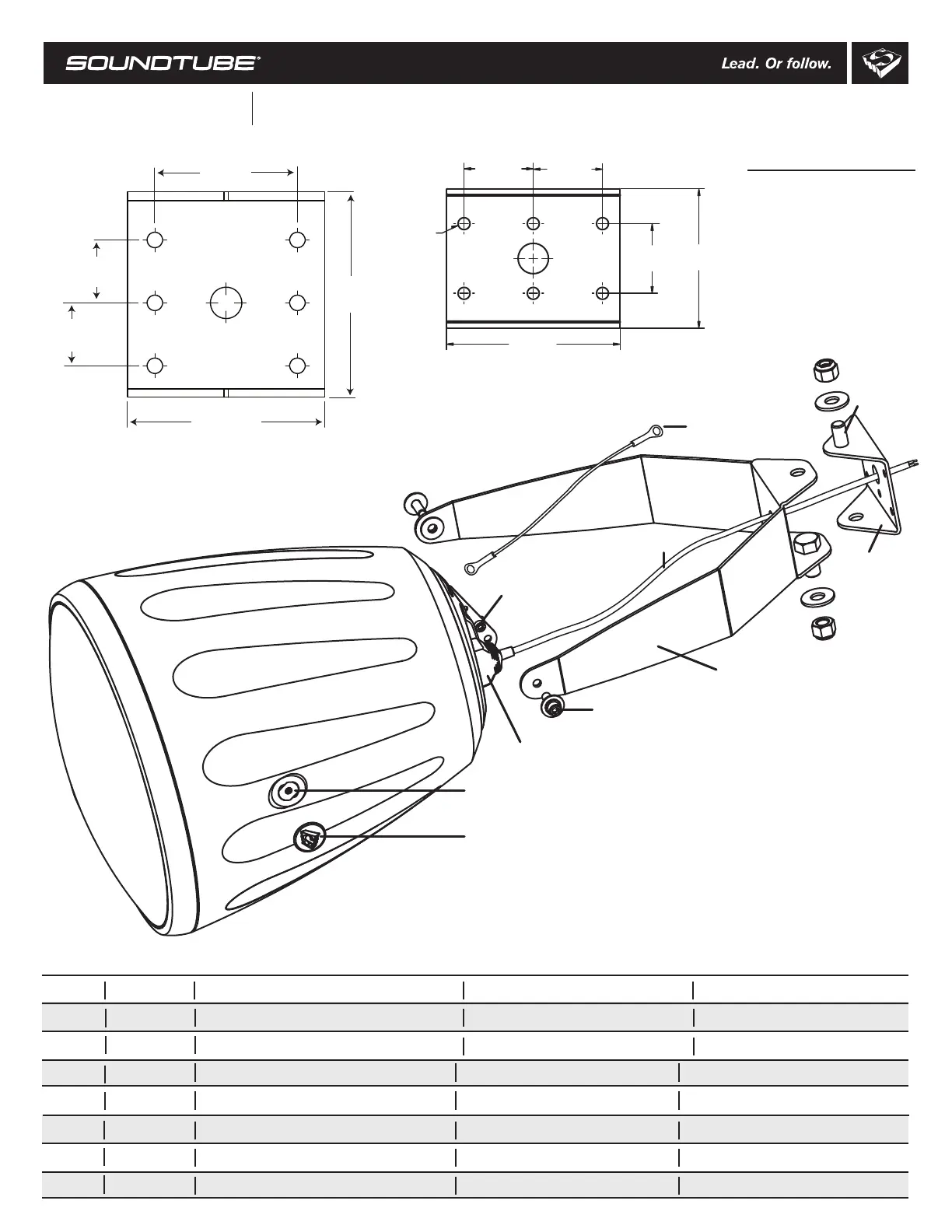

Wall-plate hole pattern

RS600i, RS800i, RS1001i-II, HP690i, HP890i

40.9 mm

(1.61 in)

ø7.1 mm

(.28 in)

40.9 mm

(1.61 in)

41.4 mm

(1.63 in)

82.6 mm

(3.25 in)

102.9 mm

(4.05 in)

RSi & HP Series

38.1 mm

(1.50 in)

86.4 mm

(3.40 in)

119.4 mm

(4.70 in)

38.1 mm

(1.50 in)

124.5 mm

(4.90 in)

Wall-plate hole pattern

HP129i, HP1290i

Transformer Taps Settings

Treaded insert

Insert cover

Terminal weather boot

Mounting bolt and washer

Signal wire

Safety cable nut, washer & bolt

Safety cable

Surface-mount bracket

Nylock nut

Wall-plate

stud

70.7 Volt Transformer Taps (dB) 100 Volt Transformer Taps (dB) 25 Volt Transformer Taps (dB)

Voice Coil

RS600i

RS800i

RS1001i-II

Warning

150W=112.5, 75W=109.5, 38W=106.5 19W=103.5

66W=110.5, 35W=108, 19W=105.5, 10W=102.5, 5W=99.5

150W=112.5, 75W=109.5, 38W=106.5

66W=110.5, 35W=108, 19W=105.5, 10W=102.5 9W=102, 4.5W=99, 2.3W=96, 1.1W=93

19W=103.5, 9.5W=100.5, 4.8W=97.5, 2.4W=94.5

8 Ohm=112 dB

4 Ohm=112.5 dB

33W=105.5, 17W=103, 9W=100, 6W=98.5, 3W=95.5 33W=105.5, 17W=103, 9W=100, 6W=98.5

5W=97.5, 2.5W=94.5, 1.3W=91.5, .63W=88.5

8 Ohm=111 dB

HP890i

HP129i

HP1290i

8 Ohm=119 dB

8 Ohm=120 dB

8 Ohm=111 dB

150W=120, 75W=117, 38W=114 19W=111 150W=120, 75W=117, 38W=114

19W=111, 9.5W=108, 4.8W=105, 2.4W=102

150W=119, 75W=116, 38W=113 19W=110 150W=119, 75W=116, 38W=113

19W=110, 9.5W=107, 4.8W=104, 2.4W=101

120W=115, 64W=112, 32W=109 16W=106 120W=115, 64W=112, 32W=109 16W=106

16W=106, 8W=103, 3.8W=100, 1.9W=97

66W=111, 35W=108.5, 19W=106 10W=103, 5W=100 66W=111, 35W=108.5, 19W=106 10W=103

9W=100, 2.5W=97, 1.25W=94, .75W=92

HP690i

8 Ohm=117 dB

RS600i, RS800i, RS1001i-II, HP690i, HP890i, HP129i, HP1290i speakers

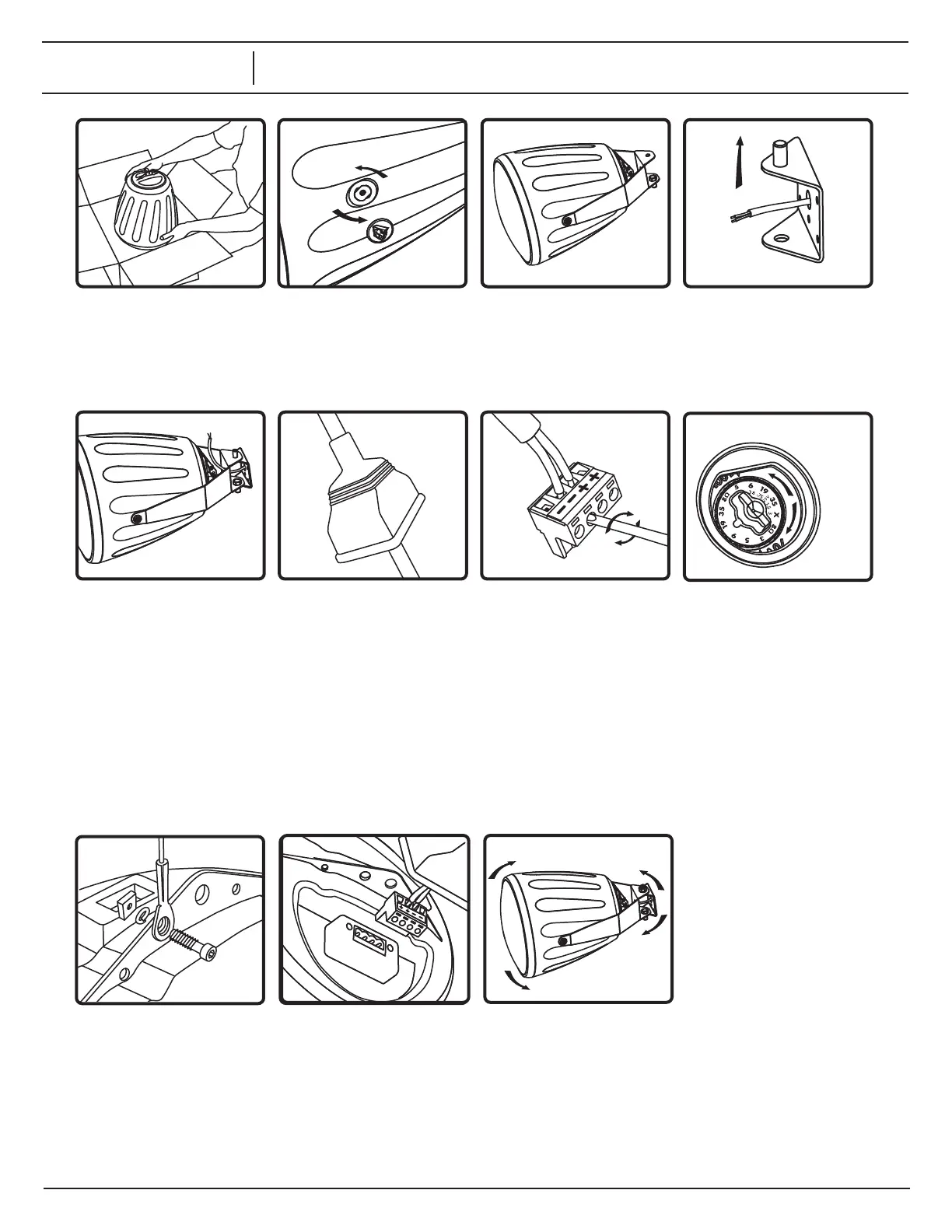

5. Mount speaker and

bracket assembley to wall-

plate. Use nylock nuts and

washers to secure. Do not

fully tighten fastening

hardware.

6. Slip terminal weather

boot over signal wire. For

environmental applications,

put RTV silicone around

nipple and base when

installation is complete.

1. Unpack speaker and

surface-mount bracket.

2. Remove covers from

threaded insert on each

side of speaker.

3. Attach surface-mount

bracket to speaker.

4. Mount wall-plate to

secure surface with approp-

riate hardware (not included).

Mount with wall-plate-stud

pointing up.

7. Connect signal wire to

4-pin Euroblock plug.

Tighten unused terminal

screws. Use inside positive

and negative inputs for either

voice coil or distributed

systems. For daisy chaining,

use outside positive and

negative terminals.

8. Select the tap position by

removing the rubber plug on

grille to access rotary switch.

Switch is preset to maximum

tap setting in 70.7 V mode.

Select desired setting and

reinsert rubber plug. Note: The

grille-mounted tap switch

cover is keyed; be sure flat

edge of plug lines up with flat

edge of hole in grille.

10. Insert 4-pin Euroblock

plug into Euroblock jack on

rear of speaker. Connectors

are keyed for polarity.

11. Aim speaker and tighten

fasteners.

9. Attach the safety cable to

one of the secondary holes in

the hanging bracket using the

supplied hex wrench, nut,

washer & bolt. Attach other

end to secure surface.

VC= 8 Ohm
