The following items are included in this package.

• INTWM / INTWMW

• 1 Base Sponge Adaptor

• 1 Bracket Dome Adaptor

• 1 Wall Bracket Adaptor

• 3 Machine Screws M4 x 15

• 3 Machine Screws M4 x 22

• 2 Machine Screws M4 x 18

• 4 Tapping Screws 6 x 40

• 1 Wrench

• 4 Hexagon Socket Screws M5 x 30

• 2 Hexagon Socket Screws M8 x 8

• 4 Plastic Anchor 8 x 40

Side ViewFront View

INTWM / INTWMW

Package Contents

200 New Highway, Amityville NY 11701

800.645.5516 / www.specotech.com

Installation Guide

5.59” dia

4.35”

10.53”

3.07”

WALL

PLASTIC ANCHOR 8X40, 4EA

ADAPTOR BRACKET ASSEMBLY

TAPPING SCREW 6X40, 4EA

HEXAGON SOCKET SCREW M5X30, 4EA

MACHINE SCREW SET M8X8, 2EA

WALL BASE_BRACKET ASSEMBLY

1-1. Install mount onto the wall by using the screws provided.

INTCM

Pole/Corner Mount

CVCJBD

Dome Junction Box

JB03TG

Large Round Junction Box

Installation Instruction Diagram Installation Instruction Diagram

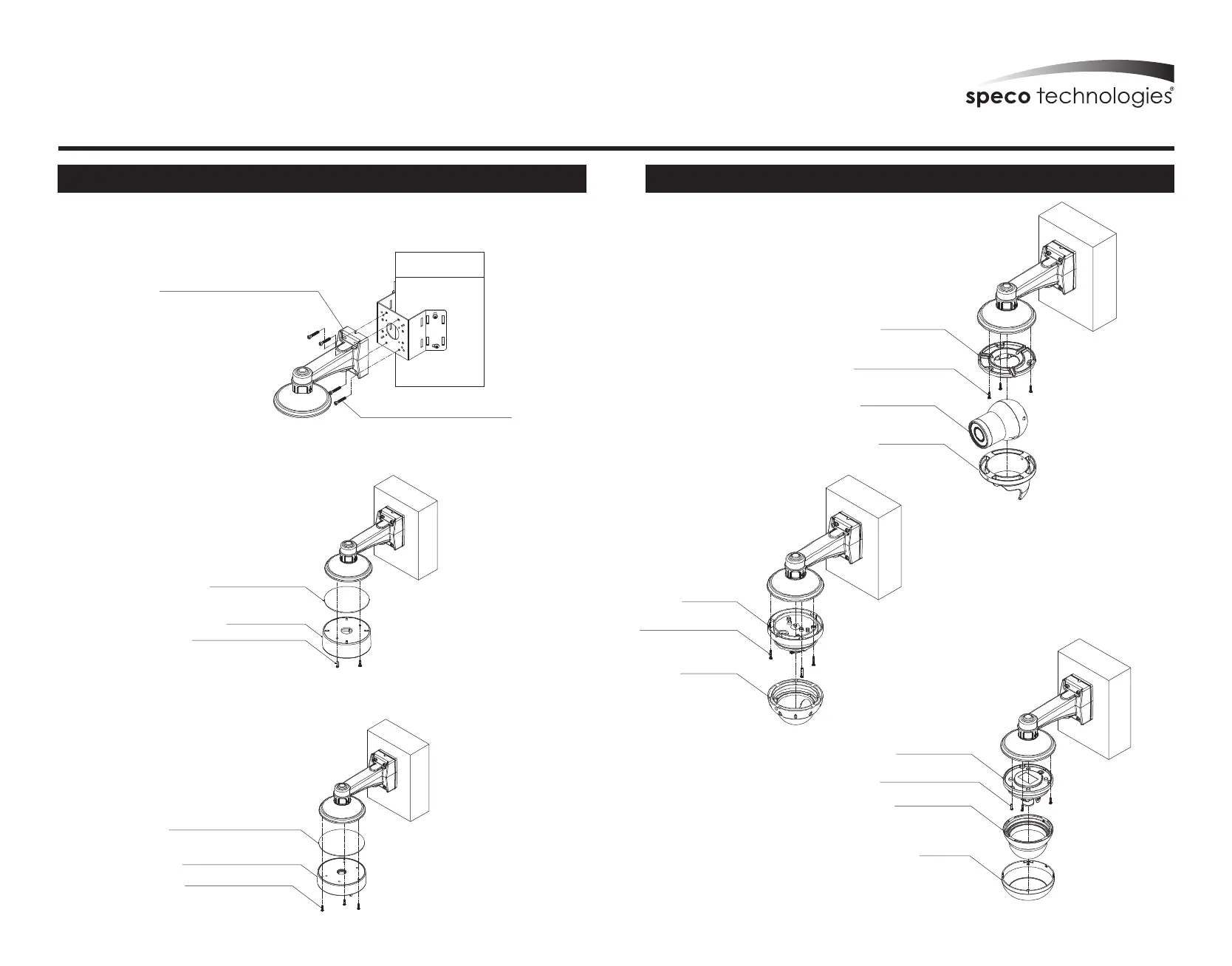

INTWM / INTWMW

200 New Highway, Amityville NY 11701

800.645.5516 / www.specotech.com

Installation Guide

MACHINE SCREW M4X22, 3EA

BASE ASSEMBLY

BODY ASSEMBLY

MACHINE SCREW M4X15, 3EA

DOME BODY ASSEMBLY

OUTER COVER

DOME BASE ASSEMBLY

2. Arrange each piece as shown in the image below.

3. Fasten the camera onto the mount.

*Compatible models

CVC5845DNV(W)

CVC5945DNV(W)

CVC5300DPVF(W)

HTD8FFi

HTINTD8(W)

HTINTD9(W)

HTINTD10(W)

OINT03D1G

*Compatible models

HT7246iHR

HT7247iHR

HT7250iHR

HT7248FFi

*Compatible models

CVC5735DNV(W)

CVC5835DNV(W)

CVC5935DNV(W)

MACHINE SCREW M4X15, 3EA

TURRET BASE

TURRET ASSEMBLY

TURRET BODY

1-2. Install INTCM onto pole or wall.

1-3. Install mount onto INTCM as shown in the image below.

MACHINE SCREW M4X15, 3EA

TURRET JUNCTION ASSEMBLY

TURRET JUNCTION BASE SPONGE

MACHINE SCREW M4X15, 2EA

HEXAGON SOCKET SCREW M5X30, 4EA

DOME WALL BASE BRACKET ASSEMBLY

JUNCTION ASSEMBLY

JUNCTION BASE SPONGE

1-3. Install INTWM onto ceiling.

1-4. Install CVCJBD junction box onto INTWM as shown in the image below.

1-5. Install INTWM onto ceiling.

1-6. Install JB03TG junction box onto INTWM as shown in the image below.
