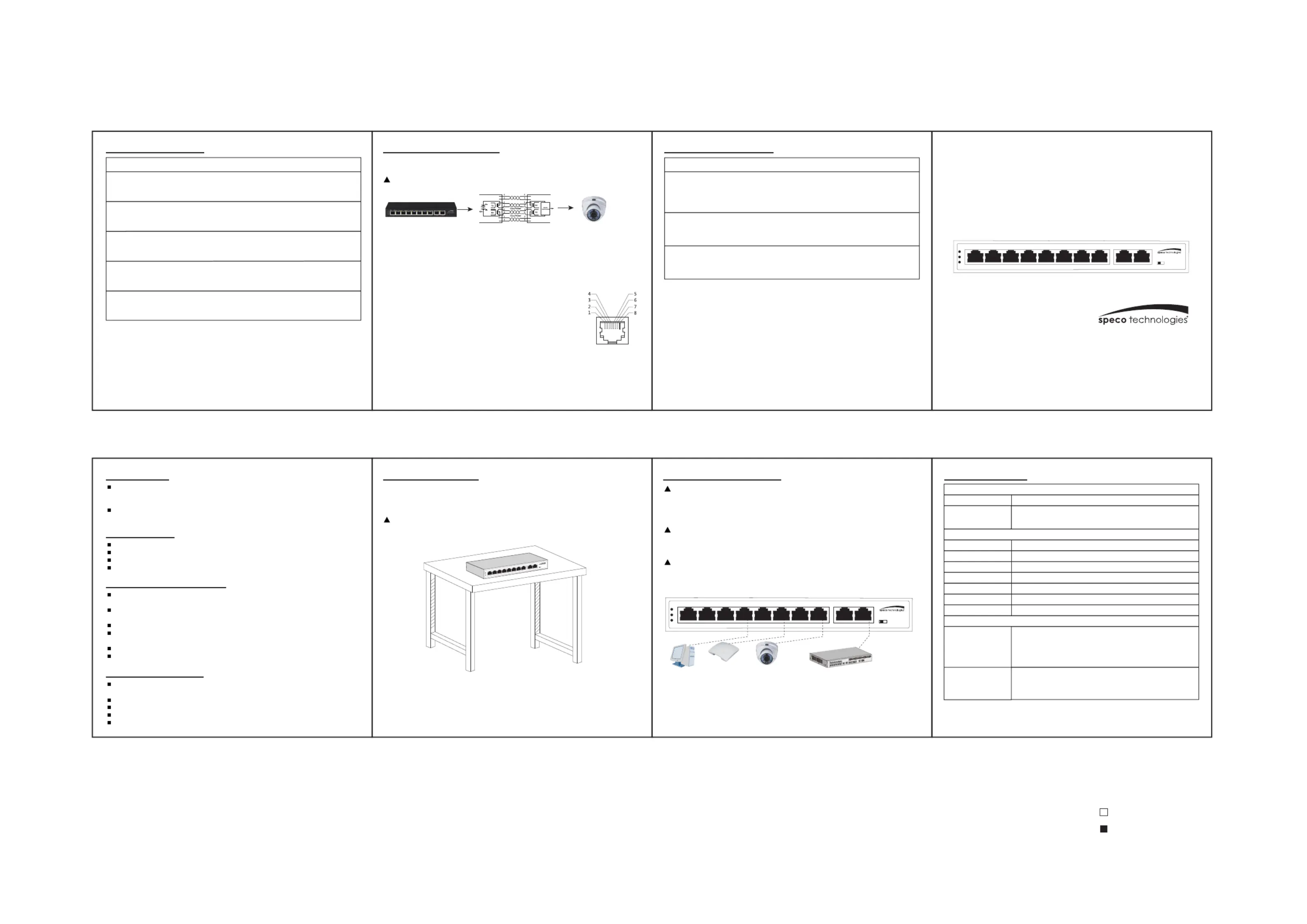

8 Indicator Definition

※This function is applicable to PoE switches,not applicable to non-PoE switches.

* Please contact Speco Technologies technical support @ 1-800-645-5516

if you have any questions.

Function Definition Description

Normal

Mode

Port

Isolation

Link

Extension

1 Description

9 PoE Powered Function

5 Switch Installation 7 Technical Spec.

10 States of Switch

Standard PoE Power Supply

Desktop Installation

Network Cable

Grounding

PoE Switch PoE Camera12/36 is the power

supply and data pin

1.Standard PoE power supply includes: protocol detection, power pin sequence

Detection, power output, abnormal protection, link abnormal monitoring

2.The PoE power supply protocol includes: IEEE802.3af(15.4W), IEEE802.3at(30W)

3.The standard PoE power pin sequence is 12+/36-,and the

passive PoE power pin sequence is 45+/78-

4.The standard POE switches can automatically detect and supply

power to the PDs that meet the standard,non-POE devices are not

powered and only transmit data

5. PoE Watchdog

When the switch port communication fails, the corresponding port

POE will automatically detect and restart, restore network

communication by itself, and reduce manual intervention and maintenance.

Normal mode, all ports can communicate

with each other, the transmission distance is

within 100 meters, the transmission rate is

10M / 100 /1000M adaptive

PoE ports (1-8) of the switch cannot

communicate with each other, and can

only communicate with uplink ports

1-8 ports PoE power supply and data

transmission distance can be extended to 250

meters, the transmission rate becomes 10M

Switches support a variety of installation methods, desktop, wall mounted, rack mount,

please install according to the actual environmental requirements.

10Base-T: Cat3, 4, 5 or above UTP(≤250m).

100Base-TX: Cat5 or above UTP(≤150m) .

1000Base-TX: Cat5 or above UTP(≤100m).

Ensure that the grounding screw of the equipment is effectively grounded to protect

the safety of the equipment.

Power Cable

1.Distance between power cable and network cable should be more than 10cm.

2.The AC power please use the local AC power cable.

The products described in this manual, incduding but not limited to the illustrated

products, please refer to the actual product purchased.If any changes on product

appearance, please refer to the official product information.

PoE switch and ethernet switch installation methods are the same, the actual use

environment and method that depends on the specific product requirement.

User Manual

6 Connecting Equipment

2 Packing List

Switch(Specific model See the product label for more details).

Power Cable(The default is pluggable or a power cable with built-in power module).

Brackets, Screw(Rack type standard).

User manual,Certification.

3 Installation Precautions

Do not install the equipment in the environment of seepage, drip or condensation

easily,otherwise the equipment might burn out.

Please ensure the environment where the equipment is installed is well ventilated,

and forbidden to block the cooling holes.

Do not install the equipment in a high density dust environment.

If rack switches are in a natural heat dissipation environment, please ensure the

separation distance exceeds 1U.

Do not aerial cabling outdoor, otherwise the equipment is prone to lightning strike.

Using temperature and humidity depend on the descriptions of the specific product.

4 Safety Precautions

Do not look directly at the optical port to prevent the laser beam from burning your

eyes.

Do not install the power cord with power on to avoid personal injury.

Do not supply power before equipment installation and wiring.

ESD protection is necessary during the installation and maintenance of equipment.

Do not place objects on the device.

尺寸：90x360mm

印刷：黑白印刷

纸张：铜版纸80g

字体：Arial

C0 M0 Y0 K0

C0 M0 Y0 K100

P8S10G 10-Port Gigabit Switch

8GE PoE with Uplink 2GE RJ45

Computer Camera SwitchWireless AP

I/O Interface

Performance

Mechanical

Power Input AC 100-240V, 50/60Hz

20Gbps

14.88Mpps

2.5Mb

9216bytes

Store and Forward

100,000 hours

Product Dimension (LxWxH): 210x150x35mm

Package Dimension (LxWxH): 265x220x68mm

N.W: 0.8kg

G.W: 1.2kg

Carton MEAS: 550x455x365mm

Packing Qty: 20 pieces

Packing Weight: 25.5kg

Fixed Port

Switching Capacity

Throughput

Packet Buffer

MAC Address

Jumbo Frame

Transfer Mode

MTBF

Structure Size

Packing Info

8x10/100/1000M PoE Ports(Port 1 Supports BT90W)

2x10/100/1000M Ethernet Uplink Ports

Gigabit PoE Unmanaged Switch

N S

V10-UP9-UP87654321-HiPoE

PoE

Link

Gigabit PoE Unmanaged Switch

N S

V10-UP9-UP87654321-HiPoE

PoE

Link

Indicator Definition State Description

Uplink

Link Extension

LED

Port Isolation

LED

Light on

Light off

Light on

Light off

Extension Enable

Extension Disable

Port Isolation Enable

Port Isolation Disable

Power Indicator

Light on

Light off

Powered

Abnormal

PoE Indicator

Data Transmission

Yellow Light on

Green Light on

Yellow Light on

Green Light on

PoE Powered

LAN Linked

Link Rate

PoE

Link

10/100M

Gigabit

Gigabit PoE Unmanaged Switch

N S

V10-UP9-UP87654321-HiPoE

PoE

Link
