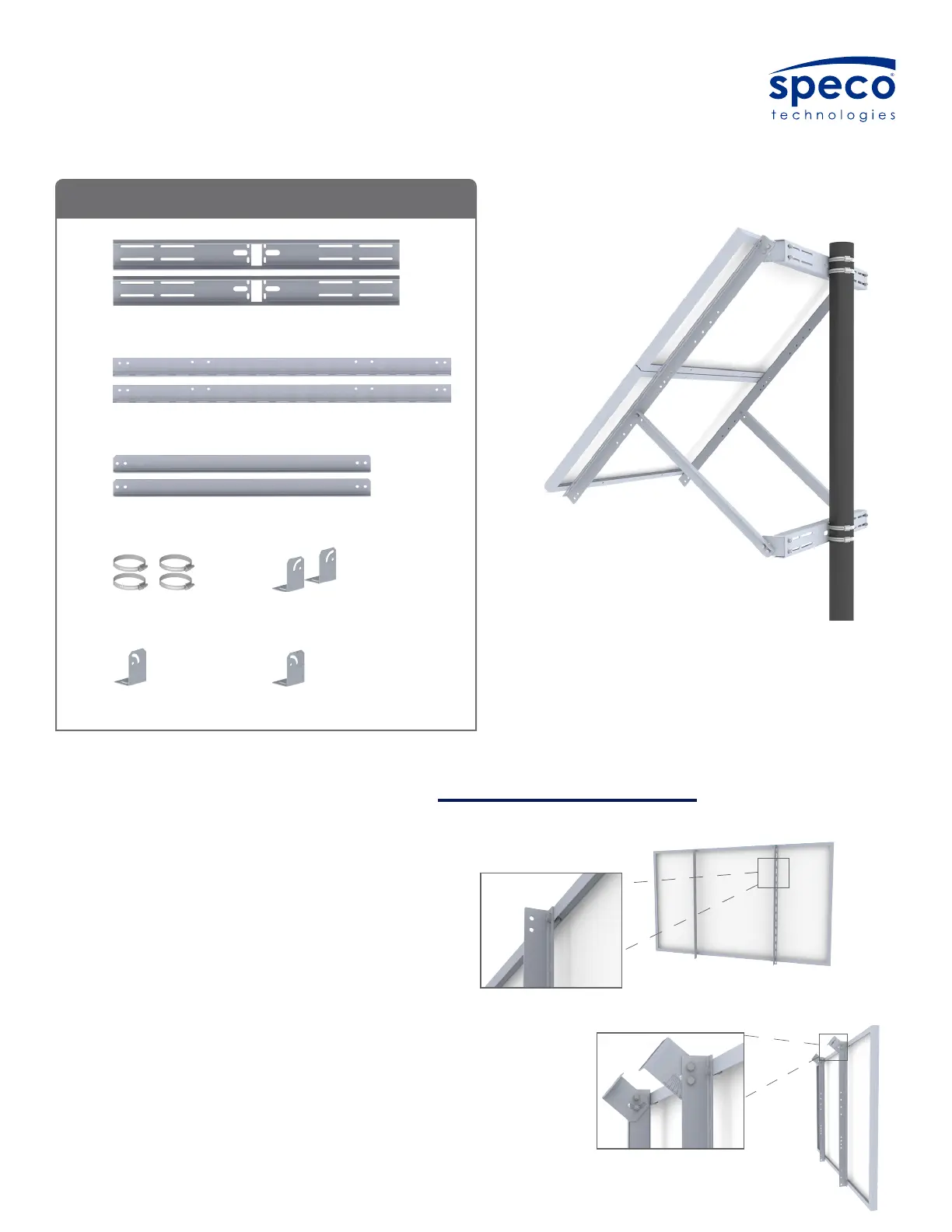

SXA200 | SXA300 | SXA400

STEP 1

1. Mount the Long Rails (SPM-A-55 or SPM-A-42)

to the Solar Panel using the existing holes on

the rear of the panel.

2. Bolt 4 points per Solar Panel.

3. Max width between holes should be 38”

(drilling may be required).

STEP 2

1. Panels should face directly south.

2. Attach the engraved SPM-LB-L-ENG and (1) SPM-LB-R to

the SPM-A-55 or SPM-A-42 rails using the provided hardware.

Attach the two SPM-A-32 braces to the

lower SPM-C-35.

Assembly

Step 1

Step 2

Step 3

Step 4

Step 5

Mount the long Rails (SPM-A-55 or SPM-A-42) to the

Solar Panel using the existing holes on the rear of

the panel. Bolt 4 points per Solar Panel.

Max width between holes should be 38” (drilling

may be required).

Panels should face directly south. Attach the engraved SPM-

LB-L-ENG and (1) SPM-LB-R to the SPM-A-55 or SPM-A-42

rails using the provided hardware. Set the adjustment

angle using the calculator found by scanning the QR Code

or at:

http://www.vorpenergy.com/resources/calculators/

Attach the two SPM-C-35 channels to the pole using the provided hose clamps. Tighten

the hose clamps of the upper SPM-C-35 at the height the top of the solar panel will

be mounted. Leave the two lower hose clamps slightly loose so the lower SPM-C-35

can be adjusted later. Attach the second pair of clips, SPM-LB-L and SPM-LB-R to the

lower SPM-C-35.

Attach the solar panel assembly completed in step two, to the upper SPM-C-35.

Attach the SPM-A-32 braces to the appropriate holes in the SPM-A-55 or

SPM-A-42 rails. Check that the angle is correct and tighten all the bolts. To

adjust the angle, loosen the appropriate bolts and hose clamps that hold the

lower SPM-C-35. Lower or raise the lower SPM-C-35 and re-tighten all hose

clamps and bolts.

Phone : + (208) 904-0424

E-Mail : support@vorpenery.com

4774 South Hwy 191

Rexburg, ID 83440

Attach the two SPM-A-32 braces to the

lower SPM-C-35.

Assembly

Step 1

Step 2

Step 3

Step 4

Step 5

Mount the long Rails (SPM-A-55 or SPM-A-42) to the

Solar Panel using the existing holes on the rear of

the panel. Bolt 4 points per Solar Panel.

Max width between holes should be 38” (drilling

may be required).

Panels should face directly south. Attach the engraved SPM-

LB-L-ENG and (1) SPM-LB-R to the SPM-A-55 or SPM-A-42

rails using the provided hardware. Set the adjustment

angle using the calculator found by scanning the QR Code

or at:

http://www.vorpenergy.com/resources/calculators/

Attach the two SPM-C-35 channels to the pole using the provided hose clamps. Tighten

the hose clamps of the upper SPM-C-35 at the height the top of the solar panel will

be mounted. Leave the two lower hose clamps slightly loose so the lower SPM-C-35

can be adjusted later. Attach the second pair of clips, SPM-LB-L and SPM-LB-R to the

lower SPM-C-35.

Attach the solar panel assembly completed in step two, to the upper SPM-C-35.

Attach the SPM-A-32 braces to the appropriate holes in the SPM-A-55 or

SPM-A-42 rails. Check that the angle is correct and tighten all the bolts. To

adjust the angle, loosen the appropriate bolts and hose clamps that hold the

lower SPM-C-35. Lower or raise the lower SPM-C-35 and re-tighten all hose

clamps and bolts.

Phone : + (208) 904-0424

E-Mail : support@vorpenery.com

4774 South Hwy 191

Rexburg, ID 83440

Hardware kit includes:

(27) ⁄”-18 x 1”

(27) ⁄” Flat washers

(27) ⁄”

Lock washers

(27) ⁄”-18

Hex nuts

spm-55x / SpM-42x

Watch this Short Installation Video

Scan the QR Code or ﬁnd it on VorpEnergy.com

http://www.vorpenergy.com/resources/training-videos/

Components list

SPM-C-35 (2x)

SPM-A-55 (2x) or SPM-A-42 (2x)

HOSE CLAMPS (4x)

SPM-A-32 (2x)

SPM-LB-L-ENG (1x)SPM-LB-L (1x)SPM-LB-R (2x)

install guide

Accessories

Hardware kit includes:

(27) ⁄”-18 x 1”

(27) ⁄” Flat washers

(27) ⁄”

Lock washers

(27) ⁄”-18

Hex nuts

spm-55x / SpM-42x

Watch this Short Installation Video

Scan the QR Code or ﬁnd it on VorpEnergy.com

http://www.vorpenergy.com/resources/training-videos/

Components list

SPM-C-35 (2x)

SPM-A-55 (2x) or SPM-A-42 (2x)

HOSE CLAMPS (4x)

SPM-A-32 (2x)

SPM-LB-L-ENG (1x)SPM-LB-L (1x)SPM-LB-R (2x)

install guide

SPM-A-55 or SPM-A-42

Hardware kit includes:

(27) ⁄”-18 x 1”

(27) ⁄” Flat washers

(27) ⁄”

Lock washers

(27) ⁄”-18

Hex nuts

spm-55x / SpM-42x

Watch this Short Installation Video

Scan the QR Code or ﬁnd it on VorpEnergy.com

http://www.vorpenergy.com/resources/training-videos/

Components list

SPM-C-35 (2x)

SPM-A-55 (2x) or SPM-A-42 (2x)

HOSE CLAMPS (4x)

SPM-A-32 (2x)

SPM-LB-L-ENG (1x)SPM-LB-L (1x)SPM-LB-R (2x)

install guide

SPM-C-35

Hardware kit includes:

(27) ⁄”-18 x 1”

(27) ⁄” Flat washers

(27) ⁄”

Lock washers

(27) ⁄”-18

Hex nuts

spm-55x / SpM-42x

Watch this Short Installation Video

Scan the QR Code or ﬁnd it on VorpEnergy.com

http://www.vorpenergy.com/resources/training-videos/

Components list

SPM-C-35 (2x)

SPM-A-55 (2x) or SPM-A-42 (2x)

HOSE CLAMPS (4x)

SPM-A-32 (2x)

SPM-LB-L-ENG (1x)SPM-LB-L (1x)SPM-LB-R (2x)

install guide

SPM-A-32

Hardware kit includes:

(27) ⁄”-18 x 1”

(27) ⁄” Flat washers

(27) ⁄”

Lock washers

(27) ⁄”-18

Hex nuts

spm-55x / SpM-42x

Watch this Short Installation Video

Scan the QR Code or ﬁnd it on VorpEnergy.com

http://www.vorpenergy.com/resources/training-videos/

Components list

SPM-C-35 (2x)

SPM-A-55 (2x) or SPM-A-42 (2x)

HOSE CLAMPS (4x)

SPM-A-32 (2x)

SPM-LB-L-ENG (1x)SPM-LB-L (1x)SPM-LB-R (2x)

install guide

Hose Clamps

Hardware kit includes:

(27) ⁄”-18 x 1”

(27) ⁄” Flat washers

(27) ⁄”

Lock washers

(27) ⁄”-18

Hex nuts

spm-55x / SpM-42x

Watch this Short Installation Video

Scan the QR Code or ﬁnd it on VorpEnergy.com

http://www.vorpenergy.com/resources/training-videos/

Components list

SPM-C-35 (2x)

SPM-A-55 (2x) or SPM-A-42 (2x)

HOSE CLAMPS (4x)

SPM-A-32 (2x)

SPM-LB-L-ENG (1x)SPM-LB-L (1x)SPM-LB-R (2x)

install guide

SPM-LB-R

Hardware kit includes:

(27) ⁄”-18 x 1”

(27) ⁄” Flat washers

(27) ⁄”

Lock washers

(27) ⁄”-18

Hex nuts

spm-55x / SpM-42x

Watch this Short Installation Video

Scan the QR Code or ﬁnd it on VorpEnergy.com

http://www.vorpenergy.com/resources/training-videos/

Components list

SPM-C-35 (2x)

SPM-A-55 (2x) or SPM-A-42 (2x)

HOSE CLAMPS (4x)

SPM-A-32 (2x)

SPM-LB-L-ENG (1x)SPM-LB-L (1x)SPM-LB-R (2x)

install guide

SPM-LB-L

SPM-LB-ENG

Hardware kit includes:

(27) ⁄”-18 x 1”

(27) ⁄” Flat washers

(27) ⁄”

Lock washers

(27) ⁄”-18

Hex nuts

spm-55x / SpM-42x

Watch this Short Installation Video

Scan the QR Code or ﬁnd it on VorpEnergy.com

http://www.vorpenergy.com/resources/training-videos/

Components list

SPM-C-35 (2x)

SPM-A-55 (2x) or SPM-A-42 (2x)

HOSE CLAMPS (4x)

SPM-A-32 (2x)

SPM-LB-L-ENG (1x)SPM-LB-L (1x)SPM-LB-R (2x)

install guide

SXA200

SXA300

SXA400

ASSEMBLY

Installation Guide

Solar Panel Mounting
