Installation Guide
SXU24V
STEP 1
1. Check to ensure that all breakers are in the “OFF” position
before connecting any wires to the terminal blocks.
Mounting
the Enclosure
The SXU and SXA enclosures are designed
enclosure utilizes an integrated mounting
plate on the back.
AL
WIRING

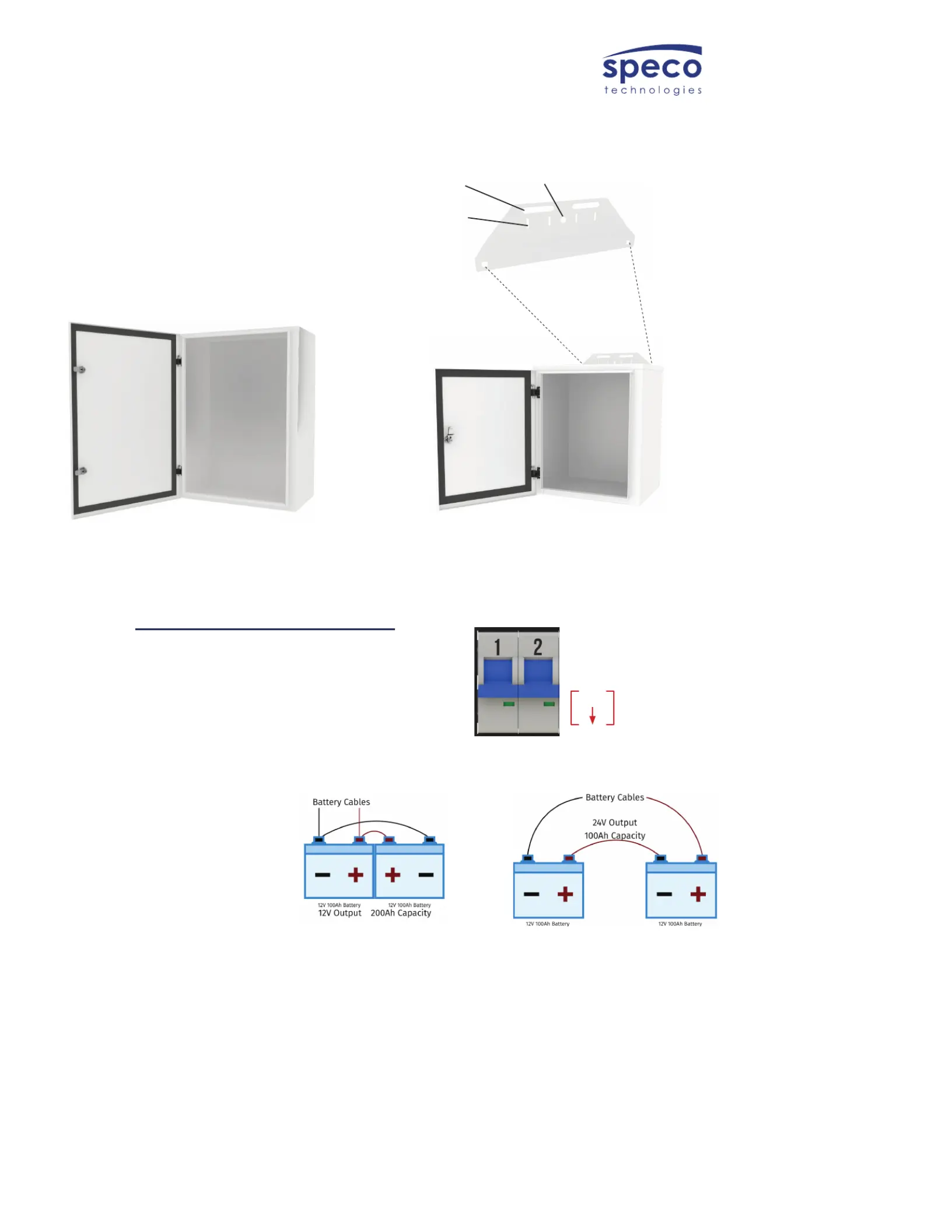

Parallel Connection Series Connection
*In cold climates SLA batteries require insulation
STEP 2
1. If your part # ends with -12V,
connect your two 12 Volt
Batteries in parallel to keep
the battery voltage at 12VDC.
2. If your part # ends with -24V,
connect your two 12 Volt Bat-
teries in series to create
a 24VDC Battery Bank.
U-bolt
Hose Clamp
Lag Bolt
e
OFF
®
Installation Guide
SXU24V
STEP 3
1. Ensure that the Voltage Selector Switch is set to the appropriate Voltage.
(Located to the Left of AC Input on Battery Charger)
2. 115 VAC (90 to 132 VAC) *Slide Switch Towards Faceplate
3. 230 VAC (180 to 264 VAC) *Slide Switch Away From Faceplate
STEP 4
1. Passing through the provided cable
gland, connect the AC power to the
AC Battery Charger using the provided
butt connectors.
STEP 5
1. Connect 12/24 VDC Equipment to the
green phoenix terminal on the faceplate.
2. Easily mount your PoE and IP equipment
onto the DIN rails.
STEP 6
1. Power up the system by rst powering the Battery Charger
with the ON/OFF switch located behind the AC Input.
2. Then ip Breaker 1 followed by Breaker 2.
CONNECT
WITH US
TODAY
1.800.645.5516
SPECOTECH.COM

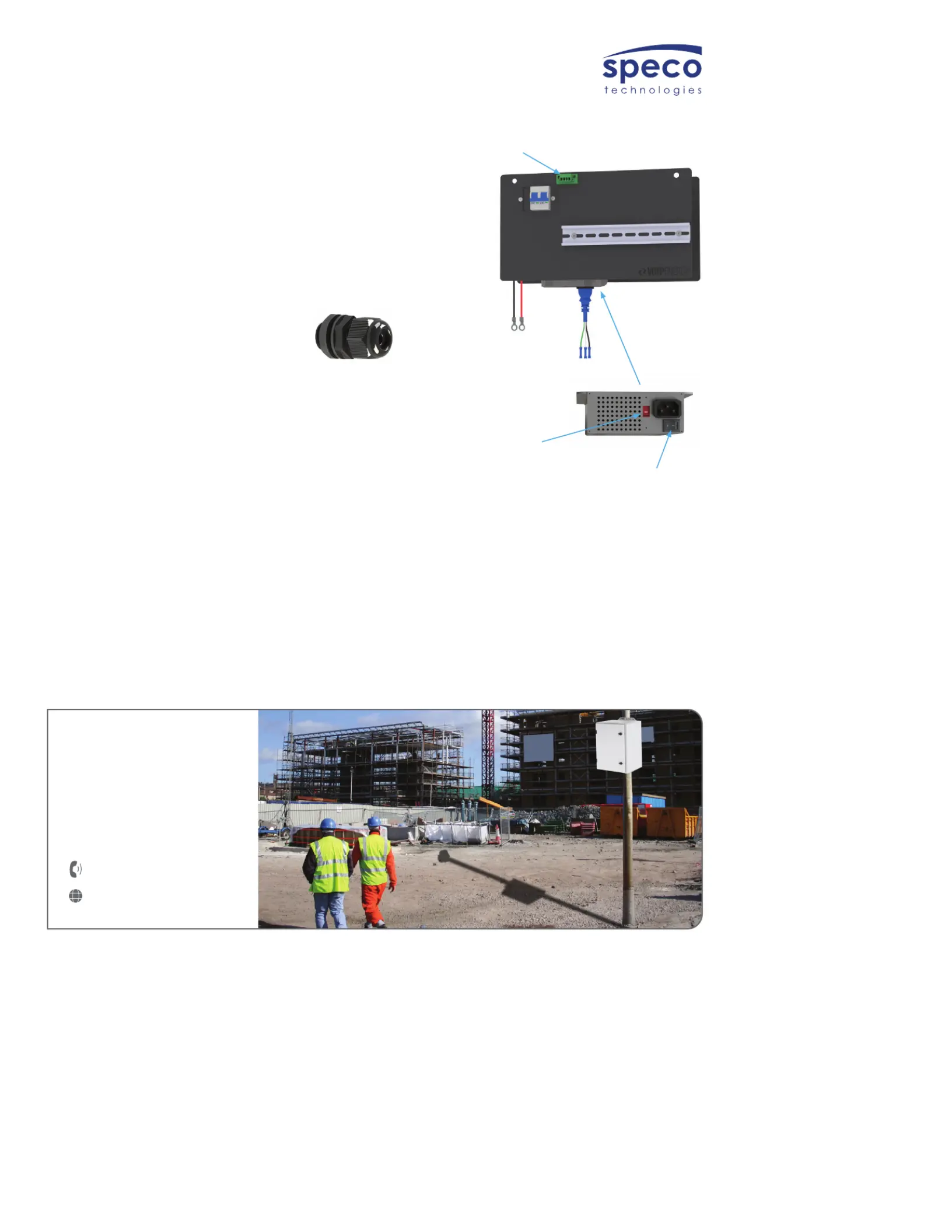

Voltage Selector Switch
ON/OFF Switch
AC Input
Phoenix Terminal
Cable Gland
