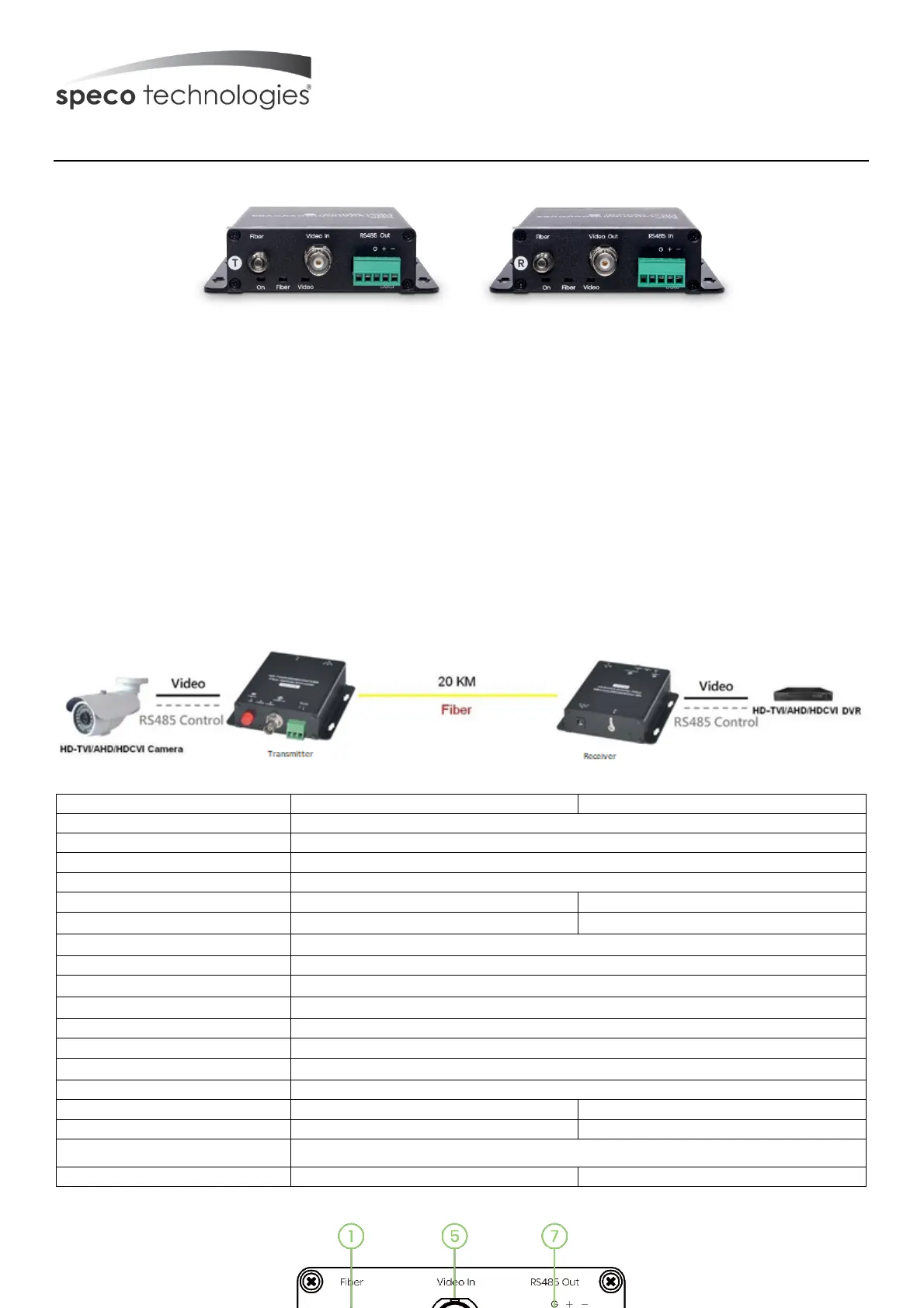

TVIFBR HD-TVI/AHD/HD-CVI/CVBS Fiber Extender with RS485

Thank you for your purchase of the TVIFBR fiber optical extender for analog cameras. This unit is designed to offer an affordable

way to send analog cameras signals up to 12 miles! The TVIFBR is based on digital uncompressed HD composite video

technologies which convert the camera signal to optical.

FEATURES

• Digital and non-compression coding technology

• Supports HD- - TVI/AHD/HD CVI/CVBS and RS485 data signal over fiber optical cable

• Single signal mode: 12.42 miles (20KM), Multiple signal mode: 1.24 miles (2KM)

• Also send up to 330’ (100M) via RG59/6U cable.

• Supports resolutions up to 5MP.

• Built-in 4kV surge protection in terminal blocks.

INSTALLATION VIEW

SPECIFICATIONS

Transmitter

Receiver

Video Format

HD-TVI/AHD/HDCVI/CVBS

Video Connector

BNC 50Mhz 75ohm

Fiber Port

FC, single fiber, single/multimode mode

Distance

0- 12.42 miles (20KM)

Input/output Wavelength

TX1310, RX 1550nm

TX ,RX1550 1310nm

Input/output Level

＞500mVP-P

1Vp-p

TX Input Return Loss

＞15dB

Input/output Impedance

75Ω

Rx up/down time

＜0.8ns

Rx Max. Jitter

＜0.2UI

Video Capture Resolution

10 bits

Baud Rate

1200-9600bps

BER

＜10-9

Operation Mode

Half Duplex

Power

DC5V 1A (included)

Power Consumption

≤5W

Temperature

Operation: -4 to 167°F, Storage: -40 to 851 °F, Humidity: up to 95%

Weight

0.4 lbs

UNIT VIEW

No.

Interface/ Indication

Description

Fiber FC connector

To connect a single mode fiber cable

On LED

To indicate the status of power

Fiber LED

To Indicate the connecting status of fiber port

Video LED

To indicate the connecting status of BNC port

Video In ut /O

To connect a RG59/ 6U coaxial cable

Data LED

To indicate the connecting status of RS485

Terminal Blocks

To connect a RS485 controllable device

No.

Interface/ Indication

Description

Power Jack

To connect a DC5V 1A power adapter

Grounding

To connect a wire to the earth

LED Indicators:

On: Power on

Fiber: linking

Video: input source detected

Cable & Transmission Distance：

We recommend using high quality FC Single – Mode Fiber optic cable. The transmission distance will be affected by

different quality Cameras, DVRs and BNC connectors, cables, installation…etc.

Speco Technologies is constantly developing and improving products.

We reserve the right to modify product design and specifications without notice and without incurring any obligation.

Speco Technologies . 200 New Highway . Amityville . NY . 11701 . www.specotech.com

Rev. 03/10/21
