Quick-Start Guide

To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.

Manual Revision: July 6, 2023

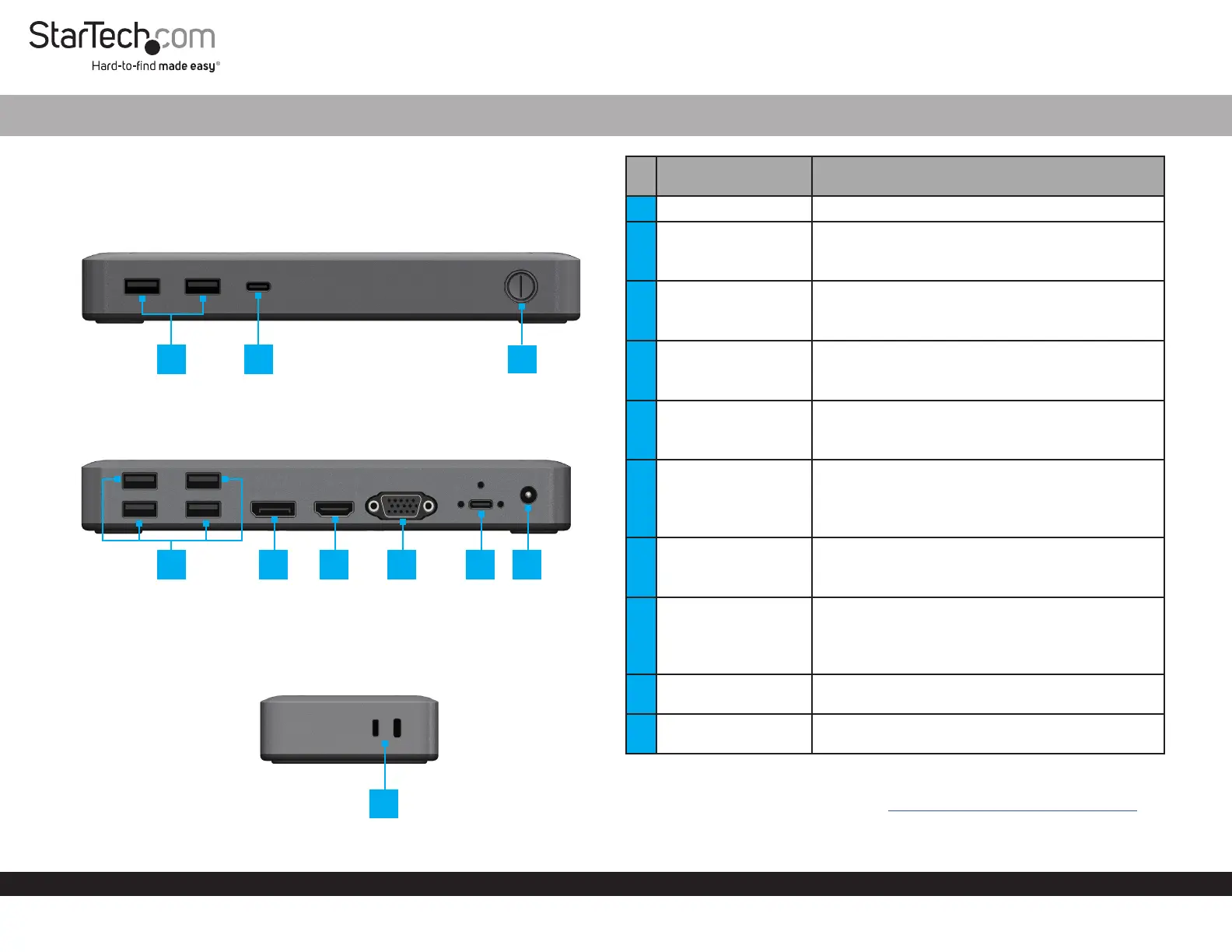

Product Diagrams (101N-USBC-DOCK)

Diagram 1

Diagram 2

Diagram 3

USB-C Dual Monitor Dock - DP & HDMI or VGA - 6x USB-A / 1 x USB-C - 85W PD

Port/LED/Connector Function

1Power Button • Press Power Button to Power the Dock On and O

2USB-C Data Port

• Connect USB-C Peripherals

• USB 3.2 Gen 1 (5Gbps)

• Supports up to 10W (5V / 2A) of power

3USB-A Data Ports

• Connect USB-A Peripherals

• USB 3.2 Gen 1 (5Gbps)

• Supports up to 4.5W (5V / 0.9A) of power

4USB-A Data Ports

• Connect USB-A Peripherals

• USB 2.0 (480Mbps)

• Supports up to 2.5W (5V / 0.5A) of power

5DisplayPort Output

Port

• Connect a DisplayPort Display Device

• Up to 4K (4096x2160) 60Hz

• Via DisplayPort 1.4 DP Alt Mode

6HDMI Output Port

• Connect an HDMI Display Device

• HDMI 2.0b HDR

• Up to 4K (4096x2160) 60Hz

• Via DisplayPort 1.4 DP Alt Mode

7VGA Output Port

• Connect a VGA Display Device

• Up to 1080p (1920x1200/1920x1080) 60Hz

• Via DisplayPort 1.4 DP Alt Mode

8USB-C Host Port

(Screw Locking)

• Connect to a USB-C Port on a Host Computer

• USB 3.2 Gen 1 (5Gbps)

• DP Alt Mode Enabled

• Power Delivery 3.0 Specication

9DC 20V Port • Connect the Dock to a Power Source, using the

Universal Power Adapter

10 Lock Slots

(Standard & Nano)

• Connect a K-Slot Style Locking Device to deter the

theft of the Docking Station

Requirements

For the latest requirements, please visit www.StarTech.com/101N-USBC-DOCK

• Host Computer with DP Alt Mode Enabled USB-C Port

46 7 8 9

5. To connect up to two displays:

Connect an HDMI cable from an HDMI enabled display device, to the HDMI Output

Port on the Dock.

and/or

Connect a DisplayPort cable from a DisplayPort enabled display device, to the

DisplayPort Output Port on the Dock.

and/or

Connect a VGA cable from a VGA enabled display device, to the VGA Output Port

on the Dock.

Notes:

• The USB-C port must support DP Alt Mode in order to output Host Computer’s

video.

• Video performance, such as resolution and refresh rate depends upon the Host

Computer’s video controller. Please verify the specications of your computer

6. Connect the to the located on the Dock.Power Adapter DC 20V Port

7. Connect the included Power Cable from the to an AC Electrical Power Adapter

Outlet.

Package Contents

• USB-C Docking Station x1

• 3.3 ft (1 m) USB-C Host Cable (Screw Locking) x1

• Power Adapter x1

• Quick-Start Guide x1

Installation

1. Connect the included from the located on the USB-C Host Cable USB-C Host Port

Dock, to a on the . The DP Alt Mode Enabled USB-C Port Host Computer Host

Computer will automatically detect and install the dock.

2. When connecting USB-A peripheral devices, connect a USB-A cable from the USB

peripheral devices to the on the Dock.USB-A Data Ports

Note: The USB port will output whatever bus power the peripheral requires, up to

4.5W.

3. When connecting a USB-C peripheral device, connect a USB-C cable from the USB

peripheral device to the on the Dock.USB-C Data Ports

Note: The USB port will output whatever bus power the peripheral requires, up to

10W.

4. To anchor the dock with a K-Slot Style Locking Device:

Connect a K-Slot Style Locking Device to the Regular or Nano Lock Slots located on

the Dock.

Note: Follow the manufacturer’s instructions when installing your Locking Device.I

Regulatory Compliance

FCC - Part 15

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC

Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will

not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which

can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or

more of the following measures:

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including

interference that may cause undesired operation. Changes or modications not expressly approved by StarTech.com could

void the user’s authority to operate the equipment.

Industry Canada Statement

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe [B] est conforme à la norme NMB-003 du Canada.

CAN ICES-3 (B)/NMB-3(B)

This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two

conditions:

(1) This device may not cause interference, and (2) This device must accept any interference, including interference that may

cause undesired operation of the device.

Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation

est autorisée aux deux conditions suivantes:

(1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique

subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.

Warranty Information

This product is backed by a three-year warranty.

For further information on product warranty terms and conditions, please refer to .

www.startech.com/warranty

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their ocers, directors, employees or agents)

for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of prots, loss

of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the

product. Some states do not allow the exclusion or limitation of incidental or consequential damages. If such laws apply, the

limitations or exclusions contained in this statement may not apply to you.

FR: startech.com/fr

DE: startech.com/de

ES: startech.com/es

NL: startech.com/nl

IT: startech.com/it

JP: startech.com/jp

StarTech.com Ltd.

45 Artisans Crescent

London, Ontario

N5V 5E9

Canada

StarTech.com Ltd.

Unit B, Pinnacle 15

Gowerton Road

Brackmills,

Northampton

NN4 7BW

United Kingdom

StarTech.com LLP

4490 South Hamilton

Road

Groveport, Ohio

43125

U.S.A.

StarTech.com Ltd.

Siriusdreef 17-27

2132 WT Hoofddorp

The Netherlands
