Quick-Start Guide

To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.

Manual Revision: December 8, 2023 4:28 PM

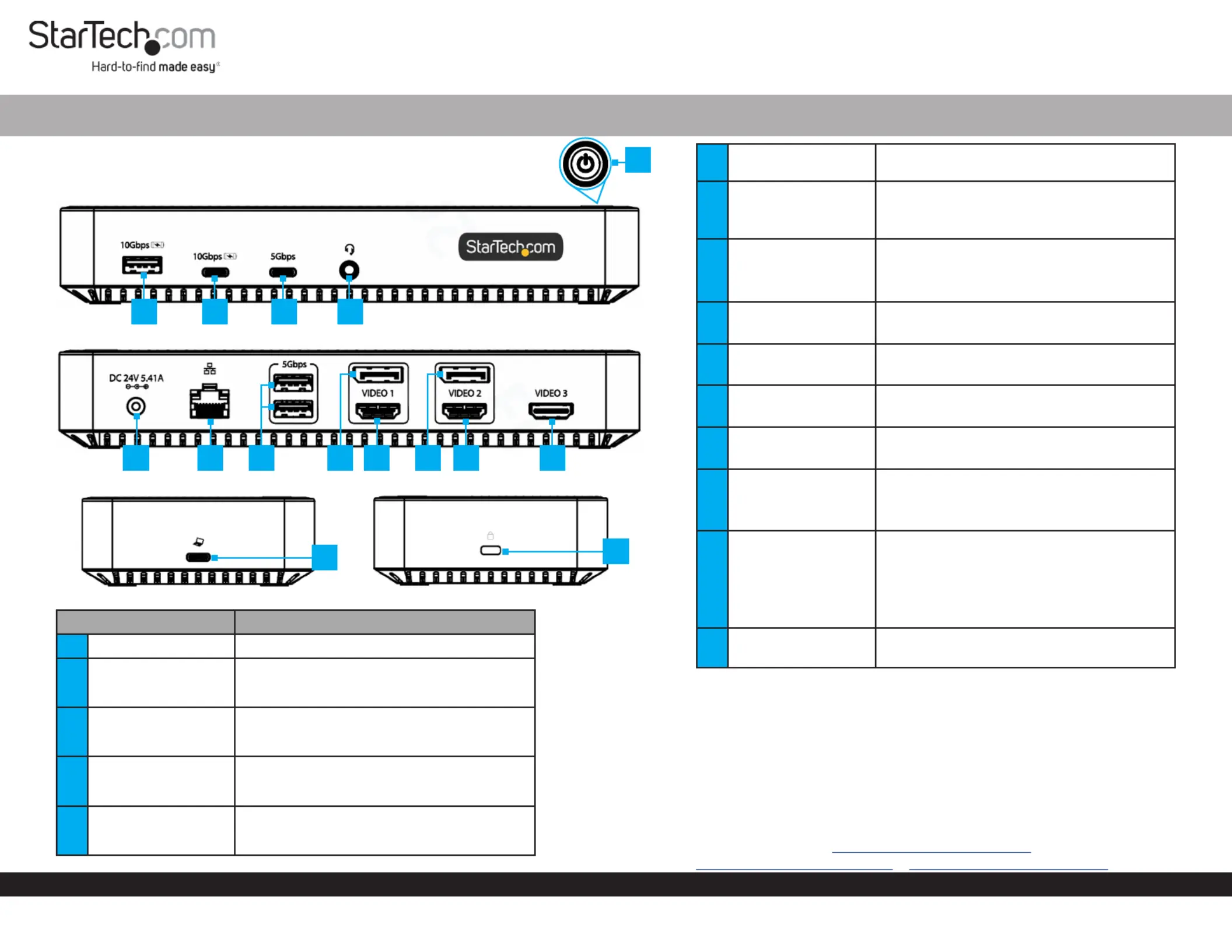

Product Diagram

(Side A)

USB-C Triple Monitor Dock 2x DP/3x HDMI - 2x USB-C/3x USB-A - GbE - 100W PD

4 5

Component Function

1Power Button

• Press and release to toggle power for the Dock

USB-A Data/Charge

Port

• Connect and/or charge a USB-A Peripheral

• USB 3.2 Gen 2 (10 Gbps)

• Supports BC 1.2 5 V/1.5 A (7.5 W) charging

USB-C Data/Charge

Port

• Connect and/or charge a USB-C Peripheral

• USB 3.2 Gen 2 (10 Gbps)

• Supports BC 1.2 5V/1.5A (7.5 W) charging

4USB-C Data Port

• Connect and/or charge a USB-C Peripheral

• USB 3.2 Gen 1 (5 Gbps)

• Supports up to 5 V/0.9 A (4.5 W) of power

53.5mm Audio Port

• Connect an Audio Device

• 4 Position Audio Jack for Headset use

• CTIA/OMTP

10 11 12 13

(Side B)

Product ID

116N-USBC-DOCK / 116E-USBC-DOCK / 116U-USBC-DOCK

(Side C)

6DC 24V Port

• Connect the Dock to a Power Source, using the

Universal Power Adapter

Gigabit Ethernet

Port

• Connect the Dock to a Network Device, using a

Network Cable

• 10/100/1000 Mbps

2x USB-A Data

Ports

• Connect USB-A Peripherals

• USB 3.2 Gen 1 (5 Gbps)

• Supports up to 5 V/0.9 A (4.5 W) of power

Video 1 DisplayPort

Port

• Connect a DisplayPort Display as Video 1

• Up to 4K (4096x2160) 60Hz

10 Video 1 HDMI Port

• Connect an HDMI Display as Video 1

• Up to 4K (4096x2160) 60Hz

Video 2 DisplayPort

Port

• Connect a DisplayPort Display as Video 2

• Up to 4K (4096x2160) 60Hz

12 Video 2 HDMI Port

• Connect an HDMI Display as Video 2

• Up to 4K (4096x2160) 60Hz

13 Video 3 HDMI Port

• Connect an HDMI Display as Video 3

• Up to 4K (4096x2160) 30Hz

• Via DP Alt Mode

14 USB-C Host Port

• Connect to a USB-C Port on a Host Computer

• USB 3.2 Gen 2 (10 Gbps)

• Power Delivery 3.0 Specication

• Capability of charging the Host Computer up to

100W

Lock Slot

(K-Slot)

• Connect a K-Slot Style Locking Device to deter the

theft of the Docking Station

Requirements

• Computer

• DP Alt Mode enabled USB-C Port

• Video support and performance on Video 3, such as resolution, and refresh rate

depend upon the host computer’s video controller. Not all USB-C ports support the

full functionality of the USB-C standard that includes support for DP Alt Mode and USB

Power Delivery. Please verify the specications of the host computer.

For the latest drivers, manuals, product information, technical specications, and declarations of

conformance, please visit: www.StarTech.com/116N-USBC-DOCK,

www.StarTech.com/116E-USBC-DOCK www.StarTech.com/116U-USBC-DOCK or

(Side D)

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-

party companies not related in any way to StarTech.com. Where they occur these references are for illustrative purposes only

and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which

this manual applies by the third-party company in question. StarTech.com hereby acknowledges that all trademarks, registered

trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the

property of their respective holders.

Warranty Information

This product is backed by a 3-year warranty.

For further information on product warranty terms and conditions, please refer to .www.startech.com/warranty

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their ocers, directors, employees or agents)

for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of prots, loss of

business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product.

Some states do not allow the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations

or exclusions contained in this statement may not apply to you.

FR: startech.com/fr

DE: startech.com/de

ES: startech.com/es

NL: startech.com/nl

IT: startech.com/it

JP: startech.com/jp

StarTech.com

Ltd.

45 Artisans Cres

London, Ontario

N5V 5E9

Canada

StarTech.com Ltd.

Unit B, Pinnacle 15

Gowerton Rd,

Brackmills,

Northampton

NN4 7BW

United Kingdom

StarTech.com LLP

4490 South Hamilton

Road

Groveport, Ohio

43125

U.S.A.

StarTech.com Ltd.

Siriusdreef 17-27

2132 WT Hoofddorp,

The Netherlands

Regulatory Compliance

FCC -- Part 15

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC

Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not

occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be

determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the

following measures:

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including

interference that may cause undesired operation. Changes or modications not expressly approved by StarTech.com could void

the user’s authority to operate the equipment.

Industry Canada Statement

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe [B] est conforme à la norme NMB-003 du Canada.

CAN ICES-3 (B)/NMB-3(B)

This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions:

(1) This device may not cause interference, and (2) This device must accept any interference, including interference that may

cause undesired operation of the device.

Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation

est autorisée aux deux conditions suivantes:

(1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi,

même si le brouillage est susceptible d’en compromettre le fonctionnement.

IC Radiation Exposure Statement:

This equipment complies with IC RSS-102 radiation exposure limit set forth for an uncontrolled environment. This equipment

should be installed and operated with minimum distance 20cm between the radiator and your body.

Installation

1. Connect the from an AC outlet, to the Power Adapter DC 24V Port on the dock.

2. Connect a USB Peripheral Device to the on USB-C (USB 3.2 Gen 2) Data/Charge Port

the dock.

3. Connect a USB Peripheral Device to the on USB-A (USB 3.2 Gen 2) Data/Charge Port

the dock.

4. Connect USB Peripheral Devices to the on the USB-A (USB 3.2 Gen 1) Data Ports

dock.

5. Connect an RJ-45 terminated network cable (CAT 5e or better) from your local area

network (e.g. Router, Switch, Modem, etc.) to the on the Dock, Gigabit Ethernet Port

to access your network via a wired LAN connection.

6. Video 1

To connect a display using the or connect the DisplayPort HDMI Video Port,

respective cable from the respective port to the display device.

Note: Only a single display can be connected to either of the Video 1 output

options.

7. Video 2

To connect a display using the or connect the DisplayPort HDMI Video Port,

respective cable from the respective port to the display device.

Note: Only a single display can be connected to either of the Video 2 output

options.

8. Video 3

Connect an HDMI cable from the HDMI enabled display device, to the HDMI Video

Port on the dock.

9. If you have a Windows computer with Internet access, connect the USB-C Cable to

the located on the dock, and to a USB-C port on your host laptop. USB-C Host Port

Your computer will automatically detect the device and install all the required

drivers.

If you’re running a non-Windows operating system or the drivers do not

automatically install, disconnect the dock from your computer, then:

a. Navigate to www.StarTech.com/116N-USBC-DOCK,

www.StarTech.com/116E-USBC-DOCK www.StarTech.com/116U-USBC-DOCK or ,

and click the Drivers/Downloads tab.

b. Under Driver(s), download the Driver Package for your operating system, and

follow the steps outlined in the Installation guide, that’s included in the Driver

Package.

Over Current Protection

To protect your connected devices from power surges, this dock features

Over Current Protection (OCP).

If a high-powered USB Peripheral, such as a USB-powered external drive, is connected

to a USB port on the dock, and the USB Peripheral Device attempts to draw more than

1.8 A of power, the dock will prevent this device from consistently connecting to the

Computer. This may result in the Computer re-recognizing the device continuously,

until the device is disconnected.

For more information on OCP, including details on how to resolve issues with device

detection, please visit , www.StarTech.com/116N-USBC-DOCK

www.StarTech.com/116E-USBC-DOCK www.StarTech.com/116U-USBC-DOCK or , and

select the tab.Product Support

Package Contents

• USB-C Docking Station x 1

• 3 ft (1m) USB-C Host Cable x 1

• Universal Power Adapter x 1

• Quick-Start Guide x 1
