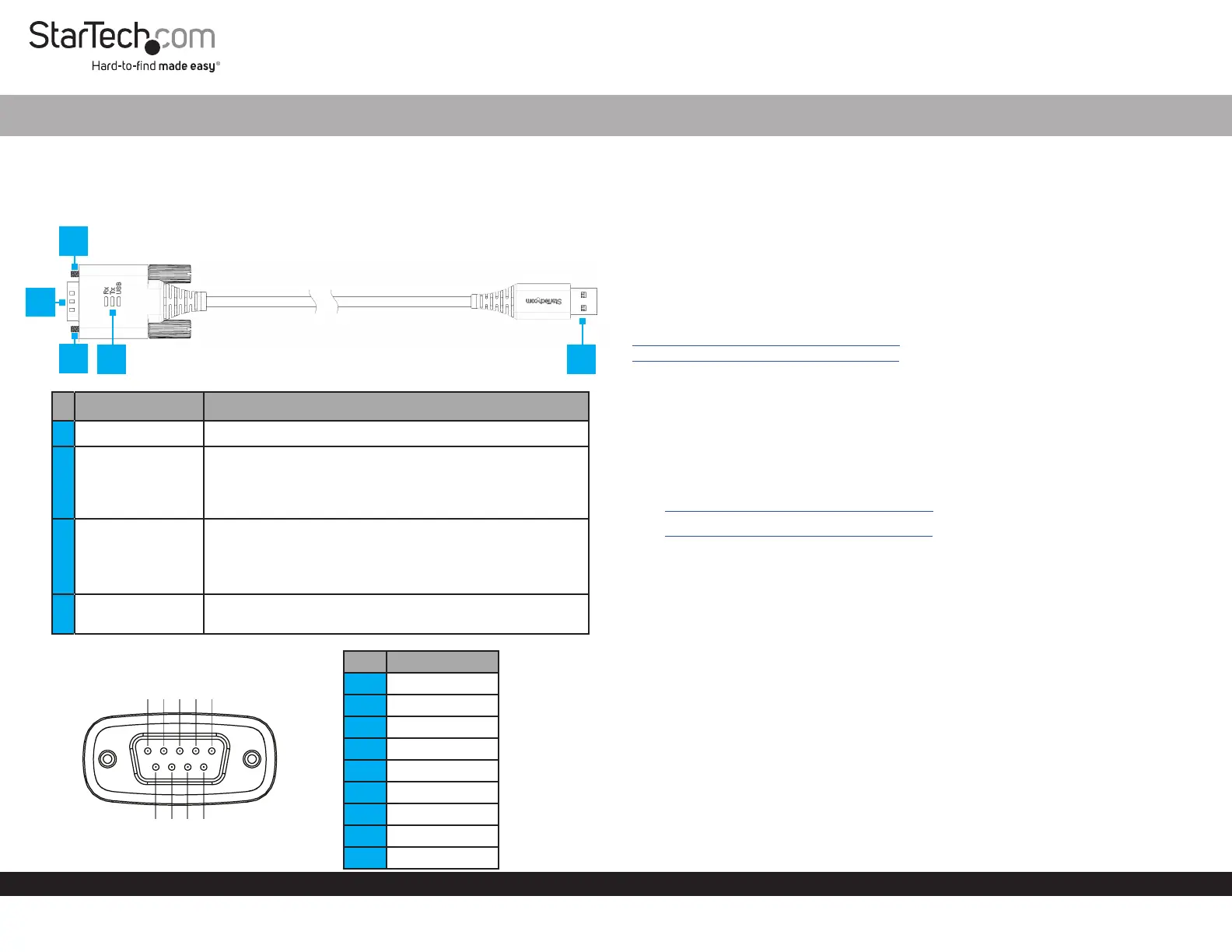

Quick-Start Guide

To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.

Manual Revision: October 2, 2023

Product ID

1P3FFCB-USB-SERIAL

1P10FFC-USB-SERIAL

Component Function

1 Serial Port DB9 • Connect to a Serial Peripheral Device

2 DB9 Screws

• Used to secure the Serial DB9 Port to the Serial

Peripheral Device

• The included DB9 Nuts can be installed for

compatibility with Serial Peripheral Devices or Cables

3 LED Indicators

• Data Receive LED: Flashes Green to indicate activity

• Data Transmit LED: Flashes Yellow to indicate activity

• USB LED: Solid Blue to indicate driver has been

installed, and USB connection enumerated

4 USB Type A Port

• Connect the USB to Serial Adapter to an available

USB-A Port

Pinout Diagram

FTDI USB-A to RS232 DB9 Serial Adapter Cable - M/M - ESD Level 4

Package Contents

• USB to Serial Adapter x 1

• DB9 Nuts x 2

• Quick-Start Guide x 1

Requirements

• USB Type-A Enabled Computer x 1

For the latest drivers/software, product information, technical specications, and

declarations of conformance, please visit:

www.StarTech.com/1P3FFCB-USB-SERIAL

www.StarTech.com/1P10FFC-USB-SERIAL

Installation

Install the Driver and Adapter

Note: Drivers should install automatically in most supported operating systems. If

they do not, please complete the following steps:

1. Navigate to:

b. www.StarTech.com/1P3FFCB-USB-SERIAL

c. www.StarTech.com/1P10FFC-USB-SERIAL

4. Click the Drivers/Downloads tab.

5. Under Driver(s), download the appropriate Driver Package for your operating

system.

Windows

1. Right-click the downloaded le and extract the contents with Extract All.

2. Browse the Windows folder and run the Setup le.

3. Follow the on-screen instructions to complete the installation.

4. Connect the USB to Serial Adapter to an available USB-A port.

macOS

1. Double-click the downloaded le.

2. Open the folder that matches your macOS Version and run the Installer le inside

the folder.

3. Follow the on-screen instructions to complete the installation.

4. Connect the USB to Serial Adapter to an available USB-A port.

Pin RS-232

1 DCD

2 RXD

3 TXD

4 DTR

5 GND

6 DSR

7 RTS

8 CTS

9 RI

DB-9 Male

54321

9876

Produkt Specifikationer

Mærke:	StarTech.com
Kategori:	Kabler til pc'er og periferiudstyr
Model:	1P10FFC-USB-SERIAL
Bredde:	34 mm
Højde:	16 mm
Vægt:	120 g
Produktfarve:	Sort
Pakkevægt:	130 g
Pakkedybde:	1 mm
Pakkebredde:	220 mm
Pakkehøjde:	200 mm
Opbevaringstemperatur (T-T):	-40 - 80 °C
Relativ luftfugtighed ved drift (H-H):	0 - 95 %
Driftstemperatur (T-T):	-40 - 80 °C
Kabellængde:	3 m
Understøttede Mac-operativsystemer:	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Understøttede Linux-operativsystemer:	Ja
Hovedkassen højde (udvendigt):	290 mm
Hovedkassens længde (udvendigt):	355 mm
Hovedkassens bredde (udvendigt):	570 mm
Produkter pr. hovedkasse (udvendigt):	100 stk
Understøttede operativsystemer til servere:	Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019, Windows Server 2022
Stik 1:	USB Type-A
Stik 2:	DB-9
Stik 1 køn:	Hanstik
Stik 2 køn:	Hanstik
Baud hastighed:	921.6 Kbit/s
Data-bits:	7, 8
Stop bits:	1, 2
Stik 1 formfaktor:	Lige
Stik 2 formfaktor:	Lige
Chipsæt:	FTDI - FT232R
FIFO (først ind, først ud):	256 B
Paritetsbit:	Even, Mark, N,Odd, Space
