Quick-Start Guide

To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.

Manual Revision: October 4, 2023

Product ID

1P3FFCNB-USB-SERIAL

1P10FFCN-USB-SERIAL

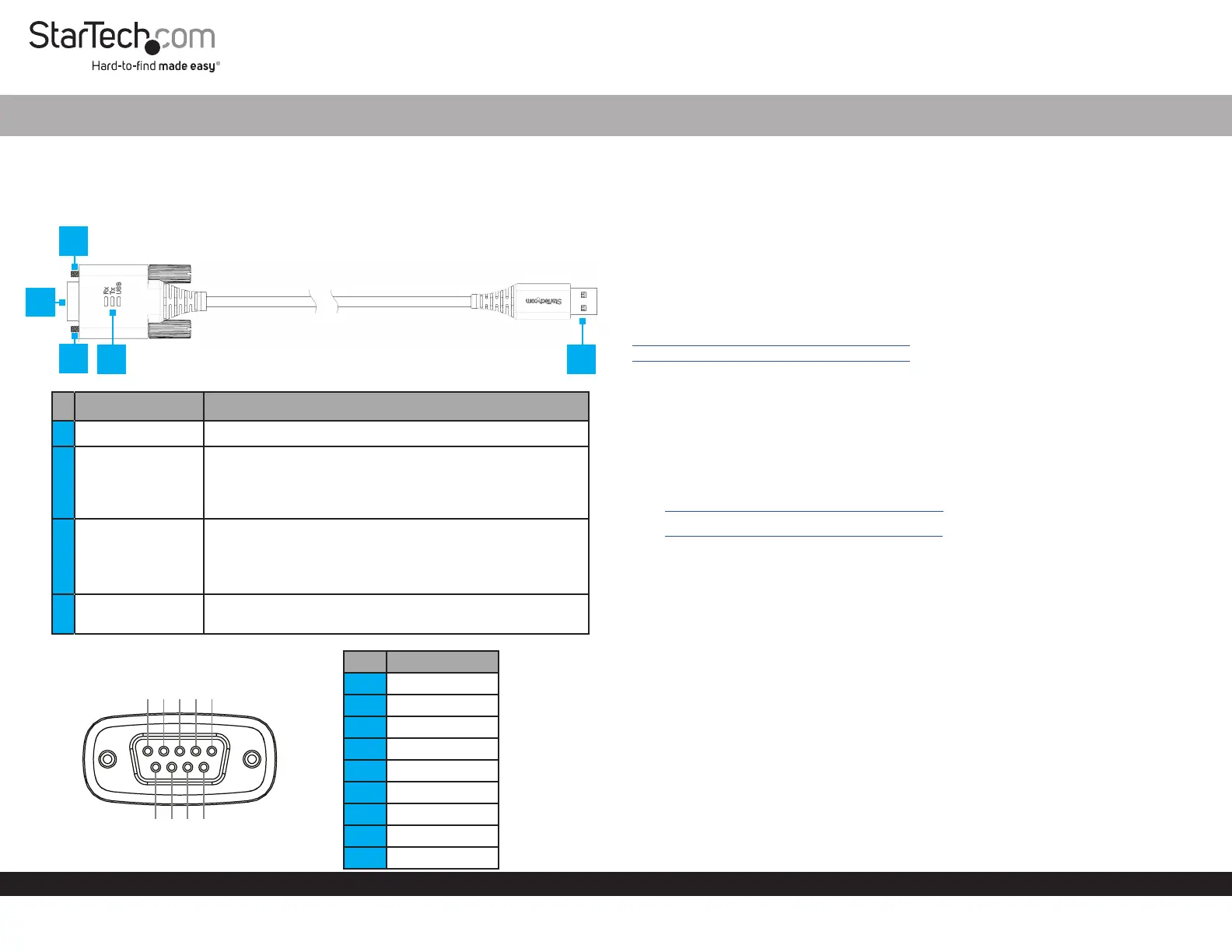

Component Function

1 Serial Port DB9 • Connect to a Serial Peripheral Device

2 DB9 Screws

• Used to secure the Serial DB9 Port to the Serial

Peripheral Device

• The included DB9 Nuts can be installed for

compatibility with Serial Peripheral Devices or Cables

3 LED Indicators

• Data Receive LED: Flashes Green to indicate activity

• Data Transmit LED: Flashes Yellow to indicate activity

• USB LED: Solid Blue to indicate driver has been

installed, and USB connection enumerated

4 USB Type A Port

• Connect the USB to Serial Adapter to an available

USB-A Port

Pinout Diagram

FTDI USB-A to RS232 DB9 Null Modem Serial Adapter Cable - M/F

Package Contents

• USB to Serial Adapter x 1

• DB9 Nuts x 2

• Quick-Start Guide x 1

Requirements

• USB Type-A Enabled Computer x 1

For the latest drivers/software, product information, technical specications, and

declarations of conformance, please visit:

www.StarTech.com/1P3FFCNB-USB-SERIAL

www.StarTech.com/1P10FFCN-USB-SERIAL

Installation

Install the Driver and Adapter

Note: Drivers should install automatically in most supported operating systems. If

they do not, please complete the following steps:

1. Navigate to:

b. www.StarTech.com/1P3FFCNB-USB-SERIAL

c. www.StarTech.com/1P10FFCN-USB-SERIAL

4. Click the Drivers/Downloads tab.

5. Under Driver(s), download the appropriate Driver Package for your operating

system.

Windows

1. Right-click the downloaded le and extract the contents with Extract All.

2. Browse the Windows folder and run the Setup le.

3. Follow the on-screen instructions to complete the installation.

4. Connect the USB to Serial Adapter to an available USB-A port.

macOS

1. Double-click the downloaded le.

2. Open the folder that matches your macOS Version and run the Installer le inside

the folder.

3. Follow the on-screen instructions to complete the installation.

4. Connect the USB to Serial Adapter to an available USB-A port.

Pin RS-232

1 DCD

2 TXD

3 RXD

4 DSR

5 GND

6 DTR

7 CTS

8 RTS

9 RI

DB-9 Female

12345

6789

Regulatory Compliance

FCC - Part 15

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC

Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will

not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which

can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or

more of the following measures:

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including

interference that may cause undesired operation. Changes or modications not expressly approved by StarTech.com could

void the user’s authority to operate the equipment.

Industry Canada Statement

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe [B] est conforme à la norme NMB-003 du Canada.

CAN ICES-3 (B)/NMB-3(B)

This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two

conditions:

(1) This device may not cause interference, and (2) This device must accept any interference, including interference that may

cause undesired operation of the device.

Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation

est autorisée aux deux conditions suivantes:

(1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique

subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.

Warranty Information

This product is backed by a two-year warranty.

For further information on product warranty terms and conditions, please refer to www.startech.com/warranty.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their ocers, directors, employees or agents)

for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of prots, loss

of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the

product. Some states do not allow the exclusion or limitation of incidental or consequential damages. If such laws apply, the

limitations or exclusions contained in this statement may not apply to you.

FR: startech.com/fr

DE: startech.com/de

ES: startech.com/es

NL: startech.com/nl

IT: startech.com/it

JP: startech.com/jp

StarTech.com Ltd.

45 Artisans Crescent

London, Ontario

N5V 5E9

Canada

StarTech.com Ltd.

Unit B, Pinnacle 15

Gowerton Road

Brackmills,

Northampton

NN4 7BW

United Kingdom

StarTech.com LLP

4490 South Hamilton

Road

Groveport, Ohio

43125

U.S.A.

StarTech.com Ltd.

Siriusdreef 17-27

2132 WT Hoofddorp

The Netherlands

Verify Driver Installation

Windows

1. Navigate to the Device Manager.

2. Under Ports (COM & LPT), right-click COM Port and click Properties.

3. Conrm that the Driver is installed and working as expected.

macOS

1. Navigate to System Information.

2. Expand the Hardware section and click USB.

3. Conrm that COM Port appears in the list.
