Quick-Start Guide

To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.

Manual Revision: March 5, 2020 12:26 PM

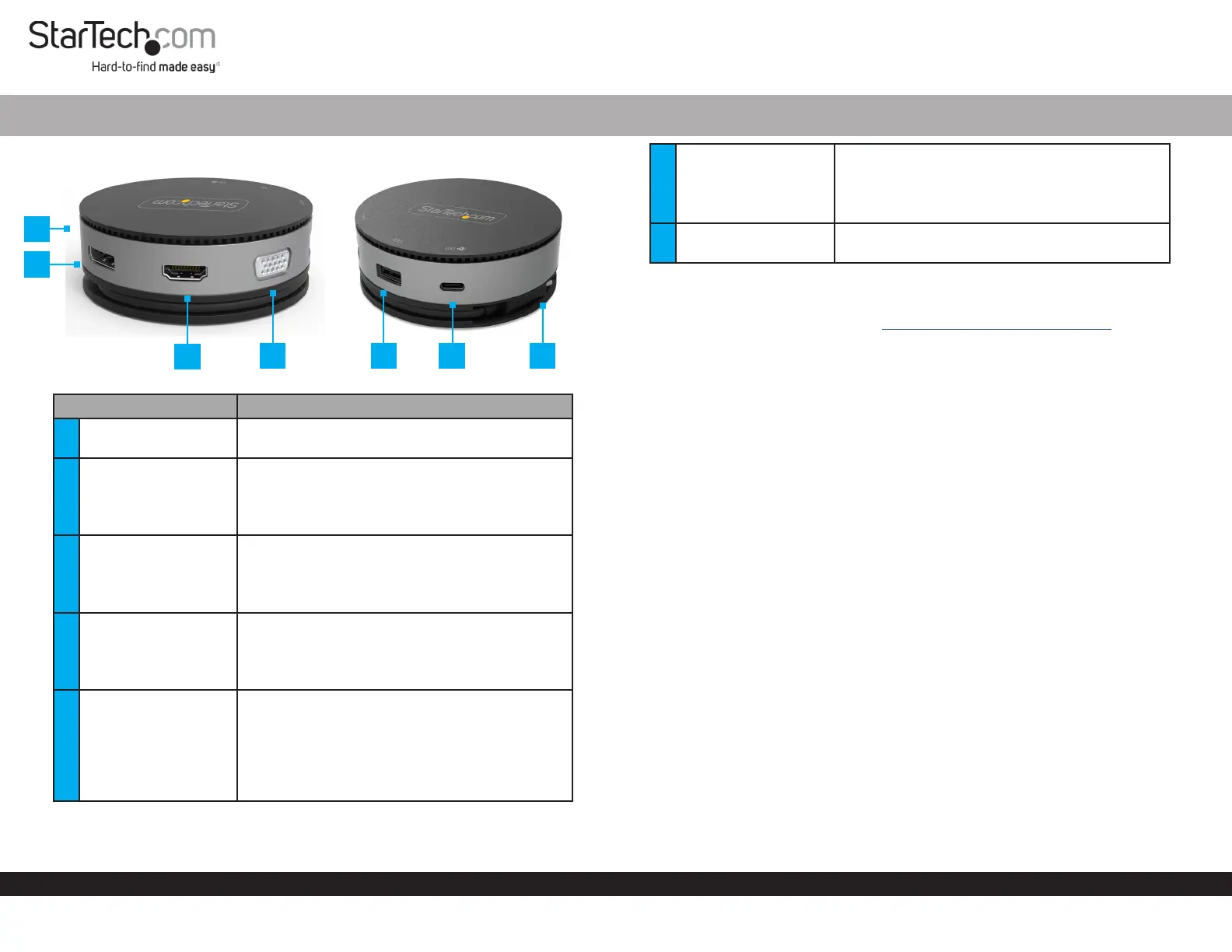

Product Diagram (DKT31CHDVCM)

Component Function

1 RJ45 Port

• Used to connect the Docking Station to a

Network Device.

2 DisplayPort Port

• Used to connect a Display Device to the

Docking Station.

Note: The connected Host Laptop must be

enabled with DP ALT Mode.

3 HDMI Port

• Used to connect a Display Device to the

Docking Station.

Note: The connected Host Laptop must be

enabled with DP ALT Mode.

4 VGA Port

• Used to connect a Display Device to the

Docking Station.

Note: The connected Host Laptop must be

enabled with DP ALT Mode.

5 USB-A Port x 2

• Used to connect a USB Peripheral Device to

the Docking Station.

• Allows you to fast-charge devices that comply

with USB Battery Charging specication

Revision 1.2.

• Supports up to 5V at 1.5A, 7.5W charging.

USB-C™ 10Gbps Single Monitor Mini Docking Station with HDMI, DP, or VGA | PD | 24cm Wrap Around Cable

6 USB-C Port

• Used to connect a USB Peripheral Device to

the Docking Station.

• Supports up to 5V at 1.5A, 7.5W charging.

• Can also be used for PD Pass Through.

7 USB-C Connector

• Used to connect the Docking Station to a

Host Laptop.

Requirements

For the latest requirements, please visit www.startech.com/DKT31CHDVCM

Host

• A Laptop with USB-C or Thunderbolt 3 port and with DP ALT Mode enabled x 1

Display

• VGA, HDMI, or DisplayPort compatible x 1

Cables (depends on conguration)

• VGA Cable x 1

• HDMI Cable x 1

• DisplayPort Cable x 1

• CAT5e/6 Cable x 1

Powering the Docking Station

1. Unravel the Wrap Around Cable from the Docking Station Housing, by holding

onto the USB-C Connector and gently pulling the cable outward, away from the

Docking Station Housing.

2. Connect the USB-C Connector to a USB-C or Thunderbolt 3 port on the Host

Laptop.

Connecting a Display to the Docking Station

When more than one Display is connected to the Docking Station, the rst Display

that was connected will be the active Display until the Display is disconnected from

the Docking Station. The priority when you have three monitors connected to the

Docking Station is as follows: DisplayPort -> HDMI -> VGA.

DisplayPort

• Connect a DisplayPort Cable (sold separately) to the DisplayPort Port on the

Docking Station and the other end to a DisplayPort port on a Display Device.

HDMI

4 5 6 7

Produkt Specifikationer

Mærke:	StarTech.com
Kategori:	Andet computertilbehør
Model:	DKT31CHDVCM
Bredde:	90 mm
Dybde:	90 mm
Højde:	32.5 mm
Vægt:	201 g
Produktfarve:	Black, Grey
Pakkevægt:	278 g
Pakkedybde:	145 mm
Pakkebredde:	133 mm
Pakkehøjde:	37 mm
Opbevaringstemperatur (T-T):	-20 - 70 °C
Relativ luftfugtighed ved drift (H-H):	0 - 95 %
Antal HDMI-porte:	1
Ethernet LAN-porte (RJ-45):	1
Ethernet LAN:	Ja
Driftstemperatur (T-T):	0 - 50 °C
Ethernet LAN-datahastigheder:	10,100,1000 Mbit/s
Hurtig start guide:	Ja
Forbindelsesteknologi:	Ledningsført
Netværksstandarder:	IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u
Kabellængde:	0.254 m
Indbygget kortlæser:	Ingen
Harmoniseret systemkode (HS):	84733020
Understøttede mobile operativsystemer:	Android, iOS
Bæredygtighedscertifikater:	CE, RoHS
Mikrofonindgang:	Ingen
Understøttede Windows-operativsystemer:	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Understøttede Mac-operativsystemer:	Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 13.0 Ventura
Andre understøttede operativsystemer:	ChromeOS
Hovedkassen højde (udvendigt):	255 mm
Hovedkassens længde (udvendigt):	555 mm
Hovedkassens bredde (udvendigt):	300 mm
Værtsgrænseflade:	USB 3.2 Gen 2 (3.1 Gen 2) Type-C
Antal DisplayPorts:	1
Antal VGA-porte (D-sub):	1
Produkter pr. hovedkasse (udvendigt):	48 stk
Maksimal digital opløsning:	3840 x 2160 pixel
Dataoverførselshastighed:	10 Gbit/sek.
USB strømforsyning:	Ja
Antal USB 3.2 Gen 2 (3.1 Gen 2) type-C-porte:	1
Antal USB 3.2 Gen 2 (3.1 Gen 2) type-A-porte:	2
USB strømforsyning op til:	75 W
Chipsæt:	Genesys Logic GL9510, Genesys Logic GL3590, Realtek RTL8153, Realtek RTD2142S
