Instruction Manual

DE: Bedienungsanleitung - de.startech.com

FR: Guide de l'utilisateur - fr.startech.com

ES: Guía del usuario - es.startech.com

I T: Guida per l'uso - it.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

P T: Guia do usuário - pt.startech.com

Manual Revision: 06/17/2016

For the most up-to-date information, please visit: www.startech.com

ET90110SC2 / ET90110ST2

10/100 Mbps Ethernet to Multi Mode SC/ST Fiber Media Converter - 2 km

Packaging Contents

• 1 x Fiber Media Converter

• 1 x Universal Power Adapter

• 4 x Power Adapter Plug (NA/ UK/ EU/AU)

• 1 x Grounding Screw

• 1 x Instruction Manual

System Requirements

• 10BASE-T or 100Base-TX compatible Ethernet network equipment

• RJ45 terminated UTP Cat5 or better Ethernet cable

• 100BASE-FX compatible ber optic network equipment

• SC or ST terminated multi mode ber optic cable

• Available AC electrical outlet

Installation

1. Make sure the DIP switches are set appropriately for your network

conguration (see “DIP Switch Settings“ section for details).

2. Connect the ber optic network cable from a computer/switch/

media converter to the SC/ST connector on the media converter.

NOTE: When connecting the ber cable, make sure to connect the

Tx (transmit) terminal on one end, with the Rx (receive) terminal on

the other end.

3. Connect a UTP Ethernet cable, from a computer/switch to the

RJ45 jack on the media converter.

4. Connect the power adapter to the media converter.

5. The following example illustrates the connection scheme when

connecting from a 10BASE-T or 100BASE-TX Ethernet port of

a hub/switch to a 100BASE-FX port of another hub/switch,

through the ber media converter:

6. The following example illustrates the connection scheme when

connecting from a 100BASE-TX Ethernet port on a hub/switch

to a 100BASE-TX Ethernet Network Interface Card (NIC) in a

computer through the ber media converter:

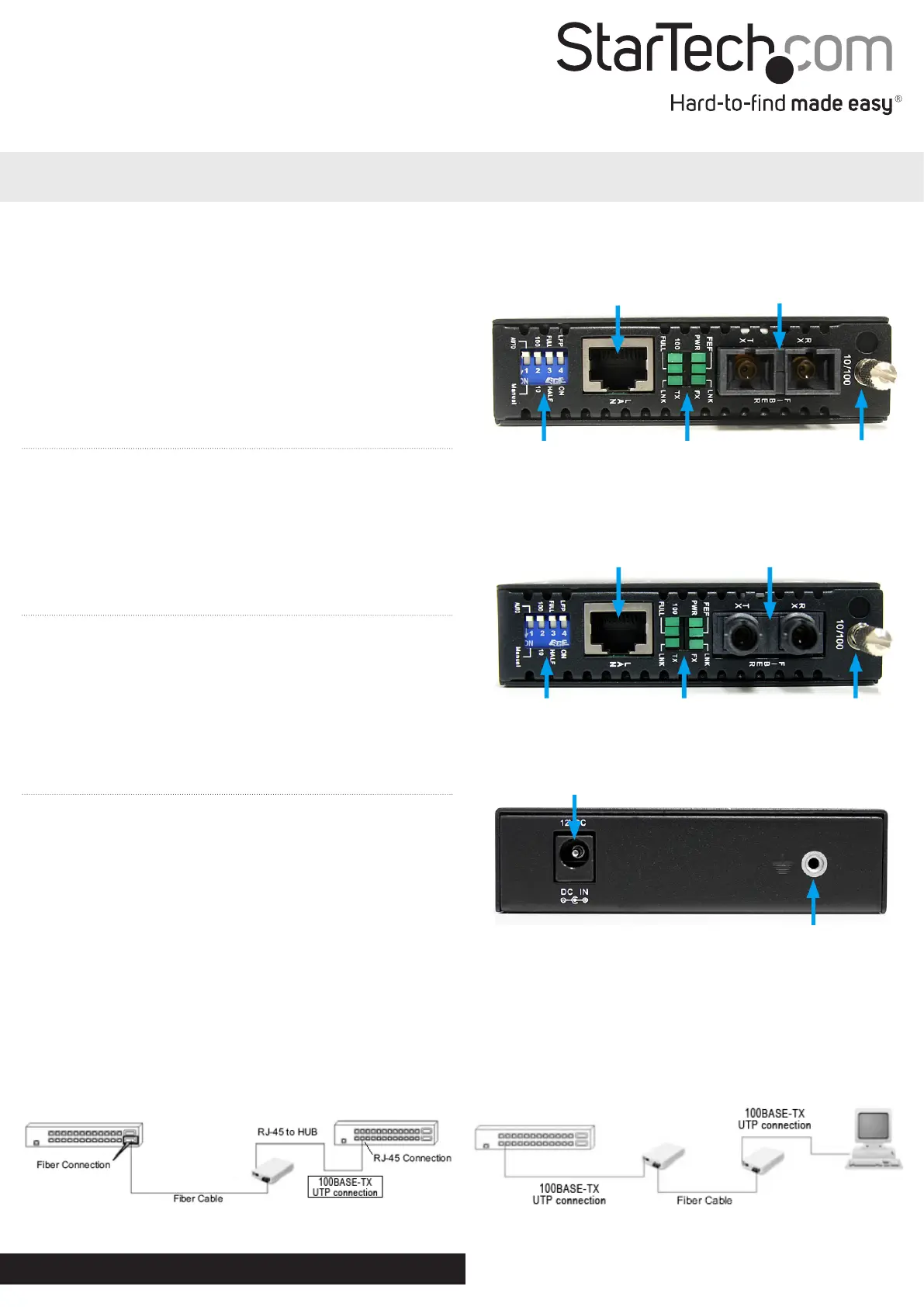

ET90110SC2

ET90110ST2

*actual product may vary from photos

RJ45 Ethernet

connector

SC Duplex ber

connector

DIP Switches LED indicators Card Release

Thumbscrew

DIP Switches LED indicators Card Release

Thumbscrew

RJ45 Ethernet

connector

SC Duplex ber

connector

DC Power connector

Ground Point (optional)

Rear View (ET90110SC2/ET90110ST2)

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions,

may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference

to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to StarTech.com. Where they

occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual

applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges that all trademarks,

registered trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the property of their respective holders.

Technical Support

StarTech.com’s lifetime technical support is an integral part of our commitment to provide industry-leading solutions. If you ever need help with your product, visit www.startech.com/support and

access our comprehensive selection of online tools, documentation, and downloads.

For the latest drivers/software, please visit www.startech.com/downloads

Warranty Information

This product is backed by a two year warranty.

In addition, StarTech.com warrants its products against defects in materials and workmanship for the periods noted, following the initial date of purchase. During this period, the products may be

returned for repair, or replacement with equivalent products at our discretion. The warranty covers parts and labor costs only. StarTech.com does not warrant its products from defects or damages

arising from misuse, abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their ocers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental,

consequential, or otherwise), loss of prots, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. Some states do not

allow the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations or exclusions contained in this statement may not apply to you.

DIP Switch Settings

LFP:

Link Fault Pass-through will pass a link failure to the Ethernet side,

if a link failure is encountered on the ber side and vice versa.

Otherwise, the Ethernet side will continue to show no link failures,

even if the ber side has no link. (OFF = Not active, On = Active)

Full/ Half:

Ethernet Duplex mode will be congured for Full or Half.

10/ 100:

Set the Ethernet side link speed to 10 or 100 Mbps.

Auto/Manual:

Auto negotiate Link Speed and Duplex mode or manually set via

DIP switches.

LED Status

LED Name Status Description

PWR Power

ON Unit is powered

OFF Unit is not powered

FEF Far End Fault

ON Link Fault on far end device

OFF No Link Faults

LNK

(FX)

Fiber Link

ON Fiber link is detected

OFF Fiber link is not detected

Blink Data transmission

100

Ethernet Link

Speed

ON 100 Mbps

OFF 10 Mbps

Full

Ethernet

Duplex Mode

ON Full Duplex Mode

OFF Half Duplex Mode

LNK

(TX)

Ethernet Link

ON Ethernet Link detected

OFF Ethernet Link not detected

Blink Data Transmission

Produkt Specifikationer

Mærke:	StarTech.com
Kategori:	Ikke kategoriseret
Model:	ET90110SC2
Bredde:	87 mm
Dybde:	153 mm
Højde:	24 mm
Vægt:	600 g
Brugervejledning:	Ja
Produktfarve:	Sort
Pakkevægt:	779 g
Pakkedybde:	233 mm
Pakkebredde:	190 mm
Pakkehøjde:	77 mm
Ethernet LAN-porte (RJ-45):	1
Husmateriale:	Stål
Dimensioner (BxDxH):	95 x 160 x 20 mm
Forbindelsesteknologi:	Ledningsført
Certificering:	CE, FCC
Netværksstandarder:	IEEE 802.3, IEEE 802.3u
Udgangsspænding:	12 V
Udgangsstrøm:	1.6 A
AC-adapter inkluderet:	Ja
Harmoniseret systemkode (HS):	85176990
Bæredygtighedscertifikater:	RoHS
Indgangsspænding:	100 - 240 V
Intern:	Ingen
Maksimal dataoverførselshastighed:	200 Mbit/s
Fiber optisk strømstik:	SC
Maksimal overførselsafstand:	2000 m
Bølgelængde:	1310 nm
Fuld duplex:	Ja
Strøm over Ethernet (PoE):	Ingen
Strømstiktype:	Type M
Auto MDI/MDI-X:	Ja
Fiberkanal porte:	1
Fibertilstandsstruktur:	Multitilstand
Duplex system:	Full, Half
Bølgelængde-division multipleksing (WDM):	Ingen
