Quick-Start Guide

To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.

Manual Revision: June 19, 2020

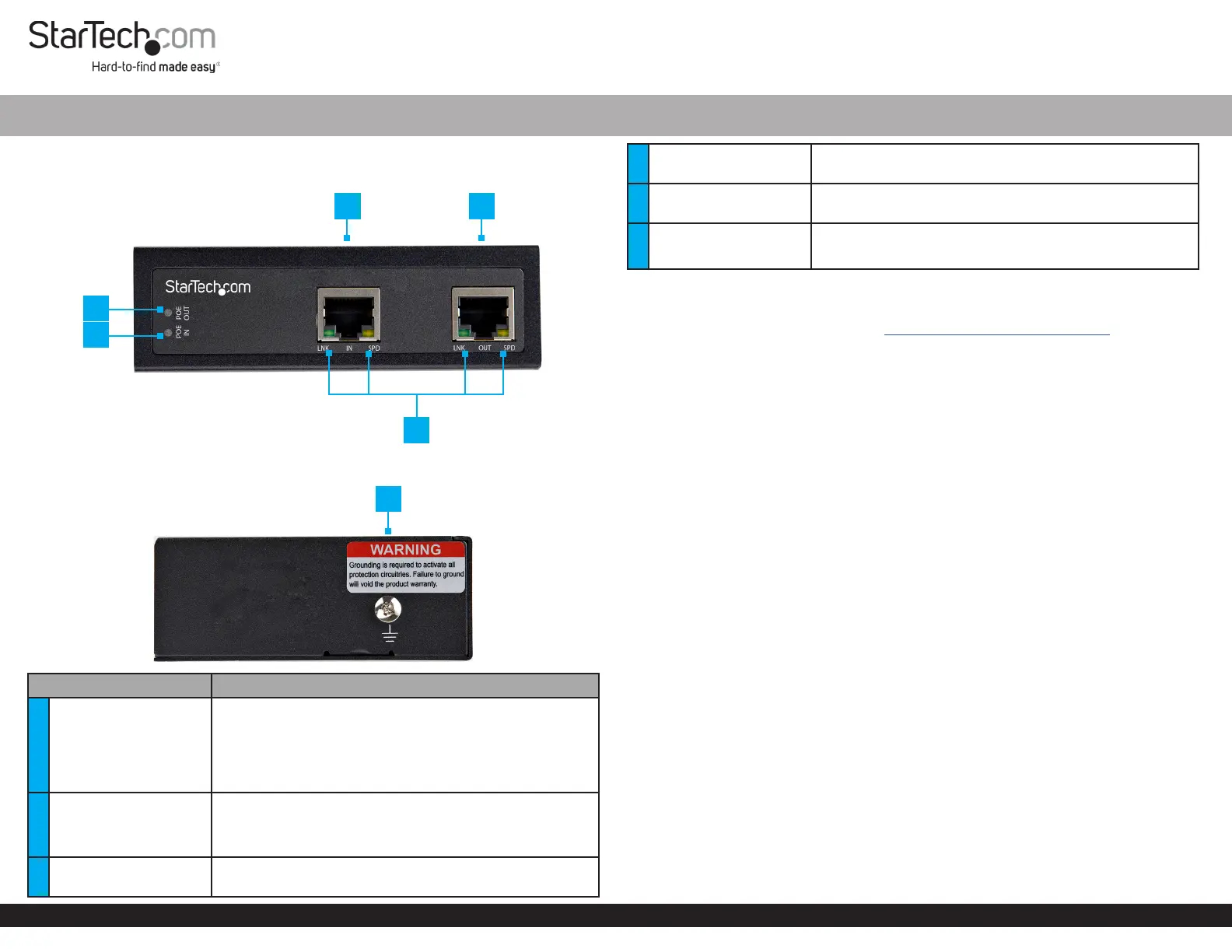

Product Diagram (POEEXT1G60W)

Front View

Side View

Component Function

1PoE Output LED

Indicator

• Indicates the current status of the PoE Powered

Device (PD)

• ON - is activated and Power Source Equipment (PSE)

PD is detected

• OFF - is not detecting PSE PD

2PoE Input LED

Indicator

• Indicates the current status of the PSE

• ON - Power is detected

• O - Power is not detected

3PoE Input Port • PSE PoE Extender provides power and data to the

through a Network Cable

60W Industrial-Grade Hardened 802.3af/at PoE Extender 10/100/1000 Mbps

4PoE Output Port • The power and data is forwarded to the through a PD

Network Cable

5PoE Input and Output

LED Indicators

• Indicates the connection status and network speeds of

the and the PoE Input Port PoE Output Port

6Grounding Screw • Attach a to protect Grounding Wire Network

Equipment

Requirements

For the latest requirements, please visit .www.startech.com/POEEXT1G60W

• Power Source Equipment x 1

• Powered Device x 1

• RJ45 Terminated UTP/STP Cat 5e (or better) Network Cable (sold separately) x 2

• Earth Ground Connection x 1

• Ground Wire x 1

• (Optional) #2 Phillips Head Screwdriver x 1

• (Optional) Screws for Wall Mounting x 2

Installation

Grounding the PoE Extender

1. Using the loosen the on the Phillips Head Screwdriver Grounding Screw PoE

Extender.

2. Attach the to the . Grounding Wire Grounding Screw

3. Tighten the .Grounding Screw

4. Connect the other end of the to the .Grounding Wire Earth Ground Connection

Connecting the PoE Extender to an Existing PoE Connection

1. Connect a to the on a and to the Network Cable Output Port PSE Device PoE

Input Port PoE Extender on the .

2. Connect a to the on the and to the Network Cable PoE Output Port PoE Extender

Input Port PD on the .

Cascade PoE Extenders

1. Connect a to the on a and to the Network Cable Output Port PSE Device PoE

Input Port PoE Extender on the .

2. Connect a to the on the and to the Network Cable PoE Output Port PoE Extender

PoE Input Port PoE Extender on the next .

3 4

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC

rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated

in a commercial environment. This equipment generates, uses and can radiate radio frequency energy and, if not installed

and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of

this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the

interference at his own expense.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not

cause harmful interference, and (2) this device must accept any interference received, including interference that may cause

undesired operation.

Changes or modications not expressly approved by StarTech.com could void the user’s authority to operate the equipment.

Industry Canada Statement

This Class A digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe [A] est conforme à la norme NMB-003 du Canada.

CAN ICES-3 (A)/NMB-3(A)

This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions:

(1) This device may not cause interference, and (2) This device must accept any interference, including interference that may

cause undesired operation of the device.

Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation

est autorisée aux deux conditions suivantes:

(1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi,

même si le brouillage est susceptible d’en compromettre le fonctionnement.

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-

party companies not related in any way to StarTech.com. Where they occur these references are for illustrative purposes only

and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which

this manual applies by the third-party company in question. StarTech.com hereby acknowledges that all trademarks, registered

trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the

property of their respective holders.

PHILLIPS® is a registered trademark of Phillips Screw Company in the United States or other countries.

Warranty Information

This product is backed by a two-year warranty.

For further information on product warranty terms and conditions, please refer to .www.startech.com/warranty

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their ocers, directors, employees or

agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of prots,

loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the

product. Some states do not allow the exclusion or limitation of incidental or consequential damages. If such laws apply, the

limitations or exclusions contained in this statement may not apply to you.

Safety Measures

• If product has an exposed circuit board, do not touch the product under power.

Mesures de sécurité

• Si l’un des circuits imprimés du produit est visible, ne pas touchez le produit lorsqu’il est sous tension.

安全対策

• 製品に露出した状態の回路基盤が含まれる場合、電源が入っている状態で製品に触らないでください。

Misure di sicurezza

• Se il prodotto p2-ha un circuito stampato visibile, non toccare il prodotto quando è acceso.

Säkerhetsåtgärder

• Rör aldrig vid enheter med oskyddade kretskort när strömmen är påslagen.

FR: startech.com/fr

DE: startech.com/de

ES: startech.com/es

NL: startech.com/nl

IT: startech.com/it

JP: startech.com/jp

StarTech.com Ltd.

45 Artisans Cres

London, Ontario

N5V 5E9

Canada

StarTech.com Ltd.

Unit B, Pinnacle 15

Gowerton Rd,

Brackmills

Northampton

NN4 7BW

United Kingdom

StarTech.com LLP

2500 Creekside

Parkwy

Lockbourne, Ohio

43137

U.S.A.

Operation

PoE Input and Output LED Indicators

LED Type/

Color Status Indication

LNK/Green On • Connection established

O • No connection established

Flashing • Data transmission detected

SPD/Amber On • 1000 Mbps link speed detected

O • 100 Mbps link speed detected

3. Repeat step 3 until a total of 4 are connected.PoE Extenders

4. Connect a to the on the last and to Network Cable PoE Output Port PoE Extender

the on the .Input Port PD

(Optional) Mounting the PoE Extender

Wall Mounting

1. Align the holes in the with the holes in the back of the Wall Mount Brackets PoE

Extender.

2. Insert two through each and into the Phillips Head Screws Wall Mount Bracket PoE

Extender.

3. Tighten the using a (sold Phillips Head Screws Phillips Head Screwdriver

separately).

Note: Be careful not to over-tighten the .Screws

4. Insert two (sold separately) through the and into the Screws Wall Mount Brackets

Mounting Surface.

5. Tighten the using the appropriate .Screws Screwdriver

DIN Rail Mounting

1. Align the holes in the with the holes in the back of the DIN Rail Bracket PoE

Extender.

2. Insert three through the and into the Phillips Head Screws DIN Rail Bracket PoE

Extender.

3. Tighten the using a .Phillips Head Screws Phillips Head Screwdriver

Note: Be careful not to over-tighten the .Screws

4. Hang the top of the (the section with the two metal clips) onto a DIN Rail Bracket

Top Hat DIN Rail style .

5. Press the down and forward to lock the bottom section onto the DIN Rail Bracket

DIN Rail.
