Instruction Manual

DE: Bedienungsanleitung - de.startech.com

FR: Guide de l'utilisateur - fr.startech.com

ES: Guía del usuario - es.startech.com

I T: Guida per l'uso - it.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

P T: Guia do usuário - pt.startech.com

Manual Revision: 02/25/2015

For the most up-to-date information, please visit: www.startech.com

Packaging Contents

• 1x Gigabit Power over Ethernet Extender

• 1x Instruction Manual

System Requirements

• RJ45 terminated CAT5 or higher Ethernet cabling (“Solid” UTP cable

recommended)

• 10/100/1000 Mbps compatible Power over Ethernet network and/or

devices (PoE/PoE+)

• PoE devices must comply with IEEE 802.3at or 802.3af standards

Note: Total extension distances can often be shorter due to power

delivery voltage-drop on the connected cables. Maximum distances can

vary based on the quality of the UTP cables and the environment.

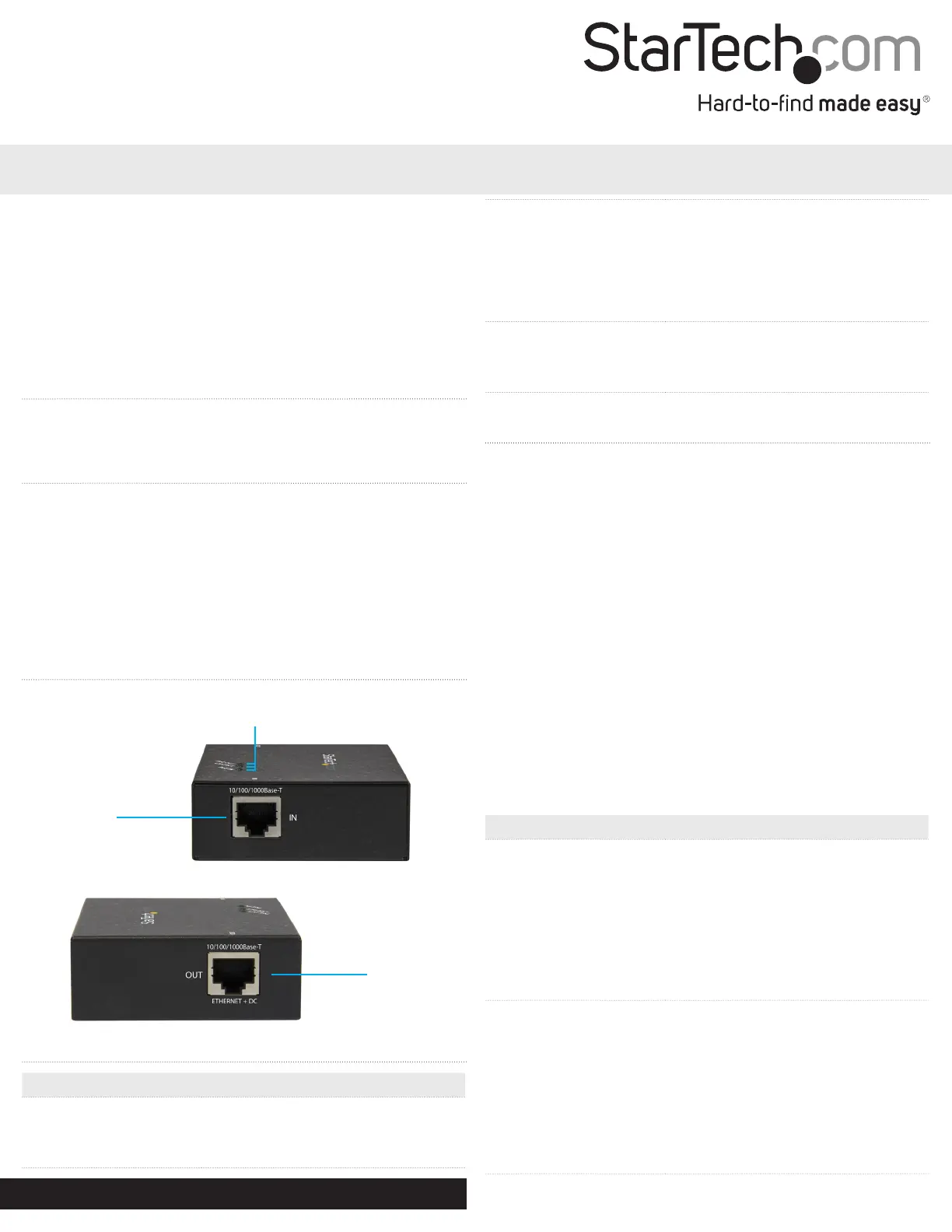

Product Overview

Input Side

Output Side

POEEXT1GAT

Gigabit Power over Ethernet Extender 802.3at / 802.3af - 330ft (100m)

LEDs

10/100/1000

PoE+ RJ45

Input Port

10/100/1000

PoE+ RJ45

Output Port

LED Indicators

LED Indication

PoE IN (Green)

Solid: Indicates that the port is

providing 52-56V (802.3at) / 48V

(802.3af) DC in-line power (PSE is

connected)

Port Function

IN Port (Input)

Connect the PoE IN port from a

802.3at / 802.3af Power Sourcing

Equipment (PSE) device through CAT5

or higher Ethernet cabling:

• PoE injector

• PoE injector hub

• PoE switch

• Another POEEXT1GAT in a daisy

chain conguration

OUT Port (Output)

Connect the PoE OUT port to a 802.3at

/ 802.3af PoE powered device (PD)

through CAT5 or higher Ethernet

cabling:

• PoE camera

• PoE wireless access point

• PoE splitter

• Another POEEXT1GAT in a daisy

chain conguration

Installation

The PoE Extender supports 10Mbps, 100Mbps and 1000Mbps network

speeds and will automatically detect the speed of the incoming

connection.

Before installation, check your network infrastructure. If there are any

IEEE 802.3at / 802.3af devices that require power, the PoE Extender

can provide power and data Ethernet connectivity conveniently, and

easily.

The PoE Extender should be installed between the PSE (Power Source

Equipment) and the PD (Powered Device). It is powered by PSE and

forwards the Ethernet data and remaining PoE power to the PD.

The PoE extender does not require an external power supply and

will inject power to the PDs without aecting data transmission

throughput.

Port Connections

There are two RJ45 ports on the PoE Extender. The “IN” port functions

as “PoE (Data and Power) input” and the “OUT” port functions as “PoE

(Data and Power) output”.

LNK/ACT (Green)

Solid: Indicates that a port link is

established (PSE link is detected)

Blinking: Indicates that the PoE

Extender is actively sending or

receiving data over the IN port

(activity)

PoE OUT (Green)

Solid: Indicates that the port is

providing 52-56V (802.3at) / 48V

(802.3af) DC in-line power (PD is

connected)

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against

harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance

with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will

be required to correct the interference at his own expense.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any

interference received, including interference that may cause undesired operation.

Changes or modications not expressly approved by StarTech.com could void the user’s authority to operate the equipment.

Industry Canada Statement

This Class A digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe [A] est conforme à la norme NMB-003 du Canada.

CAN ICES-3 (A)/NMB-3(A)

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s)

to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges that all

trademarks, registered trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the property of their respective holders.

Technical Support

StarTech.com’s lifetime technical support is an integral part of our commitment to provide industry-leading solutions. If you ever need help with your product, visit www.startech.com/support and

access our comprehensive selection of online tools, documentation, and downloads.

For the latest drivers/software, please visit www.startech.com/downloads

Warranty Information

This product is backed by a two year warranty.

In addition, StarTech.com warrants its products against defects in materials and workmanship for the periods noted, following the initial date of purchase. During this period, the products may be

returned for repair, or replacement with equivalent products at our discretion. The warranty covers parts and labor costs only. StarTech.com does not warrant its products from defects or damages

arising from misuse, abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their ocers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental,

consequential, or otherwise), loss of prots, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. Some states do not

allow the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations or exclusions contained in this statement may not apply to you.

Multiple Unit Installation

The PoE Extender supports multiple units in a daisy chain

conguration. They can be connected in series to extend power and

Ethernet data connectivity to your remote PoE powered devices at

longer distances.

1. Using RJ45 cable, connect the “OUT” port on the rst PoE Extender

unit to the “IN” port on the second PoE Extender unit.

2. The “PoE OUT” LED on the rst PoE Extender unit should light up

solid to show it is providing power to the second PoE Extender unit.

3. The “PoE IN” LED on the second PoE Extender unit should also

light up solid to show it is receiving power from the rst PoE

Extender unit.

4. Using RJ45 cable, connect your remote PoE powered device to the

“OUT” port on the second PoE Extender Unit, or connect to a third

PoE Extender unit.

Note: You may daisy chain up to 4 PoE Extender units total to a

maximum of 500m (the 4th unit will supply IEEE 802.3af up to 12W

output).

Single Unit Installation

1. Using RJ45 cable, connect your Power Sourcing Equipment (PSE)

device to the “IN” port on the PoE Extender. The “PoE IN” LED

should light up solid.

2. Using RJ45 cable, connect your PoE Powered Device (PD) to the

“OUT” port on the PoE Extender. The “PoE OUT” LED should light

up solid.

Note: According to the IEEE 802.3at / 802.3af standard, the PoE

Extender will not inject power to the connected RJ45 cable if not

connected to a standard IEEE 802.3at / 802.3af device.

Each PoE Extender unit requires ~3.2 Watts maximum to power

the unit itself. Check the total power consumption of your devices

and the PoE Extender units before setting up in a daisy chain

conguration. If the overall power consumption is overloaded, the

local PSE could shut-down the entire power system.

Each cable segment is limited in 100m using standard RJ45

terminated CAT5 or higher Ethernet cable. Any other non-standard

cable or distances above 100m could result in unstable connections.

Wall-Mounting

The PoE Extender features two mounting holes on the bottom side

of the unit. The mounting holes provide the option to wall-mount

the PoE Extender as desired.

Refer to the diagram below for the maximum supported power

output at each distance.
