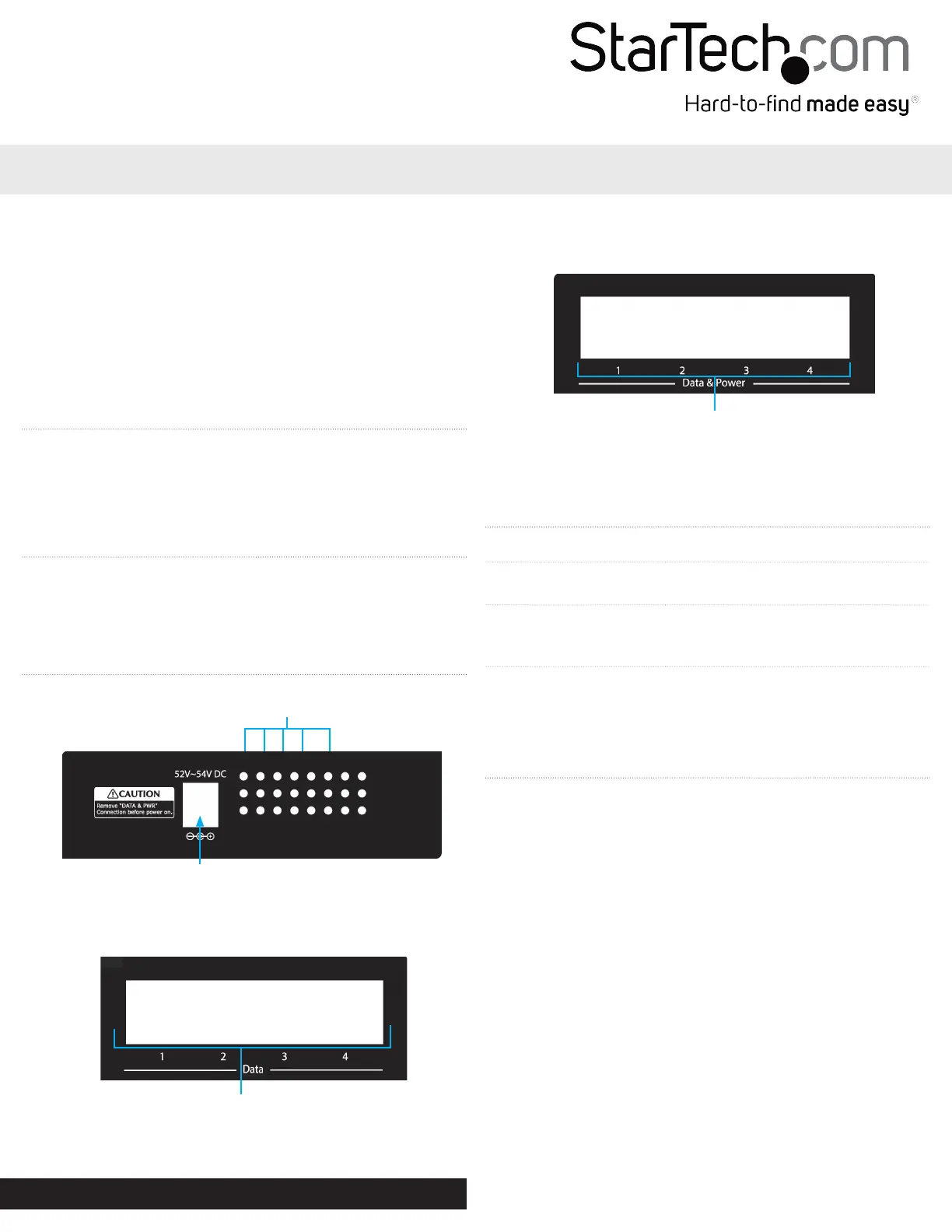

Instruction Manual

DE: Bedienungsanleitung - de.startech.com

FR: Guide de l'utilisateur - fr.startech.com

ES: Guía del usuario - es.startech.com

I T: Guida per l'uso - it.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

P T: Guia do usuário - pt.startech.com

Manual Revision: 01/07/2015

For the most up-to-date information, please visit: www.startech.com

Packaging Contents

• 1x 4 Port Gigabit PoE+ Injector

• 1x Universal Power Adapter

• 3x Power Cords (NA/UK/EU)

• 1x Instruction Manual

System Requirements

• RJ45 terminated Cat5 or higher Ethernet cabling

• 10/100/1000 Mbps compatible Ethernet network

• Available AC electrical outlet

Product Overview

Front View

POEINJ4G

4 Port Gigabit PoE+ Injector Midspan Hub 52V / 30W - 802.3at / 802.3af

*actual product may vary from photos

LEDs

DC Power Input

RJ45 Gigabit Data Ports

RJ45 Gigabit PoE Ports

Side View - Data Only

Side View - PoE (Data and Power)

LED Indicators

LED Indication

Power (Green) Solid: Indicates that the POEINJ4G is

powered on

PoE in-Use(Green)*

Solid: Indicates that the specic

port (1 to 4) has a PoE or PoE+ device

connected

Installation and Operation

The POEINJ4G can be installed between a regular Ethernet switch

and PoE powered devices, and will provide power to the connected

PoE powered devices without impacting regular data transmission

performance.

1. Ensure there are no devices connected to the Data & Power (PoE)

ports prior to connecting the Power Adapter to the POEINJ4G.

2. Connect the provided Power Cord for your region (NA, UK, or EU)

to the provided Power Adapter, then to an AC electrical outlet.

Then connect the Power Adapter to the DC Power Input on the

POEINJ4G. Ensure that the “Power” LED is lit.

3. Using RJ45 Ethernet cable, connect up to four source network

devices (i.e. router, switch, computer, etc.) to the Gigabit Data

Ports on the POEINJ4G.

4. Using RJ45 Ethernet cable, connect up to four PoE (802.3af 15W)

or PoE+ (802.3at 30W) complaint device(s) to the Gigabit PoE

Ports on the POEINJ4G.

*Depending on your application, alternatively you can connect the

Ethernet cable to a PoE splitter device to separate data and power at

the remote end (for use with a non-PoE powered device).

Note: If the input DATA line contains any PoE power, the PoE In-Use

LED for that port may not light up.

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against

harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause

harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any

interference received, including interference that may cause undesired operation. Changes or modications not expressly approved by StarTech.com could void the user’s authority to operate the

equipment.

Industry Canada Statement

This Class A digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe [A] est conforme à la norme NMB-003 du Canada.

CAN ICES-3 (A)/NMB-3(A)

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s)

to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges that all

trademarks, registered trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the property of their respective holders.

Technical Support

StarTech.com’s lifetime technical support is an integral part of our commitment to provide industry-leading solutions. If you ever need help with your product, visit www.startech.com/support and

access our comprehensive selection of online tools, documentation, and downloads.

For the latest drivers/software, please visit www.startech.com/downloads

Warranty Information

This product is backed by a two year warranty.

In addition, StarTech.com warrants its products against defects in materials and workmanship for the periods noted, following the initial date of purchase. During this period, the products may be

returned for repair, or replacement with equivalent products at our discretion. The warranty covers parts and labor costs only. StarTech.com does not warrant its products from defects or damages

arising from misuse, abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their ocers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental,

consequential, or otherwise), loss of prots, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. Some states do not

allow the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations or exclusions contained in this statement may not apply to you.

Typical PoE/PoE+ Injector Application

Notes

• The maximum RJ45 Ethernet cable length used cannot exceed 100

m / 330 ft

• If not connected to PoE IEEE 802.3af or IEEE 802.3at standard

devices, the POEINJ4G will not inject power to the connected

Ethernet cable(s) and/or device(s)

• The POEINJ4G does not oer a “standby” operation mode.

For energy savings, disconnect the Power Adapter from the

POEINJ4G. Without removing the Power Adapter, the POEINJ4G

can still consume power from your power source. It is strongly

recommended you disconnect the Power Adapter if the POEINJ4G
