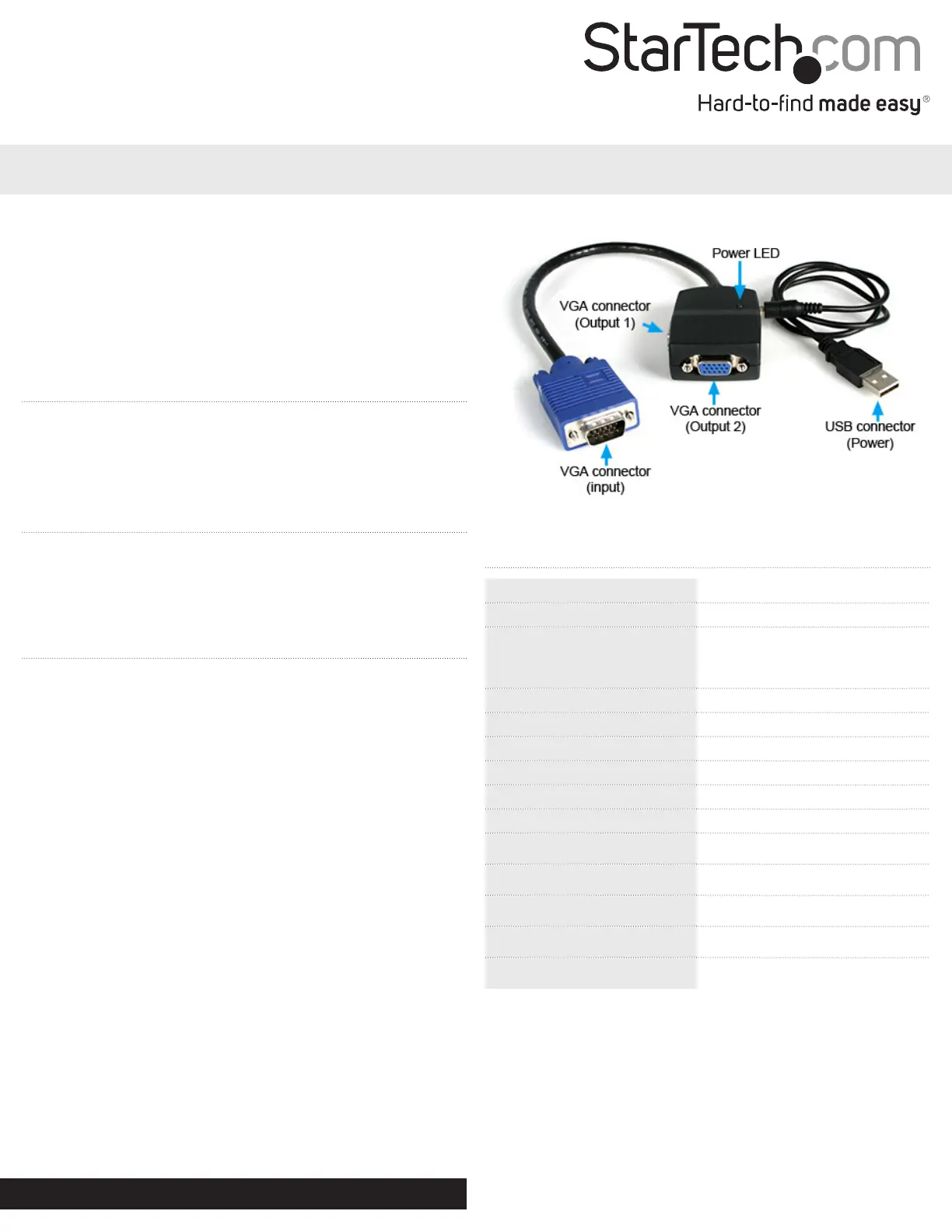

Instruction Manual

DE: Bedienungsanleitung - de.startech.com

FR: Guide de l'utilisateur - fr.startech.com

ES: Guía del usuario - es.startech.com

IT: Guida per l'uso - it.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

PT: Guia do usuário - pt.startech.com

Manual Revision: 05/18/2012

For the most up-to-date information, please visit: www.startech.com

ST122LE

2 Port VGA Video Splitter - 300MHz

*actual product may vary from photos

Packaging Contents

• 1 x ST122LE video splitter

• 1 x USB to DC Power adapter cable

• 1 x Installation Guide

System Requirements

• VGA enabled video source device (i.e. computer, laptop, etc) with

an available USB port

• VGA enabled display devices (i.e. monitor, projector, TV, etc)

Installation

NOTE: Before connecting the splitter to the source computer and

displays, you should ensure that the workspace is congured to

require minimal cable between the computer and splitter, and

between the splitter and the displays.

The maximum resolution you will be able to use for your application

depends on cable quality and length, and how many interference-

causing devices are nearby. You may not be able to use the

maximum resolution at longer distances. For the best possible

performance, keep the length of cable from the source computer to

the splitter to 6 feet (1.8m).

1. Power down the host computer and displays that will be connected.

2. Connect the Video In connector on the splitter to the Video Out

port on the host computer.

3. Using a high-quality HD-15 VGA switchbox male-to-male cable

(StarTech.com part number MXT101MMHQ), connect one end of

the cable to one of the Video Out ports on the splitter. Connect

the opposite end to the VGA input on the display. Repeat this

process for the remaining display.

4. Connect the tip on the power adapter (provided) to the power

port on the video splitter. Connect the remaining end to an

available USB port on the host computer.

Once you have completed the steps above, you can power on the

displays and the host computer. Each will now display the image

from the source computer.

Specications

Video Signal VGA (RGBHV)

Number of Ports 2

Connectors

2x DE-15 VGA female

1x DE-15 VGA male

1x USB type A male

LEDs 1x Power

Maximum Video Resolution 2048 x 1536

Video Bandwidth 300MHz

Maximum Cable Distance 65m / 210ft

DDC Support DDC, DDC2, DDC2B (Port 1 only)

Integrated Cable Length 400mm

Operating Temperature

0°C ~ 70°C (32°F ~ 158°F)

Storage Temperature

-20°C ~ 85°C (-4°F ~ 185°F)

Humidity

0% ~ 95% RH

Dimensions

68.0mm x 46.0mm x 21.5mm

Weight

110 g

Produkt Specifikationer

Mærke:	StarTech.com
Kategori:	Kabler til pc'er og periferiudstyr
Model:	ST122LE
Vægt:	100 g
Brugervejledning:	Ja
Produktfarve:	Sort
Pakkevægt:	235 g
Pakkedybde:	210 mm
Pakkebredde:	145 mm
Pakkehøjde:	40 mm
Opbevaringstemperatur (T-T):	-20 - 85 °C
Relativ luftfugtighed ved drift (H-H):	0 - 95 %
Driftstemperatur (T-T):	0 - 70 °C
Maksimal opløsning:	2048 x 1536 pixel
Husmateriale:	Plast
Certificering:	REACH, CE, FCC, TAA
Udgangsspænding:	5 V
Udgangsstrøm:	0.5 A
Harmoniseret systemkode (HS):	85176990
Bæredygtighedscertifikater:	RoHS
USB-drevet:	Ja
Maksimal driftstilstand:	61 m
Antal udvendige papkasser:	10 stk
Stik 1:	DB15
Stik 2:	DB15
Videoudgang:	2x VGA
Video porttype:	VGA
Antal videoporte:	2
Båndbredde:	300 MHz
Tekniske funktioner:	DDC, DDC2, DDC2B
Emballage taravægt:	0.16 kg
