Side 1/2

2/ 4/ 8 Port VGA Video Splitter - Wall Mountable

ST122W / ST124W / ST128W

DE: Bedienungsanleitung - de.startech.com

FR: Guide de l’utilisateur - fr.startech.com

ES: Guía del usuario - es.startech.com

IT: Guida per l’uso - it.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

PT: Guia do usuário - pt.startech.com

Features

• Max.supportedresolutionsupto1600x1200

• Cascadableupto3levels

• Supportstransmissiondistancesupto65m/200’

SystemRequirements

• AcomputerwithaVGACardinstalled

• DE-15VGAmale/femalevideocable

• DE-15VGAmale/malevideocable(s)

Installation

InaSingleUnitInstallation,onlyonevideosplitterisused,inturn

limitingthenumberofdisplaystowhichthesplitsignalcanbe

broadcast;aCascadedcongurationontheotherhand,utilizes

multiplesplittersconnectedtooneanothertoprovidingnumerous

additionalvideoconnections(i.e.ST122Wcanbecascadedto

provideupto8videooutputs,ST124Wupto64andST128Wup

to512.

Single Unit Installation

1.Withthevideosourcecomputerpowereddown,useahigh

densityDE-15male/femaleVGAcabletoconnectthecomputer

VideoOutporttotheVideoINportonthesplitter.

2.UsingahighdensityDE-15male/maleVGAcableforeach

connection,connectthemonitorstotheVideoOUTports

providedbythesplitter.

3.ConnectthePowerPortonthevideosplittertoanavailable

poweroutlet,usingtheprovidedadapter.

4.Powerupthesourcecomputerandnewlyconnectedmonitors.



Cascaded Installation

Tocascademultiplesplitters,useahighdensityDE-15male/female

VGAcabletoconnectanyavailableVideoOUTportonthe“higher

level”videosplittertotheVideoINportofthelowerlevelvideo

splitter.Youcancascadeasmanyvideosplittersasthereareports

available,howeverthesignalwilldeteriorateasdistancebetween

themonitorandsourceincreases.

Pleaseseereverseforadiagramdepictingacascaded

conguration.

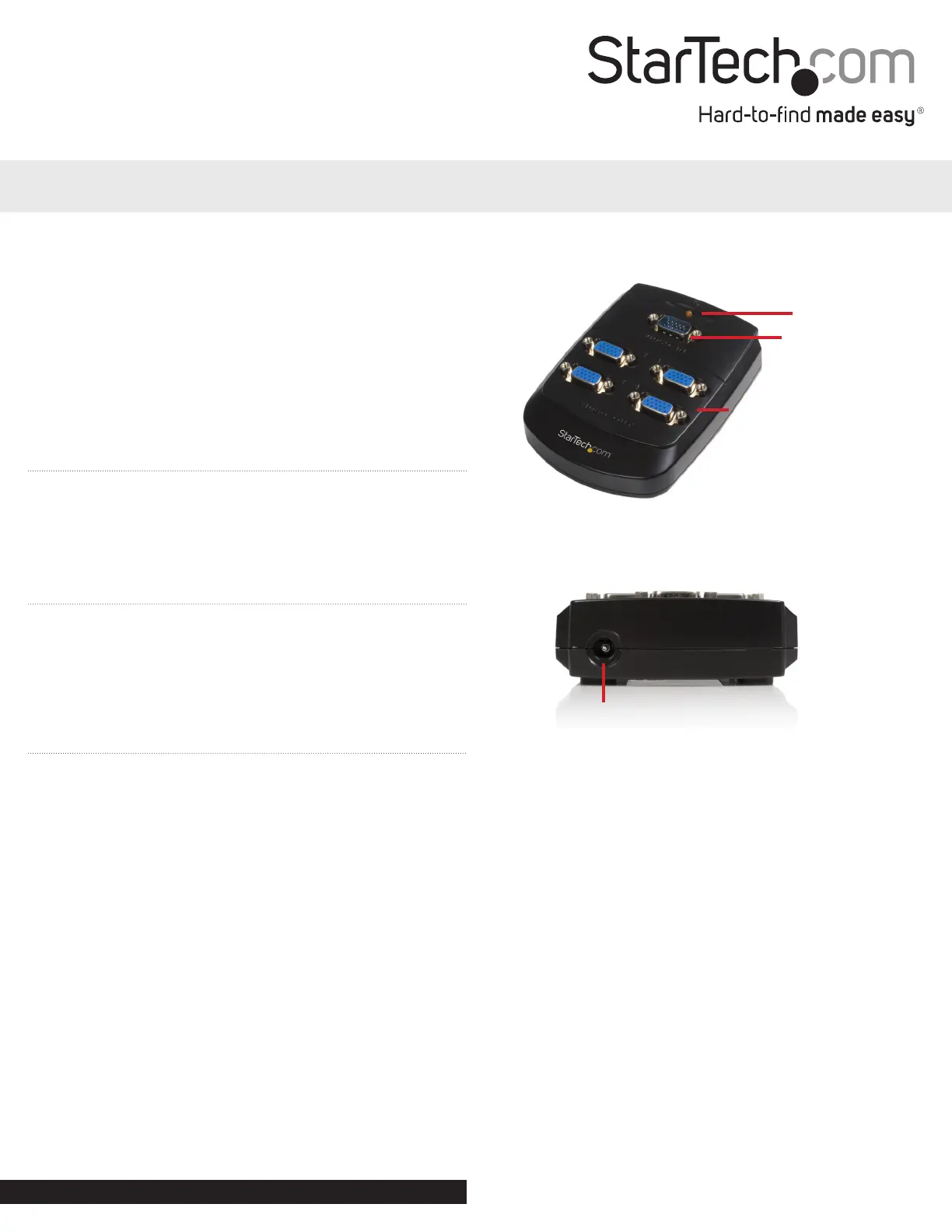

TopView(ST124Wshown)

RearView(ST124Wshown)

PowerIndicator

VideoINport

VideoOUTports

PowerPort

Instruction Manual

*actual product may vary from photos

ManualRevision:02/01/2012

For the most up-to-date information, please visit: www.startech.com

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part

15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a

residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio communications. However,

there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be determined by turning the equipment o and on, the user

is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver

is connected.

Consult the dealer or an experienced radio/TV technician for help.

Use of Trademarks, Registered Trademarks, and other Protected Names & Symbols

This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of

third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an

endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual

applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body

of this document, StarTech.com hereby acknowledges that all trademarks, registered trademarks, service marks, and

other protected names and/or symbols contained in this manual and related documents are the property of their

respective holders.

Technical Support

StarTech.com’s lifetime technical support is an integral part of our commitment to provide industry-leading solutions.

If you ever need help with your product, visit www.startech.com/support and access our comprehensive selection of

online tools, documentation, and downloads.

Warranty Information

This product is backed by a two year warranty.

In addition, StarTech.com warrants its products against defects in materials and workmanship for the periods noted,

following the initial date of purchase. During this period, the products may be returned for repair, or replacement with

equivalent products at our discretion. The warranty covers parts and labor costs only. StarTech.com does not warrant

its products from defects or damages arising from misuse, abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their ocers, directors, employees

or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise),

loss of prots, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the

actual price paid for the product. Some states do not allow the exclusion or limitation of incidental or consequential

damages. If such laws apply, the limitations or exclusions contained in this statement may not apply to you.

Specications

ST122W ST124W ST128W

Number of Ports 2 4 8

Connectors

Video In 1xDE-15VGAmale

Video Out 2xDE-15VGAfemale 4xDE-15VGAfemale 8xDE-15VGAfemale

Power 1xDCJack

LEDs Power 1

Video Bandwidth 250MHz 200MHz

Resolution 1920x1440@75Hz 1600x1200@60Hz

Signal Range Upto65m(210’)

Power Consumption DC9V,1.35W(Max.) DC9V,2.25W(Max.) DC9V,2.5W(Max.)

Environment

Operating Temperature 0°C~50°C

Storage Temperature -20°C~60°C

Humidity 0%~80%RH,Non-condensing

Physical

Properties

Weight 140g 150g 220g

Dimensions 11.45x8.75x3.33cm(LxWxH) 15.59x9.79x3.33cm
