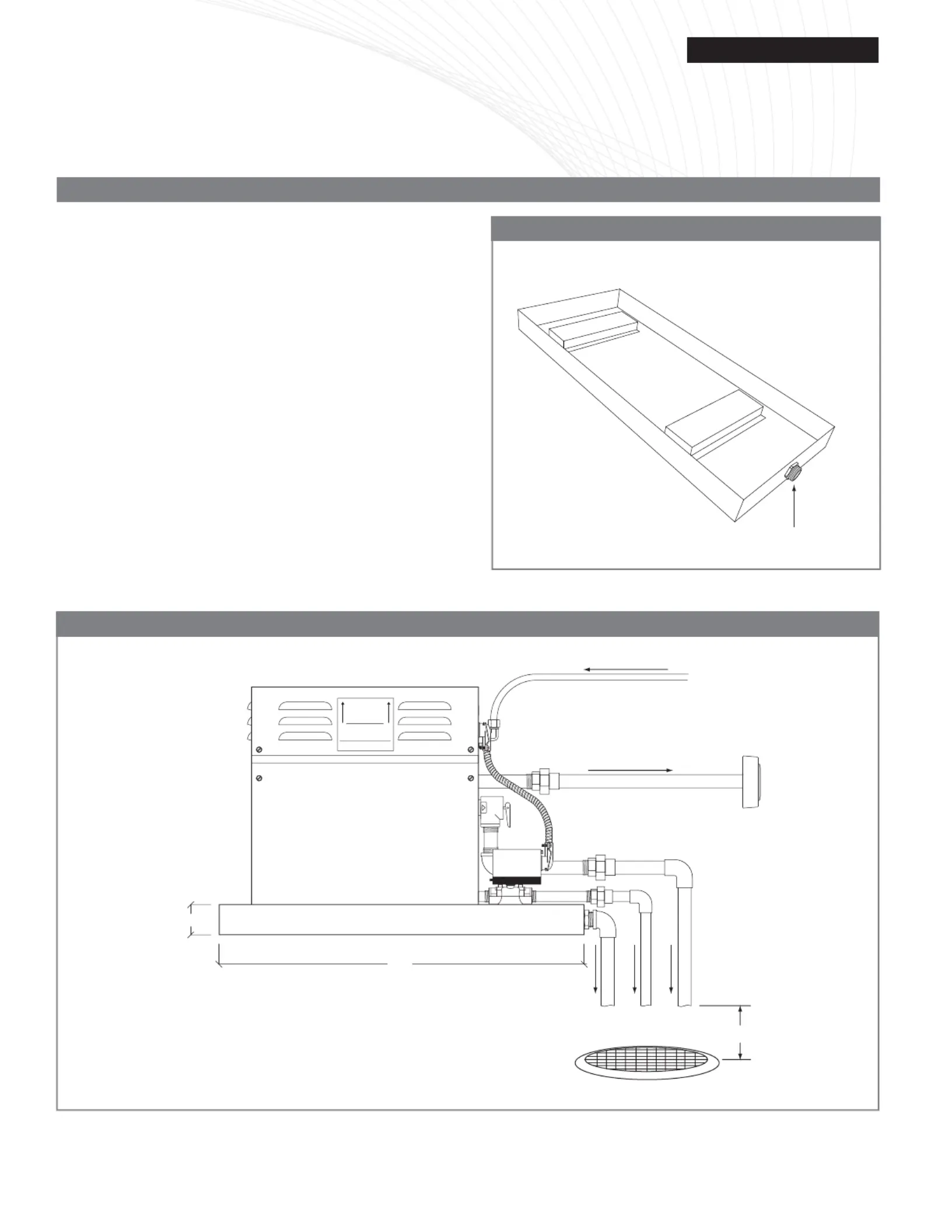

Side 1/1
IMPORTANT:
INSTALL WITH ARROWS POINTING UP
WARNING: Unit must be installed
INDOORS, in a DRY, NON-FREEZING
location and with arrows pointing up.
Service by authrorized personnel only.
NOTE: Read all instructions before installation
CAUTION: To prevent internal damage hold all fittings
securely while making plumbing connections.
NOTE: See Wiring Diagram on reverse side of cover.
CAUTION: Turn off electric before removing cover.
NOTE: This is NOT intended to be used for space
009-1081
Drain Pan
¾" Steam Outlet
⅜" Water Inlet
Safety Relief Valve
Auto Drain
Typical Steam Generator
2"
26"
¾" Male
Threaded NPT
Floor Drain:
Minimum air gap is
twice the effective
diameter of the
discharge pipe
Air Gap
Steam Head
Drain Pan
Drain Pan
Installation Instructions
Typical Installation
Drain Pan Installation
1. Place the G-DPAN on a flat surface suitable
for the Steam Generator (Pan dimensions 26" x 11" x
2"H)
2. The drain pipe must be piped in a manner as to not
obstruct the flow of water draining out of the pan.
3. The drain pan pipe must terminate over a suitable
waste receptor or extended outside the building in an
observable location. The termination point must be at
least 6”, but not more than 24” above ground level.
4. The plumbing installation must conform to all local and
national codes.
5. The drain line must be run in a continuous downward
slope to acheive adequate drainage. Termination of
the drain line must allow complete drainage at all
times, and not be affected by freezing temperatures.
6. See separate plumbing and auto drain installation
manuals for complete connection details.
