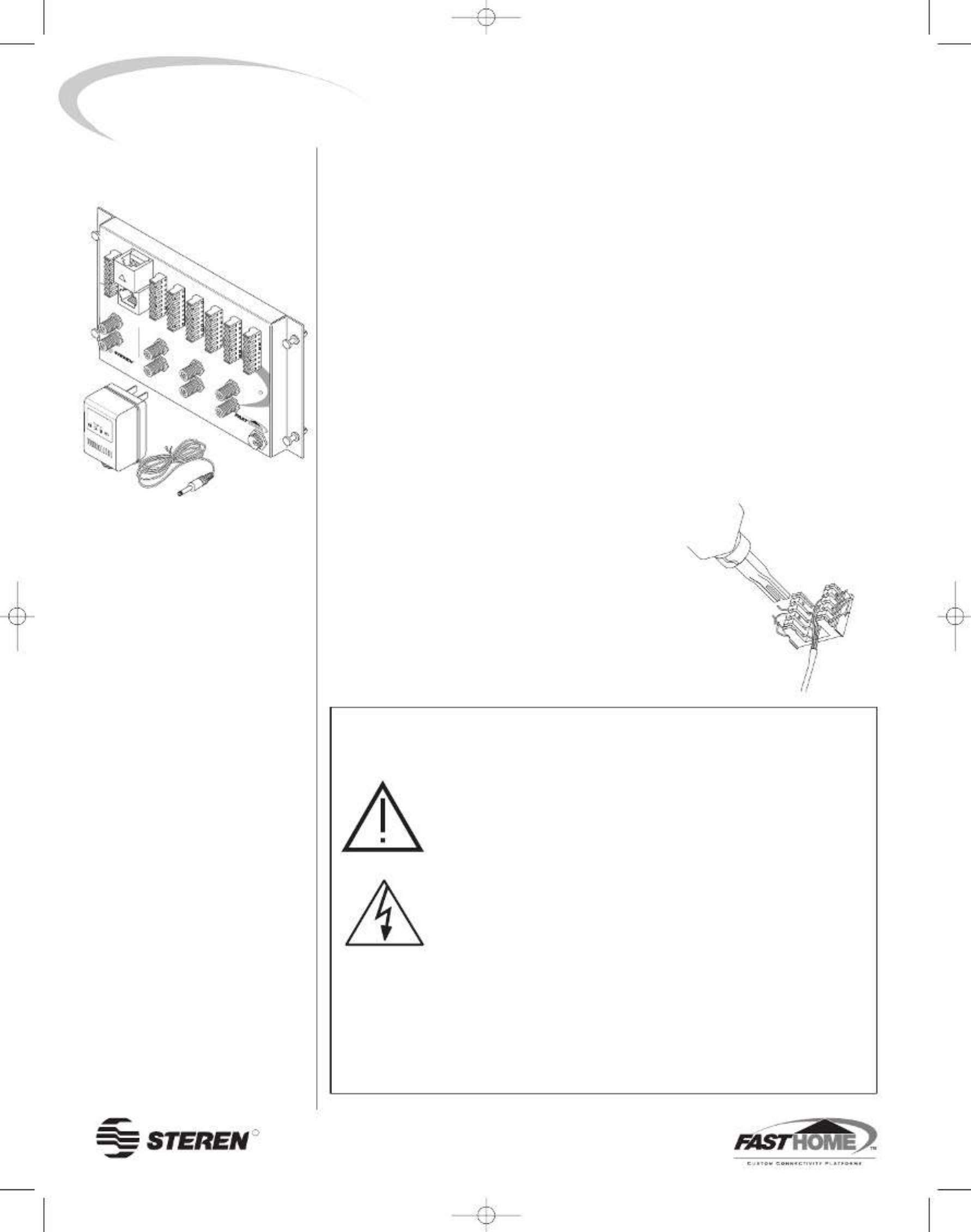

Side 1/4
R
Manufactured by:
Steren Electronics International, LLC
8675 Miralani Drive, San Diego, CA 92126
1-800-266-3333
www.steren.com
Fast Media
Home Network
Systems
Fast Media
Home Network
Systems
Installation
Guide
Installation
Guide
550-010
Fast Media
Telephone/TV Hub Module
61/2˝ (W) x 43/4˝ (H) x 1˝ (D)
550-010Manual.qxd 7/6/04 3:28 PM Page 1
R
Fast Media Home Network Systems Revised 06/04
2
FastHome™
550-010 Telephone/TV Hub Module Installation Guide
AC/D C AD APT OR
MODEL: MX 12150-4113
IN PU T:
110V~50/60H z
OUTPUT: 1
5V----- -500mA
MADE IN CHI NA
-
+
1 2 3 4 5 6
550-010Video Telcom M
aster Modul
e
OUT
RJ3IX
4
3
2
1
TM
INPUT
OUTPUT
1
4
2
5
3
6
POWER
LED
FROM
TELCOM
WAR
NING
!
Welcome to the FastHome™Series
Thank you for purchasing this product, part of the FastHome™Series of Fast Media Home
Network Systems by Steren. You have made an excellent choice for the homeowner. The
FastHome™Series of enclosures and modules provide a quality control center for the wiring
of cable TV, phone/fax/modem, Ethernet, security, sound system and other voice, video, data
and audio devices. Installation is easy and requires only basic tools. By following the instruc-
tions in this guide, you will ensure the proper installation of the FastHome™module.
Product Description
From a centralized location, the Fast Media Telephone/TV Hub Module distributes four
incoming phone/fax/modem lines and also combines and distributes two incoming cable
TV lines to six rooms. The module allows for the insertion of security camera feed using
the RF Modulator Module (550-080) and features an RJ-31X security system connection.
This module also includes a 9VDC, 300mA power supply. All FastHome™modules feature
18-gauge cold rolled steel construction for excellent RFI shielding.
Contents of Package
1. Fast Media Telephone/TV Hub Module
2. 9VDC power supply
3. Installation manual
Tools for Module Installation and Wiring
1. Wire stripper
2. Punchdown tool
3. Personal protective equipment
Introduction
Specifications:
TV Splitter:
•Insertion Loss: 0.0dB 1dB±
•Return Loss: 10dB min.
•Isolation: 20dB min.
Telephone Hub:
•Complies with TIA/EIA 568
CAT5 Standards
About Steren Electronics
Based in San Diego, Steren
has been a leading component
manufacturer for nearly 50 years.
With more than 2,000 items
in our catalog, we supply inter-
connect products and electronics
accessories for home and
commercial use.
The FastHome™Series
of Fast Media Home Network
Systems are produced with
superior design and engineering,
high-quality materials and excep-
tional manufacturing processes,
attributes that are synonymous
with the Steren name.
Safety Instructions
Read these safety instructions before installing this module and follow them carefully.
Keep these instructions handy and refer to them when working on the module.
•Always wear the necessary personal protective gear and follow all
basic precautions and safety procedures when working with wires
and electrical equipment, using power tools or working in unfinished
construction areas.
•Use caution when handling this module. Be careful not to drop the
module because this could affect the performance and/or damage
the module.
•Take extra precautions when working with cables, wires and tools.
Do not install cables and wires that appear to be damaged. Avoid
kinking cables and wires during installation.
•Be careful when using tools that might touch exposed wires or live
electrical contacts.
•To prevent electric shock: 1) do not touch uninsulated wires and terminals that
may still be connected to a live circuit; 2) do not install wires or electrical equipment
during a lightning storm; 3) do not install wires or electrical equipment or their
enclosures near water or locations where water is used (in the kitchen, bathroom,
laundry room, swimming pool, etc.); 4) do not install electrical components or equip-
ment in wet areas, unless specifically rated for moisture.
•Make sure all wires in the modules are properly connected or terminated.
Standard 110
Punchdown Tool
550-010Manual.qxd 7/6/04 3:28 PM Page 2
