INSTALLATION OF STI-8100 POLYCARBONATE DETECTOR GUARD

All speciﬁcations and information shown were current as of publication and are subject to change without notice.

8200IS MAY2018

Toll Free: 800-888-4784 • E-mail: info@sti-usa.com

Web: www.sti-usa.com

USA - Headquarters

2306 Airport Road • Waterford, Michigan 48327-1209

Phone: 248-673-9898 • Fax: 248-673-1246

Tel: 44 (0) 1527 520 999 Fax: 44 (0) 1527 501 999

E-mail: info@sti-emea.com • Web: www.sti-emea.com

European Ofﬁce

Taylor House • • 34 Sherwood Road Bromsgrove

Worcestershire • B60 3DR • England

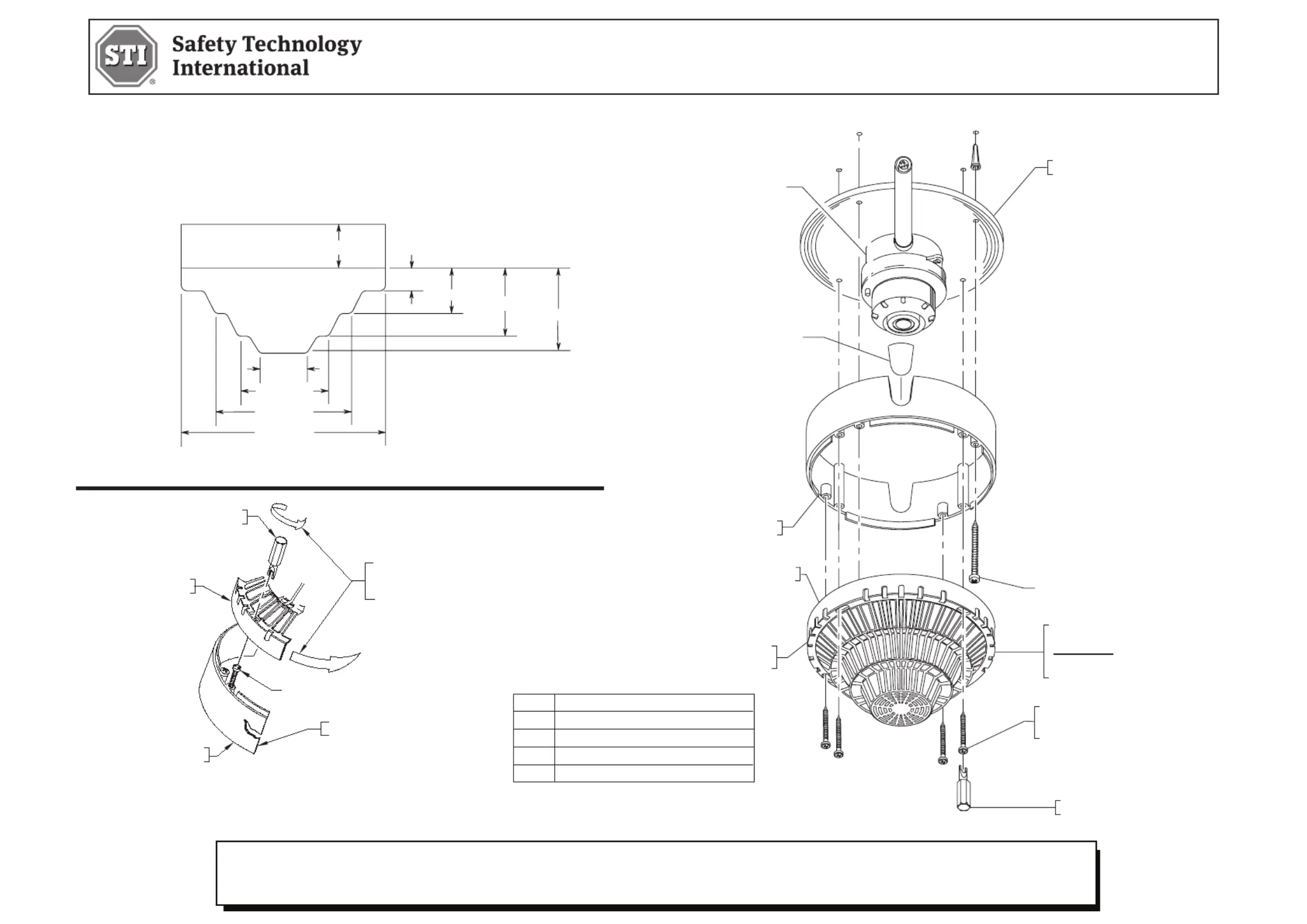

Polycarbonate Detector Stopper Installation Data for the STI-8100 & STI-8130 Series

The ol carbonat t tor topper a to insta in ar as wher r andalism causing P y e De ec S is e sy ll e e s eev e v is

false fir alarms or high maintenan osts to our smoke d t tors. an aesth tic alternati e ce c y e ec As e ve

to t S eel Web topper this pol S s, ycarbonat ersion can be used in orrectional facilities and mental e v c

health units. The ots ar too sma for en a pencil to be pa sed through them. ailable for sl e ll ev s Av

flush or surfa ce e c . e vmount applications with xposed onduit The models ar a ailable in a range of

c yolours to blend in with our building interior.

210 mm

(8.25 in.)

95mm (3.75 in.)

73 mm (2.875 in.)

48 mm (1.875 in.)

19 mm (.75 in.)

51 mm (2 in.) CONDUIT SPACER

171 mm

(6.75 in.)

121 mm

(4.75 in.)

73 mm

(2.75in.)

DEPTH CHART OF THE POLYCARBONATE DETECTOR STOPPER

SPANNER BIT OR

PHILLIPS BIT

POLYCARBONATE COVER

STI-8100

SPACER

STI-8101

TO SERVICE SMOKE DETECTOR

LOOSEN SPANNER SCREW APPROX. 3/4 IN.

ROTATE COVER COUNTER CLOCKWISE

AND REMOVE COVER

SPACER REMAINS FASTENED TO

MOUNTING SURFACE

TAMPER PROOF SPANNER SCREW (OPTIONAL)

VIEW SHOWING REMOVAL OF COVER

(SAME PROCEDURE WITH OR W/O SPACER)

BACKPLATE FOR USE ON

UNSTABLE SURFACES (STI-8170)

INSERT (2 FURNISHED)

POLYCARBONATE COVER

STI-8100

CONDUIT SPACER FOR

SURFACE MOUNTING STI-8101

EXISTING SMOKE DETECTOR

SPACER MOUNTING SCREW

COVER MOUNTING SCREW - PHILLIPS PROVIDED

FOR OPTIONAL SPANNER TYPE (SHOWN) ORDER:

PART NO. KIT-81 FOR USE WITH STI-8100

PART NO. KIT-82 FOR USE WITH STI-8130

OPTIONAL SPANNER BIT FOR

TAMPER RESISTANCE (PART NO. 19038)

FOR SENTROL MODELS

BOTH COVER AND

SPACER ARE UL LISTED

FOR NOTIFIER, SYSTEM SENSOR, FCI,

SECUTRON, EST AND HONEYWELL MODELS

COVER ONLY IS UL LISTED FOR FLUSH OR

SURFACE MOUNT APPLICATIONS.

FOR SURFACE MOUNT (RACEWAY/CONDUIT

ENTRY), COVER MAY BE FIELD CUT.

STI-8101 50 mm spacer (supplied with STI-8130)

STI-8170 Mounting backplate (for irregular surfaces)

KIT-81 Tamper resistant mounting kit (for the STI-8100)

KIT-82 Tamper resistant mounting kit (for the STI-8130)

19038 Tamper bit (for the KIT-81 and KIT-82)

ACCESSORIES

ID8100_8130_Series · Revised 05/18-017

Printed in England
