INSTALLATION OF STI-8200 SMOKE DETECTOR GUARD

All speciﬁcations and information shown were current as of publication and are subject to change without notice.

8200IS MAY2018

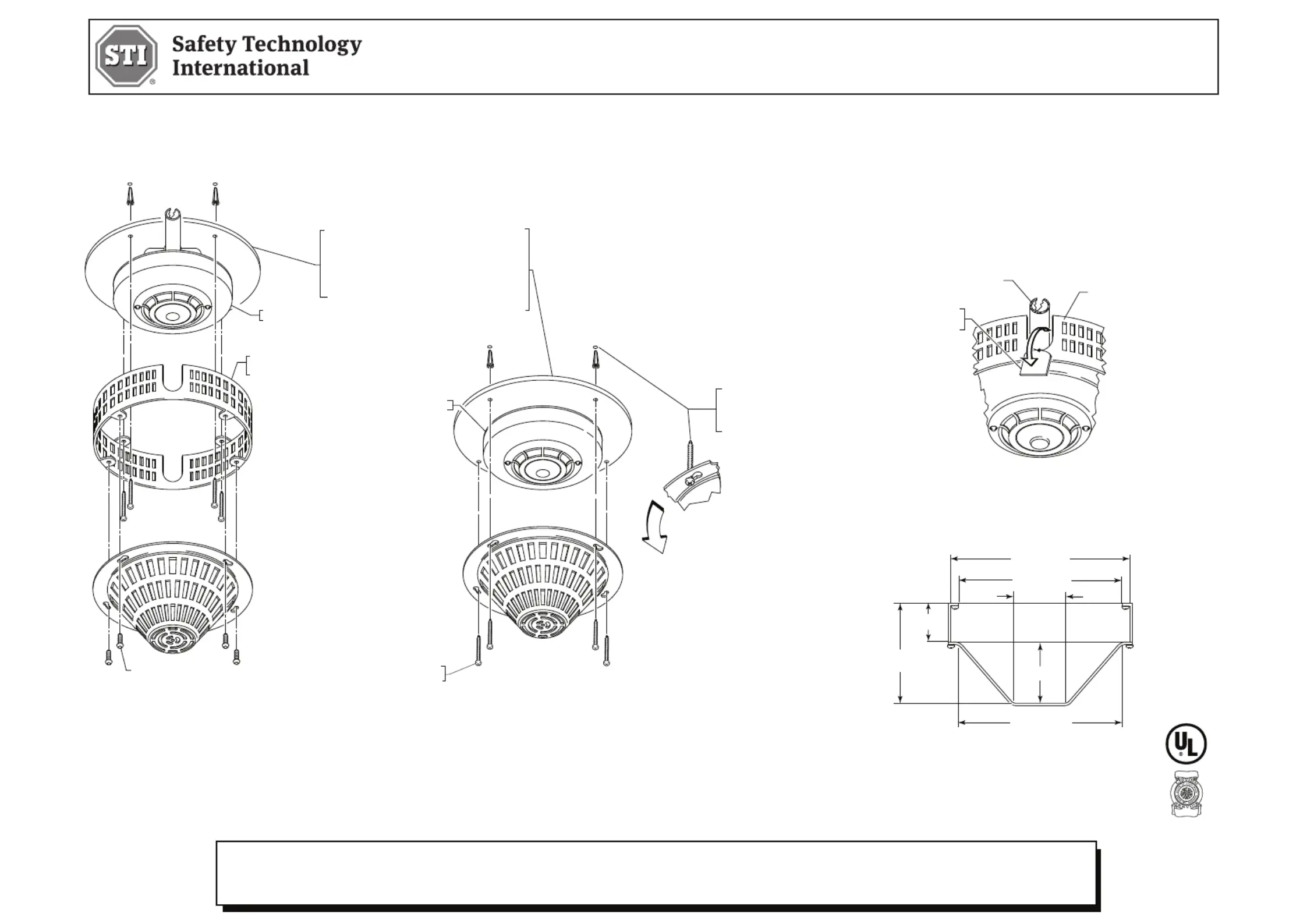

SURFACE MOUNT INSTALLATION

STI-8230 - STAINLESS STEEL

STI-8230 - COLOUR: WHITE

FLUSH MOUNT INSTALLATION

STI-8200-SS - STAINLESS STEEL

STI-8200-W - COLOUR: WHITE

FLUSH MOUNT INSTALLATION

ALLEN HEAD SCREW

STI-8201-SS STAINLESS STEEL SPACER

STI-8201-W COLD ROLLED STEEL

COATED WHITE SPACER

EXISTING SMOKE

DETECTOR

STI-8171 BACKPLATE (OPTIONAL) STI

RECOMMENDS THE USE OF THIS PLATE TO

INSURE SUITABLE PROTECTION ON

UNSTABLE MOUNTING SURFACES.

IN SOME INSTALLATIONS THE FOUR (4)

MOUNTING HOLES MAY HAVE TO BE

ENLARGED OR RE-DRILLED.

SURFACE MOUNT INSTALLATION

EXISTING SMOKE

DETECTOR

TO SERVICE SMOKE DETECTOR LOOSEN

THE FOUR (4) SCREWS AND ROTATE THE

CAGE COUNTER CLOCKWISE AND REMOVE.

NOTE: SAME PROCEDURE WITH OR

WITHOUT SPACER

SCREW #10 x 1 1/2 in.

(4) PROVIDED

GUARD

SPACER

PRODUCT DIMENSIONS

228mm (9 in.)

51mm

(2 in.)

127mm

(5 in.)

76mm (3 in.)

203mm (8 in.)

VIEW SHOWING SPACER INSTALLATION

WITH CONDUIT ENTRY

GRASP TAB,

BEND DOWNWARD

AND REMOVE

203mm (8 in.)

ELECTRICAL CONDUIT

SPACER

71mm (2.8 in.)

APPROVALS

STI-8200-X and STI-8230-X UL Listed No. S3504 for use with the following smoke detectors: System Sensor

Models 2251, 2251T, 2251B, 2251TB, 2251TM, 2251TMB, 2251BR, 2551, 2551T, FTX-P1, FCI Models ASD-PL,

ASD-P, ASD-PH, ASD-PTL, ASD-FILTEREX, ASD-FILTREXF, MCS-ACCLIMATE,ASD-PL2, ASD-PL2F, ASD-PTL2,

ASD-PTL2F, MCD-ACCLIMATE2, MCS-ACCLIMATE2F, ASD-PL2FR, Secutron Models MR1-2251, MR1-2251B,

EST Models 2251F, 2251FB, Mircom Models MIX-2251, MIX-2251B, Intelligent Systems Model ISL 2251, JCI Model

2951J, ADT Model 2951ADT, Fi Pre-Lite Model SD355, Gamewell Model SS- , Honeywell Models TC806B1076,

TC806B1001 under 300 Fpm, Notiﬁer Model FSP-751.

ULC Listed for use with Siemens FP-11C

California State Fire Marshal No. 7300-1416101

Three year warranty or a one year limited warranty (from

date of purchase) on most products. See website for details.

Electronic warranty form at www.sti-usa.com/wc14.

Toll Free: 800-888-4784 • E-mail: info@sti-usa.com

Web: www.sti-usa.com

USA - Headquarters

2306 Airport Road • Waterford, Michigan 48327-1209

Phone: 248-673-9898 • Fax: 248-673-1246

Tel: 44 (0) 1527 520 999 Fax: 44 (0) 1527 501 999

E-mail: info@sti-emea.com • Web: www.sti-emea.com

European Ofﬁce

Taylor House • • 34 Sherwood Road Bromsgrove

Worcestershire • B60 3DR • England

ID8200_Series · Revised 05/18

Printed in England
