34” DEEP COMBINATION CONVERTIBLE SERVICE ABOVE REFRIGERATED SELF-SERVICE CASE

PLEASE NOTE THE FOLLOWING:

1. THIS OPERATING MANUAL IS APPLICABLE TO MODELS HMBC2, HMBC3, HMBC4, HMBC5 AND

HMBC6 (AND POSSIBLY OTHER MODELS).

2. YOUR SPECIFIC MODEL NUMBER IS LOCATED ON THE SERIAL LABEL ON CASE REAR (NEAR

MAIN POWER SWITCH).

READ AND SAVE THESE INSTRUCTIONS

P/N 54383

INSTALLATION AND

OPERATING MANUAL

TABLE OF CONTENTS

TABLE OF CONTENTS ………………………………………………………………………………….…...

OVERVIEW / NSF® TYPE / COMPLIANCE / WARNINGS / PRECAUTIONS …………………...…...

INSTALLATION: REMOVAL FROM SKID / POSITIONING & ALIGNING CASE / ADJUSTING

LEVELERS ……………………………………………………………....……...…….……………….

INSTALLATION: LOWER FRONT GRILLE and LOWER REAR PANEL REMOVAL /

REPLACEMENT……………………………………………………………………………………….

INSTALLATION: ELECTRICAL CONNECTIONS …………………………………………………………

INSTALLATION: POSITIONING AND ALIGNING UNITS / GLASS SHELVING ……………………...

INSTALLATION: SETUP / POWER CORDS / TEMPERATURE CONTROLLER ……….……….…...

INSTALLATION, CONTINUED: REMOTE UNIT ELECTRICAL LEADS / REFRIGATION & DRAIN

CONNECTIONS …………...………………………………………………...……………………......

INSTALLATION: CASTERS / LEVELERS / CURVED GLASS / REAR DOORS …………………......

INSTALLATION: DISPLAY CASE START-UP, LIGHT SWITCH, TEMPERATURE CONTROLLER,

SATURATED SUCTION TEMPERATURE ………………………………………………………...

INSTALLATION: LED AND FLUORESCENT LIGHTS …………………………………………………...

INSTALLATION: FRONT GLASS ALIGNMENT & ADJUSTMENT ……………………………………..

INSTALLATION: BAFFLES - AMBIENT VS. REFRIGERATED CONDITIONS ……………………….

OPTIONAL NIGHT AIR CURTAIN INSTALLATION & OPERATING INSTRUCTIONS ……………...

SECURITY GRID INSTRUCTIONS (OPTIONAL) …………………………………………………….…...

DRAIN, HOSE AND BRACKET PLACEMENT ILLUSTRATIONS …………..…………..……….……..

CLEANING SCHEDULE (TO BE PERFORMED BY STORE PERSONNEL) ……....…………...……..

TROUBLESHOOTING (TO BE PERFORMED BY STORE PERSONNEL) …………………………….

MAINTENANCE (TO BE PERFORMED BY STORE PERSONNEL): REAR DOORS & LIGHT

FIXTURES .................................................................................................................................

MAINTENANCE (TO BE PERFORMED BY STORE PERSONNEL): BRACKET RETAINERS /

SHELVES ……………………………………………………………………………………………...

MAINTENANCE (TO BE PERFOMRED BY TRAINED SERVICE PROVIDERS ONLY): TUB AND

EVAPORATOR COIL AREA ACCESS …………………………………………………………….

MAINTENANCE (TO BE PERFORMED BY TRAINED SERVICE PROVIDERS ONLY):

CONDENSER PACKAGE / TEMPERATURE CONTROLLER ……….………………………..

MAINTENANCE (TO BE PERFORMED BY TRAINED SERVICE PROVIDERS ONLY):

HONEYCOMB AIR DIFFUSER ……………………………………………………………………..

TROUBLESHOOTING - GENERAL (TO BE PERFORMED BY TRAINED SERVICE PROVIDERS

ONLY) .….……………………………………………………………………………………………..

TROUBLESHOOTING - CONDENSING SYSTEM (TO BE PERFORMED BY TRAINED SERVICE

PROVIDERS ONLY) ...……………………………………………………………………………….

TROUBLESHOOTING - EVAPORATOR SYSTEM (TO BE PERFORMED BY TRAINED SERVICE

PROVIDERS ONLY) ….……………………………………………………………………………...

PREVENTIVE MAINTENANCE (TO BE PERFORMED BY TRAINED SERVICE PROVIDERS

ONLY) …....................................................................................................................................

SERIAL LABEL INFORMATION & LOCATION ..……………………………………...…....……….....…

TEMPERATURE CONTROLLER - CAREL® ...…..……………………..……..…………………...……..

TECHNICAL SERVICE CONTACT INFORMATION & WARRANTY INFORMATION ...……….….....

3-4

17-18

27-29

32-33

35-37

OVERVIEW / NSF® TYPE / COMPLIANCE / WARNINGS / PRECAUTIONS - PAGE 1 of 2

WARNING

Hazardous moving parts. Do not operate unit with covers removed.

Fan blades may be exposed when deck panel is removed.

Disconnect power before removing deck panel.

WARNING

Risk of electric shock. Disconnect power before servicing unit.

CAUTION! More than one source of electrical supply is

employed with units that have separate circuits.

Disconnect ALL ELECTRICAL SOURCES before servicing.

WARNING

ELECTRICAL

HAZARD

WARNING

KEEP

HANDS

CLEAR

OVERVIEW

 These Structural Concepts Harmony® cases are

designed to merchandise packaged products at 41°F

(5 °C) or less product temperatures (unless custom

cases with wire rack shelving).

 Cases should be installed and operated according to

this operating manual’s instructions to insure proper

performance. Improper use will void warranty.

TYPE I vs. TYPE II ENVIRONMENTAL CONDITIONS

This unit is designed for the display of products in

ambient store conditions where temperature and

humidity are maintained within a specific range.

 Type I display refrigerators are intended for use in an

area where environmental conditions are controlled

and maintained so that the ambient temperature does

not exceed 75 °F (24 °C) and 55% maximum humidity.

 Type II display refrigerators are intended for use in an

area where environmental conditions are controlled and

maintained so that the ambient temperature does not

exceed 80 °F (27 °C) and 55% maximum humidity.

 If unsure if your unit is Type I or II, see tag next to serial

label. See SERIAL LABEL LOCATION & INFORMATION

LISTED / TECH INFO & SERVICE section in this

manual for sample serial labels.

COMPLIANCE

 Performance issues when in violation of applicable

NEC, federal, state and local electrical and plumbing

codes are not covered by warranty.

WARNINGS

 Following are important warnings to prevent injury or

death. Please read carefully!

COMPLIANCE

This equipment MUST be installed in compliance with all applicable

NEC, federal, state and local electrical and plumbing codes.

ATTENTION CONTRACTORS

CAUTION! CHECK CONDENSATE PAN POSITION & PLUG

Water on flooring can cause extensive damage!

Before powering up unit, check and confirm that:

 Condensate pan is DIRECTLY UNDER condensate drain.

 Condensate pan plug is securely plugged into receptacle.

 Overflow pan has plug connected to its box. Units with optional

CleanSweep® MUST HAVE two plugs connected.

WARNING: This product can expose you to chemicals, including

Urethane (Ethyl Carbamate), which are known to the state of

California to cause cancer and birth defects or other reproductive

harm. For more information go to P65Warnings.ca.gov.

OVERVIEW / NSF® TYPE / COMPLIANCE / WARNINGS / PRECAUTIONS - PAGE 2 of 2

PRECAUTIONS

 Following are important precautions to prevent

damage to unit or merchandise.

 See previous page for specifics on OVERVIEW, NSF

TYPE, COMPLIANCE and WARNINGS.

REFRIGERANT DISCLOSURE STATEMENT

 This equipment is prohibited from use in California

with any refrigerants on the “List of Prohibited

Substances” for that specific end-use, in accordance

with California Code of Regulations, title 17, section

95374.

 This disclosure statement has been reviewed and

approved by Structural Concepts and Structural

Concepts attests, under penalty of perjury, that these

statements are true and accurate.

CAUTION! GFCI BREAKER USE REQUIREMENT

If N.E.C. (National Electric Code) or your local code

requires GFCI (Ground Fault Circuit Interrupter) protection,

you MUST use a GFCI breaker in lieu of a GFCI receptacle.

WIRING DIAGRAM FORMAT & LOCATION

 Each case has its own wiring diagram folded and in its own packet.

 Wiring diagram placement may vary; it may be placed near ballast box, field

wiring box, raceway cover, or other related location.

 See sample wiring diagram at left (for illustrative purposes only).

CAUTION! ADVERSE CONDITIONS / SPACING ISSUES

 Performance issues caused by adverse conditions are NOT warranted.

 End panels must be tightly joined or kept at least 6-inches away from

any structure to prevent condensation.

 Unit must be kept at least 15-feet from exterior doors, overhead HVAC

vents or any air curtain disruption to maintain proper temperatures.

 Unit must not be exposed to direct sunlight or any external heat

source (ovens, fryers, etc.).

 Keep at least 8-inch clearance above unit for air discharge

(self-contained units only).

CAUTION

CAUTION! LAMP REPLACEMENT GUIDELINES

LED lamps reflect specific size, shape and overall design.

Any replacements must meet factory specifications.

Fluorescent lamps have been treated to resist breakage and must be

replaced with similarly treated lamps.

CAUTION

CAUTION! POWER CORD AND PLUG MAINTENANCE

Risk of electric shock. If cord or plug becomes damaged,

replace only with cord and plug of same type.

INSTALLATION: REMOVAL FROM SKID / POSITIONING & ALIGNING CASE / ADJUSTING LEVELERS

3. Adjust Levelers

 Important! After case is in proper

position, levelers must then be

LOWERED to floor.

 Adjust levelers so the case is level

and plumb.

 You may need to remove front and/or

rear toe-kick to access levelers.

 Use adjustable wrench to adjust

leveler.

 Depending upon case weight it may

be necessary to use a pry bar to

accomplish this task.

 Do not use pry bar on toe-kick as it

may buckle.

 Do not use pry bar on end panel as it

may chip.

 Use pry bar ONLY on base frame to

avoid damaging case.

 See illustrations at right.

1. Remove Shipping Brackets & Toe-Kicks

 Remove shipping brackets securing case to skid.

 Remove front and rear toe-kicks (if still attached to

the case during shipment); this will prevent them from

buckling or bending during case removal from skid.

 Important! Case is shipped with levelers in the

DOWN position (for stability). To prevent damage

to the case, all levelers must be raised ALL THE WAY

UP before moving unit off skid and into position.

 After levelers are raised all the way up, place ramp up

against skid (to allow case to smoothly roll off from

skid).

 Maintain support of case at all times or center of

gravity may cause case to fall.

 Roll unit to rear of skid. Roll down ramp and off skid.

2. Position & Align Case Alongside Other Cases

 Before adjusting levelers, make certain that case is in

proper position and, if required, aligned with adjoining

case.

 This may require the repositioning of the case you are

installing or the already positioned cases.

Ramp

Skid

Pry Bar

Base Frame

Leveler

Adjustable

Wrench

Support case

while rolling

down ramp.

Various Types Of

Shipping Brackets

Shown With

INSTALLATION: LOWER FRONT GRILLE and LOWER REAR PANEL REMOVAL / REPLACEMENT

4. Removing Lower Front Grille

 No screw removal is required to remove grille.

 Front grille has retainer slots at each end of grille.

 Case has retainer hooks at each end.

(2) Front Grille

Retainer Hooks

(at Each End of Case)

(2) Front Grille

Retainer Slots

(at Each End

of Grille)

 Simply lift lower front grille up and off retainer

hooks (at each end of case).

 Replace in same manner.

 View below is shown is disassembled for

illustrative purposes only.

5. Removing Lower Rear Panel

 No screw removal is required to remove panel.

 Rear panel has retainer slots at each end of grille.

 Case has retainer hooks at each end.

 Simply lift lower rear panel up and off retainer

hooks (at each end of case).

 Replace in same manner.

 View below is shown is disassembled for

illustrative purposes only.

(2) Lower Rear Panel

Retainer Hooks

(at Each End of Case)

(2) Rear Panel

Retainer Slots

(at Each End

of Rear Panel)

INSTALLATION, CONTINUED: ELECTRICAL CONNECTIONS

6. Electrical Connections

 Ballast Box: Remove 4 screws from the thermostat/ballast cover. Remove screws holding

ballast cover to base.

 Knockouts are located on side and rear of box for making electrical connections.

 Note: Standard 120V or 220V (depending upon case chosen), single phase connections are

required for self contained refrigeration units and must be performed by a certified electrician.

Remove two (2) screws at

each end of cover to remove

thermostat/ballast cover.

Thermostat/Ballast Cover

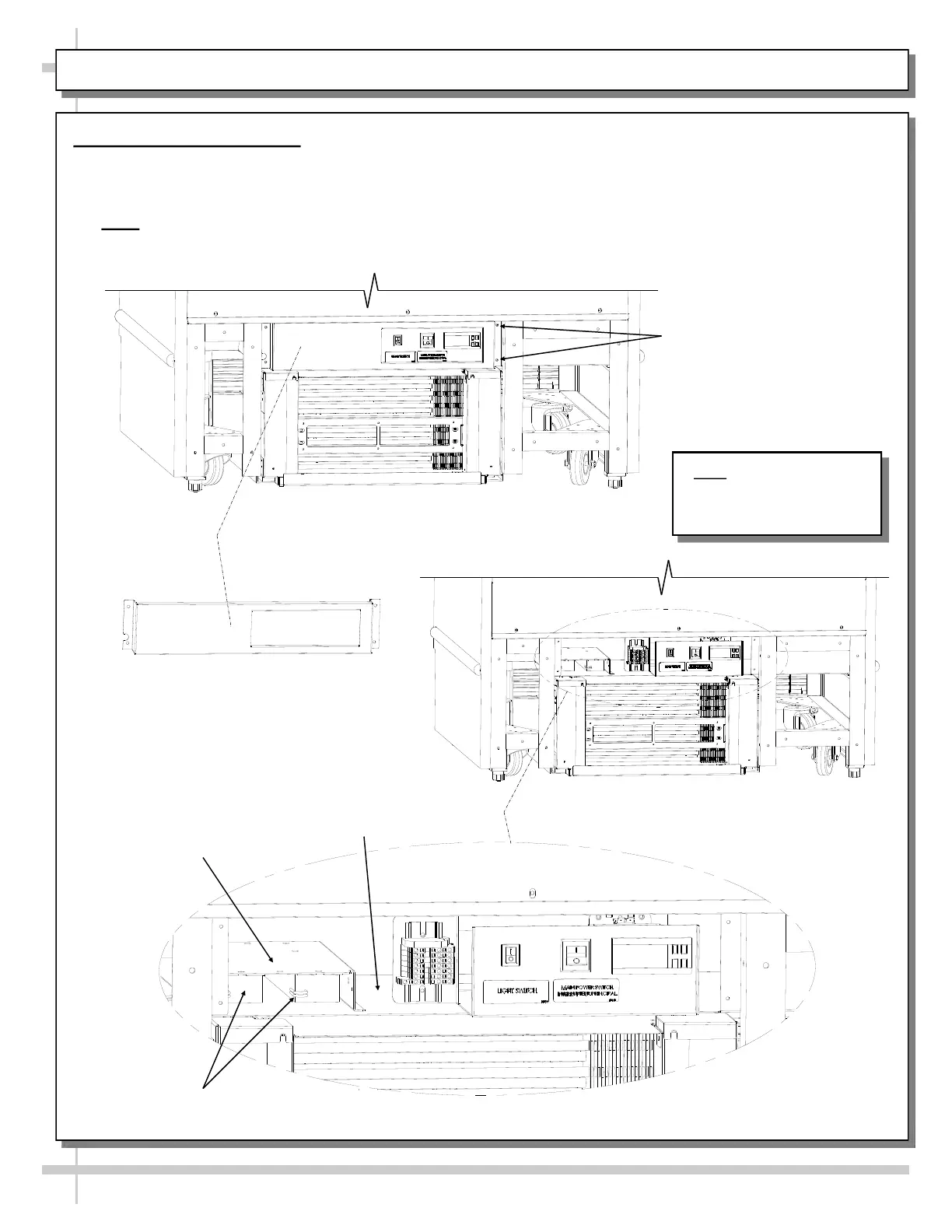

View of case with

thermostat/ballast cover intact

View of case with

thermostat/ballast cover removed

Enlarged view of thermostat/ballast area

Ballast Cover

Ballasts

Base

Note: Illustrations shown

with rear grille removed for

illustrative purposes only.

INSTALLATION, CONTINUED: POSITIONING AND ALIGNING UNITS / GLASS SHELVING

7. Position and Aligning Units

Position Units. Align multiple units carefully in areas A

& B shown at right.

8. Glass Shelving

Glass shelving will be packed separately.

 Caution! Carefully remove from packaging.

 Grasp firmly and carefully install.

 Caution! Check that plastic edging is intact

before placing glass shelving onto brackets!

 Plastic edging must NOT be removed from glass

shelves. Contact Structural Concepts for

replacement edging (see TECHNICAL

SERVICE CONTACT INFORMATION section).

 Check that glass shelving is in proper position

before placing product in case.

 See illustration below.

Glass Shelves

(Typical)

INSTALLATION, CONTINUED: SETUP / POWER CORDS / TEMPERATURE CONTROLLER

9. Merchandiser Setup: Self Contained Units

 Remove lower front grille (if attached to case).

 Insure that the condenser pan is installed under

the PVC condensate drain trap spout.

 Insure that the condenser pan is plugged into the

receptacle inside base.

 Return front grille to case.

 See DRAIN, HOSE AND BRACKET

PLACEMENT ILLUSTRATIONS section in this

operating manual for details.

A. Self-contained units w/power cord

 For your safety, equipment is furnished with a

properly grounded cord connector. Do not

attempt to defeat the grounded connector.

 Plug cord into a certified electrical outlet with

ground.

B. Self-contained units without power cord

 Remove the rear lower grille required).

 Note: The compressor/condenser assembly can

be slid out to facilitate maintenance.

 Electrical leads are provided inside the base

exiting the ballast box.

 Leads are labeled for identification.

C. Self-contained units with CleanSweep®

 Self-contained units with optional CleanSweep®

condenser coil cleaning system must have

TWO plugs connected to outlet!

D. Self-Contained Temperature Controller

 See below for location.

 See Temperature Controller section for

additional information.

Above view shown with rear panel and end panel

removed for illustrative purposes only.

Condenser

Pan

PVC Condensate

Drain

Temperature

Controller

INSTALLATION, CONTINUED: REMOTE UNIT ELEC. LEADS / REFRIG. & DRAIN CONNECTIONS

10. Merchandiser Setup: Remote Units

Remote Refrigeration System

Note: Service to be accomplished by refrigeration /

electrical contractor.

A. Electrical leads

 Remove screws from rear wire-way cover to

access electrical leads.

 Wiring may run case to case.

 Knockout is provided in bottom of wireway for

stub-up connection.

 Separate leads for lights that are labeled

accordingly.

B. Refrigerant Connection

 Remove the front panel.

 Refrigerant stub-up access opening is at the

front on the left hand side of the base.

 Route refrigerant lines thru access hole.

 Remove tube caps from stub-up

connections

 Sweat the high and low pressure

connections.

 Fill access hole with suitable filler to insure

watertight integrity of tub.

C. Drain Connection

 1” male PVC stub-up connection is under the

case on the right hand side.

 Remove the front panel.

 Remove the rear panel (optional).

 Connect tub drain to floor drain. Maintain

1/4” fall per foot to provide proper drainage.

 Below illustration may not exactly reflect

every feature or option of your case.

Evaporator Stub

Ups Access

Drain Connection

General Location

Case

Front

Case

Rear

INSTALLATION, CONTINUED: CASTERS / LEVELERS / CURVED GLASS / REAR DOORS

11. Cases With Casters: Lock and Unlock

 To lock casters, press down on lever.

 To unlock casters, pull lever up.

 See illustration at right.

12. Cases With Levelers: Adjust Levelers

 After case is in position, adjust case so it is level

and plumb (see illustration at right).

 You may need to remove front and/or rear

Toe-Kick to access levelers.

 Use adjustable wrench (and possibly a pry bar)

to adjust leveler.

 Do not use pry bar on toe-kick (it may buckle).

 Do not use pry bar on end panel (it may chip).

 Use pry bar ONLY on base frame to avoid

damaging case.

 Use a block to reach base frames with pry bar.

 See illustrations at right.

13. Raising the Curved Glass

 To raise the curved glass, grab the lift handle

extrusion on the bottom edge of the front curved

glass and lift up.

 Gas cylinders hold the glass open for hands free

access to the interior of the case.

14. Removing the Rear Doors

 Move rear doors toward center of the case.

 Individually lift each door up toward the top of the

case; pivot the bottom of the door out.

15. Electrical Wiring Diagram

 Each case has its own wiring diagram folded

and in its own packet.

 Wiring diagram placement may vary; it may

be placed near condenser fan cover, ballast

box, raceway cover, or other related location.

16. Ventilation and Clearance

 Self-Contained refrigerated cases must

maintain airflow clearance of 6” (minimum) to

12” (recommended) at front and rear.

 Restriction of air can void warranty.

 See illustration at right.

Pry Bar

Base

Frame

Leveler

Adjustable

Wrench

Toe-Kick

Block

Rear

Doors

Front

Curved

Glass

Lift

Handle

Check air grilles for obstructions.

Maintain airflow clearance of 6” (min.)

to 12” (recommended) at front & rear.

INSTALLATION, CONTINUED: LIGHT SWITCH, TEMP. CONTROLLER, SATURATED SUCTION TEMP.

Sample Carel® Controller Face

17. Main Power Switch

 Turn main power switch on.

 Case will power up and temperature controller

will begin operating.

 See illustration at top-right for location.

18. Light Switch

 Turn lights on. Light switch is at case rear.

See illustration at top-right for location.

19. Temperature Controller (All Self-

Contained Units and some Remote Units)

 Check that compressor symbol light is on:

Compressor symbol (common in Carel®

temperature controllers) is shown at left.

 After case has run for a few minutes, check that

temperature starts to drop.

 If temperature controller does not begin cooling

(in a few minutes) see temperature controller

section in this operating manual for instructions.

 Remote units (without temperature controller on

case): Verify that refrigeration requirements listed

on serial label (found on the case) are being met.

20. Saturated Suction Temperature

(Remote Units)

 See serial label on case for suction temperature

requirements and BTU requirements.

 See serial label on case for defrost schedule and

temperature termination parameters.

Light Switch

Main Power

Switch

Temperature

Controller

------- View from rear of case -------

INSTALLATION, CONTINUED: LED AND FLUORESCENT STYLE LIGHT FIXTURES

21. LED Style Light Fixtures

Removal of Faulty LED Lights:

 Contact Structural Concepts’ Technical Service

Department for replacement LED lights.

 Turn off LED light switch.

 To remove faulty LED light, follow these steps:

A. Disconnect plug from LED light.

B. Using both hands, grasp LED light assembly (with its

magnetic mounting clips). Pull downward and off its

shelf (or header).

C. Remove magnetic mounting clips from LED light by

pressing against flange part of clip with thumb.

>> Note: Mounting clips MAY be riveted to shelf or header. In

such instances, simply remove LED light from mounting clips

by pressing against flange part of clips with thumb.

Replacement of LED lights:

 Attach magnetic mounting clips onto LED light.

 Adjust magnetic mounting clips so they are equally

spaced on LED light.

 Reattach LED light assembly to its shelf/header.

 Position properly in shelf/header.

>> Note: If mounting clips are riveted to shelf (or header),

attach by placing LED in base of clip and then snapping into

clip at FLANGE SIDE.

 Press plug’s barrel-shaped insert deep into LED light.

 Important: If plug is not inserted ALL THE WAY IN the

LED light’s orifice, the light may not energize. See “BAD”

vs. “GOOD” insertion illustrations at mid-right.

 Turn LED light switch back on.

22. Fluorescent Style Light Fixtures

Light fixture can be located on the underside of

each shelf assembly and at the top inside of case.

A. Removal of lamp:

 Firmly pull one end of lamp outward to disengage

pins/contacts from lamp mounting sockets.

 After the one end has been removed, carefully dis-

engage from opposite end of bulb.

 Take care to not bump bulb into shelves or end

panels as it is possible to shatter bulb.

 See accompanying photo.

B. Installation of lamp:

 Align pins with slot.

 Insert pins into socket. Press pins firmly into slots.

Wiggle back and forth to assure that pins are secure.

 See accompanying photo.

Magnetic Mounting

Clip View #2

LED

Lights

Plug

Barrel

Shaped

Insert

LED

Light

Magnetic Mounting

Clip View #1

No Gap

Gap

INSTALLATION, CONTINUED: FRONT GLASS ALIGNMENT & ADJUSTMENT

—- Front Glass —-

Case with Curved

Front Glass

Case with Flat

Front Glass

LIFT

END

PANEL

CURVED

FRONT

GLASS

3. If FRONT-LEFT CORNER

is too close to end panel (or

hitting it), adjust levelers at

the BACK LEFT CORNER

of case DOWNWARD.

2. Front-to-Back Leveling: Place a level on top of

case, perpendicular to front glass. Raise or lower

either side of case by rotating levelers to center the

level bubble. Double-check the side-to-side level.

1. Side-to-Side Leveling: Place a level on top of

display case (parallel to the front glass). Raise or

lower either side of the case by rotating levelers to

center the level bubble.

CURVED

FRONT

GLASS

END

PANEL

LIFT

4. If FRONT-RIGHT CORNER

is too close to end panel (or

hitting it), adjust levelers at the

BACK RIGHT CORNER of

case DOWNWARD.

5. Verification: After inserting shims (or adjusting levelers), open and shut

the front glass to confirm proper fit.

 Verify (again) that front glass is properly aligned at left-hand and right-

hand side of the case.

 If not, repeat the shimming procedure (or leveler adjustment) until the

front glass is properly aligned along both sides of the case.

23. Front Glass Alignment & Adjustment via Levelers (For Curved and Flat Front Glass)

 Proper alignment of the front glass is important to create and maintain a seal inside the case.

 Improper alignment can cause air leaks; this can compromise the environment inside the case and create

condensation.

 Follow the five steps listed below to assure proper front glass alignment.

INSTALLATION, CONTINUED: BAFFLES - AMBIENT VS. REFRIGERATED CONDITIONS

24. Baffles - Ambient vs.

Refrigerated

Certain sections of the case can be

either ambient or refrigerated

(depending upon type of product being

displayed).

A dual-purpose (convertible) baffle is

provided to facilitate desired condition.

It is accessible through operator side

(rear) of case.

The baffle will prevent (or allow)

refrigerated air circulation through the

display area and returning through the

air return grille.

1. For ambient (non-refrigerated)

conditions, position baffle flat

against upper deck of case to

block airflow. See photo #1.

2. To switch from ambient to

refrigerated condition, lift baffle

up and out of air chamber.

Rotate baffle 90° toward front of

case so that arrows on the tag

point down and Sanalite air block

(and tag) is nearest to case front.

Baffle may now be lowered down

into air chamber. See photo #2.

3. For refrigerated conditions, baffle

is completely lowered into air

chamber. Air now circulate

through convertible baffle, upper

display area and circulates

through air return grille. See

photo #3.

>> See CLEANING SCHEDULE:

TO BE PERFORMED BY STORE

PERSONNEL section in operating

manual for convertible baffle cleaning

specifics.

>> Depending upon model, options and

features chosen, photos may not

exactly reflect every aspect of your

particular case.

Convertible

Baffle

--- Convertible Baffle in Ambient (Non-Refrigerated) Position ---

Convertible

Baffle

Air Return Grille Tag

Tag

Air Chamber

Tag

Enlarged view of Tag (From

Operator’s Vantage Point)

At Case Rear

--- Case Front ---

--- Case Rear ---

Convertible Baffle

Sanalite Air Block And Gasket

--- Case Front ---

--- Case Rear ---

--- Convertible Baffle Rotated 90° So Sanalite Piece Faces Front of Case ---

---

Case

Rear

---

Case

Front

---

--- Baffle Inserted Into Air Chamber (Sanalite Piece Faces Case Front) ---

Gasket

Sanalite

Piece

(Of Baffle)

NOTE: THE

BELOW

ILLUSTRATION

MAY NOT

EXACTLY

REFLECT

EVERY

PARTICULAR

CASE’S

FEATURES

OPTIONS.

Night Air Curtain Installation & Operating Instructions

1. Use caution when handling night air curtain.

2. Display case may come with night curtain already attached. If not, a retrofit kit will

be provided. If using the SCC-supplied retrofit kit, the night air curtain support

must first be attached to the existing upper front duct plate (see illustration below).

To attach, use the night air curtain support (as a template) by placing it along the

front duct plate. Mark locations of existing Ø.20” hole onto upper front duct plate.

Drill clearance holes for #10 screws at these points.

3. Place night air curtain support into position and use the SCC-supplied screws to

attach it to the upper front duct plate (where pilot holes were just drilled).

4. Night air curtain assembly may now be placed on the night air curtain support.

Carefully positioned magnets will keep in place. Grasp the handle and pull

downward to desired location (see illustration below).

5. To return night air curtain to its retracted position, grasp handle, lift up and away

from its magnetic attachment and carefully wind night air curtain back into roll.

6. Caution! Do not allow spring-loaded night air curtain to freely snap back into roll.

Doing so can eventually destroy night air curtain’s tension and retractability.

7. Note: Due to ONLY the magnets keeping night air curtain assembly in place, it

may be removed at any time by firmly lifting up and off night air curtain support.

Acrylic

Sneeze

Guard)

Honeycomb

Night Air Curtain

Support Existing

Hole (Typical)

Night Air

Curtain

Assembly

Night Air

Curtain

Support

Upper Front

Duct Plate

OPTIONAL NIGHT AIR CURTAIN INSTALLATION & OPERATING INSTRUCTIONS

NOTE:

ILLUSTRATIONS

MAY NOT

EXACTLY

REFLECT EVERY

PARTICULAR

CASE’S

FEATURES

OR OPTIONS.

Initial Positioning and Installation of Security Grid

1. Due to weight and size, Security Grid installment may require two (2) people.

2. After hoisting the Security Grid directly over Front Air Deflector, drop the (2)

Security Grid Positioning Rods into the Baffle Airflow Slots (see below).

3. After securely positioned in the Baffle Airflow Holes, carefully and slowly lean the

Security Grid back against the two Security Brackets.

4. The next page in this manual will show how to secure the top of the Security Grid

to the Security Brackets.

Enlarged View (Below)

 Enlarged View (shown below) shows

security grid positioning tab slid into

baffle airflow hole.

 There is one security grid positioning

tab on each security grid end.

 Tabs must be securely positioned in

both airflow slots prior to locking with

Padlocks.

Security

Grid

Security Grid Positioning Rod

(Inserted in Baffle Airflow Hole)

Baffle Airflow

Area

Front Air

Deflector

SECURITY GRID INSTRUCTIONS (OPTIONAL) - PAGE #1 of 2

Enlarged View (At Left)

 Enlarged View (at left) shows

Padlock through Security Grid and

Security Bracket.

 There is one Security Bracket at

each end of Case.

NOTE:

ILLUSTRATIONS

MAY NOT

EXACTLY

REFLECT EVERY

PARTICULAR

CASE’S

FEATURES

OPTIONS.

Securing Security Grid Into Place and Locking

1. After leaning the security grid back against the two security brackets, slide the (two)

padlocks through the security grid and the security brackets.

2. Securely lock the padlocks (one key fits both padlocks).

Removing and Storing Security Grid and Locks

1. Due to weight and size, security grid removal requires two (2) people.

2. Unlock and remove padlocks. Lean security grid forward. Lift upward and out of baffle

airflow slots.

3. Store security grid, padlocks and keys in a secure location to prevent theft or damage.

SECURITY GRID INSTRUCTIONS (OPTIONAL) - PAGE #2 of 2

End Panel

Security Bracket

Padlock

Security Grid

Security

Grid

Glass Lift

DRAIN, HOSE AND BRACKET PLACEMENT ILLUSTRATIONS

NOTE: BELOW ILLUSTRATIONS MAY

NOT EXACTLY REFLECT EVERY

PARTICULAR CASE’S FEATURES

2. Hot Gas Condenser System.

 Hot gas serpentine coil is routed through a condensate

reservoir allowing water to be heated. This system

uses a wicking material (partially submersed) with

warm condenser air passing through it for evaporation.

 Also incorporates an overflow reservoir with heating

element to ensure complete condensate removal.

Three Condenser Systems Are Illustrated Below:

Illustration #1: Hot Gas “CopeVap” Condenser

System. “Copevap” is built into Compressor Unit.

Illustration #2: Hot Gas Condenser System.

Illustration 3A/3B : Electrical Heat Rod Condenser

System. Note: Separate Condenser Pan.

Warning! Regardless of Condenser, the Hose and

Drain Trap MUST BE secured and positioned over

Condenser Pan to prevent water seepage / spillage.

When sliding out Condenser Unit, be careful that

drain is not pulled from proper position.

1. Hot Gas “CopeVap” Evaporator System.

Clear PVC

Tube

Drain Trap

Hose thru bracket

Bracket

Note: Drain

positioned

directly over

Reservoir

“CopeVap”

Reservoir

Clamp

3B. Isometric View of

Electrical Heat Rod Condenser System

Condenser Pan

Cond. Pan Positioning Bracket

Use Hose Clamp

to Secure Hose

to Adapter

Clear PVC

Tube

Cond. Pan

Positioning

Bracket

Drain

Trap

Refrigeration

Assembly

Base

Compressor Pan

Shipment Screw

(1 at each side)

Wicking

Material

This area of your unit

may widely vary (due to

display case options).

Suction

Accumulator

Hot

Serpentine

Coil

Receiver

Elec. Box, Hot

Gas Condensate

Overflow

Scroll

Compressor

Fan

Shroud

Filter

Drier

Sight Glass

3A. Front View of

Electrical Heat Rod Evaporator System

Condenser

Pan

Drain

Trap

FREQ. INSTRUCTIONS

Daily All Glass / Mirrors: Clean side glass, front glass, glass shelves, and mirrors with household or

commercial glass cleaner. Clean out door track with moist cloth.

Daily Rear Sliding Door Exterior Glass: Clean with household or commercial glass cleaner.

Daily End Panels, Front Panel, Toe-Kick, etc.: Wipe off all surfaces with warm water and mild soap

solution and non-abrasive cloth.

Daily Decks: Wipe off decks with moist cloth dipped in mild soap and water solution.

Weekly Wood, Laminate and Painted Surfaces: Clean with mild soap and water solution and a soft

cloth .

Weekly Acrylic Sneeze Guard: Clean with warm water, mild soap solution and soft cloth; acrylic

cleaning solutions are also available. Caution! Never use ammonia-based cleaners on acrylic.

Incorrect cleaning agents or abrasive cleaning cloths cause surface to ‘cloud’ over time. See

photo on next page.

Weekly Magnetic Air Filter and Condensing Coil: Clean condenser coil filter and condenser coil fins.

See corresponding photos a, b, c and d below.

a. Remove magnetic air filter. Remove dust, dirt, smoke and grease stains by rinsing

with hot water and multipurpose dish soap at sink.

b. Lift rear grille up and off (after removing screws).

c. Vacuum (or brush off) dust and dirt from condenser coil fins.

Warning! Do not use metallic objects to poke or insert into condenser coil area!

d. Return rear grille and magnetic filter to case. Caution: Make certain that magnetic

filter completely covers all rear grille openings.

Monthly Under Case Cleaning: Remove front toe-kick (or rear grille). Vacuum under case to remove

all dust and dirt. Replace front toe-kick (or rear grille) when complete.

CLEANING SCHEDULE: TO BE PERFORMED BY STORE PERSONNEL

TROUBLESHOOTING (TO BE PERFORMED BY STORE PERSONNEL)

CONDITION TROUBLESHOOTING

Case Is Not Level See ALIGNING CASE / FRAME SUPPORT RAIL SHIMMING / ADJUSTING

LEVELERS section in this manual for additional info.

Case Not Lining Up See Installation Section for instructions on properly aligning case (alongside

other cases) and adjusting levelers (or rails).

Water Is On The Floor Call service provider.

Fan Emits Excessive

Noise

Call service provider.

Case Lights Are Not

Working

Check that light switch is in the on position.

Check that ALL of the light cords and plugs are properly connected. See

MAINTENANCE: REAR SLIDING DOORS/LIGHT FIXTURES (PERFORMED

BY STORE PERSONNEL) section in manual.

If case lights still do not come on, call service provider.

Case is Not Holding

Proper Temperature

If a large amount of warm product was added to the case, it will take time for

the temperature to adjust. Product must be pre-chilled before placing in case.

Check that the case is not in the sun or near a heat or air-conditioning vent.

See OVERVIEW / NSF® TYPE / COMPLIANCE / WARNINGS /

PRECAUTIONS section in this manual for specifics.

If case is located near front doors, temperature fluctuation can hinder unit’s

ability to maintain temperature.

Check that air filter and condenser coil has been cleaned.

 See GENERAL CLEANING (TO BE PERFORMED BY STORE

PERSONNEL) section in this manual for specifics.

Check air return grilles (area at front of decking) for obstructions. DO NOT set

product on air grilles as this will prevent proper airflow!

If case still is not holding proper temperature, call service provider.

Warning! Disconnect power before providing

maintenance and service to unit.

Caution: Lamps are treated to resist breakage and

must be replaced with similarly treated lamps.

Note: Warranty will be void if claims arise from

negligence, misuse of goods, extreme

environmental conditions or improper maintenance.

See Overview And Warnings section in manual.

1. Rear Sliding Doors

Note: Doors are not interchangeable. There is an inner

and outer door. Outer door must be removed first and

replaced last. See illustration at top-right.

 The outer door is the right hand door (from the

service side or rear of case).

 Move doors toward the center of the case.

 Individually lift each door up toward the top of the

case; pivot the bottom of the door out.

 Replace rear sliding doors in reverse order they

were removed.

2. LED Lights

 LED lights are located at both header and shelving

of case.).

 Check that ALL of the light plugs are properly

connected to the LED light.

 Plug must be inserted ALL THE WAY into the LED

light orifice (with no gap) to work properly.

 See “Bad” vs “Good” insertion examples at right.

3. Fluorescent Light Fixtures

Note: Depending upon model and options, light fixtures

can have either single or dual lamps.

Light fixtures are located on underside of shelf

assemblies and at the top inside of case. See

illustration at right for general locations.

Removal of lamps:

 Rotate lamp (1/4-turn) to disengage (upper or

lower) pins/contacts from mounting sockets.

 Remove bulb by applying even pressure from

back side at the bulb ends and pulling the re-

maining contact from sockets.

Installation of lamps:

 Align pins with slot.

 Insert pins into socket by rotating the bulb 1/4-turn to

secure either the (upper or lower) pin contacts into

the sockets.

 Rotate remaining bulb contacts (1/4-turn) into

remaining lamp mounting socket contacts.

 See illustrations at right.

MAINTENANCE (BY STORE PERSONNEL): REAR DOORS & LIGHT FIXTURES

Light

Fixtures

Rear Doors

LED Light

Plug

LED’s Barrel

Shaped Insert

No Gap

Gap

MAINTENANCE (BY STORE PERSONNEL): BRACKET RETAINERS / SHELVES

4. Bracket Retainer Removal

 To remove brackets, you must remove the nylon shipping bracket retainers.

 Pliers will be required to accomplish this task.

 See illustration at top-right for location of bracket retainers.

5. Shelf Assembly Removal

 Remove glass shelves

 For lighted shelving, unplug the light cord.

 Remove rear shelf support.

 Remove shelf light cover from brackets.

 Lift brackets up and out.

Shelf

Bracket

Shelf Light

Cover

Glass Shelf

Rear Shelf Support

Lamp

Bracket

Retainer

Locations

MAINTENANCE (BY TRAINED SERVICE PROVIDERS ONLY): TUB/EVAPORATOR COIL AREA ACCESS

1. Tub / Evaporator Coil Area Access

 The drain and expansion valve are both accessible from the front of the case.

 Depending upon case, you may need to unplug fan and remove fasteners from the access panel.

 If no access panel to remove, the drain and expansion valve (TXV) are directly below the decking and

sub-deck.

Fan Plug

TXV Access Panel Evaporator

Fan

MAINTENANCE (BY TRAINED SERVICE PROVIDERS ONLY): CONDENSER PKG. / TEMP. CONTROLLER

2. Condenser Package Access

A. Magnetic Air Filter

 Magnetic filter adheres to rear grille.

 See CLEANING SCHEDULE: TO BE

PERFORMED BY STORE PERSONNEL section

in manual for cleaning instructions.

 See illustrations at top-right.

B. Slide Out Condenser Package

 Remove the rear grille. Grille may be slid upward and

out or removal of screws may be required.

 Note: At initial slide-out, it may be necessary to

remove compressor pan shipment screws (see

illustration at right for location).

 Refrigerant lines are flexible to facilitate rear access

maintenance.

 Plastic glides are mounted at base to assist in sliding

the condenser out for access.

 Service connections are at the left of compressor.

 Slide condenser unit out 12 to 18 inches to access

high pressure service connection.

C. Condenser Pan Access / Removal

 WARNING! Condenser Pan May Be Hot! Check

temperature of pan prior to handling.

 Withdraw condenser pan from the right side behind

electrical box.

 Unplug condenser pan from the electric outlet.

 Empty condenser pan contents into suitable container.

Replace rear panel when completed.

D. Temperature Controller (Self-Contained Units Only)

 Temperature controller is located in the ballast box.

 Temperature / defrost control settings are

programmable from these locations.

 Case temperature set point is set at the factory, as

determined by case size & sensor probe location.

 Temperature is controlled by thermostat.

 If a temperature setting change is required, follow

instructions regarding temperature control

programming steps in the technical information

section of this operating manual.

 If service is required to the temperature control unit,

call Structural Concepts Corporation. Maintenance

should be performed by a certified technician.

 The toll-free number is listed in the Technical

Service section of this manual.

 See Temperature Controller section in this manual.

NOTE: Spirit-filled thermometers located in the

refrigerated compartment are for monitoring

warmest air temperature in accordance with NSF Std. 7.

Refrigeration

Package Slide-Out

Shipment

Screws

Temperature

Controller

Evaporator

Pan

Air Filter

Rear Grille

Note: Illustrations shown may not reflect every

feature or option of your particular case.

MAINTENANCE (BY TRAINED SERVICE PROVIDERS ONLY): HONEYCOMB AIR DIFFUSER

Preventive maintenance should be performed every

90 days (unless conditions warrant a more frequent

replacement cycle).

Air Duct - Upper Section (see illustration at top-right)

 Depending upon model, upper section air duct may

be removable for cleaning. If so, simply lift air duct up

and out of chamber to access area to clean.

 If upper section air duct is not removable from case,

Honeycomb removal will allow access to area.

 Clean with brush or vacuum with brush attachment.

 Wipe down with moist cloth.

Honeycomb Air Diffuser Removal

A. Wedge non-metallic device of suitable strength (such

as a ballpoint pen) between honeycomb and end panel.

Caution! Use care not to dislodge the heating wire (that

prevents condensation on the lamp assembly).

B. Apply pressure to collapse the honeycomb to allow it

to be pulled out of honeycomb retainer.

C. Pry downward and away from honeycomb retainer.

Clean honeycomb with warm water and soap solution.

Submerse if necessary. Use brush to dislodge stubborn

or sticky residue. Dry by using vacuum’s ‘blow mode’.

Honeycomb Air Diffuser Installation

D. Squeeze honeycomb into the honeycomb retainer.

E. Carefully slide honeycomb into place.

F. Adjust honeycomb so that it fits flat against retainer.

It must not be wavy or out of position.

Honeycomb Air Diffuser

Air Duct

Upper

Section

Air Diffuser

CONDITION TROUBLESHOOTING

Case Not

Lining Up

See Installation Section for instructions on properly aligning case (alongside other cases)

and adjusting levelers.

Water Is On

The Floor

Caution! Water on flooring can cause much damage! Until cause is determined

(and repaired), following these procedures:

 Use wet-dry vacuum (or mop & bucket) to remove standing water.

 Use ‘catch pans’ for water to drain into. Swap out regularly until case has completely

drained.

Note: See Drain, Hose and Bracket Placement Illustrations sheet in this manual for

views of different evaporator systems used in display cases.

Check that the drain trap is free of debris.

Check that the drain hose is correctly positioned over evaporator pan (or floor drain, for

remote units).

Check store conditions. To prevent condensation:

 For NSF® Type 1 environments, maximum conditions are to be 55% humidity / 75°

Fahrenheit.

 For NSF® Type 2, maximum conditions are to be 55% humidity / 80° Fahrenheit.

 See serial label (at case rear near main power switch) for NSF® Type of your case.

Check evaporator pan float for proper operation (heat rod evaporator system only).

Check that evaporator pan is properly plugged in or connected.

Caution! Evaporator pan may be malfunctioning (electrical heat rod evaporator

system). If so, water will overflow pan and seep onto flooring causing damage! Until evap-

orator pan is functioning (or is replaced), following these procedures:

 Use wet-dry vacuum (or mop & bucket) to remove standing water.

 Use ‘catch pans’ for water to drain into. Swap out regularly until case has completely

drained.

Caution! Disruption of power can cause water to overflow pan and seep onto

flooring causing damage! Check that power to case is constant. Until power is restored,

following these procedures:

 Use wet-dry vacuum (or mop & bucket) to remove standing water.

 Use ‘catch pans’ for water to drainage. Swap out regularly until evaporation of case is

complete (or until power is restored).

When power to case is restored, evaporator pan should function properly and water will

no longer overflow onto flooring.

Caution! Wicking material may be dirty or worn and need replacement

(Hot Gas Evaporator system only).

 Slide refrigeration system out from under unit.

 After refrigeration system has been carefully slid out from under unit, replace wicking

material with new. If wicking material is not available, contact Structural Concepts.

See toll-free number at last page of this operating manual.

TROUBLESHOOTING (TO BE PERFORMED BY TRAINED SERVICE PROVIDERS ONLY) - PAGE 1 of 3

TROUBLESHOOTING - EVAPORATOR SYSTEM (BY TRAINED SERVICE PROVIDERS ONLY)

CONDITION TROUBLESHOOTING

Low Suction Pressure Check if sight glass is flashing or showing low charge.

Check that expansion valve (TXV) isn’t restricted. Check element charge.

Check that liquid line or filter isn’t restricted. Check that refrigeration lines

and/or hoses are not kinked on either high or low sides.

Check that evaporator fan motors are working.

Check that superheat is between 6 °F to 8 °F.

Check that there is no air recirculation around evaporator coil.

Check that evaporator coil is not iced up.

High Suction Pressure Check for refrigerant overcharge.

Check that compressor reed valves aren’t bad. Look for high suction/low

head pressure. Perform pump down.

Check that the “cooling load” isn’t high. Product must be pre-chilled before

placing in refrigerated section of case.

Check that case is at least 15-feet from exterior doors, overhead HVAC

vents or any air curtain disruption.

Check that unit is not exposed to direct sunlight via windows or any other

heat source (ovens, fryers, etc.).

Check that superheat adjustment isn’t low.

Check TXV bulb installation

a. Poor thermal contact.

b. Warm location.

PREVENTIVE MAINTENANCE (TO BE PERFORMED BY TRAINED SERVICE PROVIDER) - Page 1 of 2

PREVENTIVE

MAINTENANCE

FREQ. INSTRUCTIONS

Case Exterior Monthly Condensing Coil:

Note: The vacuum ‘blow mode’ is to be used when cleaning the condenser

coil. Follow these steps:

a. Remove grille; use vacuum and brush to dislodge and remove

dust on and in coil

b. Place damp rags around condensing fan motor brackets to collect dust.

c. Using vacuum (in ‘blowing’ mode), blow air through condenser coils

and into fans. Make certain to blow entire surface of condensing coils

to assure that all entrenched dust is removed. Caution! Coil fins are

sharp. Handle with care!

a. Replace Rear Grille to case.

Quarterly Clean Sweep™ Condensing Coil: Disconnect power from case before

cleaning Clean Sweep™ Condenser Coil!

 Remove Rear Grille (by removing 4 screws).

 Slide/Roll out condensing unit assembly.

 Remove the four (4) screws holding the Clean Sweep™ rails intact.

 Remove the Clean Sweep™ rail.

 Wash rails’ brushes in hot water and mild soap solution.

 If brushes are worn, they must be replaced. Call Technical Service

Department to replace. Toll-Free number is listed at end of manual.

 Clean Condensing Coil: Use air pressure or industrial strength vacuum;

clean the dust and dirt that may collect on the Condenser Coil.

 Caution! Coil fins are sharp. Handle with care!

 Reattach Clean Sweep rail to condensing unit (4 screws).

 Slide/Roll Condensing Unit Assembly back under case.

 Replace Rear Grille to case (4 screws).

 See photos below.

Quarterly Honeycomb Air Diffuser & Air Duct Upper Section: See

MAINTENANCE FUNDAMENTALS: UPPER SECTION AIR DUCT /

HONEYCOMB AIR DIFFUSERS section in this manual for cleaning

instructions.

--- Above photos are taken after rear grille has been removed from case ---

(4) Screws

Brushes

Rail

PREVENTIVE MAINTENANCE (TO BE PERFORMED BY TRAINED SERVICE PROVIDER) - Page 2 of 2

PREVENTIVE

MAINTENANCE

FREQUENCY INSTRUCTIONS

Case Exterior Quarterly Condenser Pan: Caution! Disconnect from receptacle box.

 Remove mounting screws from base.

 Use de-scaling solution (such as CLR® that will prevent corrosion,

lime and rust) to clean pan.

 Rinse thoroughly; do not submerse in water.

 Reattach pan to case with same mounting screws.

 Reconnect power cord to receptacle box.

Quarterly Compressor Area: Caution! Be certain to disconnect power from

case before cleaning Compressor Area!

 Slide/Roll compressor package out from under case.

 Use moist cloth to wipe off dust & debris that collects on various

parts.

 Slide/Roll compressor package back under case.

Quarterly Under Case Cleaning: Once refrigeration package is clear of unit,

vacuum under case to remove all dust and dirt that may collect under

case.

Case Interior Quarterly Tub, Coil, Drain, Fan Blades, Motors, Brackets:

Disconnect power from the case before cleaning tub, coil, fan, motor

and drain area!

 Remove decking, sub-deck and fan shroud.

 Use vacuum to clean evaporator coils.

 Clean tub, coil and drain with warm water, clean cloth, brush and

mild soap solution.

 Remove any debris that may clog drain.

 Clean fan blades, motors and brackets by wiping down with moist

cloth.

WARNING! TURN OFF CASE BEFORE PERFORMING PREVENTIVE MAINTENANCE!

Serial Label Location & Information Listed / Technical Information & Service

 Serial labels are located near the electrical access on your case.

 Serial labels contain electrical, temperature & refrigeration information, as well as regulatory

standards to which the case conforms.

 For additional technical information and service, see the TECHNICAL SERVICE page in this

manual for instructions on contacting Structural Concepts’ Technical Service Department.

 See images below for samples of both refrigerated and non-refrigerated serial labels.

----- Sample Serial Label For Refrigerated Case -----

----- Sample Serial Label For Non-Refrigerated Case -----

888 E. Porter Road ∙ Muskegon, MI 49441 Phone: 231.798.8888 Fax: 231.798.4960 www.structuralconcepts.com

SERIAL LABEL LOCATION & INFORMATION LISTED / TECH INFO & SERVICE

Serial Label Location & Information Listed / Technical Information & Service

 Serial labels are located near the electrical access on your case.

 Serial labels contain electrical, temperature & refrigeration information, as well as regulatory

standards to which the case conforms.

 For additional technical information and service, see the TECHNICAL SERVICE page in this

manual for instructions on contacting Structural Concepts’ Technical Service Department.

 See images below for samples of both refrigerated and non-refrigerated serial labels.

----- Sample Serial Label For Refrigerated Case -----

----- Sample Serial Label For Non-Refrigerated Case -----

888 E. Porter Road ∙ Muskegon, MI 49441 Phone: 231.798.8888 Fax: 231.798.4960 www.structuralconcepts.com

Integrated Electronic

Microprocessor Controller

Read And Save These Instructions - Page 1 of 3

Programming The Instrument

To Modify The Setpoint

Press and hold the “SET” key for at least 1 second.

2. Use arrow keys ▲ ▼ on temperature

controller to increase (or decrease) the

setpoint.

3. Quickly press and release the “SET” key again.

To Modify Defrost, Differential or Other Parameters

1. Press & hold “Prg” & “SET” keys together

for five (5) seconds; display will flash “0”,

representing password prompt.

2. Confirm by pressing “SET” key.

3. Press ▲ or ▼ to reach the

category to be modified.

4. Press “SET” to modify this selected parame-

ter.

5. Increase or decrease the value using

the ▲ or ▼ button respectively.

6. Press the “SET” key to temporarily save the new

value and return to the display of the parameter.

7. Press & hold the “Prg” key for at least 5 seconds

to save changes. This action will also mute the

audible alarm (buzzer) & deactivate the alarm relay.

Warning! Save Your Parameter Settings!

1. To store the new parameter values, PRESS and HOLD the “Prg” key for at least 5 seconds.

2. All modifications made to parameters will be lost if you do NOT press a button within 60 seconds. Should

this “timeout” occur, normal operational settings (prior to modifications being made) will resume.

3. If the instrument is switched off before pressing the “Prg” key, all modifications to parameters will be lost.

Set

▲

aux

Prg

mute

def

▼

Prg

mute

Set

def

▼

Set

▲

aux

▲

aux

def

▼

Set

Prg

mute

Structural Concepts Corp., 888 E. Porter Rd ∙ Muskegon, MI 49441

Ph: 231.798.8888 / Fax: 231-798-0393 / www.structuralconcepts.com

I:\Oper Manuals - PUB\Templates\Carel Controller\Carel Controller IR33.pub

This data derived from Carel Material: ir33 +030220441 - rel. 2.0 - 01.05.2006

How To Change Reading From

Fahrenheit (°F) To Celsius (°C)

1. Press and hold “Prg” and “SET” keys

together for at least 5 seconds; display will

show “0”, representing password prompt.

2. Confirm by pressing “SET” key.

3. Press ▲ or ▼ until reaching the

parameter “/ 5”.

4. Press “SET” to modify this selected parameter.

5. Press ▲ or ▼ to change value to desired setting:

“0” for Celsius (°C) or “1” for Fahrenheit (°

F).

6. Press “SET” key to temporarily save the

new value and return to the display of the

parameter.

7. Press & hold “Prg” key for at least 5 seconds to

save changes. Note! All values will automatically

convert to new scale. No conversion is required.

Prg

mute

Set

def

▼

▲

aux

Set

▲

aux

def

▼

Set

Prg

mute

Set

def

▼

▲

aux

To Activate / Deactivate Auxiliary Output

Press and hold the “aux” key for 1 second.

▲

aux

To Activate Manual Defrost

Press and hold the “def” key for at least 5 seconds.

def

▼

To Reset Any Alarms With Manual

Reset

Press and hold the “Prg” and “aux”

key for at least 1 second.

▲

aux

Prg

mute

Integrated Electronic

Microprocessor Controller

Read And Save These Instructions - Page 2 of 3

User Interface - Display

reset alarms w/manual reset / reset HACCP alarms / reset temp. monitoring

Summary Table of Alarm and Signals: Display, Buzzer and Relay

Structural Concepts Corp., 888 E. Porter Rd ∙ Muskegon, MI 49441

Ph: 231.798.8888 / Fax: 231-798-0393 / www.structuralconcepts.com

I:\Oper Manuals - PUB\Templates\Carel Controller\Carel Controller IR33.pub

This data derived from Carel Material: ir33 +030220441 - rel. 2.0 - 01.05.2006

Integrated Electronic

Microprocessor Controller

Read And Save These Instructions - Page 3 of 3

Summary Table of Operating Parameters

CODE PARAMETER UOM* TYPE MINIMUM MAXIMUM DEFAULT

Select Celcius (°C) or Fahrenheit (°F)

flag C 0 1

/c1 Calibration of probe 1 °C/°F C -20 20

/c2 Calibration of probe 2 °C/°F C -20 20

St Temperature set point °C/°F F r2 r1

rd Control delta °C/°F F 20 0.1

dl Interval between defrosts hours F 0 250

dt1 End defrost temperature, evaporator °C/°F F -50 200

dP1 Maximum defrost duration, evaporator min F 1 250

d6 Display on hold during defrost - C 0 2

dd Dripping time after defrost min F 0 15

d/1 Display of defrost probe 1 °C/°F F - -

Structural Concepts Corp., 888 E. Porter Rd ∙ Muskegon, MI 49441

Ph: 231.798.8888 / Fax: 231-798-0393 / www.structuralconcepts.com

I:\Oper Manuals - PUB\Templates\Carel Controller\Carel Controller IR33.pub

This data derived from Carel Material: ir33 +030220441 - rel. 2.0 - 01.05.2006

For Case

Specific

Defaults

See Serial

Label

Located

Near

Electrical

Access

On Your

Case.

For

Additional

Technical

Information

Call

Structural

Concepts

Technical

Service

Dept. at

1(800)

433.9489

* Unit Of Measure

STRUCTURAL CONCEPTS TECHNICAL SERVICE CONTACT INFORMATION & LIMITED WARRANTY

SCC Warranty Revision K Date: 12.10.2018

LIMITED WARRANTY

Overview: All sales by Structural Concepts Corporation (hereafter referred to as “SCC”) are subject to the following limited warranty. “Goods” refers to the product or products

being sold by SCC.

Warranty Scope: Warranty is for equipment sold in the United States, Canada, Mexico and Puerto Rico. Equipment sold elsewhere may carry modified warranties.

Warranty; Remedies; Limitations: The limit of liability of SCC toward the exchange cost of the original compressor motor (and/or any other components) is one year parts and

labor. If any Goods are found to be of faulty material or workmanship within one year of the original F.O.B. (free on board) unit shipment, SCC will, at its option (after inspection

by an authorized representative), replace or pay the reasonable cost of replacement of the faulty Goods. If warranty claim is not made within this one year time period, SCC is not

bound to warrant Goods. A motor-compressor (and/or any other components) replaced during the warranty shall not exceed manufacturer's current established wholesaler’s

exchange price. If replacement motor-compressor (and/or other components) is available via storage facility, parts truck, etc., SCC mandates that readily accessible replacement

components be used toward repair of Goods; in such instances, SCC will replace such equipment (at its own expense) after confirmation of its use/placement on defective unit.

SCC shall not be charged an additional fee, up-charge or expense for such replacement Goods. If SCC is unable to repair or replace the defective Goods, SCC shall issue a

credit to the Purchaser for full or partial purchase price, as SCC shall determine. The replacement or payment in the manner described above shall be the sole and exclusive

remedy to Purchaser for a breach of this warranty. If any Goods are defective or fail to conform to this warranty, SCC will furnish instructions for their disposition. No Goods shall

be returned to SCC without its prior consent.

SCC’s liability for any defect in the Goods shall not exceed the purchase price of the Goods. SCC SHALL HAVE NO LIABILITY TO PURCHASER FOR CONSEQUENTIAL

DAMAGES OF ANY KIND WHATSOEVER, INCLUDING, BUT NOT LIMITED TO, PERSONAL INJURY, PROPERTY DAMAGE, LOST PROFITS, OR OTHER ECONOMIC

INJURY DUE TO ANY DEFECT IN THE GOODS OR ANY BREACH OF SCC, SCC SHALL NOT BE LIABLE TO THE PURCHASER IN TORT FOR ANY NEGLIGENT DESIGN

OR MANUFACTURE OF THE GOODS, OR FOR THE OMISSION OF ANY WARNING THEREFROM.

SCC shall have no obligation or liability under this warranty for claims arising from any other party’s (including Purchaser’s) negligence or misuse of the Goods or environmental

conditions. This warranty does not apply to any claim or damage arising for or cause by improper storage, handling, installation, maintenance, or from fire, flood, accidents,

structural defects, building settlement or movement, acts of God, or other causes beyond SCC’s control.

Except as expressly stated herein, SCC makes no warranty, express, implied, statutory or otherwise as to any parts or goods not manufactured by SCC. SCC shall warrant such

parts or Goods only (I) against such defects, (II) for such periods of time, and (III) with such remedies, as are expressly warranted by the manufacturer of such parts of Goods.

Notwithstanding the foregoing, any warranty with respect to such parts of Goods and any remedies available as a result of a breach thereof shall be subject to all of the

procedures, limitations, and exclusions set forth herein.

THE WARRANTIES HEREIN ARE IN LIEU OF ALL WARRANTIES, EXPRESS, IMPLIED, STATUTORY, OR OTHERWISE. IN PARTICULAR, SCC MAKES NO WARRANTY

OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.

No representative, agent or dealer of SCC has authority to modify, expand, or extend this Warranty, to waive any of the limitations or exclusions, or to make any different or

additional warranties with respect to Goods.

Period of Limitations: No claim, suit or other proceeding may be brought by Purchaser for any breach of the foregoing warranty or this Agreement by SCC or in any way arising

out of this Agreement or relating to the Goods after one year from the date of the breach. In the interpretation of this limitation on action for a breach by SCC, it is expressly

agreed that there are no warranties of future performance of the goods that would extend that period of limitation herein contained for bringing an action.

Indemnifications: Purchaser agrees to indemnify, hold harmless, and defend SCC if so requested, from any and all liabilities, as defined herein, suffered, or incurred by SCC as

a result of, or in connection with, any act, omission, or use of the Goods by Purchaser, its employees or customers, or any breach of this Agreement by Purchaser. Liabilities shall

include all costs, claims, damages, judgments, and expenses (including reasonable attorney fees and costs).

Remedies of SCC: SCC’s rights and remedies shall be cumulative and may be exercised from time to time. In a proceeding or action relating to the breach of this Agreement by

Purchaser, Purchaser shall reimburse SCC for reasonable costs and attorney’s fees incurred by SCC. No waiver by SCC of any breach of Purchaser shall be effective unless in

writing nor operate as a waiver of any other breach of the same term thereafter. SCC shall not lose any right because it has not exercised it in the past.

Applicable Law. This Agreement is made in Michigan; it is governed by and interpreted according to Michigan law. Any lawsuit arising out of this Agreement or the Goods may be

handled by a federal or state court whose district includes Muskegon County, Michigan, and Purchaser consents that such court shall have personal jurisdiction over Purchaser.

LED Lighting Components Within Lighting System: Supermarket: 5-year LED warranty from date of shipment. Foodservice: 2-year LED warranty from date of shipment. After

one year, warranty does not include labor or other costs incurred for diagnosing, repairing, removing, installing, shipping, servicing, or handling of either defective part or

replacement parts. Remedy of repair or provision of a replacement part without charge shall be the exclusive remedy for any warranty claim. The replacement LED and/or power

supply assumes the unused portion of warranty remaining on unit(s). A 90-day warranty will apply for any LED sold as a service part. Warranty claim must include serial and

model number of unit as well as date code on defective LED lighting component(s). Manufacturer may request return of defective part(s) at customer’s expense to initiate claim.

Glass Material: Glass (UV-bonded glass, glass sneeze guards, glass enclosures, glass held in place via posts, etc.) is only warranted to FIRST POINT OF DELIVERY.

Miscellaneous: If any provision of this Agreement is found to be invalid or unenforceable under any law, the provision shall be ineffective to that extent and for the duration of

the illegality, but the remaining provisions shall be unaffected. Purchaser shall not assign any of its rights nor delegate any of these obligations under this Agreement without prior

written consent of SCC. This Agreement shall be binding upon and inure to the benefit of SCC and Purchaser and each of their legal representatives, successors and assignees.

SCC warrants its products to be free of defects in materials and workmanship under normal use and service for a period of one (1) year from the date of delivery.

This warranty is extended only to the original purchaser for use of the Goods. It does not cover normal wear parts such as plastic tongs, tong holders, tong cables, bag holders,

or acrylic dividers.

General Conditions: All service labor and/or parts charges are subject to approval by SCC. Contact Customer Service Dept. in writing, by phone, fax or email.

All claims must contain the following information: (1) model & serial code number of equipment; (2) the date and place of installation; (3) the name and address of the agency

which performed the installation; (4) the date of the equipment failure; and (5) a complete description of the equipment failure and all circumstances relating to that failure.

Once the claim has been determined to be a true warranty claim by SCC’s Customer Service Department, the following procedure will be taken: (1) replacement parts will be sent

at no charge from SCC on a freight prepaid basis; (2) reimbursement for service labor will be paid if the following conditions have been met - (a) prior approval of service agency

was awarded from the Customer Service Department; and (b) an itemized statement of all labor charges incurred is received by the Customer Service Department. The cost of

the service labor reimbursement will be based on straight time rates and reasonable time for the repair of the defect.

If problems occur with any compressor, notify SCC’s Customer Service Department immediately. Any attempt to repair or alter the unit without prior consent from the Customer

Service Department will render any warranty claim null and void. This warranty and protection plan does not apply to any condensing unit or any part thereof which has been

subject to accident, negligence, misuse, or abuse, or which has not been operated in accordance with the manufacturer’s recommendations or if the serial number of the unit has

been altered, defaced, or removed.

One Year Limit of Liability: After SCC's one-year parts and labor warranty on the original F.O.B. (free on board) unit has expired, SCC is not liable for either the equipment or

labor costs of repairing or replacing the motor compressor, nor any other components that were included in the original F.O.B. (free on board) unit.

TECH SERVICE/WARRANTY CONTACT INFO:

1 (800) 433-9490 / EXTENSION 1

DAYS/HOURS AVAILABLE:

MONDAY - FRIDAY (CLOSED HOLIDAYS)

8:00 a.m. TO 5:00 p.m. EST

YOU MUST HAVE THE FOLLOWING INFO AVAILABLE

BEFORE CONTACTING STRUCTURAL CONCEPTS:

SERIAL NO. / MODEL NO. / STORE NO. / STORE

ADDRESS / DETAILS (PHOTOS, LEAK LOCATIONS,

DAMAGE, STORE’S AMBIENT CONDITIONS, ETC.)
