Declaration of Conformity

Fatar Srl

Zona Ind.le Squartabue

62019 Recanati MC Italy

declares that this product complies with the following European

Directives and related standards:

2006/95/EC

Low Voltage Directive

EN 60065:

1998

Safety Requirements for Audio, Video

and audio-visual apparatus for

professional use

2004/108/EC

Electromagnetic Compatibility Directive

(EMC)

EN 55103-1/E1:

1997

Product Standard Audio, Video and –

audio-visual apparatus for professional

use, Electromagnetic compatibility of

audio equipment: Emission

EN 55103-2/E1:

1997

Product Standard Audio, Video and –

audio-visual apparatus for professional

use, Electromagnetic compatibility of

audio equipment: Immunity

Technical les are maintained at corporate head-quarter of Fatar Srl,

62019 Recanati MC, Italy.

Above declarations are void by modications of the device without

approval, or unauthorized servicing.

RoHS Conformity

This is to certify that the product is RoHS compliant and meet the

requirements and specied limits of restricted substances according

2002/95/EC directive.

WEEE

This product is marked with the WEEE symbol to comply with the

European Union’s Waste Electrical & Electronic Equipment (WEEE)

Directive 2002/96/EC. The symbol indicates that this product should not

be treated as household waste. It must be disposed and recycled as

electronic waste. Please assist to keep our environment clean.

FATAR S rl

Zona Ind.le Squartabue

62019 Recanati MC

ITALY

www.fatar.com

No part of this manual may be reproduced or transmitted in any form

or by any means without prior consent of the copyright owner.

Revision .2019 11

User Guide

Foot Switches

Sustain Pedals

Welcome!

Thank you for choosing this foot switch / sustain pedal. You have

obtained a state- -the-art product made by the renowned manufacturer of

Studiologic by Fatar.

Please read the entire user guide thoroughly and keep it

for further reference.

Intended use

This product is designed to operate as foot switch / sustain pedal for

electronic musical instruments only.

Unauthorised conversion and/or modication of the device are

inadmissible because of safety and approval reasons (CE). Any usage

other than described above is not admitted and can damage the product

or the connected device and can cause risks such as short circuit, re,

electric shock etc.

Important Safety Instructions

Never plug the device to high voltages, such as mains.

This may cause risks of severe injury and death.

This device is designed to be controlled by foot, not by

hand. To avoid risk of bodily injury, keep your hand and

ngers away from moving parts (pedal lever).

Electronic devices and accessories must be stored away

from children.

Do not use the device for other purposes than as foot switch / sustain

pedal for electronic musical instruments. Plug the device only to sockets

on your musical device which are labelled with “Sustain”, “Hold”, “Foot

Switch” or similar.

Water / moisture:

To reduce the risk of re or electric shock, do not expose the device to

water or moisture. If the device is moved from a cold place to a warm

room, condensation may occur inside. To avoid damage please allow

the device to reach room temperature before using it.

Cleaning / Maintenance

Never use any abrasive detergent, which may damage the surface. We

recommend a slightly moist micro-bre cloth.

Do not open the chassis. There are no user serviceable parts inside.

Warranty

Every Fatar Studiologic product has been carefully manufactured,

calibrated and tested. All this enables a warranty. Damages due to

incorrect transport, mounting or handling are not covered by this

warranty. All this is based on general terms and condition of the local

distributor / FATAR Srl, Italy. Compensation of more than the price of

the device is excluded.

State of the Art

To ensure maximum quality, all devices of Studiologic by Fatar are

always engineered to be state- -the-art products Therefore, updates, of .

modications and improvements are made without prior notice.

Technical specication and product appearance may vary from this user

guide.

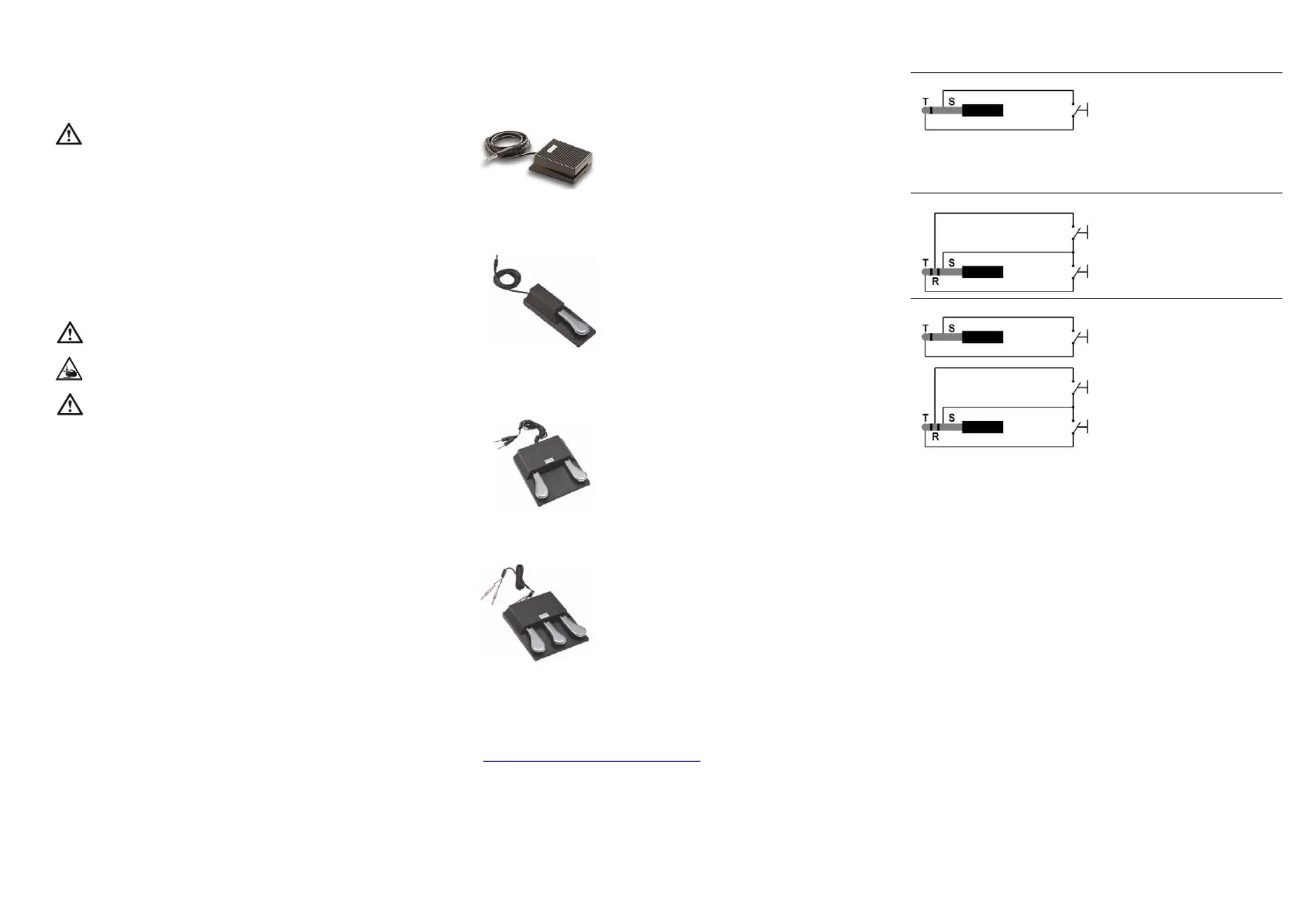

Specications

P S 100 • PS 150 • PS 250

Momentary foot switch with slip-proof

surface.

PS 100: Open contact at rest.

PS 150: Closed contact at rest.

PS 250: Switchable contact state at rest.

Connector: 1x TS jack, 6,3mm (1/4').

Cable length: 2m

Dimensions: 10 x 8,5 x 4 cm (L x W x H). Weight: 0,25kg.

VFP 1/10 • VFP 1/15 • VFP 1/25

Solid Piano style sustain pedal.

VFP 1/10: Contact open at rest.

VFP 1/15: Contact closed at rest.

VFP 1/25: Contact selectable open or

closed at rest

Connector: 1x jack, 6,3mm (1/4'). TS

Cable length: 2m

Dimensions: 7,5 x 5,5 cm (L x W x H). Weight: 0,45kg. 22 x

VFP 2/10 VFP 2/15 •

Solid Piano style dual sustain pedal.

VFP 2/10: Contact open at rest.

VFP 2/15: Contact closed at rest.

Connector: 2x jack, 6,3mm (1/4'). TS

Alternatively: 1x TRS jack, 6,3mm (1/4').

Cable length: 2m

Dimensions: 22 ,5 x 5,5 cm (L x W x H). Weight: 0, kg. x 19 90

VFP 3/10 • VFP 3/15

Solid Piano style triple sustain pedal.

VFP 3/10: Contact open at rest.

VFP 3/15: Contact closed at rest.

Connector: 1x jack and 1x TRS jack, TS

6,3mm (1/4').

Cable length: 2m

Dimensions: 22 x 19,5 x 5,5 cm (L x W x H). Weight: 1, kg.10

Compatibility

This product compatible with most the Studiologic instruments. is of

Please check the full list at:

https://studiologic-music.com/support/pedals/

Compatibility other brands cannot assured due dierent wiring to be to

and hardware standards employed.

Studiologic excludes the liability for damages which derive from using

the pedal with devices whose compatibility has not been declared.

Schematics

Connector

Type

Product

single

momentary

switch

PS 100

PS 150

PS 250

VFP 1/10

VFP 1/15

VFP 1/25

VFP 2/10 (2x TS)

VFP 2/15 (2x TS)

dual

momentary

switch

VFP 2/10 (1x TRS)

VFP 2/15 (1x TRS)

single and

dual

momentary

switch

VFP 3/10

VFP 3/15

Setting up

According to your MIDI keyboard or digital Piano, you can use single or

multi pedal types.

Plug the connector of your foot switch / sustain pedal to a socket of your

MIDI keyboard, sound expander or digital Piano labelled with “Sustain”,

“Hold”, “Foot Switch” or similar.

Please refer to the manual of your MIDI device or digital Piano, which

pedal type is supported: Contact open or closed at rest (or both types).

In the manual of the MIDI device you will also nd remarks, if a stereo

jack found at some models (VFP double or triple sustain pedals) are

supported.

Operation

Press and hold down the foot switch / sustain pedal as long as you

would like to perform its function. If the operation is reversed than

expected, you might have to use other type of pedal (contact an

open/closed at rest). Or switch the function of the VFP 1/25.
