SunBriteTV Deck/Planter Pole Installation Instructions

Part Number SB-DP46XA

(For Wall Mount Part Nos. SB-WM46 and SB-WM46NA)

for SunBriteTV Model 4600HD Series

Page 1

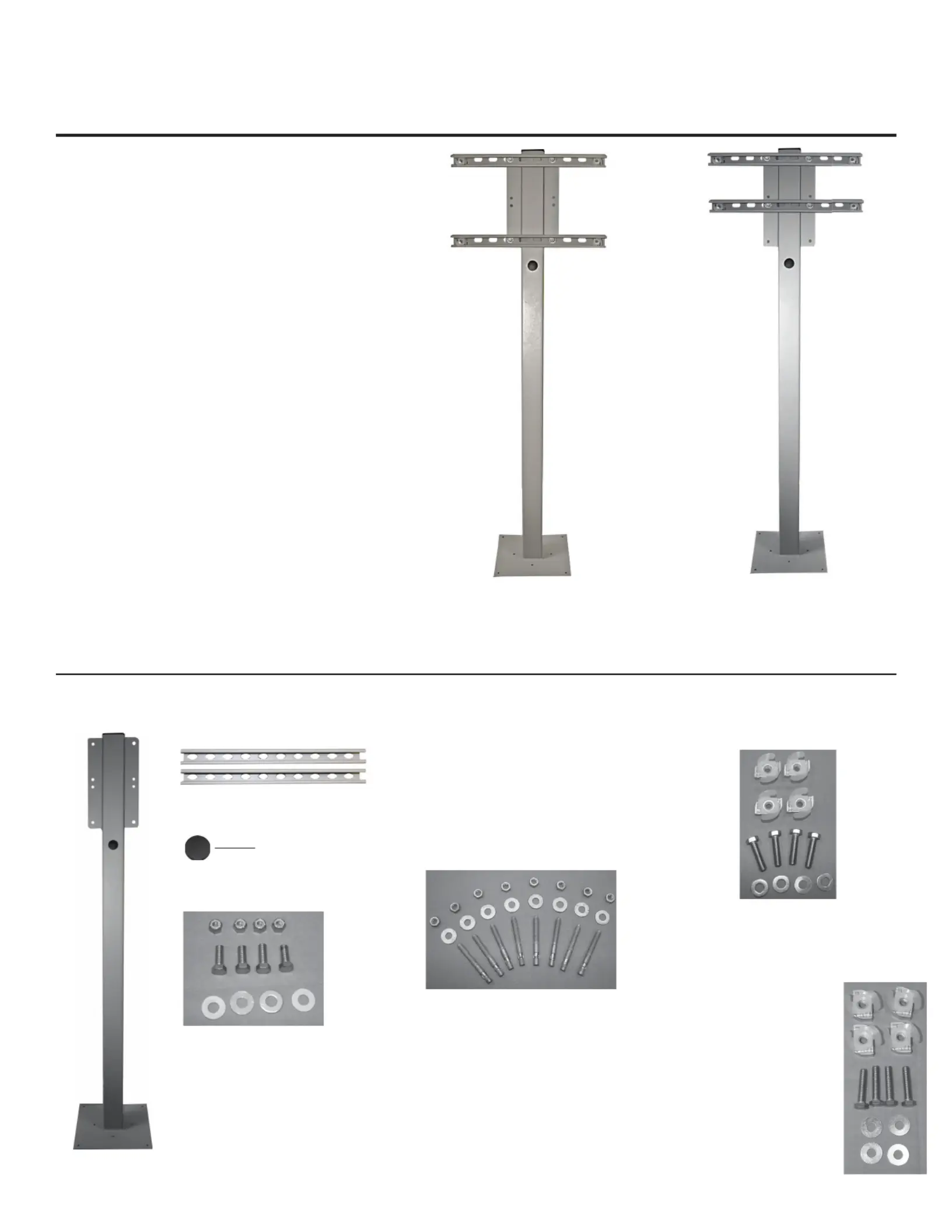

SunBriteTV Deck and Planter Pole SB-DP46XA

is designed to accommodate SunBriteTV’s

Articulating Wall Mount SB-WM46 and

Non-Articulating Wall Mount SB-WM46NA

Con guration for SB-WM46

Articulating Wall Mount

Con guration for SB-WM46NA

Non-Articulating Wall Mount

This galvanized steel Deck and Planter Pole allows

installation in virtually any backyard setting. The

pole and supporting  ange can be set in concrete in

a planter or bolted directly to a  at surface, such as

patio or pool deck. Oversized entry and exit holes are

pre-drilled in the pole so wiring is concealed inside

the pole. The hardware provided is stainless steel.

Dimensions:

3” W, x 3” D x 62” H.

Welded mounting  ange for all poles is 12”W x 12” D.

&RQWHQWV

Please check contents to be sure all parts are included. If items are missing, contact SunBriteTV customer

service immediately.

1 Pole

2 Horizontal Mounting Bars

Pole Mounting Hardware

8 1/4” Hex nuts

8 1/4” washers

8 Concrete Anchors

Hardware to Mount Articulating

Wall Mount SB-WM46

4 Unistrut Nuts

4 1-1/2” Bolts

4 3/8” Washers

Horizontal Mounting Bar

Hardware

4 3/8” Lock nuts

4 1” Bolts

4 3/8” Washers

Hardware to Mount

Non-Articulating

Wall Mount SB-WM46NA

4 Unistrut Nuts

4 1-1/2” Bolts

4 5/16” Washers

Cable Hole Cap

DISCLAIMER: SunBriteTV LLC intends to make this manual

accurate and complete. However, we make no claim that the

information contained herein covers all details., conditions or

variations, nor does it provide for every possible contingency

in connection with the installation or use of this product. The

information contained in this document is subject to change

without notice or obligation of any kind. SunBriteTV makes no

representation of warranty, expressed or implied regarding

the information contained herein. SunBriteTV assumes no

responsibility for accuracy, completeness or su ciency of the

information contained in this document.

Install Deck Planter Pole (Figure 2):

1. Use the Flange as a template to mark the locations of holes.

2. Drill 1/4” diameter x 1” deep holes using a concrete drill.

3. Use the 8 1/4” Concrete Anchors to mount the Pole.

4. Shim Pole level and plumb.

5. Secure using the 1/4” Nuts and Washers .

6. Orient the Pole so that Wall Plate faces the seating area.

Install Deck/Planter Pole:

WARNING: TV must be installed at least 5 ft.

away from water’s edge.

SunBriteTV Deck/Planter Pole and Wall Mount Installation Instructions

for SunBriteTV Model 4600HD

Deck/Planter Pole Part No. SB-DP46X Wall Mount Part No. SB-WM46

:$51,1*79PXVWEHLQVWDOOHGDWOHDVW

IHHWDZD\IURPZDWHU¶VHGJH

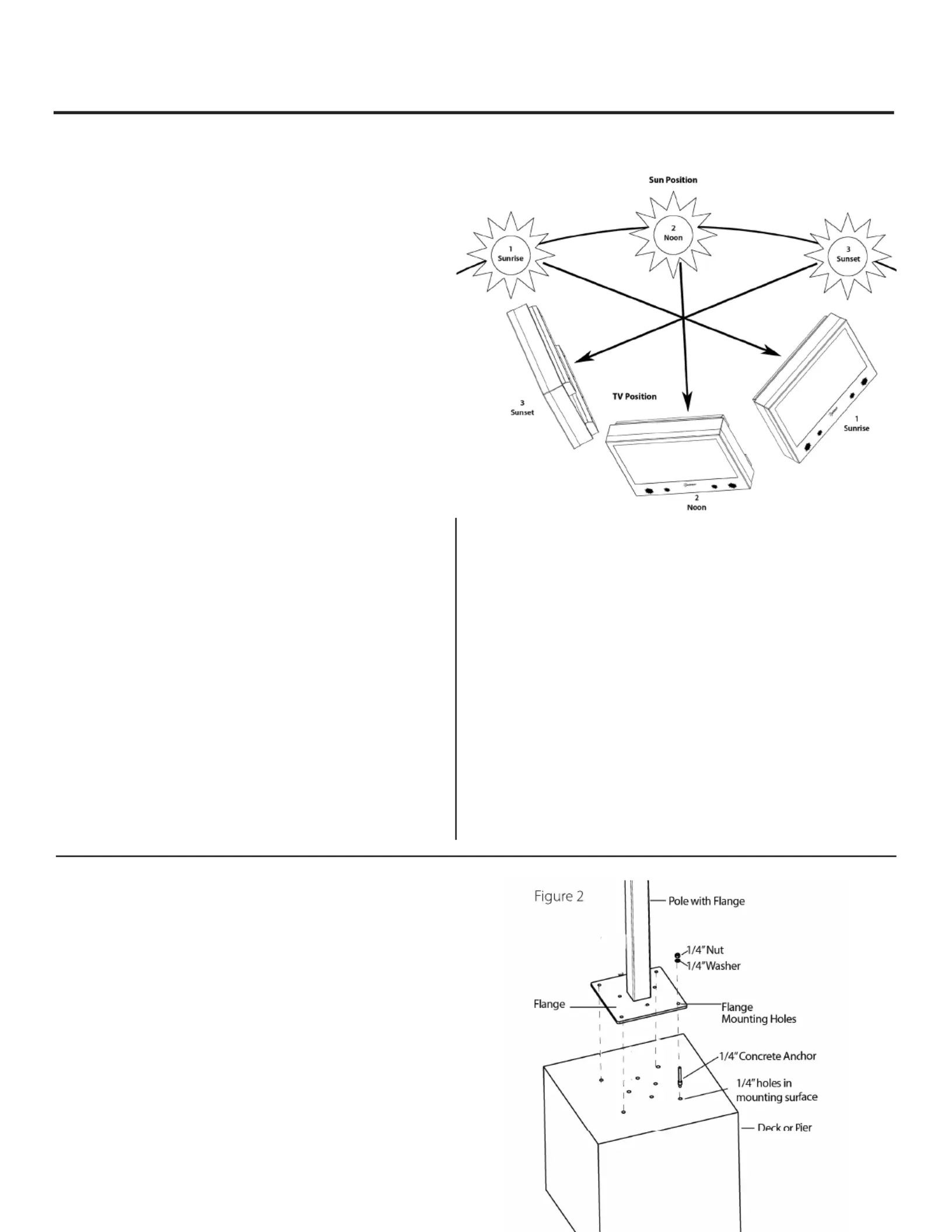

TV Placement Guidelines (Figure 1):

SunBriteTV

LCD televisions are twice as bright as most

indoor LCD TVs. The sun, however, delivers more than 30

times the brightness of our TVs. Therefore, it is important

that you do not place the TV where the screen faces direct

sunlight; otherwise, this will cause the image on the screen

to be washed out.

Intense direct sunlight falling on the screen over an extend-

ed period of time may cause dark spots to form on the screen

image. This is a characteristic of LCD TV technology, and is

a temporary condition that will go away after the screen is

pointed away from the sun.

For optimum viewing, SunBriteTV recommends the

following placement and installation guidelines:

Ideal placement is in an area where the TV is shaded by

trees, landscape and/or structures, or under a patio cover or

gazebo.

SunBriteTV recommends mounting the TV on SunBriteTV’s

articulating, tilt and swivel Wall Mount (Part No. SB-WM46) so

the TV screen can be turned away from the location of the

sun (see Figure 1).

The articulating wall mount also allows the TV to be rotated

away and angled down from any highly re ective surfaces,

such as water, white walls, concrete, etc.

SunBriteTV recommends using the SunBriteTV dust cover

(Part No. SB-DC46) when the TV is not in use, especially if

the sun is shining on the TV during the day.

Figure 1

Prepare Pole Location:

Chose an area that is away from standing water and sprinklers

(Irrigation water may contain minerals that can damage the

 nish on the pole and TV.).

Bring the appropriate signal cables to the location (CATV,

Video, Audio, etc.).

If using the Pole in a planter:

Create an appropriately sized concrete pier with a level top

surface at least three inches above the grade.

If using the Pole in a deck:

Chose a ﬂ at, level, shaded area away from sprinklers and standing

water.
