Set code table parameter by APP
See attached page for detailed settings.

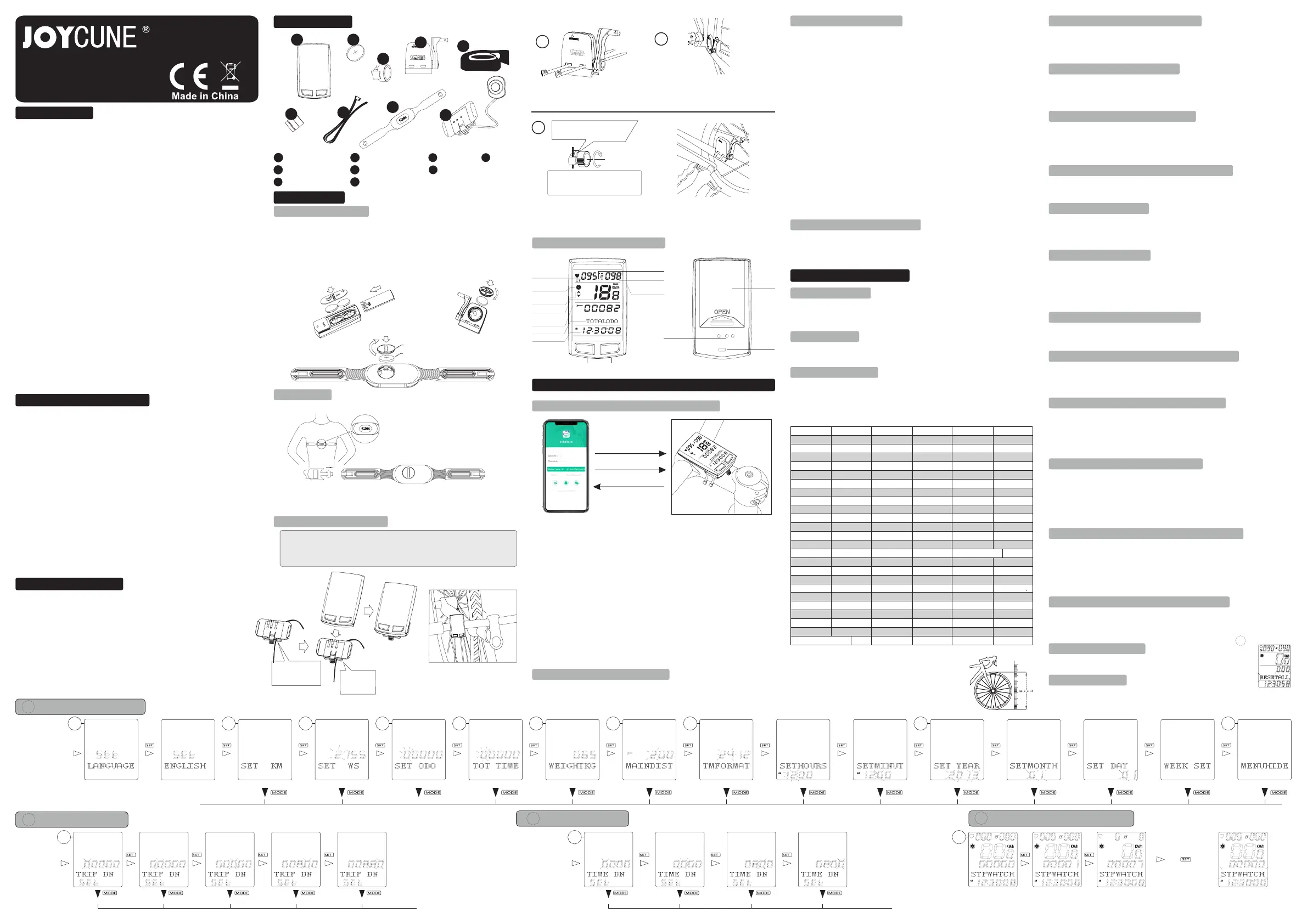

Instructions
JOY-583BT
Thread ties through
the slots under the
base to attach to
handlebar
Match base
alignment with
computer and
insert to attach
Computer Installation
Attach the computer to the handlebar and secure using included ties. To check the
installation, spin the front wheel with the computer in speed mode and observe
whether there is output on the computer screen. Adjust sensor and magnet position
if signal is weak or nonexistent.
*Dry, cold weather may interfere with heartbeat monitor functionality. To resolve, wait
for a few minutes. You can also put a few drops of clean water on the heartbeat
monitor conductor.
Chest Belt
*Attach belt so SunDing logo can be seen
from outside, right side up. The belt must
be placed over the heart, with no clothing
or other material separating it from the body.
Installation
*Computer battery installation: Open the battery cover. Install two CR2032 batteries
with positive poles facing battery cover.
Battery Installation
*Speedometer and cadence sensor battery installation: Open the battery cover on the
bottom of the computer with a flathead screwdriver. Install CR2032 battery
with positive pole facing battery cover. Replace cover and tighten with screwdriver.
*Chest belt installation: Open the battery cover. Install CR2032 battery with positive
pole facing battery cover. Replace and tighten cover by turning right.
4
Computer
CR2032 Battery
Magnet
Sensor
21
3
Chest Belt
Multi-Magnet
Ties
7
5
6
Accessories
Installation of sensor
Computer Function Display Area
Maintenance Distance Setting(Figure 7)
Distance Countdown Setting mode (Figure 11)
Time Countdown Setting mode (Figure 12)
Menu Hidden Setting (Figure 10、45)
In Menu Hidden Setting mode. Press SET button to enter Hide Total Odometer setting.
When “On” is flashing, the Total Odometer is shown. When “Off” is flashing, the Total
Odometer is hidden. Please see diagram on back for additional details.
Temperature Setting
Clock Setting (Figure 8)
Riders Weight Setting (Figures 6)
If you are unable to locate your tire
size on this chart, you can use the
method shown to the right to measure
the time diameter and calculate the tire
circumference. Circumference = diameter x 3.14
Initial Odometer Setting (Figure 4)
When the Initial Value of Odometer setting mode is selected, press the MODE button to
enter it. To adjust the selected figure, press the MODE button, and press the SET button to
confirm your value and move to the next field. Press the SET button once finished with
Initial Odometer Setting to move onto the Initial Time setting.
Initial Time Setting (Figure 5)
When the Initial Time setting mode is selected, press the MODE button to enter it. To adjust
the selected figure, press the MODE button, and press the SET button to confirm your value
and move to the next field. Value ranges from 0 to 99,999 hours. Press the SET button once
finished with Initial Time setting to move onto Riders Weight setting.
When the Riders Weight setting mode is selected, press the MODE to set weight
measurement unit (KG or LB) and press SET button to move to set weight. Use the
MODE button to adjust flashing number for weight, and press SET to confirm and
advance to next digit. The default weight is 65 KG, any value from 0 – 299 entered. Press
MODE button to confirm value and enter into Clock setting mode.
In Temperature Setting mode, hold SET button for 3
seconds to toggle between Celsius and Fahrenheit.
When “24” flashes in Clock mode, press MODE button to toggle between 12 and 24 hour time
format. Press SET to confirm and move to Hour setting. Press MODE button to adjust flashing
Hour value, and press SET to confirm and move to Minute setting. Press MODE button to adjust
flashing Minute value, and press SET to confirm and enter into Date setting.
In the mileage countdown mode, long press the SET button for 3 seconds to enable the
mileage value jump. Press the MODE button to adjust the value of jump mileage. Press the
SET button to change the digit. The setting range is 0~9999.9KM/ML. After completion,
press the SET button and return the mileage countdown mode.
In the time countdown mode, long press the SET button for 3 seconds to enable
countdown “hour” jump. Press the MODE button to adjust this value, and press the SET
button to change the digit. Press the SET button to enable “minutes” value jump, and press
MODE button to adjust this value. Press the SET button to change the digit. The setting
range is 0～999:5 hours. After completion, press the SET button and return the time
countdown mode.
Date Setting (Figure 9)
In Year Setting mode, press MODE button to adjust year, then press SET button to confirm
and move to Month Setting mode. In Month Setting mode, press MODE button to adjust
month, then press SET button to confirm and move to Day Setting mode. In Day Setting
mode, press MODE button to adjust the date, and press SET to move to Week Setting mode.
In Week Setting mode, press MODE button to adjust week, and press SET to confirm and
move to Distance Countdown Setting mode.
Panoramic Display Setting mode (Figure 47)
In Panoramic Display Setting mode, hold SET button for 3 seconds to toggle Panoramic
Display. When the digit on the first row is flashing, press the MODE button to adjust it. Press
SET button to confirm and move on to the next row. Please see
diagram on back for additional details.
Menu Cycle Setting mode (Figure 44)
In Menu Cycle Setting mode, press the SET button for 3 seconds to enter Menu Cycle
Setting. Press SET button again to enter Total Odometer Cycle Setting. When “Out” is
flashing, it represents the Total Odometer withdrawn from the Cycle mode. Press the
MODE button toggle “Join” mode. When “Join” is flashing, it represents the Total
Odometer added to the Cycle mode. Press the SET button to confirm and enter into Trip
Cycle Setting. Please see diagram on back for additional details. Panoramic Display mode
may not be exited from this menu.
Chain wheel / Flywheel Setting mode (Figure 46)
In Cadence Gear Ratio mode, hold SET button for 3 seconds to enter into Flywheel
Parameter Setting. The small digits at the top of the display represent the flywheel
parameters. The number of the flywheel is displayed in descending order. If there is no
flywheel, the display will show 0. The small digits at the lower part of the display represent
the chain wheel parameters. The number of chain wheel is displayed in descending order;
the display will show 0 if there is no chain wheel. Please see diagram on back for additional
details.
In Clear Signal Data mode, hold SET button for 3
seconds to clear all signal data.
Clear Signal Data
IN MAINTENANCE DISTANCE mode, press the MODE button to change the number of
digital, and press the SET button confirm and advance. Default value: 200,and its ranges
from 200 to 800KM. Press the MODE button to confirm and enter into CLOCK SETTING.
Date cleared
1 2
3
4
5
6
7
8
9
Mounting Shoe & Wired Remote Control
9
Heart Rate Monitor
8
1
2
3
3.Adjust the magnets and the sensors, making sure the air gap between sensor markings
and magnets is less than 3mm, when setup is complete, tighten the cable tiles.
1.Pass the bandage through the
bottom hole of the tread device.
2.Use the supplied cable ties to hold the
sensor in place, Do not fully tighten,
Attach the magnet to a spoke, Do not
fully tighten.
Notice
Pass bicycle spokes through the
plastic hole on the bottom of the
magnet and tighten to secure
The magnet is designed for spokes
that are less than 2mm thick
Back
CONTACT
BATTERY
COVER
SLOT
Stopwatch Function Operation
Parameter Setting
Digital Adjust
Digital Adjust
TM DN Setting
Option Switching And Digital Adjustment
In TRIP DN
MODE ,press
the SET button
In TTM MODE ,
press the SET
button
Press the
SET button for 3
seconds in
ODO or TTM
MODE to enter
into Language
setting menu
press
for 3s
reset

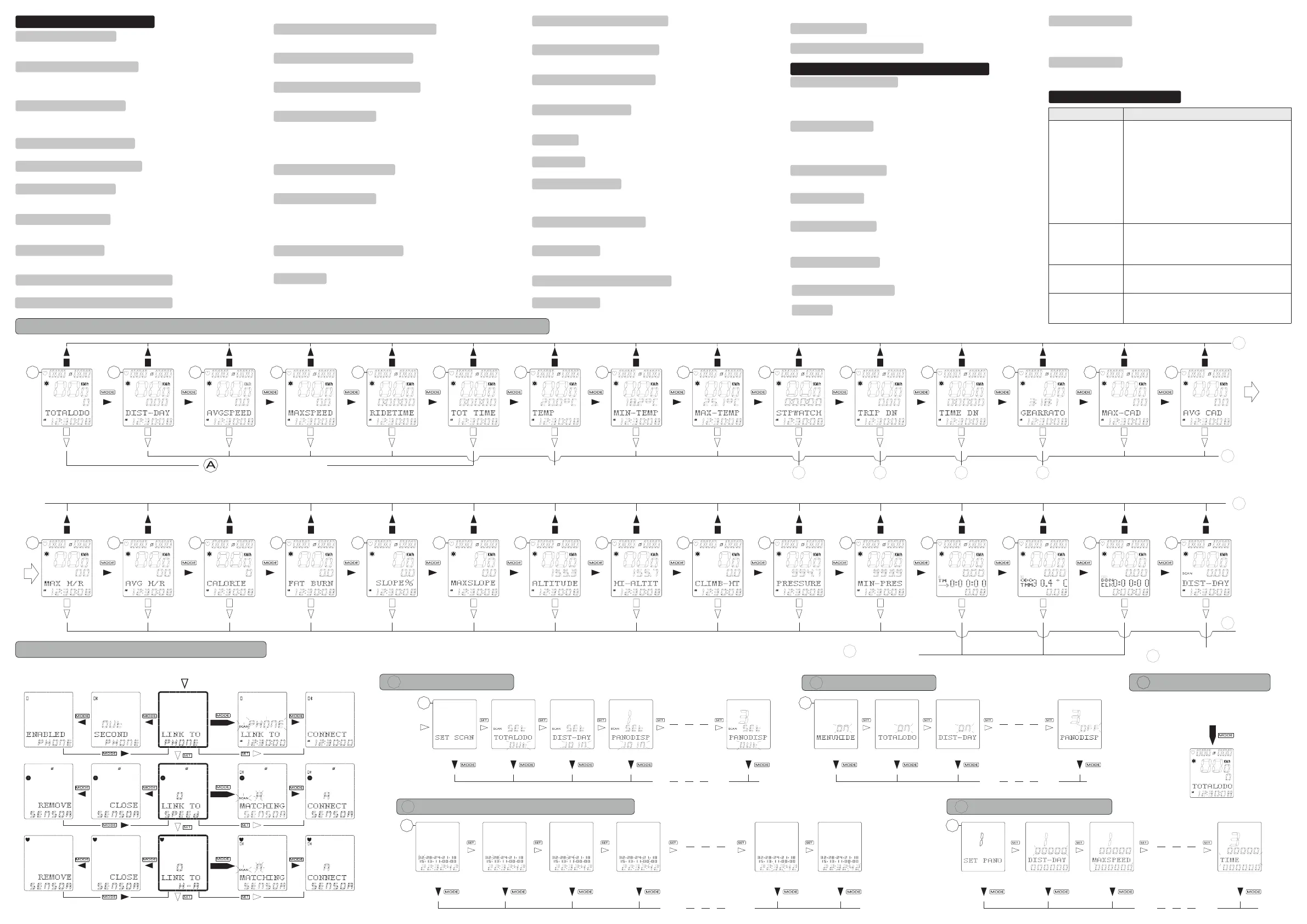

FUNCTIONS
-SPEED (0~99 9KM H M H )
- TOTAL ODOMETER ODO (0~99999KM H) (Fig 14)
-DAY DISTANCE DST (Fig 15)
- AVG SPEED AVS (Fig 16)
- MAX SPEED MAS (Fig 17)
- RIDE TIME TM (0~99:99hrs)(Fig18)
- TOT TIME TTM(0~99999hrs)(Fig19)
- TEMP (-20°C~70°C / -4°F~158°F) (Fig 20)
- MIN TEMP MIT (Fig 21)
- MAX TEMP MAT (Fig 22)
- STOPWATCH STP(Fig23)
-TRIP DDN (Fig 24)
- TIME TDN Fig25
-GEAR RATIO RAT Fig 26
-MAX CAD (Fig 27)
-AVG CAD ACD (Fig 28)
-MAX H/R MHT (Fig 29)
-AVG H/R AHT (Fig 30)
-CALORIE CAL (Fig 31)
-FAT BURN FAT (Fig 32)
-SLOPE% SLP (Fig 33)
-MAXSLOPE MXL (Fig 34)
-ALTITUDE ALT (Fig 35)
-HI-ALTITUDE HIA (Fig 36)
-CLIMB HT CHT (Fig 37)
-PRESSURE ATMOSPHERIC PRESSURE PRS (Fig 38)
-MIN PRES MIP (Fig 39)
-CLOCK (12/24H)
-DATE (YY/MM/DD/WW)
PARAMETER SETTINGS
-MULTI-LANGUAGE SETTING (CN / UK DE FR IT ES / / / / /
SE NL ) (Fig 1) /
-KM / M (Fig 2)
-CELSIUS / FAHRENHEIT
-WHEEL SIZE (Fig 3)
-INITIAL ODOMETER VALUE (KM / M) (Fig 4)
-INITIAL CHRONOMETER VALUE (Fig 5)
-METRIC / IMPERIAL SETTING (Fig 6)
-MAINTENANCE DISTANCE (Fig 7)
-CLOCK (Fig8)
-DATE (Fig 9)
-DISTANCE COUNTDOWN (Fig 11)
-TIME COUNTDOWN (Fig 12)
-MENU CYCLE (Fig 44)
-CHAINWHEEL / FLYWHEEL (Fig 46)
-HIDE MENU (Fig 10、45)
-PANORAMIC DISPLAY (Fig 47)
AUXILIARY MODE
-PANORAMIC DISPLAY MODE (Page 2, Figs 40, 41, 42)
-MENU CYCLE MODE (Fig 43)
-SPEED COMPARISON
-HIDE MENU MODE
-MAINTENANCE ALERT
-LOW BATTERY INDICATOR
-WIRELESS WAKE UP
-SMART BACKLIGHT
-L
-SECOND
CR2032Battery
Battery Cover
Connection of code table and mobile phone
Long press the MODE button for 3 seconds, the mobile phone symbol jumps, open the
Lite APP, click My device, click the connection after finding smart code table, and
connect the mobile phone symbol successfully to stop beating.
●Main mode: Heart rate monitor, tread device and code table connection, calculated
motion data is saved and uploaded to the mobile phone. The motion data calculated is
saved and uploaded to the mobile phone.
●Slave mode (mirror data): The heart rate monitors and tread device are connected to
the mobile phone. The motion data calculated by APP is transmitted to the code table
through Bluetooth, and the code table only displays the motion data of APP. In the slave
mode, the code table displays that the animation of the wheel is a hollow.
●Code table parameter setting by mobile phone: Enter code table setting page of the
APP, you can set the parameter of code table, scan, bind and unbind external device of
code table. Click "complete setting" to change the parameters of code table when the
parameter setting is complete, and the time of code table will also be synchronized to
current time of mobile phone. Click data download to upload riding data of code table
to your mobile phone.
Note: It can only be uploaded to the APP after the code table is synchronized with the
mobile phone to start the data of riding.
Connection of code table with device and mobile phone
Front
CADENCE
SPEED
HEART RATE
CLOCK
FUNCTION
SET
MODE
LOW BATTERY
INDICATOR
CADENCE
CONTRAST
SPEED
COMPARISON
MAINTENANCE
REMINDERS
ROTATION
ANIMATION
Data uploading
Parameter setting
Slave mode
www.joycune.com
A
B
TRIP DN Setting
C
D
J
Wheel Size Setting
Parameter Settings
KM / M Setting
Language Setting
Tire Size Chart (in mm)
Press MODE button to select KM or M, and press Set button to confirm and enter into
Wheel Size Setting.
In Wheel Size Setting mode, The default is 2155 mm. select wheel circumference based
on below chart. Press the MODE button to change each figure, and press SET to confirm
and move on to next setting. Afterwards, press SET to enter into Odometer Setting mode.
To set language, remove and reinstall battery, or hold SET button for 3 seconds in ODO or
TTM Mode. Select language using MODE button, and press SET button to confirm and
enter into KM / M Setting.
Bluetooth device connection
Long press SET+MODE key in any mode to start Bluetooth device binding and enter the
mobile phone connection page.
Mobile phone connection: Long press the MODE button to start mobile phone
connection scan APP to enter the device connection and click the code table scan. It will
automatically return to the phone connection page after successful connection. If the
phone is not found, press SET key to manually return or automatically return to the
phone connection page after 30 seconds. Under the phone connection page, press the
MODE button to enter the exit mode of slave mode, and then press the MODE button to
confirm exit and return to the phone connection page. Press SET to enter the binding
speed page.
Tread device binding: Under the binding speed page, long press the MODE button to
start the tread device binding scan, and induce tread device with the magnet. After
successful binding, it will automatically return to the binding speed page. If the phone is
not found, press SET key to manually return or automatically return to the binding speed
page after 30 seconds. Under the binding speed page, press Mode key to enter the tread
device unbinding setting, and then press the MODE button to confirm exit and return.
Under the binding speed page, press the SET button to enter the binding heart rate page.
Heart rate monitor binding: Wear a heart rate monitor properly. Under the binding
heart rate page, long press the MODE button to start the heart rate scan. If the heart
rate monitor is not found, press the SET button to manually return or automatically
return to the binding heart rate page after 30 seconds. Under the binding heart rate
page, press the MODE button to enter the heart rate unbinding setting, and then press
the MODE button to confirm and return to the binding heart rate page. Press the SET
button to complete the device binding.
Long press MODE button in any mode to enter the scanning status of Bluetooth device,
and the Bluetooth symbol of mobile phone will jump. After successful connection, the
symbol stops jumping and displays for a long time, and the symbol will disappear when
the device is not found after 10 seconds.
Bluetooth device binding
+
CR
2
03
2
+CR
2032
12×1.75 935
12×1.95 940
14×1.50 1020
14×1.75 1055
16×1.50 1185
16×1.75 1195
16×2.00 1245
16×1-1/8 1290
16×1-3/8 1300
17×1-1/4 1340
18×1.50 1340
18×1.75 1350
20×1.25 1450
20×1.35 1460
20×1.50 1490
20×1.75 1515
20×1.95 1565
22×1-3/8 1770
22×1-1/2 1785
24×1.75 1890
24×2.00 1925
24×2.125 1965
24×1(520) 1753
24×/34Tubular 1785
24×1-1/8 1795
24×1-1/4 1905
26×1(599) 1913
26×1.25 1950
26×1.40 2005
26×1.50 2010
26×1.75 2023
26×1.95 2050
26×2.10 2068
26×2.125 2070
26×2.35 2083
26×3.00 2170
26×1-1/8 1970
26×1-3/8 2068
26×1-1/2 2100
26×7/8 1920
650×20C 1938
650×23C 1944
650×25C 1952
650×38A 2125
650×38B 2105
27×1(630) 2145
27×1-1/8 2155
27×1-1/4 2161
27×1-3/8 2169
27.5×1.50 2079
27.5×1.95 2090
27.5×2.1 2148
27.5×2.25 2182
700×18C 2070
700×19C 2080
700×20C 2086
700×23C 2096
700×25C 2105
700×28C 2036
700×30C 2146
700×32C 2155
700Tubular 2130
700×35C 2168
700×38C 2180
700×40C 2200
700×42C 2224
700×44C 2235
700×45C 2242
700×47C 2268
29×2.1 2288
29×2.2 2298
29×2.3 2326
