ContaCt nformatIon I
• Manuals: http://www.supermicro.com/support/manuals
• Drivers & Utilities:
https://www.supermicro.com/wftp/driver/
• Safety: http://www.supermicro.com/about/policies/safety_information.cfm
© 2019 Supermicro Computer Inc. All rights reserved. Reproduction of this document whether in part or in whole is strictly prohibited without Supermicro's written
consent. All Trademarks are property of their respective entities. All information provided is deemed accurate at the time of printing; however, it is not guaranteed.
Q r G 1.00UICk EfErEnCE UIdE
• Website: www.supermicro.com
• General Information: marketing@supermicro.com
• Technical Support: support@supermicro.com
• Phone: +1 (408) 503-8000, Fax: +1 (408) 503-8008
f or yoUr SyStEm to work ProPErly PlEaSE download aPProPrIatE,
drIvErS ImaGES USEr S manUal from thE lInkS BElow/ / ' :
MNL-2182-QRG-100
WARNING: This product can expose you to chemicals including
lead, known to the State of California to cause cancer and birth
defects or other reproductive harm. For more information, go
to www.P65Warnings.ca.gov.
!
SAN CODE
C
A
+
B11SRE-CPU-TF
REV:1.00
MAC CODE
BIOS
LICENSE
IPMI CODE
BAR CODE
PRESS FIT
PRESS FIT
DESIGNED IN USA
I-SATA3
BMC_HB_LED1
JSD1
JBT1
BT1
JRK1
JTPM1
J4
JKVM1
J1
JWD1
JBR1
JPME2
J3
JPG1
JP1
JP2
PWR1
JTAG1
1
1
JSIOM1
DIMMB2
DIMMB1
DIMMA2
DIMMA1
CPU
DIMMC1
DIMMC2
DIMMD2
DIMMD1
Connectors
Jumpers, Connectors, and LED Indicators
Memory Support

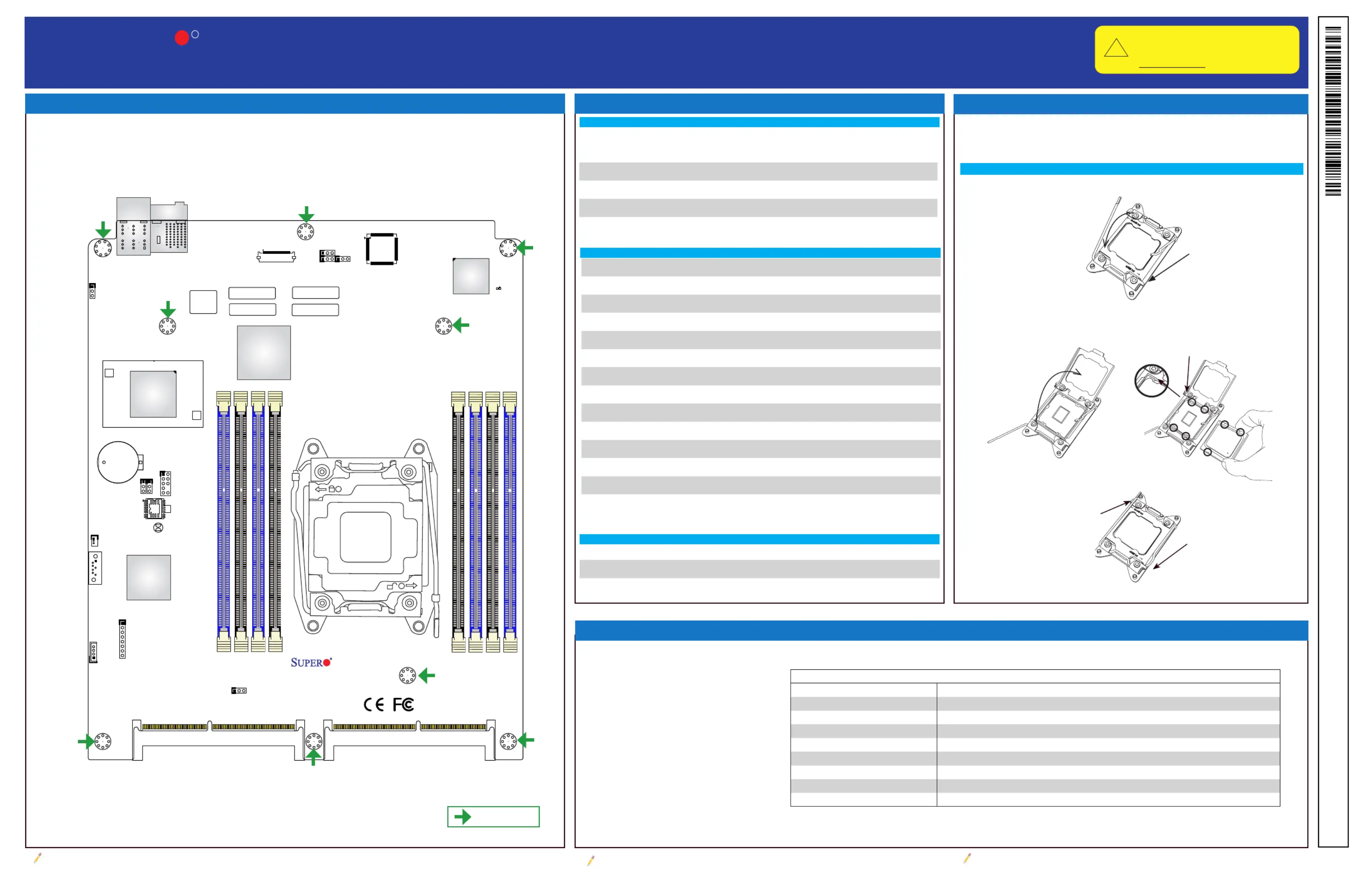

Motherboard Layout and Features
Jumpers
Note: Graphics shown in this quick reference guide are for illustration only. Your components may or may not look exactly the same as drawings shown in this guide.
Note: Refer to Chapter 1 of the User Manual for detailed information on jumpers, connectors,
and LED indicators.
Note: Refer to Chapter 2 of the User Manual for detailed information on memory support and CPU/
motherboard installation instructions.
= mounting hole
LED Indicators
The B11SRE-CPU-TF motherboard sup-
ports up to 512GB LRDIMM/256GB RDIMM
DDR4 memory with speeds of up to
2666MHz in eight slots..
Insert the desired number of DIMMs into
the memory slots, starting with DIMMA1,
DIMMB1, DIMMC1, DIMMD1, then DIM-
MA2, DIMMB2, DIMMC2, DIMMD2. For
the system to work properly, please use
the memory modules of the same type and
speed.
The B11SRE-CPU-TF motherboard supports an Intel® Xeon W family processor
in an LGA2066 socket.
Jumper Description Default Setting
JBR1 BIOS Recovery Pins 1-2 (Normal)
JBT1 CMOS Clear Open (Normal)
JPG1 VGA Enable Pins 1-2 (Enable)
JPME2 Manufacturing Mode Pins 1-2 (Normal)
JWD1 Watch Dog Timer Pins 1-2 (Reset)
LED Description Status
BMC_HB_LED1 BMC Heartbeat LED Blinking Green: BMC normal
Connector Description
BT1 Onboard CMOS battery socket
I-SATA3 SATA 3.0 Port
J3 VRM Debug Jumper (Manufacturing Use Only)
J4 PCI-E p1-x16 Slot for I/O Expandability
JKVM1 VGA/USB Module Connector
JP1 PLD Header (Manufacturing Use Only)
JP2 PLD Header (Manufacturing Use Only)
JRK1 Intel RAID Key Header
JSD1 SATA DOM Power Connector
JSIOM1 PCI-E p1-x16 Slot for I/O Expandability
JTAG1 CPU/PCH JTAG (Debug use only)
JTPM1 Trusted Platform Module (TPM)/Port 80 connector
PWR1 Power Receptacle to Chassis Backplane
CPU Support and Installation
CPU Installation
1 CPU, 8 DIMM Slots
Number of DIMMs Memory Population Sequence
1 DIMMA1
2 DIMMA1 / DIMMB1
3 DIMMA1 / DIMMB1 / DIMMC1
4 DIMMA1 / DIMMB1 / DIMMC1 / DIMMD1
5 DIMMA1 / DIMMB1 / DIMMC1 / DIMMD1 / DIMMA2
6 DIMMA1 / DIMMB1 / DIMMC1 / DIMMD1 / DIMMA2 / DIMMB2
7 DIMMA1 / DIMMB1 / DIMMC1 / DIMMD1 / DIMMA2 / DIMMB2 / DIMMC2
8 DIMMA1 / DIMMB1 / DIMMC1 / DIMMD1 / DIMMA2 / DIMMB2 / DIMMC2 / DIMMD2
OPEN 1st
OPEN 1st
Release load
lever labeled
"Close 1st"
Lift load
plate
Insert CPU using
socket / CPU
keys as a guide
Push down
and lock lever
labeled "Close
1st"
Push down
and lock lever
labeled "Open
1st"
Release load
lever labeled
"Open 1st"
1.
2.
3.
4.
5.
6.
