Side 1/1

http://www.supermicro.com MNL-1604-QRG

Board Layout

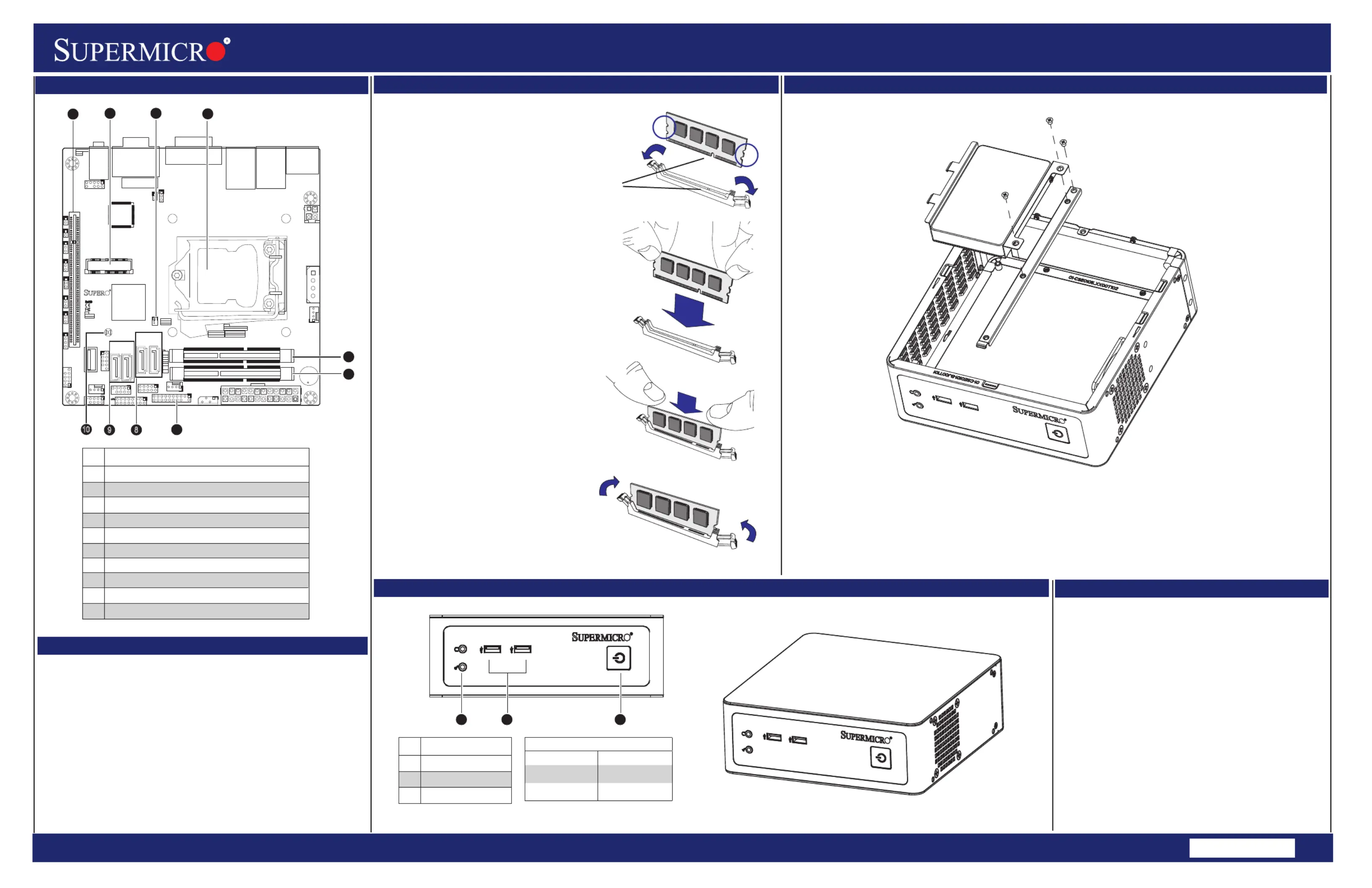

SuperServer 1018L-MP Quick Reference Guide

Power Button

2 x USB Ports

Audio Port

Description

No.

Drive bay Installation/RemovalMEMORY

Caution

SAFETY INFORMATION

IMPORTANT: See installation instructions and safety warning

before connecting system to power supply.

http://www.supermicro.com/about/policies/safety_information.cfm

WARNING:

To reduce risk of electric shock/damage to equipment,

disconnect power from server by disconnecting all power

cords from electrical outlets.

If any CPU socket empty, install protective plastic CPU cap

CAUTION:

Always be sure all power supplies for this system have

the same power output. If mixed power supplies are

installed, the system will not operate.

For more information go to :

http://www.supermicro.com/support



Position the SO-DIMM mod -1.

ule's bottom key so that it

aligns with the receptive point

on the slot . Take note of the

Module’s side notches

and the locking clips on the socket

Insert the SO-DIMM module 2.

staight down.

Press down until the module 3.

locks into place. The side clips

will automatically secure the

SO DIMM module, locking it

into place .

To 4. Remove: Use your thumbs

to gently push the side clips

near both ends away from the

module. This should release

it from the slot. Pull the SO

DIMM module upwards .

Installling 2.5" S A AT Drives

1. Power down the system and unplug the AC/DC Power Adapter.

2. Remove the chassis cover.

3. Use screws to secure the drive into the hard drive bracket.

4. Use screws to secure the bracket/drive assembly into the middle holding bar

of the chassis as shown in the figure.

Beep Codes

1 beep - circuits have been reset (ready to power up).

5 short beeps + 1 long beep - No memory detected

in the system

1 continuous beep with front panel Overheat LED on -

system overheat

5 short beeps - display memory error

When a recoverable type of error occurs during

POST, BIOS will display a POST code that

describes the problem. BIOS may also issue one

of the following beep codes:

Front View & Interface

In ion LEformat al D

S us t ntat Descrip io

Blue Power On

Blinking White HDD Activity

123

Descrip iot n

No.

PCI-E 2.0 p1-x16

Mini PCI-E scoket

JSD1 = SATA Disk on Module (DOM) Power

CPU socket

DIMMA1 Memory Slot

DIMMB1 Memory Slot

JTPM = TPM (Trusted Platform Management) Header

I-SATA2/3: SATA 2.0 ports (3Gb/s)

I-SATA0/1: SATA 3.0 ports (6Gb/s)

JBT1: CMOS Clear

I-SATA3

I-SATA2

JGPIO1

JPW2

JP1

JPCIE1

JSMB1

JBT1

BT1

COM4

COM

JAUDIO1

FAN2

FAN1

JTPM1

JVR1

JSD1

JD1

I-SATA0

I-SATA1

SP1

DIMMA1

DIMMB1

PW1

CMOS CLEAR

PCIE

mini

JUSB2LAN2

JUSBLAN1

A nlig

ÌMNL-1604-QRGcÎ

Produkt Specifikationer

Mærke:	Supermicro
Kategori:	Ikke kategoriseret
Model:	SuperServer 1018L-MP
Produktfarve:	Sort
Opbevaringstemperatur (T-T):	-20 - 60 °C
Relativ luftfugtighed ved drift (H-H):	10 - 85 %
Relativ luftfugtighed ved opbevaring (H-H):	10 - 95 %
Ethernet LAN-porte (RJ-45):	2
Antal USB 2.0-porte:	4
Antal USB 3.2 Gen 1 (3.1 Gen 1) type-A-porte:	2
Udgange til hovedtelefoner:	1
Driftstemperatur (T-T):	0 - 40 °C
Ethernet LAN-datahastigheder:	10,100,1000 Mbit/s
Processorserie:	Intel
Maksimal intern hukommelse:	16 GB
Hukommelse form faktor:	204-pin SO-DIMM
On-board grafikkort, model:	Intel® HD Graphics 4600
Mikrofonindgang:	Ja
Ethernet-grænsefladetype:	Fast Ethernet, Gigabit Ethernet
Kobber ethernet kabelteknologi:	1000BASE-T, 100BASE-TX, 10BASE-T
Antal blæsere:	1 blæser(e)
Antal understøttede lagerdiske:	1
Antal serielle porte:	2
Ventilator diameter:	60 mm
Strømforsyning:	80 W
Processor sokkel:	LGA 1150 (stik H3)
Kompatibel processor serie:	Intel Celeron, Intel Pentium
Understøttede hukommelsestyper:	DDR3-SDRAM
Ikke-fejlkorrigerende kode:	Ja
Antal SATA III-stik:	2
LAN Kontroller:	Intel I210-AT, Intel I217
Antal SATA II stik:	2
Understøttede lagerdrev brugerflader:	Serial ATA II, Serial ATA III
BIOS-type:	EEPROM
BIOS-hukommelsesstørrelse:	128 Mbit
ACPI-version:	2.0
Antal understøttede processorer:	1
Hukommelsesspænding:	1.5 V
Understøttede lagerdisk størrelser:	2.5 "
Antal DIMM-slots:	2
Understøttet DIMM modul kapaciteter:	1GB, 2GB, 4GB, 8GB
BIOS funktioner:	Plug & Play
