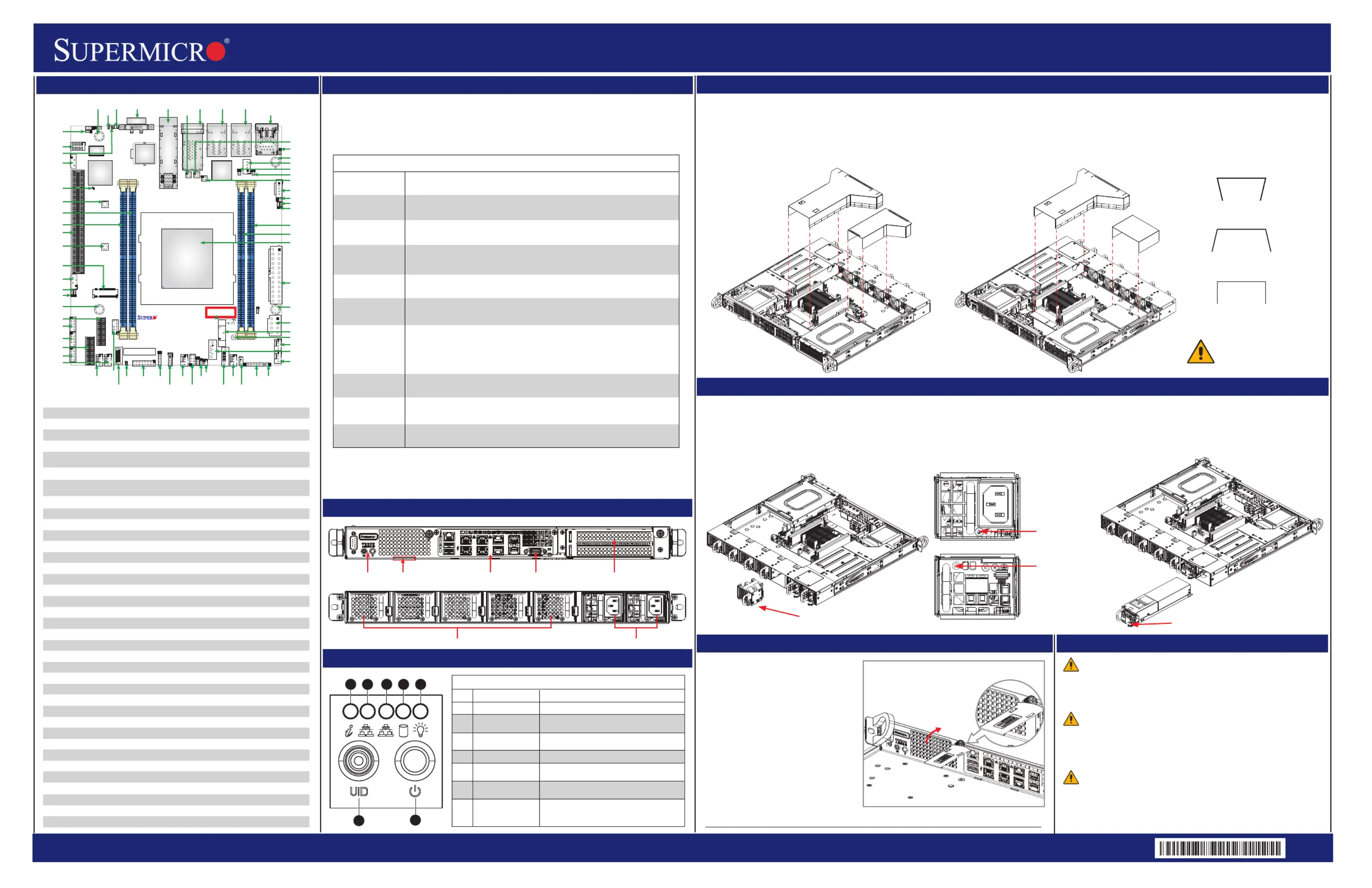

SuperServer 110D-4C/8C/14C/16C/20C-FRA(D)N8TP Quick Reference Guide

http://www.supermicro.com MNL-2541-QRG

Rev. 1.0

Caution

System Fans

Installing the Air Shroud

For more information go to: http://www.supermicro.com/support

Always be sure all power supplies for this system have the same

power output. If mixed power supplies are installed, the system

will not operate.

IMPORTANT: See installation instructions and safety warning

before connecting system to power supply.

http://www.supermicro.com/about/policies/safety_information.cfm

SAFETY INFORMATION

To reduce risk of electric shock/damage to equipment, disconnect

power from server by disconnecting all power cords from electrical

outlets.

If any CPU socket empty, install protective plastic CPU cap.

WARNING:

The SYS-110D-4C/8C/14C/16C/20C-FRA(D)N8TP supports two types of PCI-E expansion card air shrouds, one for full-height cards and one for half-

height cards. (Optional)

1. Position the air shrouds in the chassis, as illustrated below. The air shroud fits just behind the fans.

2. Slide the air shroud into the grooves just behind the fan rack. If necessary, move any cables that interfere with the air shroud placement.

3. Remove perforated tabs, if necessary, for a good fit.

The fans can adjust their speed according to the heat level sensed in the system,

which results in more efficient and quieter fan operation. Fan speed is controlled by IPMI.

Each fan has its own separate tachometer.

If a fan fails, the remaining fans will ramp up to full speed, the overheat/fan fail LED on

the control panel will blink on and off, and an alarm will sound. Replace any failed fan at

your earliest convenience with the same type and model.

Power Supply

The power supplies are auto-switching capable. The 800W AC

power supplies can operate at a 100V to 240V input range.

The 600W DC power supplies can operate at -48V DC input

range. If replacing a power supply, the system does not need

to be powered down.

Warning: Do not tilt or

wiggle the riser bracket

when lifting it up.

AC PWS LED

DC PWS LED

Re ease evel L r

I tncorrec

I ctncorre

Correct

L reve

Accessing the System and installing the add-on Card

Replacing the Fans and Power Supply

Front View and Rear Features

Front View

Control Panel

System FeaturesBoard Layout

PWR

LED

HDD

LED

NIC1

NIC2

PWR RST

JF1:

USB 4/5(3.0)

IPMI_LAN

SUPERDOM

LEDPWR

PCIe 4.0X8

JTPM1:TPM/PORT80

PCIe 4.0X8

CPU SLOT6 PCIe 4.0 X16

LAN 1/2

LAN 3/4

LAN 5/6

LEDBMC

USB 2/3 USB 0/1

UID

DIMMC1

DIMMD1

LAN 7/8

CPU

DIMMA1

DIMMB1

VGA

JTPM1

JMD1

JBT1

I-SGPIO1

I-

I-S A1AT

JSLIM1

JSLIM2

JSTBY1

BT1

J10G_PWR

JRK1

JPH1

JTGLED2

S A0AT JSD1

JPT1

JSMB1

JLANLED1_1

JSFPLED1

JPI2C1

JD1

JGP1

JPCIe6

LEDT2 LEDT4

JPF1

JNS1

JPG1

JPTG1

J RM1

JWD1

JPME2

JPL1

JSDP1

COM1

JPV1

LED3

LEDT3 LEDT1

LED2

LED1

JMD1_SRW1

MH1

JMD1_SRW2

MH6

MH5

M 3

JL1

JOPPS

JBM2

JPWR1

JIPMB1

JNVI2C1

JF1

FAN2

FAN4

1NAF

FAN3

FANB

FANA

JBM1

P1_NVME0

PRESS FIT

DESIGNED IN USA

BAR CODE

X12SDV-4C-SPT8F

REV:1.00A

J BY1ST

FANB

I- 1SGPIO

FAN3

J M1TP

LED1 JF1 JSDP1

P1_NVME0

VGA LAN 7/8UIDMH6 LAN 5/6 LAN 3/4 LAN 1/2 BMC_LAN

JPME2

FANA

COM1

SLOT6

J 1PTG

JN 2CVI 1

JMD1_

SRW1

DI 1MMA

LEDBMC

J 1IPMB

JGP1

MH5

JMD1_

SRW2

DI 1MMB

JWD1

LED2

USB 0/1

USB 2/3

J M2SLI

J M1SLI

JMD1

JRK1

J 1PT

JSD1

I-S A1AT

FAN JD2 1 JL1

USB 4/5(3.0)LED3 JTGLED2

DIMMC1

DIMMD1

JOPPS

JLANLED1

BT1

CPU

JPWR1

JPI2C1

JPL1

MH1

FAN4

MH3

I-SATA0

FAN1

JBT1

JPV1

JBM2

JSFPLED1

JBM1

JPH1

JNS1

JPG1

Connector Description

BT1 Onboard Battery

COM1 COM Header

CPU/System Fan Headers

BMC LAN Dedicated BMC LAN Port

FAN1 - FAN4, FANA, FANB

I-SATA0, I-SATA1

Serial Link General Purpose I/O HeaderI-SGPIO1

JD1

Speaker/Power LED Indicator (Pins 1-3: Power LED,

Pins 4-7: Speaker)

JF1 Front Control Panel Header

JGP1

Intel PCH SATA 3.0 Ports (I-SATA0 has built-in SATA

DOM Power on Pin 8)

General Purpose I/O Header

JIPMB1 System Mangement Bus Header (for BMC only)

JL1 Chassis Intrusion Header

JLANLED1_1 LAN3/4 Activity LED Header

JMD1 M.2 M-Key 2242/2280 (PCIe x4/SATA) Slot

JMD1_SRW1, JMD1_SRW2

M.2 Holding Screws

JNVI²C1

JOPPS Reserved for One Pulse Per Second

Non-Volatile Memory (NVMe) I²C Header

JPH1 4-pin HDD Power Connector

JPI²C1 Power I²C System Management Bus (Power SMB) Header

JPWR1

JPV1

JRK1

JSD1

JSDP1

JSFPLED1

JSLIM1, JSLIM2

JSTBY1

JTGLED2

JTPM1

LAN1/2, LAN3/4

LAN5/6

LAN7/8

P1_NVME0

SLOT6

UID

USB0/1, USB2/3

USB4/5

VGA

24-pin ATX Power Connector (Required)

8-pin CPU Power Connector (Required)

Intel RAID Key Header

Reserved for time synchronization

SATA DOM Power Connectors

LAN7/8 Activity LED Header

PCIe 4.0 p1-x8 SlimSAS Connector

Standby Power Header

LAN5/6 Activity LED Header

Trusted Platform Module/Port 80 Connector

1GbE RJ45 LAN Ports

10G BASE-T RJ45 LAN Ports

25GbE SFP28 LAN Ports

OCuLink Connector (to 4x SATA3.0 or PCIe 3.0 x4)

CPU1 PCIe 4.0 p1-x16 Slot

Front Accessible USB 2.0 Headers

Back Panel USB 3.0 Ports

VGA Port

Unit Identifier Switch

Control Panel Features

Item Features Description

1 Informational LED Indicates one of multiple conditions

Indicates network activity on LAN port 2

when flashing.

2 NIC2 LED

3 NIC1 LED

4 HDD LED

5 Power LED

6 UID Button

Indicates power is being supplied to the

system power supply.

7 Power

The main power button is used to apply

or remove power from the power supply

to the server.

Indicates network activity on LAN port 1

when flashing.

Indicates hard drive activity when flashing.

The UID is used to switch/turn on/turn off

UID LED next to the PCI-E slots.

4 5

Each system comes with a unique

default password for the ADMIN

user.

This can be found on a sticker

on the motherboard and a sticker

underneath the service tag on

chassis.

If necessary, the password can

be reset by the Supermicro

IPMICFG tool.

BMC Password Label

Pull-out tag with BMC unique

password underneath.

For more information, please visit

https://www.supermicro.com/en/solutions/management-software/bmc-resources

VGA PortI/O Ports PCI-EControl

Panel

Service/Asset

Tag (BMC label)

Redundant power supplyRedundant and hot-swappable fans

PULL

System Overview

Motherboard

X12SDV-4C/8C/14C/16C/20C-SPT8F

Chassis

Processor

Support

CSE-515M-R000NP2

Intel® Xeon D Ice Lake 4/8/14/16/20 Cores Processor from 65W to 120W

Memory

Drive Support

Four DIMM slots, up to 256GB ECC RDIMM or 512GB LRDIMM DDR4

memory withspeeds of up to 2933MT/s

Note: 128GB RDIMM is not compatible with the system.

Expansion Slots

Two internal 2.5" SATA3 drive bays

I/O Ports

One PCIe 4.0 p1-x16 slots (FHFL slots)

One M.2 PCIe 3.0 x4/SATA3 slot (supports M-Key 2280 and 2242)

System Cooling

Five counter-rotating, hot-swappable fans

Power

Four GbE LAN ports, two 10G BASE-T LAN ports, two 25G SFP28 ports

One dedicated RJ45 BMC LAN port

One VGA port

Two USB 3.0 Type A

Form Factor

1U; (WxHxD) 17.2 x 1.7 x 15.7 in (437 x 43 x 398.78 mm)

SYS-110D-4C/8C/14C/16C/20C-FRAN8TP: Two 800W AC redundant power supplies

SYS-110D-4C/8C/14C/16C/20C-FRDN8TP: Two 600W DC redundant power supplies

Note: The Quick Reference Guide can be found on the product page for SYS-110D-4C/8C/14C/

16C/20C-FR(A/D)N8TP.

The following safety agency or regulatory models associated with the SYS-110D-4C/8C/14C/16C

/20C-FRA(D)N8TP have been certified as compliant with UL or CSA: 515M-R8X12, 515M-8, 515

M-R6DX12, and 515M-6D.

This chapter provides a brief outline of the functions and features of the SuperServer

SYS-110D-4C/8C/14C/16C/20C-FR(A/D)N8TP.

It is based on the X12SDV-4C/8C/14C/16C/20C-SPT8F motherboard and the

CSE-515M-R000NP2 chassis.

The following provides an overview of the specifications and capabilities.
