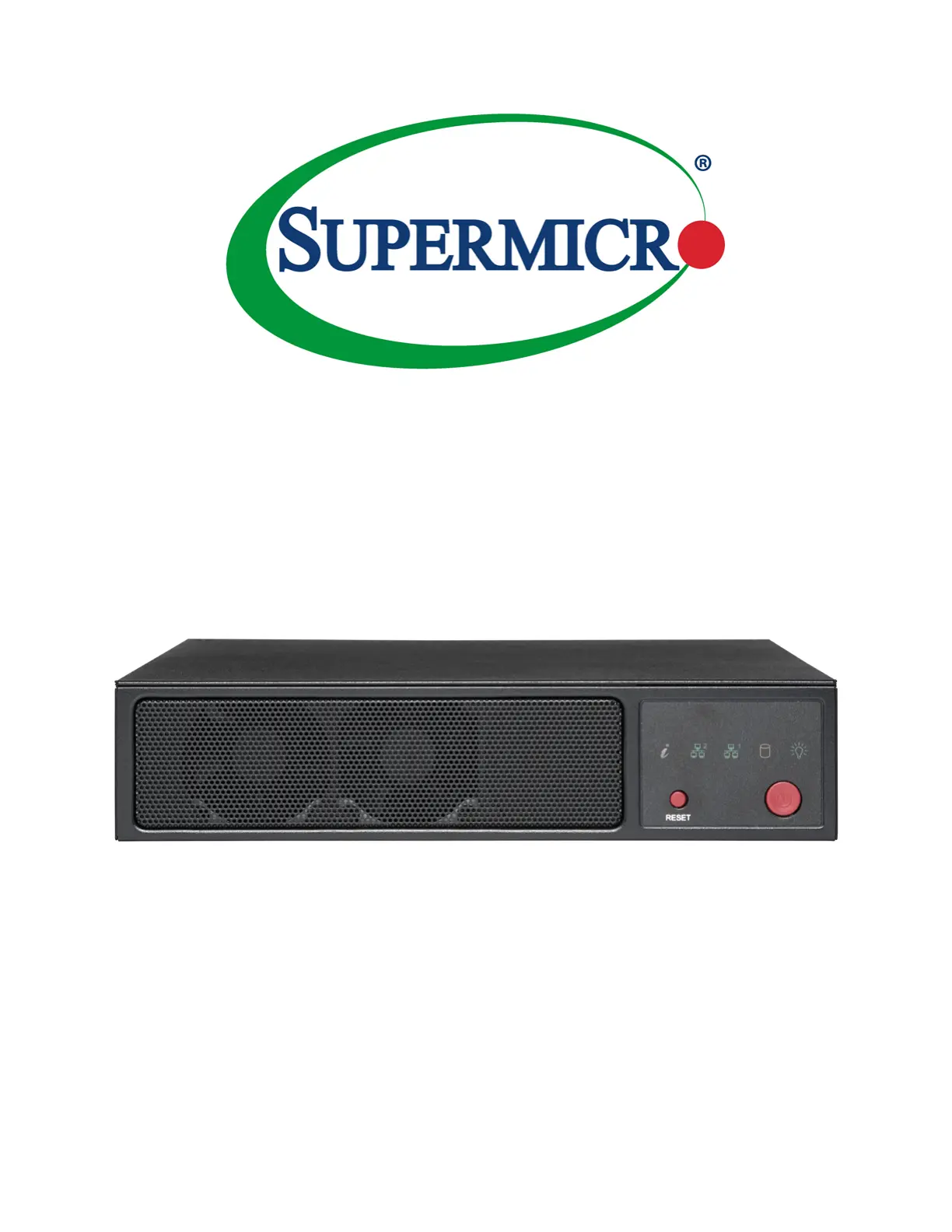

USER’S MANUAL
Revision 1.0a
SuperServer®
SYS-E200-12A-4C
SYS-E200-12A-8C
The information in this User’s Manual has been carefully reviewed and is believed to be accurate. The vendor assumes
no responsibility for any inaccuracies that may be contained in this document, and makes no commitment to update
or to keep current the information in this manual, or to notify any person or organization of the updates. Please Note:
For the most up-to-date version of this manual, please see our website at www.supermicro.com.
Super Micro Computer, Inc. ("Supermicro") reserves the right to make changes to the product described in this manual
at any time and without notice. This product, including software and documentation, is the property of Supermicro and/
or its licensors, and is supplied only under a license. Any use or reproduction of this product is not allowed, except
as expressly permitted by the terms of said license.
IN NO EVENT WILL Super Micro Computer, Inc. BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL,
SPECULATIVE OR CONSEQUENTIAL DAMAGES ARISING FROM THE USE OR INABILITY TO USE THIS PRODUCT
OR DOCUMENTATION, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. IN PARTICULAR, SUPER
MICRO COMPUTER, INC. SHALL NOT HAVE LIABILITY FOR ANY HARDWARE, SOFTWARE, OR DATA STORED
OR USED WITH THE PRODUCT, INCLUDING THE COSTS OF REPAIRING, REPLACING, INTEGRATING,
INSTALLING OR RECOVERING SUCH HARDWARE, SOFTWARE, OR DATA.
Any disputes arising between manufacturer and customer shall be governed by the laws of Santa Clara County in the
State of California, USA. The State of California, County of Santa Clara shall be the exclusive venue for the resolution
of any such disputes. Supermicro's total liability for all claims will not exceed the price paid for the hardware product.
FCC Statement: This equipment has been tested and found to comply with the limits for a Class A or Class B digital
device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in industrial environment for Class A device or in residential
environment for Class B device. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the manufacturer’s instruction manual, may cause harmful interference with
radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in
which case you will be required to correct the interference at your own expense.
California Best Management Practices Regulations for Perchlorate Materials: This Perchlorate warning applies only
to products containing CR (Manganese Dioxide) Lithium coin cells. “Perchlorate Material-special handling may apply.
See ”.www.dtsc.ca.gov/hazardouswaste/perchlorate
WARNING: This product can expose you to chemicals including
lead, known to the State of California to cause cancer and birth
defects or other reproductive harm. For more information, go
to www.P65Warnings.ca.gov.
!
The products sold by Supermicro are not intended for and will not be used in life support systems, medical equipment,
nuclear facilities or systems, aircraft, aircraft devices, aircraft/emergency communication devices or other critical
systems whose failure to perform be reasonably expected to result in signicant injury or loss of life or catastrophic
property damage. Accordingly, Supermicro disclaims any and all liability, and should buyer use or sell such products
for use in such ultra-hazardous applications, it does so entirely at its own risk. Furthermore, buyer agrees to fully
indemnify, defend and hold Supermicro harmless for and against any and all claims, demands, actions, litigation, and
proceedings of any kind arising out of or related to such ultra-hazardous use or sale.
Manual Revision 1.0a
Release Date: May 03, 2023
Unless you request and receive written permission from Super Micro Computer, Inc., you may not copy any part of this
document. Information in this document is subject to change without notice. Other products and companies referred
to herein are trademarks or registered trademarks of their respective companies or mark holders.
Copyright © 2023 by Super Micro Computer, Inc.
All rights reserved.
Printed in the United States of America
3
Preface
Preface
About this Manual
This manual is written for professional system integrators and PC technicians. It provides
information for the installation and use of the server. Installation and maintenance should be
performed by experienced technicians only.
Please refer to the SYS-E200-12A-4C/8C server specications page on our website for
updates on supported memory, processors and operating systems (http://www.supermicro.
com).
Notes
For your system to work properly, please follow the links below to download all necessary
drivers/utilities and the user’s manual for your server.
• Supermicro product manuals: http://www.supermicro.com/support/manuals/
• Product drivers and utilities: https://www.supermicro.com/wdl/driver
• Product safety info: http://www.supermicro.com/about/policies/safety_information.cfm
If you have any questions, please contact our support team at:
support@supermicro.com
This manual may be periodically updated without notice. Please check the Supermicro website
for possible updates to the manual revision level.
Secure Data Deletion
A secure data deletion tool designed to fully erase all data from storage devices can be found
on our website: https://www.supermicro.com/about/policies/disclaimer.cfm?url=/wdl/utility/
Lot9_Secure_Data_Deletion_Utility/
Warnings
Special attention should be given to the following symbols used in this manual.
Warning! Indicates high voltage may be encountered when performing a procedure.
Warning! Indicates important information given to prevent equipment/property damage
or personal injury.
4
SuperServer SYS-E200-12A-4C/8C User's Manual
Contents
Contacting Supermicro ........................................................................................................6
Chapter 1 Introduction
1.1 Overview ...............................................................................................................................7
1.2 System Features ..................................................................................................................8
Front View ...........................................................................................................................8
Control Panel ...................................................................................................................8
1.3 Motherboard Layout ...........................................................................................................10
Quick Reference Table ......................................................................................................11
System Block Diagram ......................................................................................................13
1.4 Server Installation and Setup .............................................................................................14
Unpacking the System ......................................................................................................14
Warnings and Precautions ................................................................................................14
Adding Components to your System ................................................................................14
Installing Mounting Brackets .............................................................................................15
Installing Rack Mounting Brackets ....................................................................................16
Chapter 2 Maintenance and Component Installation
2.1 Removing Power ................................................................................................................17
2.2 Accessing the System ........................................................................................................18
2.3 Memory Support and Installation .......................................................................................19
Memory Support ................................................................................................................19
Memory Population Guidelines .........................................................................................19
General Guidelines for Optimizing Memory Performance ................................................19
Installing Memory ..............................................................................................................21
Solid State Storage ..........................................................................................................22
Motherboard Battery .........................................................................................................23
2.4 Chassis Components .........................................................................................................24
System Cooling .................................................................................................................24
Chapter 3 Motherboard Connections
3.1 Power Connections ............................................................................................................25
3.2 Headers and Connectors ...................................................................................................26
Control Panel ....................................................................................................................30
3.3 Ports ...................................................................................................................................32
3.4 Jumpers ..............................................................................................................................34
5
Preface
Explanation of Jumpers.....................................................................................................34
3.5 LED Indicators ....................................................................................................................37
Chapter 4 Software
4.1 SuperDoctor® 5 ...................................................................................................................38
4.2 BMC ....................................................................................................................................39
BMC ADMIN User Password ............................................................................................39
Appendix A Standardized Warning Statements for AC Systems
Appendix B System Specications
6
SuperServer SYS-E200-12A-4C/8C User's Manual
Contacting Supermicro
Headquarters
Address: Super Micro Computer, Inc.
980 Rock Ave.
San Jose, CA 95131 U.S.A.
Tel: +1 (408) 503-8000
Fax: +1 (408) 503-8008
Email: marketing@supermicro.com (General Information)
Sales-USA@supermicro.com (Sales Inquiries)
Government_Sales-USA@supermicro.com (Gov. Sales Inquiries)
support@supermicro.com (Technical Support)
RMA@supermicro.com (RMA Support)
Webmaster@supermicro.com (Webmaster)
Website: www.supermicro.com
Europe
Address: Super Micro Computer B.V.
Het Sterrenbeeld 28, 5215 ML
's-Hertogenbosch, The Netherlands
Tel: +31 (0) 73-6400390
Fax: +31 (0) 73-6416525
Email: Sales_Europe@supermicro.com (Sales Inquiries)
Support_Europe@supermicro.com (Technical Support)
RMA_Europe@supermicro.com (RMA Support)
Website: www.supermicro.nl
Asia-Pacic
Address: Super Micro Computer, Inc.
3F, No. 150, Jian 1st Rd.
Zhonghe Dist., New Taipei City 235
Taiwan (R.O.C)
Tel: +886-(2) 8226-3990
Fax: +886-(2) 8226-3992
Email: Sales-Asia@supermicro.com.tw (Sales Inquiries)
Support@supermicro.com.tw (Technical Support)
RMA@supermicro.com.tw (RMA Support)
Website: www.supermicro.com.tw
7
Chapter 1: Introduction
Chapter 1
Introduction
1.1 Overview
This chapter provides a brief outline of the functions and features of the SuperServer
SYS-E200-12A-4C/8C. It is based on the A3SPI-4C-LN6PF/8C-LN6PF motherboard and the
CSE-101F chassis.
The following provides an overview of the specications and capabilities.
System Overview
Motherboard SYS-E200-12A-4C: A3SPI-4C-LN6PF
SYS-E200-12A-8C: A3SPI-8C-LN6PF
Chassis CSE-101F
Processor
Support
SYS-E200-12A-4C: Single Intel Atom® Processor C5315
SYS-E200-12A-8C: Single Intel Atom® Processor C5325
Memory Up to 128GB of DDR4 ECC RDIMM memory to 2400 MT/s (4C) and 2933 MT/S (8C)
Drive Support
Two M.2 slots (PCIe)
One M.2 (PCIe 3.0 p7-x2 / USB 3.0 / SATA3, B-Key 3052)
One M.2 (PCIe 3.0 x4, M-Key 2280)
Expansion Slots One PCIe 3.0 p7-x2 (in x8)
One OCuLink supports PCIe x4/SATA/NVMe
I/O Ports*
Two 10GbE SFP LAN ports
Four 1GbE RJ45 LAN ports
Two rear USB 3.0 ports, two USB 2.0 headers)
One VGA port
System Cooling Two 4-cm chassis fans
Power One external 150 watt DC power adapter
Form Factor Mini-iTX: 7.6" x 1.7" x 8.9" (193 x 43 x 226mm) (WxHxD)
Notes: A Quick Reference Guide can be found on the product page of the Supermicro website.
The following safety models associated with the SYS-E200-12A-4C/8C have been certied
as compliant with UL or CSA: 101F-15, 101F-A15A3.
8
Chapter 1: Introduction
Control Panel Features
Feature Description
Power Button The main power switch applies or removes primary power from the power supply to the server
but maintains standby power.
Reset Button Resets the system
HDD LED Indicates activity on the storage drives when ashing.
NIC LEDs Indicates network activity on LAN1 or LAN2 (as indicated) when ashing.
Power Fail LED Indicates a power supply module has failed.
Information LED Alerts operator to several states, as noted in the table below.
Control Panel
Figure 1-2. Control Panel
1.2 System Features
The following views of the system display the main features. Refer to Appendix B for additional
specications.
Front View
Figure 1-1. Front View
Control Panel
Power Button
Information LED
Reset Button
HDD LED
NIC LEDs
Power Fail LED
Produkt Specifikationer
| Mærke: | Supermicro |
| Kategori: | Ikke kategoriseret |
| Model: | SuperServer SYS-E200-12A-8C |
Har du brug for hjælp?
Hvis du har brug for hjælp til Supermicro SuperServer SYS-E200-12A-8C stil et spørgsmål nedenfor, og andre brugere vil svare dig
Ikke kategoriseret Supermicro Manualer
6 August 2025
5 August 2025
5 August 2025
5 August 2025
5 August 2025
5 August 2025
22 Juli 2025
21 Juli 2025
21 Juli 2025
21 Juli 2025
Ikke kategoriseret Manualer
- Petri
- Bliss Outdoors
- Ermenrich
- Hähnel
- KiddyGuard
- Hugo Muller
- Saint Algue
- Kahayan
- Laserluchs
- OptiTrack
- Fieldmann
- Horizon Fitness
- KJB Security Products
- Cardiostrong
- Blumfeldt
Nyeste Ikke kategoriseret Manualer
15 August 2025
15 August 2025
15 August 2025
15 August 2025
15 August 2025
15 August 2025
14 August 2025
14 August 2025
14 August 2025
14 August 2025
