Congratulations on your purchase of this product. Please read this user manual carefully.

Features

 New generation chip-array LED technology, outputs bright but soft & non-glaring light;

 60° wide beam angle, equally spread light, no visible lighting edge and single shadow;

 23W power consumption, 1200 lux @ 1 meter, equivalent to a 100W halogen bulb, and 10%-100% dimmerable;

 5000K color temperature and can be switched to 5600K or 3200K by filters;

 6V-17V wide voltage input, support D-tap power, standard DV battery power and special slim battery power;

 High intensity and toughness glass fiber housing, cool-touch, and both screw and cold shoe install.

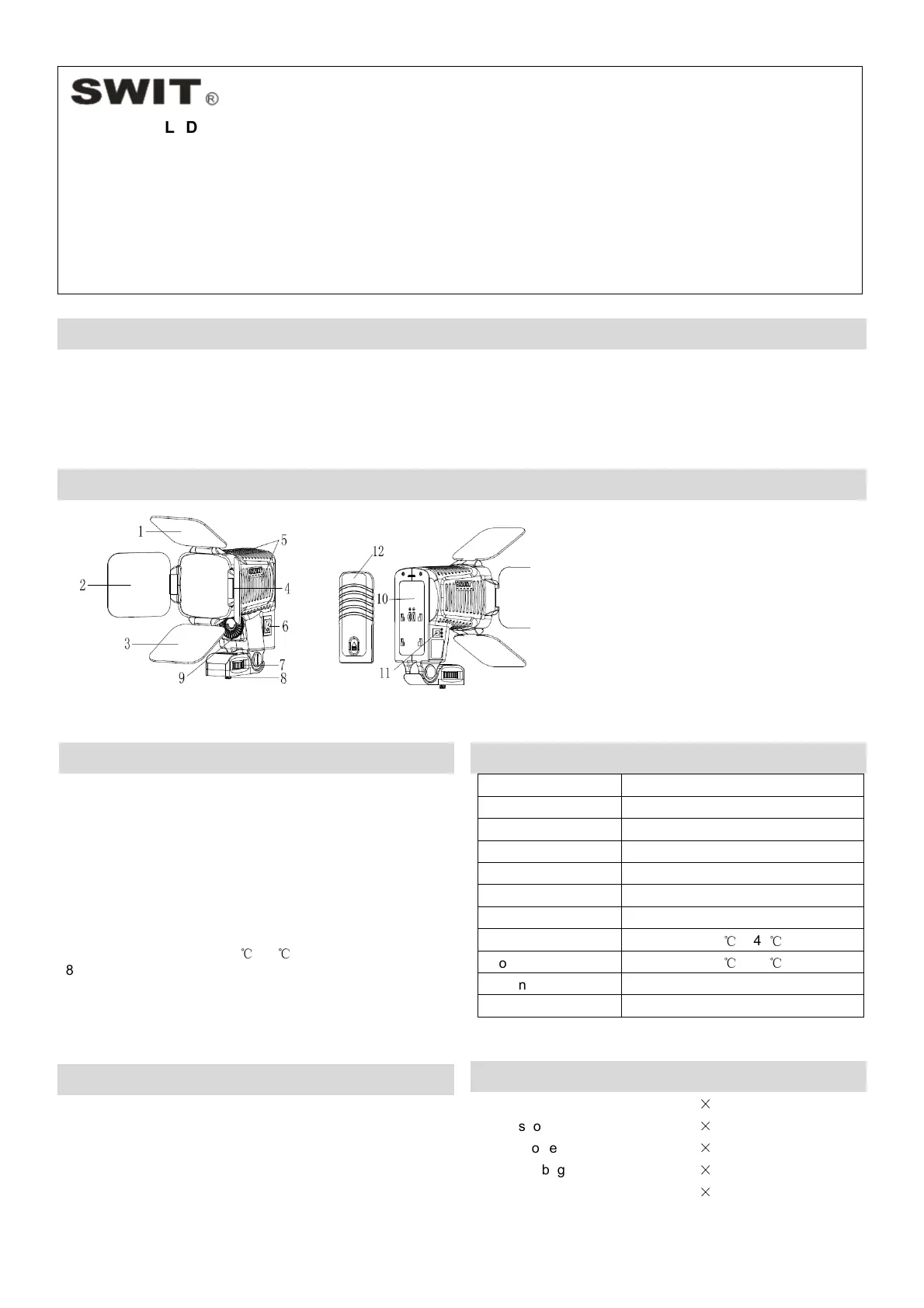

Product view

Fig 1 Fig 2

Caution

1. Never attempt to open the device. Refer all servicing to

qualified personnel.

2. Never insert anything into the cooling vent to avoid damage

or short circuit.

3. Keep the light away from rain or moisture.

4. Please do not stare at the turned on LED light.

5. Keep the filters clean.

6. When powering through DC-IN socket by D-tap cable,

please make sure the power supply's voltage and power meet

the light input requirements.

7. Working temperature: -10 ~40

8. Keep the cooling vent clear to avoid damage.

Clean

Use a soft, dry cloth to clean the LED light. If you clean the

light with soft cloth slightly moistened with neutral detergent,

please dry the surface of the light with a soft, dry cloth. Do

not use a damp cloth or alcohol, gasoline and other solvents

of any kind.

Specifications

Model S-2041

Input DC 6V-17V

Power consumption

Approx. 23W

Beam angle Approx. 60°

Illuminance 1200 lux @ 1 meter

Color temperature 5000K itself,

CRI >85

Working temp. -10 ~+40

Storage temp. -20 ~+55

Dimension 103×157×84mm

Mass Approx. 400g

Package

LED light 1

Cold shoe base 1

D-tap power cable (S-7104) 1

Portable bag 1

User manual 1

Chip-Array LED Camera Light S-2041

USER MANUAL

SWIT Electronics Co., Ltd.

Tel:+86-25-85805753

Fax:+86-25-85805296

http://www.swit.cc

E-mail: contact@swit.cc

1. 5600K filter

2. Barn door

3. 3200K filter

4. Barn door

5. Cooling vent

6. Switch on/off

7. Knob

8. 1/4” screw bolt

9. Dimmer

10. DV plate slot

11. DC-IN socket

12. Protection cover

Ver:V1.0.0V00

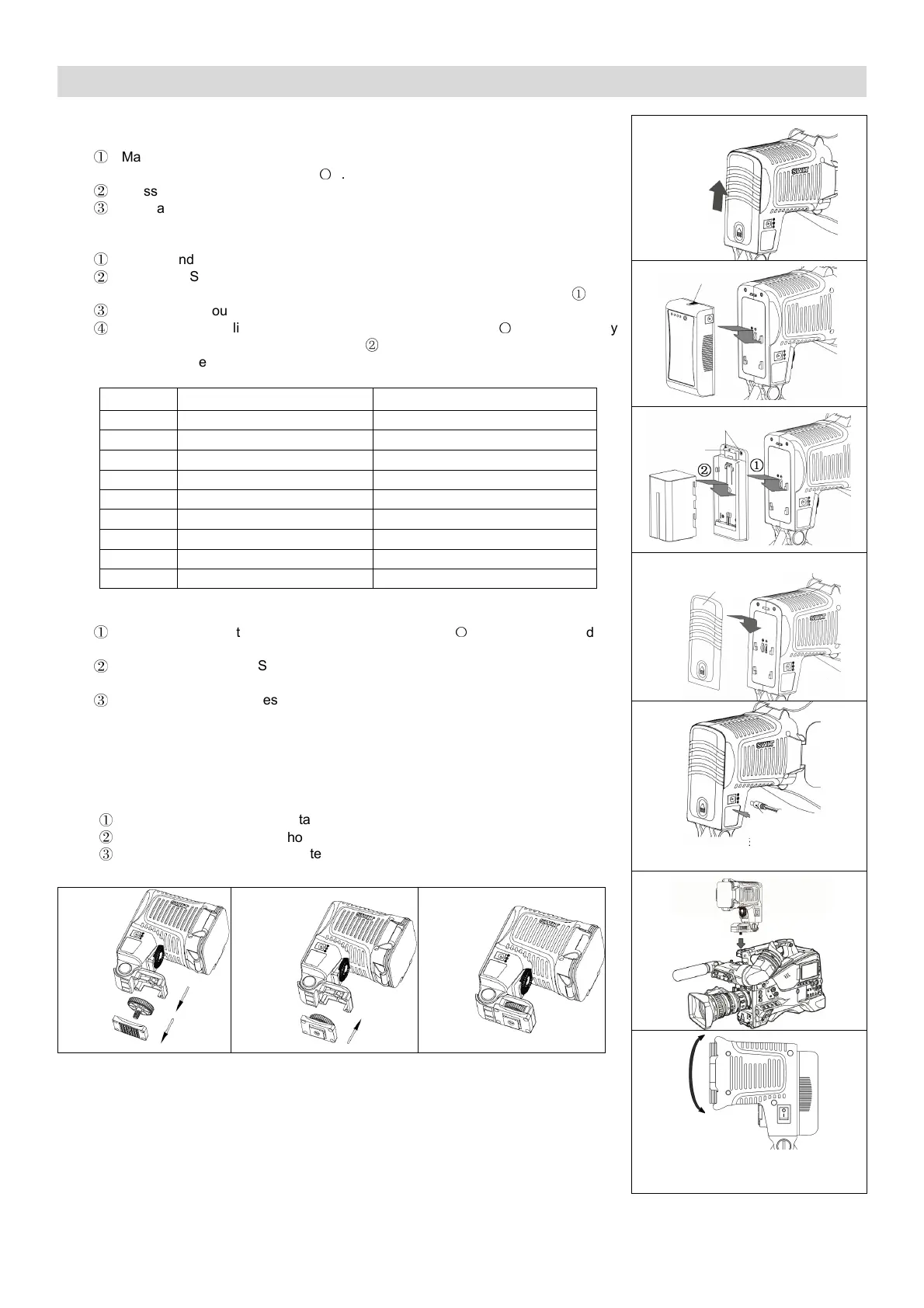

Usage

1. Power the light

S-2041 is 6-17V voltage input and offers various power supply methods.

● By special slim battery S-8040 (Optional purchase)

Make sure there’s no power lead connected into DC-IN socket and the light is

switched off (turn the switch to “ ”).

Press and slip off the protection cover. See Fig 3

Align a fully charged S-8040 battery to the DV mount slot to same side, and

press tightly in. Slide the battery downward to snap together. See Fig 4

● By various standard DV camera batteries

Press and slip off the protection cover. See Fig 3

Align the S-7004 series battery plate to the DV mount slot to same side, and

press tightly in. Then slide the S-7004 downward to snap together. See Fig 5-

Fix the DV mount with two screws.

Make sure the light is switched off (turn the switch to “ ”). Mount a fully

charged battery to the S-7004 mount. Fig 5-

Remark: After use, please fix on the protection cover.

There’re the following types of S-7004 for choice: (Optional Purchase)

Model Compatible battery type Recommended SWIT battery

7004F

SONY NP

F770/970

8972, S

8970, S

8770

7004P

Panasonic

CGA

D54S/D28S

8D62, S

8D54, S

8D28

7004J

JVC BN

V428U

8428

7004C

Canon BP

930/945

8945, S

8845

7004U

SONY

U60/30

8U62

7004E

Canon DSLR LP

8PE6

7004B

Panasonic VW

VBG6

8BG6

7004V

JVC BN

VF823

8823

7004

JVC SSL

JVC50

I50

● By DC input cable

Make sure the light is switched off (turn the switch to “ ”). Plug the pole end of

S-7104 into the DC-IN socket.

Plug the D-tap end of S-7104 to the camera auxiliary power tap or the battery’s

D-tap output socket. See Fig 6.

For third-party DC cables, please make sure the DC connector is 5.5/2.1mm

pole and input voltage should be 6-17V; and inner: positive, Outer: negative.

2. Fix the LED light to the camera

● By screw mount (Fig. 8)

The S-2041 can be directly installed on 1/4” thread handle.

● By Cold shoe (Fig. 9-11)

Unscrew the 4 screws and take down the 1/4” bolt base from the light.

Install the supplied cold shoe base onto the light.

Anticlockwise revolve the fasten knob, and loose the cold shoe slice, then

install onto the camera cold shoe slot, and fasten the knob to finish.

3. Adjust the angle of the light:

Hold the light, and adjust the light upward or downward. See Fig 12.

4. Open barn doors and filters:

Open the barn doors and filters to about 45°.

5. Switch on:

Turn the switch to “ I ”.

6. Adjust the illuminance:

Adjust the illuminance from 10% to 100% by the dimmer.

7. Adjust color temperature:

Output 5600K light by using 5600K filter; Output 3200K light by using 3200K filter

Fig 4

Release button

Screw hole

Battery

release

Fig 6

Pole plug

Fig 7

Fig 12

Adjust upward

or downward

Fig 5

Fig 8

Press and slip

to release

Fig 3

Cover

Fig 9

Fig 10 Fig 11
