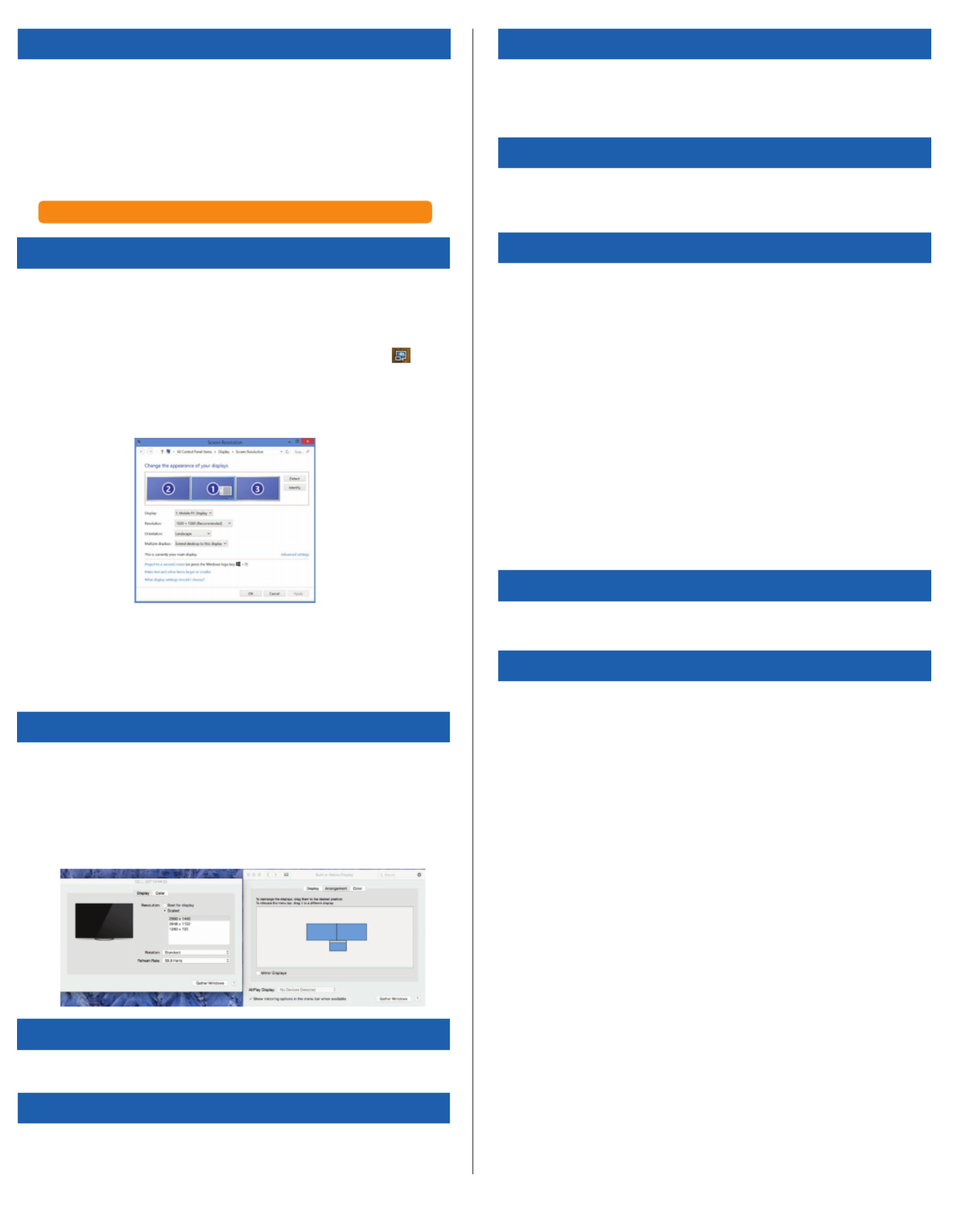

Side 1/2

USB-C

DUAL VIDEO 4K

DOCKING STATION

WITH

POWER DELIVERY

QUICK START GUIDE

410-3652-001B / DOCK180USZ

Workstation Setup

Docking Station Diagram

1. Connect all peripheral devices to the docking station

2. Connect the Targus Universal Docking Station to your host device.

3. If your host device does not connect via USB-C, use the included

USB-C to USB-A adapter as shown below.

Features and speciﬁcations are subject to change without notice. Microsoft

and Windows are registered trademarks of Microsoft Corporation in the United

States and/or other countries. All trademarks and registered trademarks are

Street, Anaheim, CA 92806

Contents

• Targus USB-C Dual Video 4K Docking Station

with Power Delivery 2.0 (60W)

• USB-C Cable

• AC Power adapter

• USB-C to USB-A adapter

Speciﬁcations

• 2 x DisplayPort (DP++; DP1.2) / HDMI Port (HDMI 2.0)

• 4 x USB 3.0 downstream ports (port marked with supports BC 1.2

and iOS device charging at 2.4A max)

• 1 x USB-C upstream port with supporting Power Delivery 2.0 Proﬁle 4

(up to 60W max. charging)

• 1 x USB-C downstream port (USB 3.0, data transfer only)

• Gigabit Ethernet

• Audio In/Out ports (3.5mm headset connector)

• Security lock slot

• USB-C cable

• LED Power Indicator

• Power ON/OFF button

• 20.5V, 120W power adapter

Gigabit

Ethernet

DP++HDMIDP++HDMI

Power

ON/OFF

Power InUSB 3.0

USB to

Laptop Port

Lock Slot

Audio

Headset Connector

USB-C PortUSB 3.0 Port

(supports charging)

Attach to DOCK180

Attach to PC

Windows Setup

To ensure the best Windows performance, please be sure to update your host PC

Display Adaptor and USB 3.0 Drivers. These updates are often available from your

IT department or from the PC manufacturer if you have Administrator rights to

download and install drivers for your PC.

Welcome to your Targus Universal Docking Station DisplayLink Manager. The

DisplayLink Manager software, if not already installed, can be downloaded from a

Windows Update server or from www.targus.com. It is represented by the icon

in the Windows Task Tray and allows you to easily connect additional monitors to

your laptop or desktop via the Targus Docking Station. Using the Windows Control

Panel Display Screen Resolution window, the connected monitors can be

conﬁgured to either mirror your main screen, or extend the Windows desktop

allowing visibility of more applications at the same time. The DisplayLink USB

Graphics devices can also be conﬁgured to be the main display.

The DisplayLink Manager allows full conﬁguration of all additional USB displays,

including:

• Support for addition USB Displays in Windows 7, 8, 8.1, 10 and later

• Resolution up to 4096 x 2160 for Displayport or HDMI

• Display orientation and location modiﬁcation

• Layout of displays

DisplayLink software also provides drivers for Sound and Ethernet built-in. These

can also be selected in the Windows Control Panel.

OS-X Setup

Upon installation of the DisplayLink software for OS-X available at

www.targus.com, Macbook users can use the System Preferences for Displays to

adjust the external monitors. OS-X allows conﬁguration of all additional USB

displays, including:

• Support for additional USB Displays in OS-X 10.9 or later

• Resolution up to 4096 x 2160 for Displayport or HDMI

• Display orientation and location modiﬁcation

• Layout of displays

DisplayLink software also provides drivers for Sound and Ethernet built-in.

Android Setup

Install the DisplayLink Desktop application for Android 5.0 and later from the

Google Play Store. Enable USB Debugging/Host mode on your Android device.

System Requirements

Hardware

• Thunderbolt 3 or USB-C port

• Charging support requires host computer support Power Delivery 2.0 charging

(up to 60W max)

Operating System (any of the following)

• Microsoft Windows

7, Windows

8, Windows

8.1, or Windows

10 (32/64-bit)

• Mac OS

X v10.8 or later

• Android 5.0 or later

• Chromebooks

• Ubuntu 14.04.x LTS and 16.04 LTS on x86 platform

Visit www.targus.com for a list of the latest compatible operating systems

Three Year Warranty

Declaration of Conformity

Regulatory Compliance

Product Registration

FCC Statement (Tested to Comply)

Targus recommends that you register your Targus accessory shortly after

purchasing it. Go to:

http://targus.com/us/product_registration

You will need to provide your full name, email address, country of residence and

product information.

We pride ourselves on the quality of our products. For complete warranty details

and a list of our worldwide ofﬁces, please visit www.targus.com. Targus product

warranty does not cover any device or product that is not manufactured by Targus

(including, but not limited to, laptops, smartphones, devices, or any other product

that may be used in connection with the Targus product). Australian customers:

For complete warranty details see warranty statement enclosed.

Targus is a registered trademark of Targus International LLC in the U.S. and in

certain other countries. Microsoft, Windows, and Windows Vista are registered

trademarks or trademarks of Microsoft Corporation in the United States and/or

other countries. Broadcom and the Broadcom logo are trademarks of Broadcom

Corp. Bluetooth and the Bluetooth logos are trademarks owned by Bluetooth SIG,

Inc., U.S.A. and licensed to Broadcom Corp. All logos and registered trademarks

AUSTRALIAN AND NEW ZEALAND CONSUMERS ONLY

Thank you for your purchase. Targus warrants to the original purchaser that its

products are free from defects in materials and workmanship, during the speciﬁed

warranty period, and lasts as long as the original purchaser owns the product. The

warranty period is stated on the packaging or in the documentation provided with

this Targus product. Targus’ Limited Product Warranty excludes damage caused by

accident, neglect, abuse, misuse, improper care, normal wear and tear, ownership

transfer, or alteration. The limited warranty also excludes any product that is not

manufactured by Targus (including, without limitation, laptops, smartphones,

devices, tablets, or any other non-Targus item) that is used in connection with the

Targus product.

In the event that the Targus product has a defect in materials or workmanship

Targus will, after receiving a warranty claim and inspecting the product, at its

discretion, do one of the following: repair, replace, or refund with the same or a

similar product (or part) of no lesser quality and ship it to the original purchaser at

Targus’ expense. As part of this inspection, proof of purchase will be required.

There is no charge for inspection. To make a warranty claim, please contact Targus

Australia or New Zealand (see details below), or return the product to the place of

purchase. The original purchaser must bear the cost of the delivery to Targus.

Under Australian and/or New Zealand Consumer Laws, in addition to any warranty

Targus gives, our products come with guarantees that cannot be excluded. You are

entitled to a replacement or refund for a major failure and compensation for any

other reasonably foreseeable loss or damage. You are entitled to have the products

repaired or replaced if they fail to be of acceptable quality and the failure does not

amount to a major failure.

For any warranty question, contact Targus Australia Pty. Ltd. (i) by mail at Suite 2,

Level 8, 5 Rider Boulevard, Rhodes NSW 2138, by phone AUS 1800 641 645 or

NZ 0800 633 222 or by Email: infoaust@targus.com. For additional information,

check out our website at targus.com/au/warranty.

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions: (1) This device may not cause harmful interference, and

(2) This device must accept any interference received, including interference that

may cause undesired operations.

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions:

This device may not cause harmful interference, and

This device must accept any interference received, including interference that may

cause undesired operation.

Warning: Changes or modiﬁcations not expressly approved by the party

responsible for compliance could void the user’s authority to operate the

equipment.

NOTE: This equipment has been tested and found to comply with the limits for a

Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are

designed to provide reasonable protection against harmful interference in a

residential installation.

This equipment generates, uses, and can radiate radio frequency energy and, if not

installed and used in accordance with the instructions, may cause harmful

interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can be determined by

turning the equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

. Reorient or relocate the receiving antenna.

. Increase the separation between the equipment and receiver.

. Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

. Consult the dealer or an experienced radio/TV technician for help.

Hereby, Targus declares that this device is in compliance with the essential

requirements and other relevant provisions of Directive: 2014/30/EU and

2014/35/EU.

Technical Support

For technical questions, please visit:

Australia

New Zealand

Internet: http://targus.com/us/support

Internet: http://www.targus.com/au/support

Email: infoaust@targus.com

Telephone: 1800-641-645

Telephone: 0800-633-222
