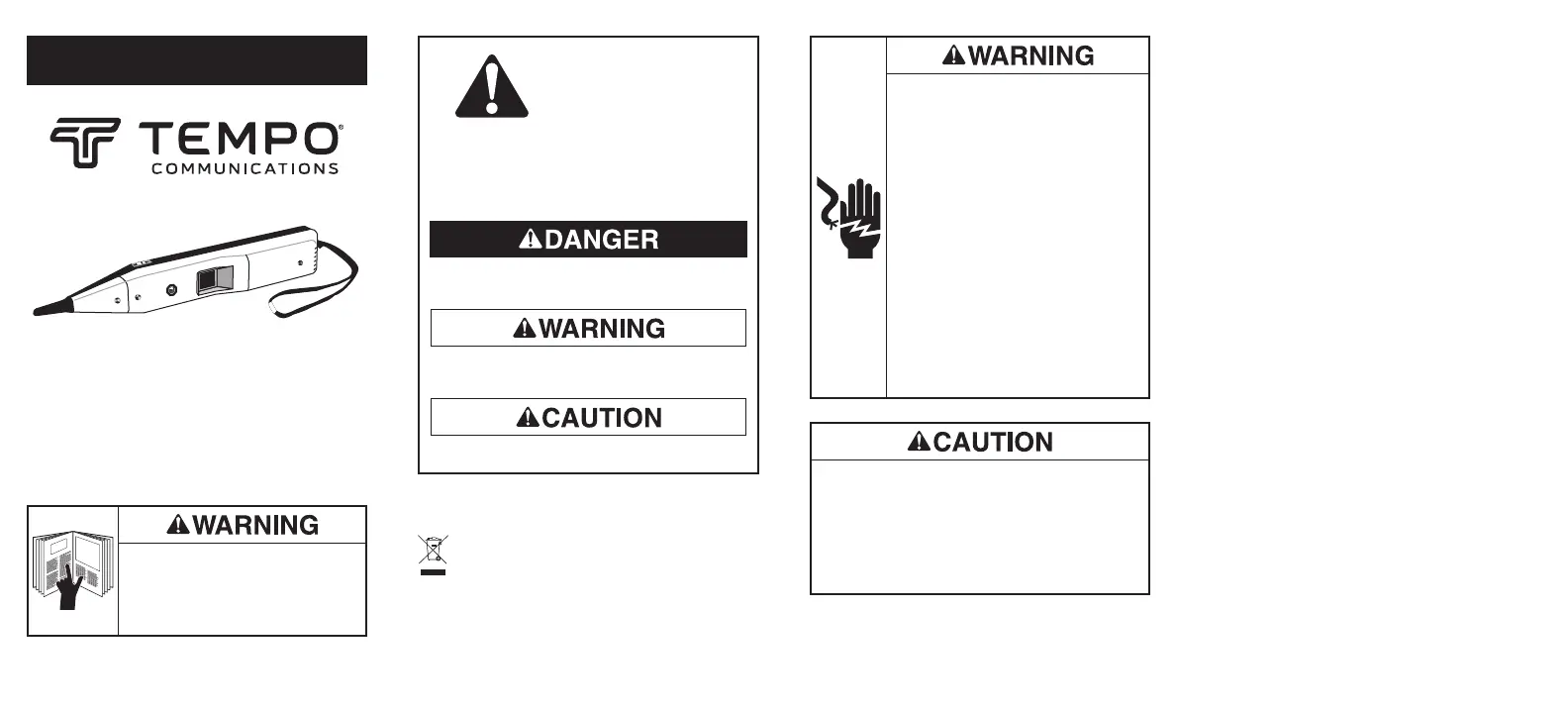

INSTRUCTION MANUAL

LONG PRESS

ON/OFF

SHORT PRESS

GR EEN=FILTER

RED=NO FILTER

SAFETY ALERT

SYMBOL

This symbol is used to call your attention to hazards or

unsafe practices which could result in an injury or property

damage. The signal word, deﬁned below, indicates the

severity of the hazard. The message after the signal word

provides information for preventing or avoiding the hazard.

Immediate hazards which, if not avoided, WILL result in

severe injury or death.

Hazards which, if not avoided, COULD result in severe injury

or death.

Hazards which, if not avoided, MAY result in injury.

Electric shock hazard:

• Do not expose this unit to rain or moisture.

Contact with live circuits can result in severe

injury or death.

• Use this unit for the manufacturer’s intended

purpose only, as described in this manual.

Any other use can impair the protection

provided by the unit.

• Use test leads or accessories that are

appropriate for the application. See the

category and voltage rating of the test lead

or accessory.

• Inspect the test leads or accessory before

use. The item(s) must be clean and dry, and

the insulation must be in good condition.

• Before opening the case, remove the test

leads from the circuit and shut off the unit

Failure to observe these warnings can result in

severe injury or death.

Electric shock hazard:

• Do not attempt to repair this unit. It contains no user-

serviceable parts.

• Do not expose the unit to extreme temperatures or high

humidity. See Speciﬁcations.

Failure to observe these precautions can result in injury and

can damage the instrument.

Read and understand this material before

operating or servicing this equipment. Failure

to understand how to safely operate this tool

can result in an accident causing serious

injury or death.

200FP

Filtered Tone Probe

Description

The 200FP Filtered Tone Probe is designed to identify and

trace wires or cables within a group without need of removing

insulation. In addition, the 200FP has been speciﬁcally designed to

ﬁlter out all power-related noise to eliminate “Power Line Hum.”

The unit is constructed of durable ABS plastic, and an optional

leather carrying case, 200C, is available.The 200FP is also

available as part of the Model 801K kit.

When the 200FP is ON but not detecting a signal, the signal LED

will ﬂash momentarily (every 4 seconds) as a visible ON indicator

and reminder. When a tone signal is detected by the probe, the

signal LED will serve as a signal strength indicator.The brighter

the LED, the stronger the tone signal detected.

Safety

Safety is essential in the use and maintenance of Tempo Tools

and equipment. This instruction manual and any markings on the

tool provide information for avoiding hazards and unsafe practices

related to the use of this tool. Observe all of the safety information

provided.

Purpose of this Manual

This manual is intended to familiarize personnel with the

safe operation and maintenance procedures for the Tempo

Communications 200FP Filtered Tone Probe. Please read this

entire manual before operating the tool, and keep this manual

available to all personnel. Replacement manuals are available

upon request at no extra charge.

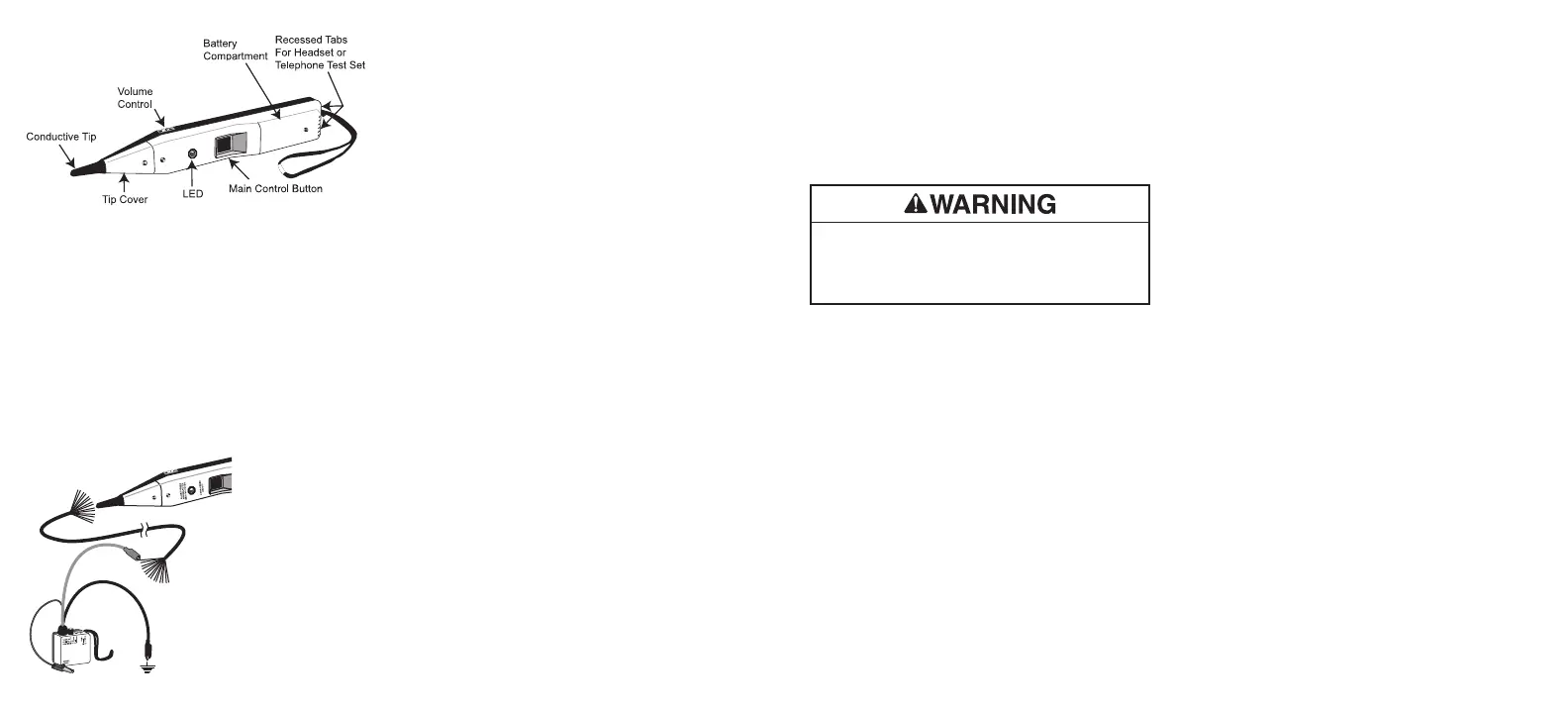

Controls (See Figure 1)

A long press of the main control button turns the unit OFF or ON,

and the unit beeps to indicate the change. A lower pitch beep

indicates that the unit is going OFF. An Auto-Off feature has

been incorporated to turn the 200FP OFF after 5 minutes to help

preserve battery life. When Auto-Off activates, a bee-bee-bee-

beep sounds from the speaker to alert the user that the 200FP is

now OFF. When the battery voltage is low, the unit sounds three

descending tones when it is turned ON.

Short presses of the main control button engage and disengage

the hum ﬁlter of the 200FP. The unit beeps to indicate the change

– a single beep means it is entering the normal unﬁltered mode,

Do not discard this product or throw away!

For recycling information, go to www.Tempo.com.

All speciﬁcations are nominal and may change as design improvements

occur. Tempo Textron Inc. shall not be liable for damages resulting from

misapplication or misuse of its products.

KEEP THIS MANUAL

while a double beep means the ﬁlter is engaged. In the normal

mode the LED indicator operates in red color, and in ﬁlter mode

the LED appears green.

A volume control knob located on the right side of the 200FP

allows the user to control the sensitivity and loudness of the probe

output.

Operation

Identiﬁcation of wires and cables is accomplished by

ﬁrst connecting a tracing tone generator like the Tempo

Communications 77HP, 77GX or AT8 to the wires being traced.

In working cables that are terminated, connect one lead of

the tone generator to a wire and the other test lead to earth

or equipment ground. This allows localization of the cable and

identiﬁcation of the connected wire. (See Figure 2)

In non-working or

un-terminated cables,

connect one test lead

of a tone generator to a

wire and the other test

lead to another wire (i.e.,

tip and ring of an open

pair).This can make

cable localization a little

more difﬁcult, but allows

positive identiﬁcation of

both wires in a traced

pair.

1. To activate the 200FP, use a long press of the square main

control button.

Note: Changes in temperature and battery power can

affect the frequency of tones produced by any given tone

generator. Under certain conditions, a tone test set may

produce frequencies that are similar to power line hum and

cause them to be blocked by the 200FP’s ﬁlter mode.

2. Prior to locating the tone at the far end of the cable or wire,

conﬁrm proper operation of the 200FP at the tone source.

With the probe ON and in the ﬁlter mode (a short press of the

control button and a green LED blink), listen for a solid single

tone or a complete warble tone at the tone generator. If no

tone or only “half ”of a warble tone is detected, use the 200FP

in the “Normal” unﬁltered setting or replace the battery in the

tone generator.

3. Once activated, the volume control can be adjusted to suit

the environment. Loudness of the probe tone output can be

increased to overcome noise (i.e., vehicular trafﬁc, airplanes

or machinery) or decreased to reduce interference or when

working in noise sensitive areas.

4. The 200FP is equipped with recessed ports for connecting

a lineman’s butt set. Attaching the butt set automatically

activates the probe when Talk mode is selected on the set.

5. To activate the 200FP without depressing the main control

button, silence the speaker, and use only the LED, attach

a jumper between the two recessed tabs. This simulates

connection of a butt set.

6. Touch the tip of the 200FP to the insulation of each potential

target conductor.

7. Reception of tone will be loudest on the subject wire.

(Reception of the tone may be improved by separating the

wires from the group.)

Speciﬁcations

Electrical

Nominal Gain: 35 dB

Nominal Input Impedance: 100 MΩ

Probe Tip Resistance (minimum): 300 Ω

Battery: One 9V alkaline

Nominal Battery Life: 50 hours

Overvoltage Protection: Cat I, 150V to Gnd

Physical

Length: 250 mm (9.85")

Width: 32 mm (1.27")

Depth: 35 mm (1.38")

Weight: 142 g (5 oz)

Operating/Storage Conditions

Temperature: 0 °C to 50 °C (32 °F to 122 °F)

Maintenance

Before opening the case, remove the test leads from the circuit

and shut off the unit.

Failure to observe this warning can result in severe injury or

death.

Battery Replacement

1. Turn the unit off.

2. Remove the screw, then the battery door.

3. Replace the battery (observe polarity).

4. Replace the back and the screws. Do not overtighten the

screw.

Tip Replacement

1. Turn the unit off.

2. Remove the slotted screw and remove tip cover.

3. Replace the tip.

4. Replace tip cover and screw. Do not overtighten the screw.

Cleaning

Periodically wipe with a damp cloth and mild detergent; do not

use abrasives or solvents.

LON G P RES S

ON/ OFF

SH OR T PR ESS

GR EE N=FILTE R

RED =NO FILTE R

Fig. 1

Fig. 2

One-Year Limited Warranty

Tempo Communications Inc. warrants to the original purchaser of these

goods for use that these products will be free from defects in workmanship

and material for one year, excepting normal wear and abuse.

For all Test Instrument repairs, you must ﬁrst request a Return Authorization

Number by contacting our Customer Service department at:

toll free in the US and Canada 800 642-2155.

Telephone +1 760 510-0558.

Facsimile +1 760 598-5634.

This number must be clearly marked on the shipping label. Ship units Freight

Prepaid to: Tempo Repair Center, 1390 Aspen Way, Vista, CA 92081 USA.

Mark all packages: Attention: TEST INSTRUMENT REPAIR.

For items not covered under warranty (such as dropped, abused, etc.) repair

cost quote available upon request.

Note: Prior to returning any test instrument, please check to make sure

batteries are fully charged.

Tempo Communications

1390 Aspen Way • Vista, CA 92081 • USA

800-642-2155

www.TempoCom.com
