Measurement of dewpoints in the range from

-45 °Ctd to +30 °Ctd

Testo polymer humidity sensor with high accuracy and

long-term stability

Analog output 4 to 20 mA (2-wire) and optional alarm plug

with 2 integrated switch outputs

Compact design with rotatable housing by 350° for

optimum positioning of display

Display with operating menu (optional)

Dewpoint transmitter to -45 °Ctd

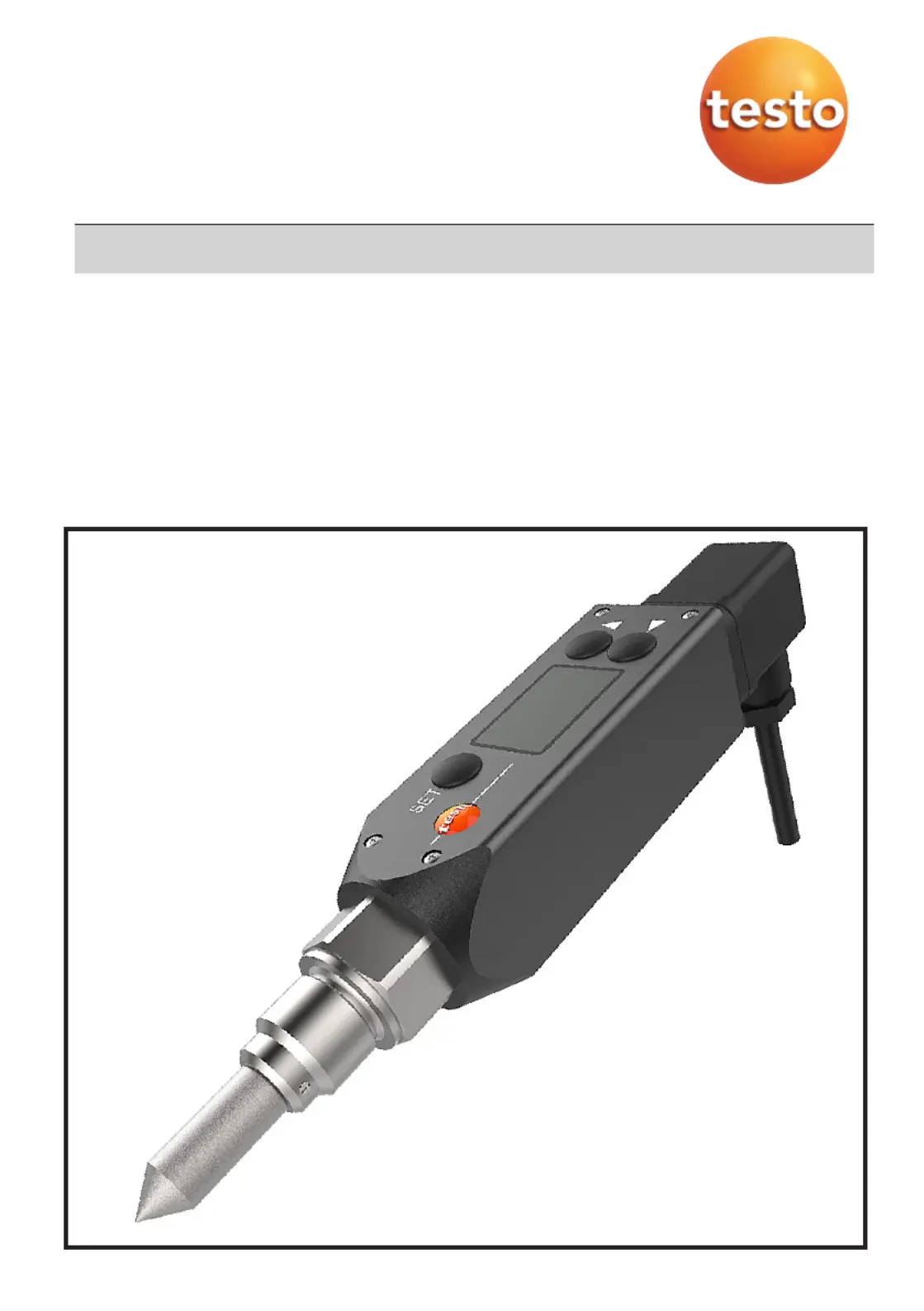

testo 6740

The testo 6740 was especilally developed for trace humidity

measurement in compressed or dry air (e. g. granulate

dryers). Thanks to a special adjustment, optimum accuracy

in the trace humidity range has been achieved.

For the display of the relevant trace humidity parameters, a

freely scalable analog output is available, optionally with a

switch contact plug for MAX monitoring. In addition to this,

the testo 6740 stands out thanks to its compact and user-

friendly design, such as the rotatability of the housing by

350° for the optimum positioning of the display.

www.testo.com

testo 6740 – Dewpoint transmitter to -45 °C

Technical data

Supply

Analog outputs

Switch outputs (opt. alarm plug, 0554 3302)

Resolution 12 bit

Current/accuracy 4 to 20 mA (2-wire) / ±40 µA

load 12 V DC: max. 100 , 24 V DC: max. 650 W W,

30 V DC: 950 W

Inputs and outputs

Measurement rate 2 s

Contacts 2 closer contacts, pot.-free,

max. 30V/0.5A

Voltage supply 24 V DC (12 to 30 V DC permitted);

with alarm plug (0554 3302) 20 to 28 V DC

Display

Design

Installation

General technical data

Material/colour Plastic, polyacrylamide

Dimensions 199.5 x 37 x 37 mm

(with standard plug)

203.5 x 37 x 37 mm

(with plug 0554 3302)

Display

Protection class IP65 (with plug attached and wire

connected)

EMC According to guideline 89/336 EEC

Thread / process

connection

G½ thread or NPT½“ thread

Weight Approx. 300 g

High intensity 7-segement display

Operating temperature

(housing)

-20 to +70 °C (+4 to +158 °F)

Operating conditions

Storage temperature -40 to +80 °C (-40 to +176 °F)

Dewpoint/trace humidity

Measurement parameters

Calculated parameters °Ctd, °Ftd, °CtA, °FtA, ppmv, mg/m3, °F

Units %RH, °C

Measurement

uncertainty

±1 K at 0 °Ctd (+32 °Ftd)

±3 K at -20 °Ctd (-4 °Ftd)

±4 K at -40 °Ctd (-40 °Ftd )

Normed atmospheric dewpoint

Measuring range -70 to -15 °CtdA (-112 to -5 °FtdA)

(at 30 bar rel./ 435 psi)

-54 to +10 °CtdA (-94 to +50 °FtdA)

(at 3 bar rel./43.5 psi)

-45 to +30° CtdA (-76 to +86 °FtdA)

(at 0 bar rel./0 psi)

Sensor Polymer humidity sensor with protocolized trace

humidity adjustment at -40 °Ctd (-40 °Ftd)

Miscellaneous

Process pressure max. 50 bar (725 psi)

Measuring range -45 °Ctd to +30 °Ctd

Temperature

Measuring range 0 to 50 °C (32 to +122 °F)

Measurement uncertainty ±0,5K (0 to 50 °C/32 to 122 °F)

Sensor NTC

Scaling Freely scalable via display buttons

Switch thresholds Standard 6 °Ctd/12 °C

td, freely

programmable with display

Current consumption 21 mA (without alarm plug)

65 mA (with alarm plug)

Resolution °C: 0.1

RH: 0.1

°Ctd: 0.1

°Ftd: 0.1

°CtA: 0.1

°FtA: 0.1

Rotatability (display

positioning)

350° around housing axis

ppmv: 1 / 10 / 100

(dep. on meas. value)

mg/m3: 1 / 10 / 100

(dep. on meas. value)

°F: 0.1
