Side 1/4

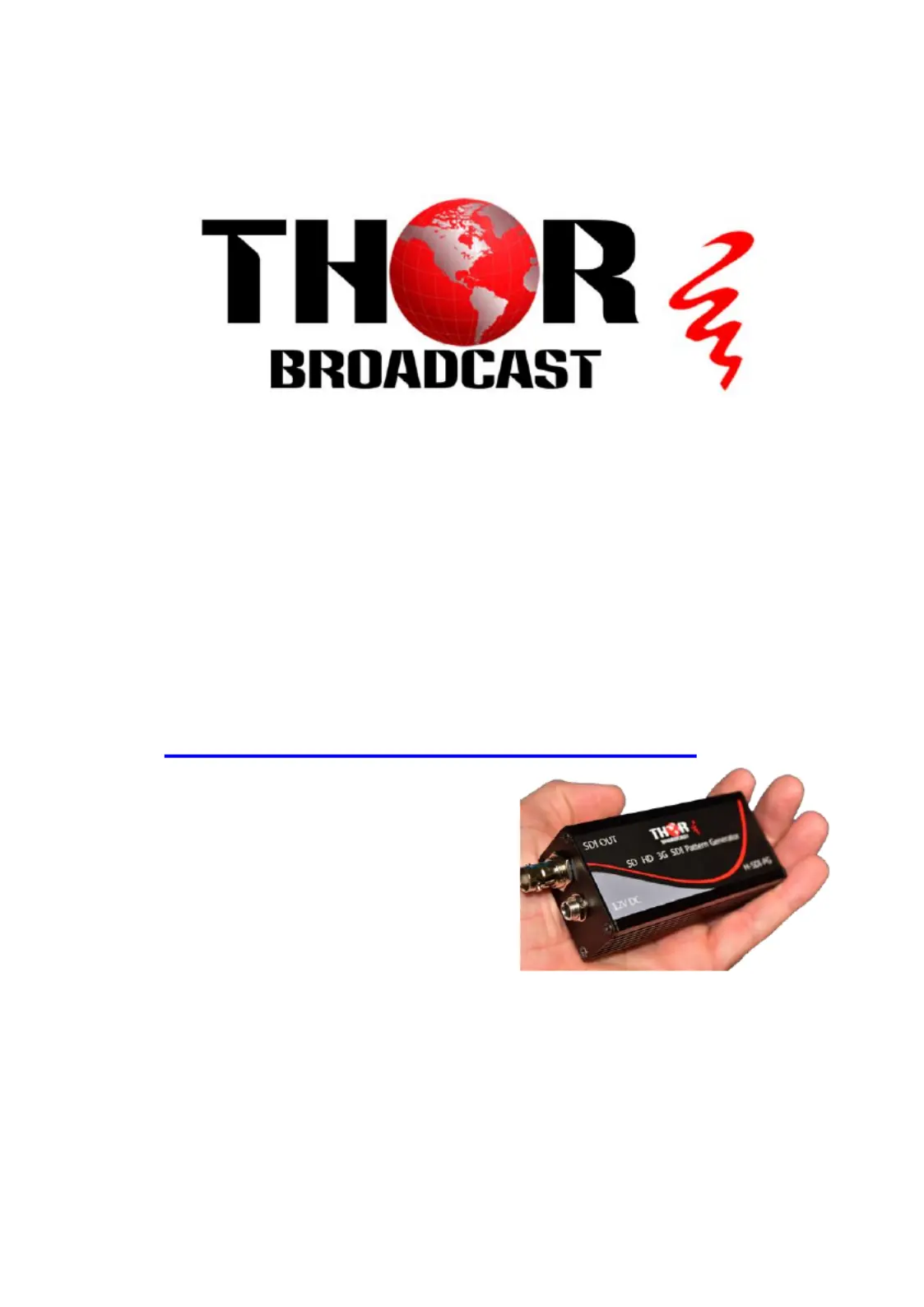

H- - SDI PG
SD -SDI SIGNAL GENERATORHD 3G
USER MANUAL
User Handbook
1
https://thorbroadcast.com/ 800-521-8467 sales@thorber.com
1. Overview
H-SDI- is a SD/HD 3G SDI signal generator that sends standard color bar and moving ring test PG
patterns in SD/ /3G-SDI format at the 2970Mb/s, 1485Mb/s or 270Mb/s speed rate, also, the sine HD
wave audio signal is embedded. H-SDI- is designed as packet, portable instrument, and can be PG
widely used for eld TV broadcast, high denition video conference and high denition video
surveillance applications.
2. Features
Supports 2970Mb/s, 1485Mb/s and 270Mb/s bit rate, complying with SMPTE-424 3G-SDI,
SMPTE-292 HD-SDI and SMPTE-259 SD-SDI.
PAL and NTSC switching available on the panel .
Various video formats can be selected by setting the bit switch on the panel.
Supports 1080P@59.94/29.97, 1080I@59.94, 720P@59.94, 525I@59.94 for NTSC.
Supports 1080P@60/30, 1080I@60,720P@60, 625I@50 for PAL.
Integrates sine wave of 1KHz generator for test.
Supports SDI output format indication.
12V DC power supply, 1.5W±10% consumption.
Dimension: 93.2mm×46.2mm×29.6mm
3. Application
Transmitter
3G/HD/SD-SDI
Pattern Generater
Receiver
3G/HD/SD-SDI
RT-SDI-T
Fig: Typical Application
