DM-1200/DM-1300US DYNAMIC,

UNIDIRECTIONAL MICROPHONES

PM-222U PAGING MICROPHONE

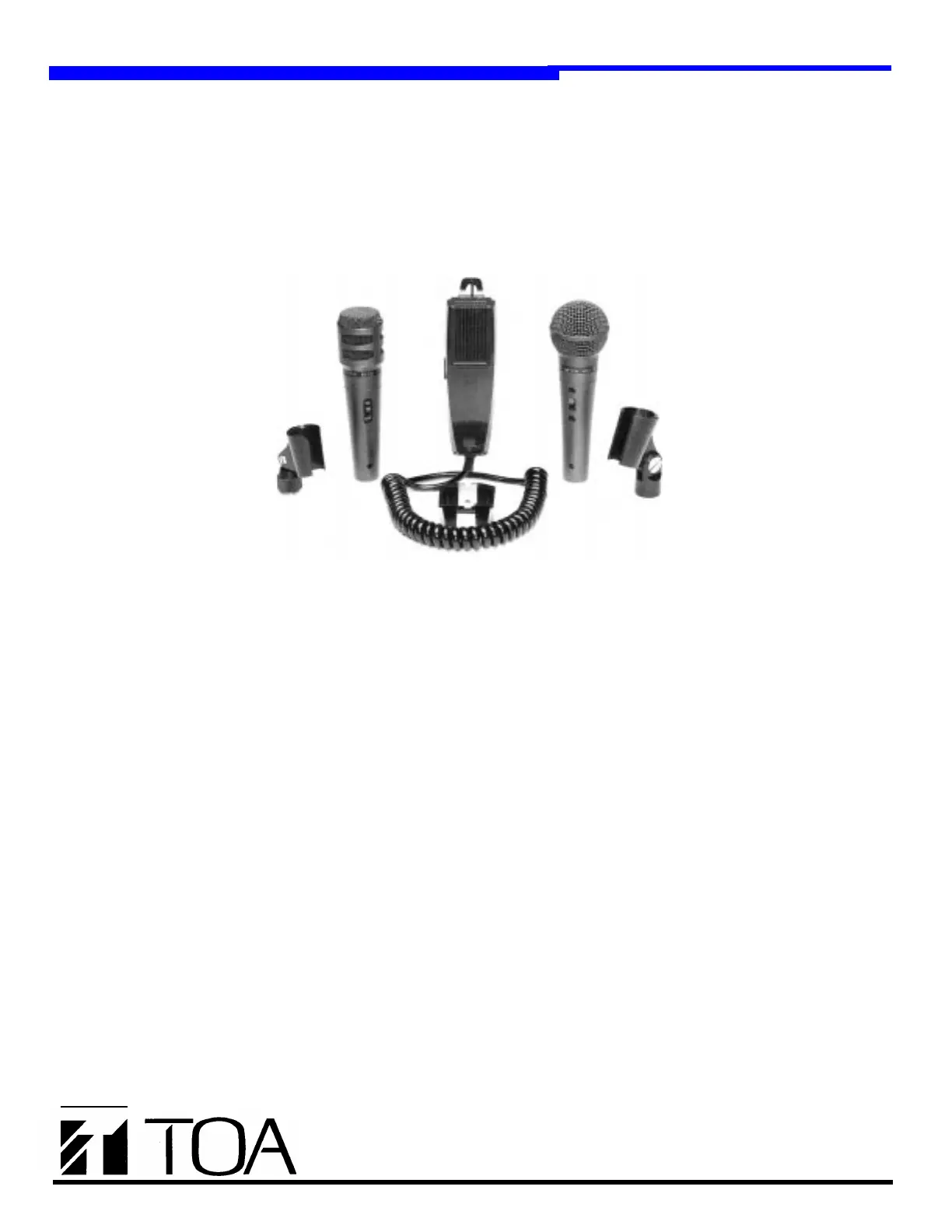

DESCRIPTION

Three new dynamic, unidirectional microphones from

TOA reduce acoustic feedback in lecture, speech and

vocal usages.

The DM-1200 and DM-1300US are designed for both

hand held and stand mounting usages. Both the DM-

1200 and DM-1300US are equipped with a short slide

on/off switch to reduce switching noise and have XLR

type 3-pin male connectors as well. The DM-1200 is

outfitted with a XLR-to-1/4” cable and universal stand

adapter. The DM-1300US has a U.S.-style stand

adapter.

The PM-222U is a noise-cancelling paging micro-

phone designed for hand held applications with a

push-to-talk switch that locks on for continued use. It

has a pig-tail cord with external control contacts and

conductors as well as a mounting sleeve for wall

mount storage.

All three new microphones are of rugged construction

to take the rigors of many different sound applications.

FEATURES

DM-1200

XLR-to-1/4” 10m shielded cable

universal stand adapter

short-off type slide on/off switch

diecast zinc body

DM-1300US

XLR type 3 pin male connector

U.S. style stand adapter

short-off type slide on/off switch

diecast zinc body

PM-222U

pig-tail cord with external control contacts and

conductors

lock-on push-to-talk switch for continuous use

mounting sleeve included for wall mount

storage

SPECIFICATIONS

Model Number DM-1200

Type

Moving coil microphone (dynamic)

Directivity

Unidirectional

Rated Impedance

600

Ω,

balanced

Rated Sensitivity

-55dB

Frequency Response

50 Hz-12kHz

Connection Cable

1-core shielded cable, unbalanced

Cable Length

10m

Cable Connector

1/4" unbalanced phone plug

Finish

Body: Diecast zinc, painted metallic gray

Head: Diecast aluminum, zinc plated steel wire

Color: Metallic gray

Weight

10.44 oz.

Dimensions (DxL)

1.55" x 6.54"

Talk Switch Short-off type, slide on/off switch

Standard accessory

Microphone holder

(1 kHz 0dB=1

V/Pa)

Specifications are subject to change without notice

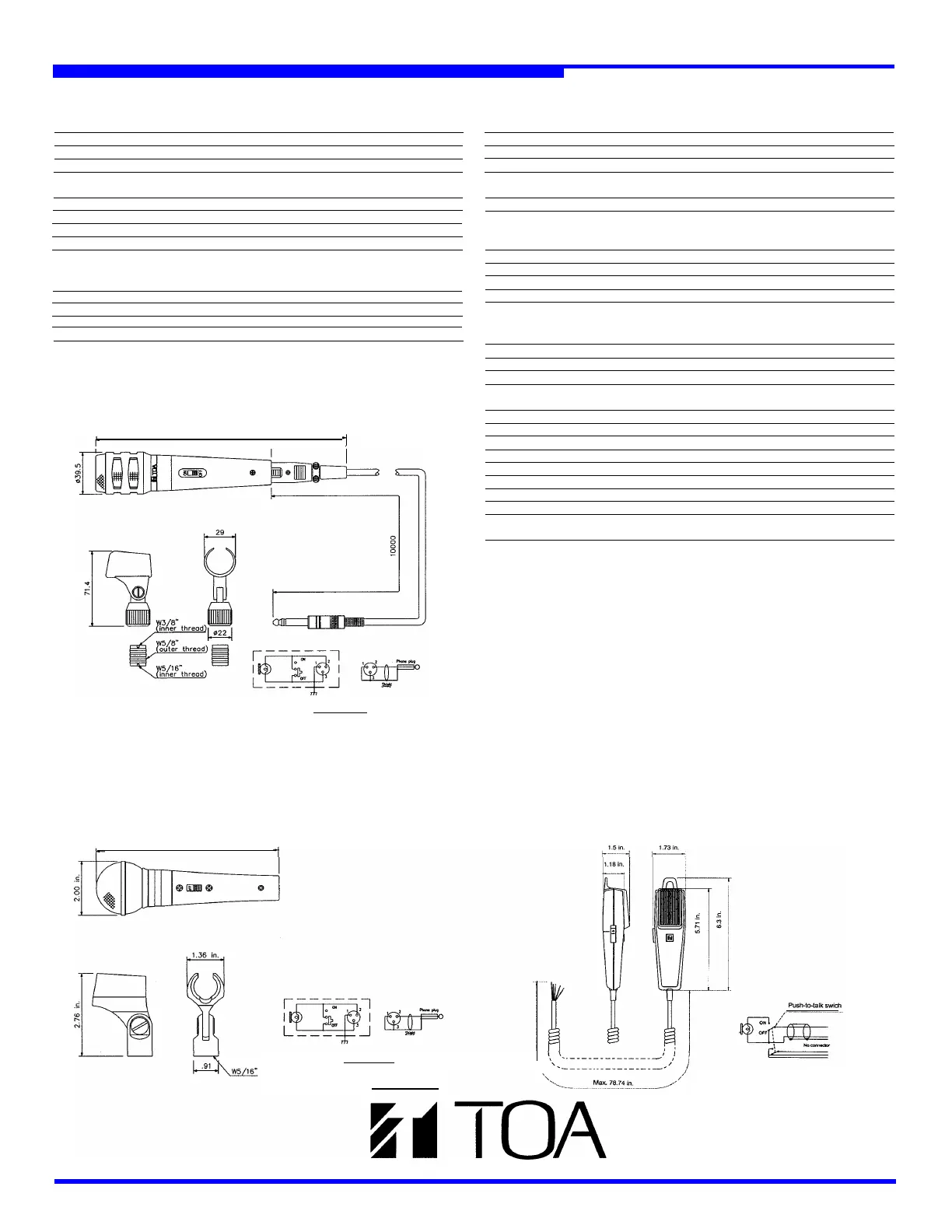

APPEARANCE AND DIMENSIONAL DIAGRAM

DM-1200

Model Number DM1300US

Type

Moving coil microphone (dynamic)

Directivity

Unidirectional

Rated Impedance

600

Ω,

balanced

Rated Sensitivity

-54dB

(1 kHz 0dB=1 V/Pa)

Frequency Response

70 Hz-15kHz

Finish

Body: Diecast zinc, painted metallic gray

Head: Diecast aluminum, zinc plated steel wire

Color: Metallic gray

Weight

9.65 oz.

Dimensions(DxL)

2.4” x 6.69”

Talk Switch

Short-off type, slide on/off switch

Standard accessory

Microphone holder

**Specifications are subject to change without notice

Model Number PM-222U

Type

Moving coil microphone

Directivity

Noise Cancelling

Rated Impedance

600

Ω,

balanced

Rated Sensitivity

-47dB

(1 kHz 0dB=1 V/Pa)

Frequency Response

100 Hz-10kHz

Cable

2-core shielded cable, plus 2-core cable

Cable Length

6.5” when extended

Cable Connector

None

Finish

ABS Resin gray

Weight

7.0 oz.

Dimensions(WxLxD)

1.73”x 6.3”x 1.49”

Talk Switch

Short-off type with lock

Standard accessory

Microphone holder, metal fitting, 2 tapping

screws 4x16

**Specifications are subject to change without notice

163

Circuit Diagram

APPEARANCE AND DIMENSIONAL DIAGRAM

DM1300US

PM-222U

6.69 in.

Circuit Diagram

Printed in U.S.A. 4/97 BL

Produkt Specifikationer

Mærke:	TOA
Kategori:	Mikrofon
Model:	DM-1200
Produktfarve:	Grå
Forbindelsesteknologi:	Ledningsført
Mikrofonindgangsimpedans:	600 ohm (Ω)
Mikrofon frekvens:	100 - 10000 Hz
Mikrofon sensitivitet:	-54.5 dB
Mikrofon vægt:	475 g
Kompatible produkter:	ST-73A
Antal produkter inkluderet:	1 stk
