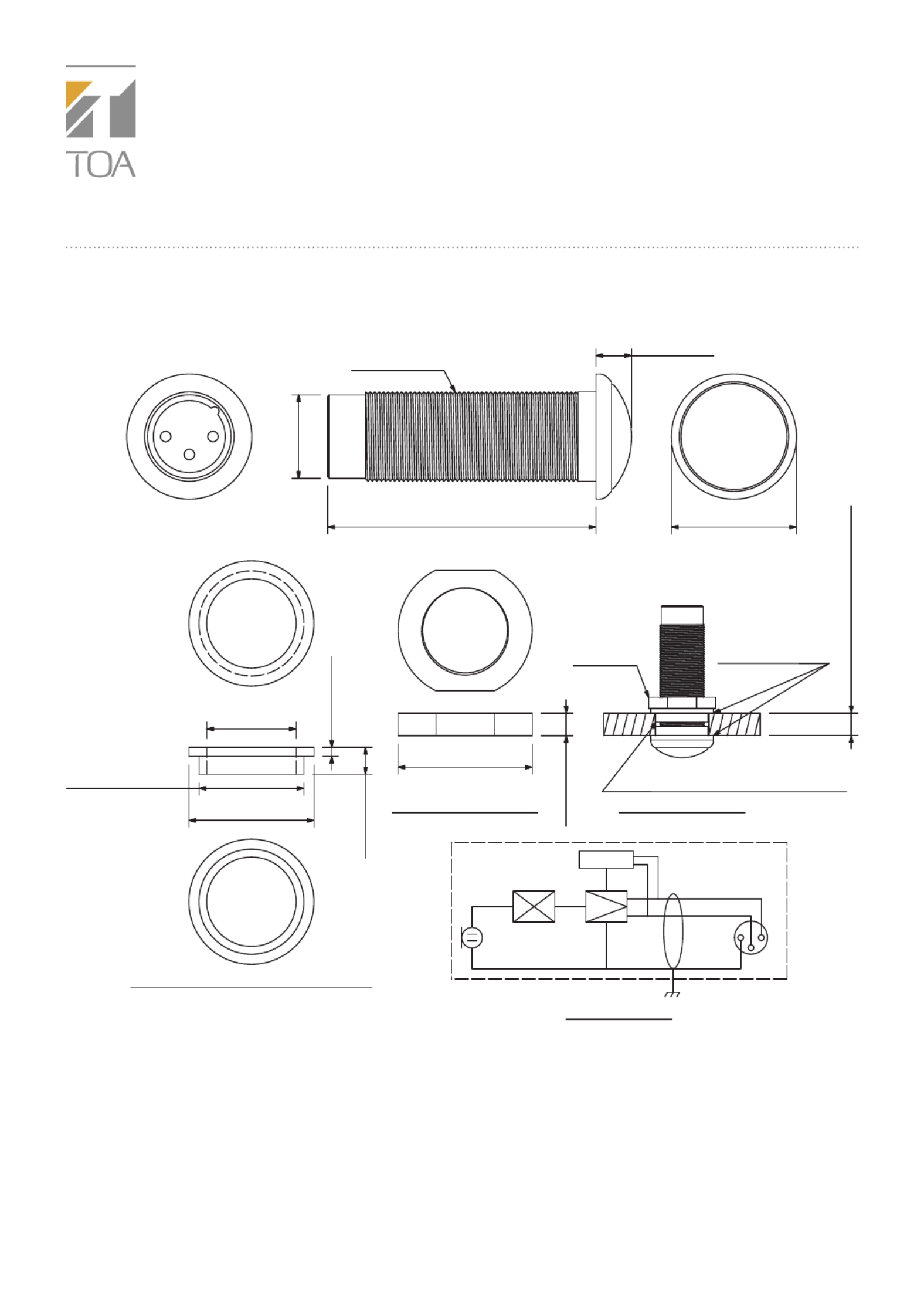

EM-600

FLUSH-MOUNT BOUNDARY MICROPHONE

The EM-600 is an omnidirectional condenser microphone of only 28 mm (1.1") in diameter designed for sound

pick-up application. It can be flush-mounted into a ceiling, wall, or desk, making it unobtrusive. It provides clear

and high-quality sound.

Article number:EM-600

Specifications

Frequency response 30 Hz - 20 kHz

Connection XLR-3-12 or equivalent

Rated impedance 120 Ω

Phantom power 9 – 52 V DC

Microphone type Flush-Mount Boundary Microphone

Directivity Omnidirectional

Sensitivity -36 dB (1 kHz 0 dB = 1 V/Pa)

Dimensions (W x H x D) x 68

Dimensions (ø x D) 28 x 68 mm

Finish Steel, semi-gloss, paint, white,

Operating temperature 0°C - +40°C

We supply sound, not equipment.

www.toa.eu.

©TOA Electronics Europe GmbH | Data subject to change without notice.

EN, 2021/07/13

EM-600

FLUSH-MOUNT BOUNDARY MICROPHONE

Appearance

M20 Nut (accessory)

APPEARANCE

Mounting example

Rubber Isolation Ring (accessory)

UNIT:mm SCALE:1/1

Circuit diagram

Power circuit

Filter circuit Hot

Cold

Shield

Body earth

30 [1.18"]

60 [2.36"]

Ă18.7 [0.74"]

Ă20 [Ă0.79"]

Ă23.5 [Ă0.93"]

6 [0.24"]

2 [0.08"]

M20, P=1.0

Ă28 [Ă1.1"]

(accessory)

Recommended Installation

M20 Nut

9 - 40 [0.35" - 1.57"]

5 [0.20"]

(accessory)

Isolation Ring

8 [0.31"]

Ă28 [Ă1.1"]

Rubber

diameter Ø24 [Ø0.94"]

We supply sound, not equipment.

www.toa.eu.

©TOA Electronics Europe GmbH | Data subject to change without notice.

EN, 2021/07/13

Produkt Specifikationer

Mærke:	TOA
Kategori:	Mikrofon
Model:	EM-600
Dybde:	28 mm
Højde:	68 mm
Vægt:	85 g
Forbindelsesteknologi:	Trådløs
Mikrofonindgangsimpedans:	120 ohm (Ω)
Mikrofon frekvens:	30 - 20000 Hz
Mikrofonretningstype:	Omniretningsbestemt
Mikrofon sensitivitet:	-36 dB
Dybde (efter britisk standard):	1.1 "
Højde (efter britisk standard):	2.68 "
Kabeltype:	XLR-3-12
