Side 1/2

INSTRUCTION MANUAL

MICROPHONE PANEL IP-A1MP

Thank you for purchasing TOA’s Microphone Panel.

Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment.

1. SAFETY PRECAUTIONS

•Before installation or use, be sure to carefully read

all the instructions in this section for correct and

safe operation.

•Be sure to follow all the precautionary instructions in

this section, which contain important warnings and/

or cautions regarding safety.

•After reading, keep this manual handy for future

reference.

Safety Symbol and Message Conventions

Safety symbols and messages described below

are used in this manual to prevent bodily injury and

property damage which could result from mishandling.

Before operating your product, read this manual rst

and understand the safety symbols and messages

so you are thoroughly aware of the potential safety

hazards.

Indicates a potentially hazardous situation which, if

mishandled, could result in death or serious personal

injury.

WARNING

Indicates a potentially hazardous situation which, if

mishandled, could result in moderate or minor personal

injury, and/or property damage.

CAUTION

WARNING

When Installing the Unit

•Do not expose the unit to rain or an environment

where it may be splashed by water or other liquids,

as doing so may result in re or electric shock.

•Install the unit only in a location that can structurally

support the weight of the unit and the mounting

bracket. Doing otherwise may result in the unit

falling down and causing personal injury and/or

property damage.

•Since the unit is designed for indoor use, do not

install it outdoors. If installed outdoors, the aging of

parts causes the unit to fall o󰀨, resulting in personal

injury. Also, when it gets wet with rain, there is a

danger of electric shock.

•Do not mount the unit in locations exposed to

constant vibration. The mounting bracket can be

damaged by excessive vibration, potentially causing

the unit to fall, which could result in personal injury.

•Use screws that are appropriate for the wall’s

structure and composition. Failure to do so may

cause the unit to fall, resulting in material damage

and possible personal injury.

• Use the specied plate in combination. Doing

otherwise may cause the unit or component to fall

o󰀨, resulting in personal injury.

•Take care that electrical lines are not pinched during

installation. Pinched wires could potentially cause a

re or electrical shock.

CAUTION

When Installing the Unit

•Avoid installing the unit in humid or dusty locations,

in locations exposed to the direct sunlight, near the

heaters, or in locations generating sooty smoke

or steam as doing otherwise may result in re or

electric shock.

•Avoid touching the unit’s sharp metal edge to

prevent injury.

2. SUMMARY AND FEATURES

The IP-A1MP Microphone Panel integrates a microphone,

a call button and an indicator light. It can be installed in the

optional mount box, and can be mounted either embedded

under a cover or left exposed.

When used together with the IP Audio Series, the Microphone

Panel can be used as a microphone for conversations or

public address announcements.

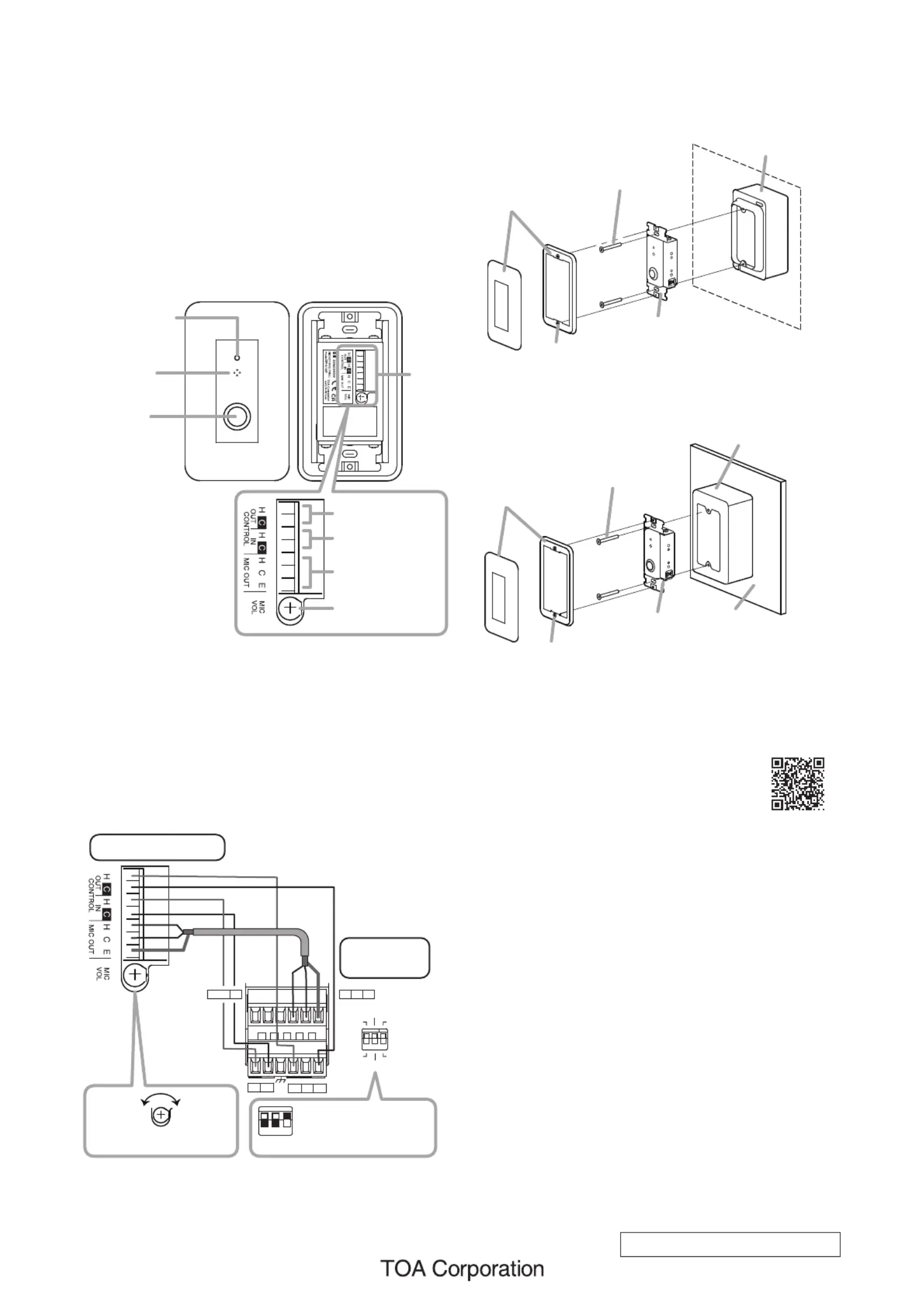

3. NOMENCLATURE AND FUNCTIONS

[Front] [Rear]

133-04-00056-01

4. CONNECTIONS

Terminals of

the IP-A1AF

Terminals of this unit

LINE OUT

HCE

H C

123

E LINE/MIC IN

LINE

MIC ON

OFF

[

PHANTOM

]

0dB

[

PAD

]

-20dB

CTRL OUT CTRL IN

LINE/MIC input

volume control

Decrease Increase

H C

12C

1 2 3

：

LINE

：

0 dB

［

PAD

］

：

［

PHANTOM

］

Power is supplied to the unit by a phantom power supply

(9 – 26 V DC).Before connecting the unit to the IP-A1AF,

be sure that the Interface’s DIP switch is set as shown in

the gure above.

Status indicator

(green)

Terminals

Microphone

Call

button

Microphone output

Control input

Control output

Microphone

volume control

•The Microphone Panel is powered by a phantom power

supply (9 – 26 V DC).

•Audio from the microphone is output at line signal level

and can be adjusted by the microphone volume control.

• The status indicator is linked to the control input and lights

green.

•Control output is linked to the Call button (momentary

operation).

Plate

(

Accessory

)

Wall

surface

Flush mount Box

YC-801

(

Option

)

IP-A1MP

Microphone panel

Machine screw

M4 x 35

(

Accessory

)

Plate mounting screw

[Wall mount]

Wall surface

IP-A1MP

Microphone panel

Machine screw

M4 x 35

(

Accessory

)

Wall mount Box

YC-802

(

Option

)

Plate

(

Accessory

)

Plate mounting screw

https://www.toa-global.com/en

5. UNIT MOUNTING

[Flush mount]

6. SPECIFICATIONS

The specications of this product are available in TOA DATA

Library (https://www.toa-products.com/international/).

Scan the QR Code at right with your mobile

phone camera to access the WEB site and

search for this product number (IP-A1MP).

•Accessories

Plate 1 ...........................................................................

Plate mounting screw (Preinstalled on the plate) 2 .......

Machine screw M4 x 35 2 ..............................................

•Optional products

Flush mount Box: YC-801

Wall mount Box: YC-802
