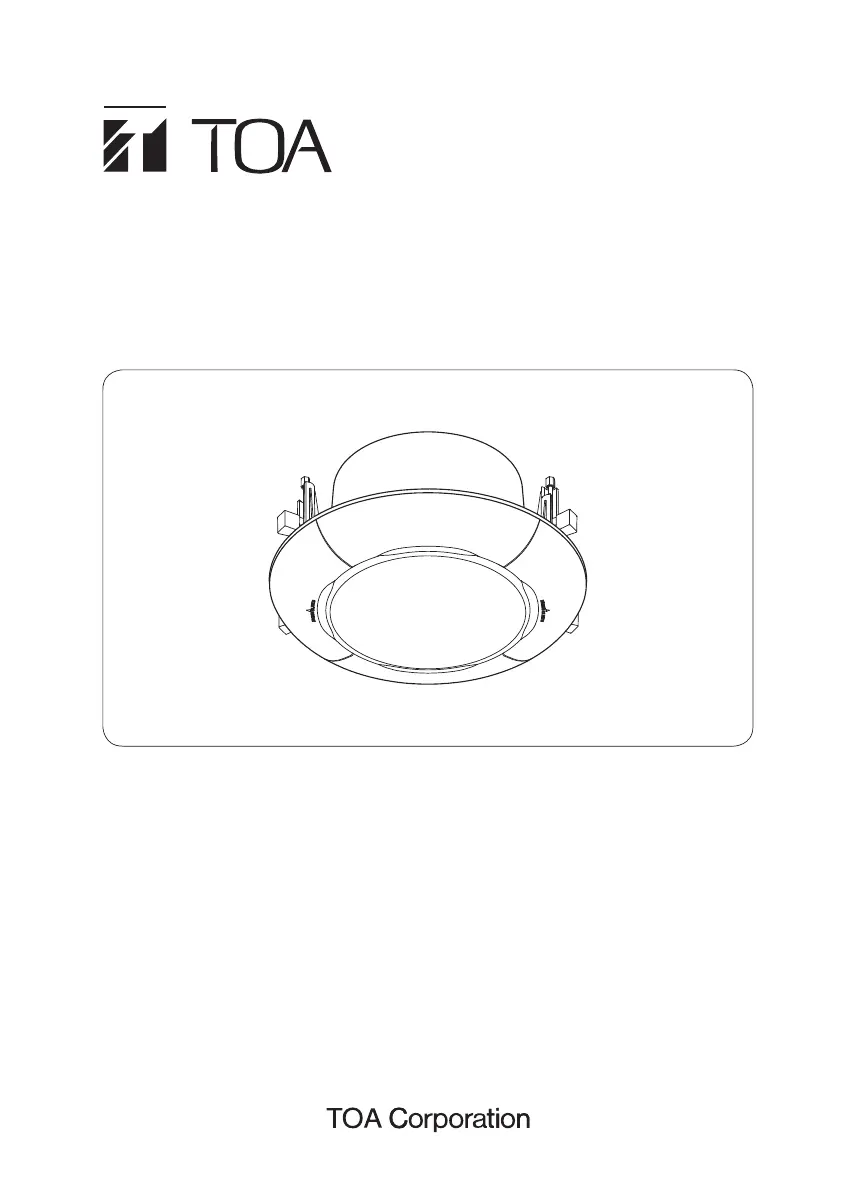

Side 1/20

OPERATING INSTRUCTIONS

INFRARED WIRELESS SPEAKER IR-820SP

Thank you for purchasing TOA’s Infrared Wireless Speaker.

Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment.

TABLE OF CONTENTS

1. IMPORTANT SAFETY INSTRUCTIONS

........................................... 3

2. SAFETY PRECAUTIONS ............................................................................. 4

3. GENERAL DESCRIPTION .......................................................................... 5

4. FEATURES ............................................................................................................ 5

5. NOMENCLATURE AND DIMENSIONS .............................................. 6

6. SYSTEM CONFIGURATION EXAMPLE ............................................. 7

7. INSTALLATION PRECAUTIONS ............................................................. 8

7.1. Installation Position ................................................................................................ 8

7.2. Distance Between the Infrared Wireless Microphone and IR-820SP ..................... 8

7.3. Radio Noise ........................................................................................................... 9

7.4. Connection to IR-802T ......................................................................................... 9

7.5. Sunlight and Fluorescent Lighting ......................................................................... 9

8. MOUNTING HARDWARE INSTALLATION .................................... 10

9. WIRING .................................................................................................................. 14

10. SPEAKER INSTALLATION .................................................................... 15

11.

REMOVING THE IR-820SP FOR MAINTENANCE

.................... 17

12. INPUT OVERLOAD PROTECTION FUNCTION ........................ 18

13. SAFETY AGENCY COMPLIANCE .................................................... 18

14. TROUBLESHOOTING ............................................................................... 18

15. SPECIFICATIONS ........................................................................................ 19

Accessories ............................................................................................................... 19

Optional product ........................................................................................................ 19

Produkt Specifikationer

Mærke:	TOA
Kategori:	Mikrofon
Model:	IR-820SP
Bredde:	- mm
Dybde:	205 mm
Højde:	- mm
Vægt:	3400 g
Produktfarve:	Black, Stainless steel
Udgangseffekt (RMS):	20 W
Strømforbrug (typisk):	4.4 W
Husmateriale:	Resin, Steel
Anbefalet brug:	Universel
Frekvensområde:	100 - 20000 Hz
Forbindelsesteknologi:	Trådløs
Lyd-output kanaler:	- kanaler
Højttaler, placering:	Kan monteres i loftet
LED-indikatorer:	Ja
Diameter:	320 mm
Antal drivere:	1
Driver diameter:	120 mm
DC indgangsspænding:	24 V
Forstærker klasse:	D
RF-forbindelse:	Ja
Radiofrekvens (RF) interval:	100 - 350 MHz
Forvrængning:	5 %
