Please follow the instructions in this manual to obtain the optimum results from this unit.

We also recommend that you keep this manual handy for future reference.

PC-3WR

PC-3WR-L

SPLASHPROOF

CEILING SPEAKER

INSTRUCTION MANUAL

SAFETY PRECAUTIONS

• Be sure to read the instructions in this section carefully

before use.

• Make sure to observe the instructions in this manual as

the conventions of safety symbols and messages

regarded as very important precautions are included.

• We also recommend you keep this instruction manual

handy for future reference.

Safety Symbol and Message Conventions

Safety symbols and messages described below are used

in this manual to prevent bodily injury and property

damage which could result from mishandling. Before

operating your product, read this manual first so you are

thoroughly aware of the potential safety hazards as well as

understand the safety symbols and messages.

WARNING Indicates a potentially hazardous

situation which, if mishandled, could result in death or

serious personal injury.

CAUTION Indicates a potentially hazardous

situation which, if mishandled, could result in moderate

or minor personal injury, and/or property damage.

When Installing the Unit

• Install the unit only in a location that can structurally

support the weight of the unit and the mounting bracket.

Doing otherwise may result in the speaker falling down

and causing personal injury and/or property damage.

• Be sure to tighten screws when mounting the speaker. If

not tightened, the screws may come off due to a

vibration, etc. and the speaker may fall, resulting in

personal injuries.

When the Unit is in Use

• Do not operate the speaker for an extended period of

time with the sound distorting. This is an indication of a

malfunction, which in turn can cause heat to generate

and result in a fire.

WARNING

CAUTION

GENERAL DESCRIPTION

The PC-3WR and PC-3WR-L are both splashproof, flush-mounted ceiling speakers. The PC-3WR is a high impedance

100 V line speaker, and the PC-3WR-L is a low impedance (8 ) speaker.Ω

HANDLING PRECAUTIONS

The PC-3WR-L cannot use the 100 V line.

INSTALLATION

1. Make a 150 mm hole in a ceiling.

Tip:

Using the marking-off pins on the speaker mounting

bracket, you can describe a circle with designated

diameter.

2. Insert the speaker mounting bracket into the

mounting hole.

3. Loosen butterfly bolts on the speaker mounting

bracket, and move the sliding frames in the direction

indicated by the arrow.

4. Hold the ceiling panel between the speaker

mounting bracket and sliding frame, then tighten the

butterfly bolts.

Tip:

When the ceiling panel is thick, bend the sliding

frame. The ceiling panel with thickness of up to 50

mm can be used.

5. Squeezing the sides of either V-shaped spring, connect it to the spring holder of the speaker mounting bracket.

6. Connect the input cable to the speaker cable.

7. Squeezing the sides of other V-shaped spring, connect it to the bracket's spring holder, then push the speaker up into

the ceiling hole.

PC-3WR COM HOT

3 W connection White Red

1 W connection White Black

SPECIFICATIONS

Model No. PC-3WR PC-3WR-L

Rated Input 1W or 3 W 3 W

Rated Impedance 3.3 k (3 W) or 10 kΩ Ω (1 W) 8 Ω

Output Sound Pressure Level 88 dB (1 W, 1 m)

Frequency Response 180 – 20,000 Hz

Operating Temperature Range

10°C to +50°C

Dust/Water Protection IP64

Finish Panel/Case : ABS resin, off white

Punched grille : Stainless steel

Mounting Hole Diameter 150 mm

Dimensions ø180 x 104.5 (d) mm

Weight 700 g 600 g

Note : The design and specifications are subject to change without notice for improvement.

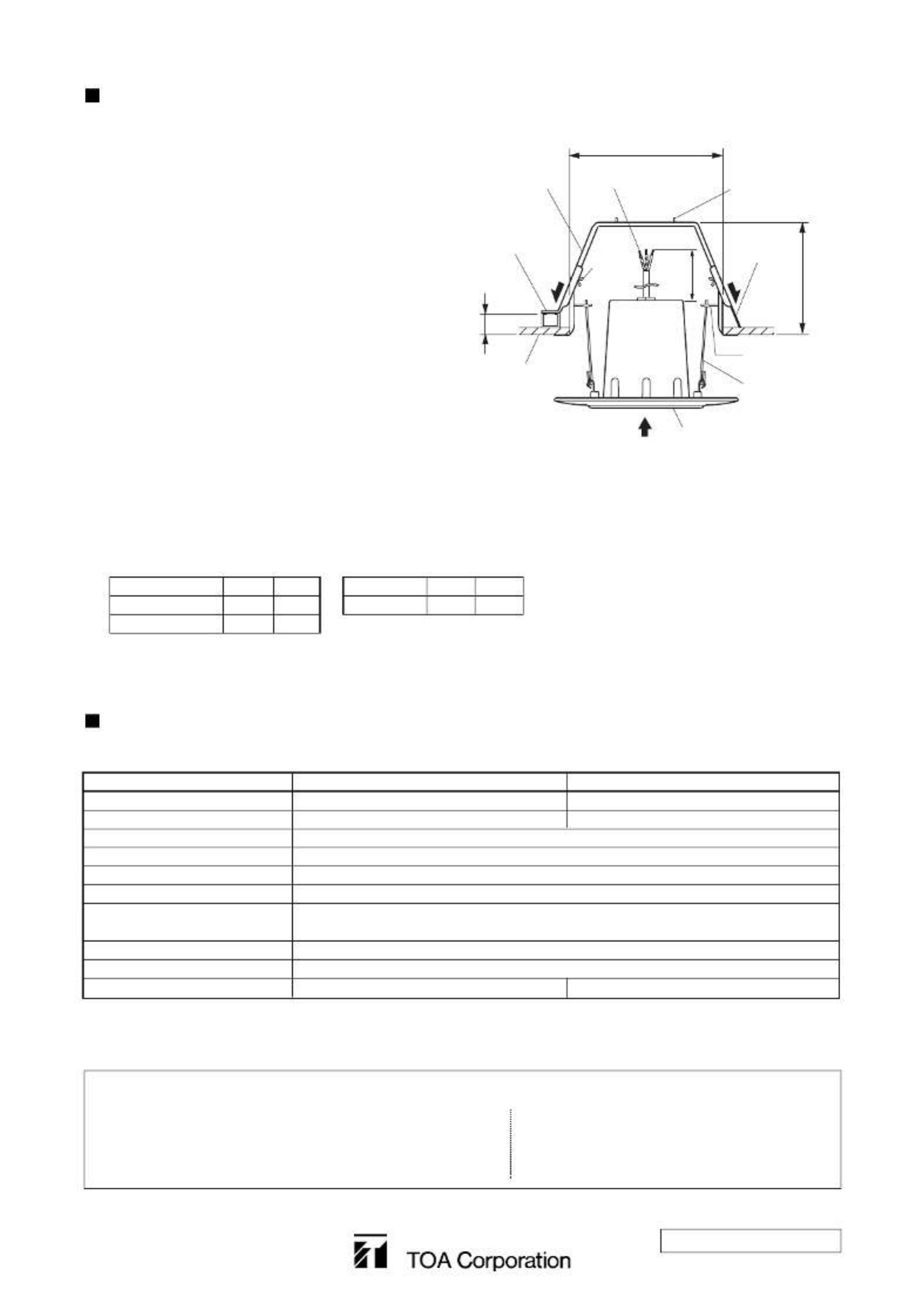

110 mm

Sliding frame

V-shaped spring

Spring holder

Speaker

Push up

Up to 50 mm

Marking-off pin

Speaker mounting bracket

Speaker cable

(Red: 3 W, Black: 1 W, White: COM)

Sliding frame can

be bent.

Ceiling panel

ø150 mm (mounting hole diameter)

330 mm

Butterfly

bolt

Note: The figure is the PC-3WR.

PC-3WR-L COM HOT

3 W (8 ) White BlackΩ

333-01-040-0B

URL: http://www.toa.jp/

Traceability Information for Europe

Manufacturer:

TOA Corporation

7-2-1, Minatojima-Nakamachi, Chuo-ku, Kobe, Hyogo,

Japan

Authorized representative:

TOA Electronics Europe GmbH

Suederstrasse 282, 20537 Hamburg,

Germany
