Installation Guide
Desktop PoE+ Switch
LS106P/LS110P/LS1210P
© 2024 TP-Link 7106511332 REV1.0.0
LED Explanation
Power
PoE
On: Providing PoE power
power
On: Power on
O: Power o
Link/Act; Uplink (LS110P) Uplink (LS1210P)
On:
Running at 10/100 Mbps, but no activity.
Flashing:
Running at 10/100 Mbps and
transmitting or receiving data.
O:
No device is linked to the corresponding
port.
On:
Running at 10/100/1000 Mbps, but no activity.
Flashing:
Running at 10/100/1000 Mbps and
transmitting or receiving data.
O:
No device is linked to the corresponding
port.
Switches Explanation
Isolation
O: Ports can transmit data with each other.
On: The corresponding ports cannot transmit data with other downlink ports. They can
transmit data only with the uplink port.
Extend
O: The corresponding ports run at 10/100 Mbps and support PoE power supply up to
100 m away.
On: The corresponding ports run at 10 Mbps and support PoE power supply up to 250 m
away.
Recovery
O: The PoE Auto Recovery function is disabled.
On: The switch will constantly detect the working status of a PoE powered device (PD).
When the switch nds that the PD works abnormally, the switch will reboot it.
Note: The numbers in brackets indicate the ports where the feature takes eect. For example, when Extend (Port 1-4) is toggled to On, the Extend mode will be enabled for
ports 1-4.

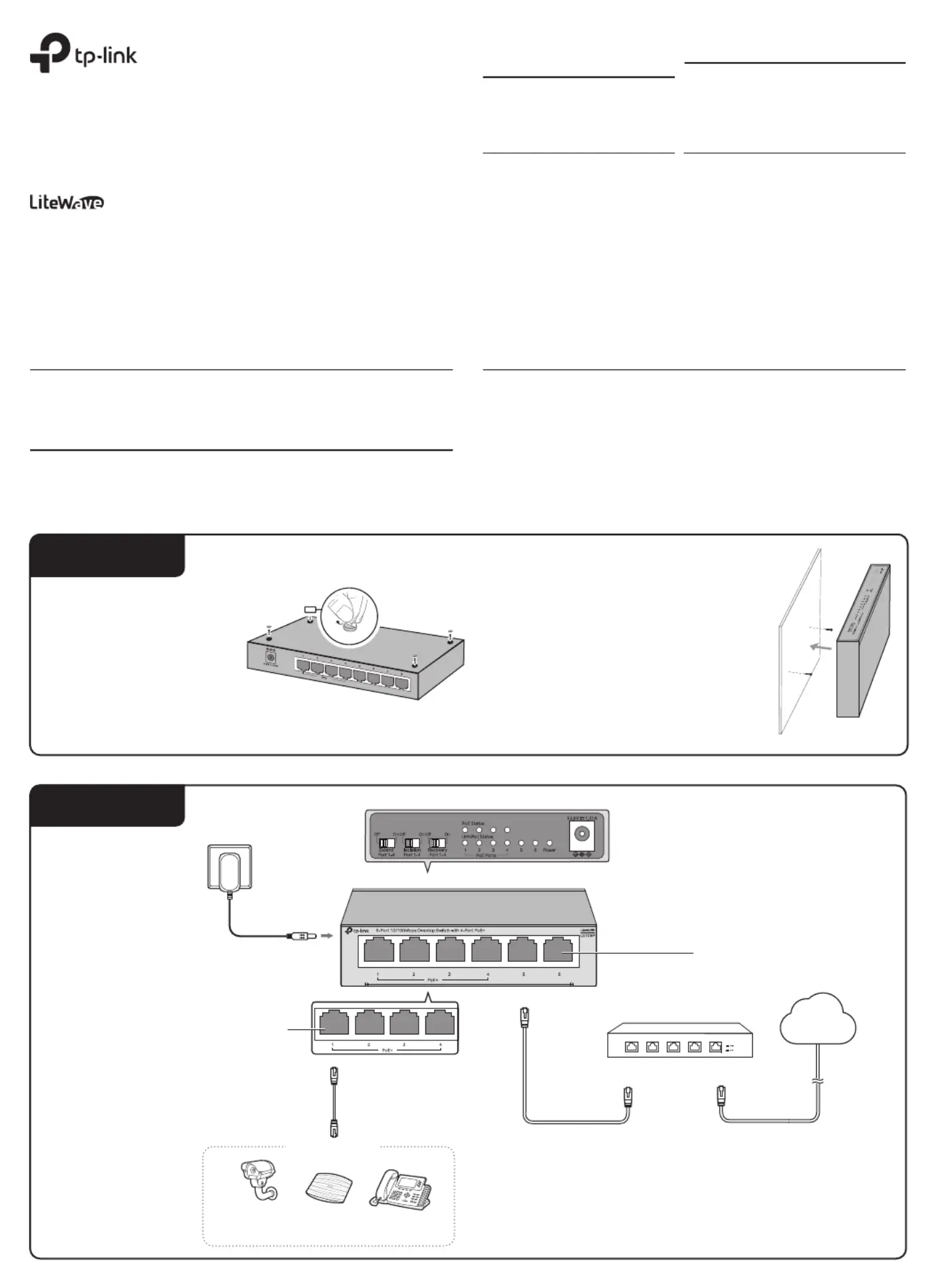

Installation
Connection
Desktop:
Attach the supplied feet to the
bottom of the switch to prevent it
from slipping when placed on a
desktop.
Note: For detailed information, please refer to
the Wall Mounting Guide on the device’s
support page.
Wall-mounting:
Drill two holes on the wall according to
the mounting holes on the bottom of the
switch, then secure the switch to the wall
with two suitable screws (not provided).
Note:
1. PoE ports can also connect to non-PoE devices, but only transmit data.
2. Non-PoE ports are recommended to connect to uplink devices like routers/gateways.
3. For LS106P/LS110P:
Ports 1-2 have higher priority than other ports in transmitting data if network
congestion occurs. It is recommended to connect key network devices (network
cameras, APs, etc.) to ports 1-2.
IP Camera AP IP Phone
Router/Gateway
LAN Port WAN Port
Internet
PoE Ports (1-4)
PoE Devices
Power Adapter
Ethernet Ports (1-6)
Note: The images in this guide are for demonstration only and may dier from your actual product.
Note: For simplicity, we will take LS106P for example.
Flashing: Current-overload/Short-circuit
General Specications
Specications
IEEE802.3i, IEEE802.3u, IEEE802.3x,
IEEE802.3ab (For LS1210P),
IEEE802.3af, IEEE802.3at
LS106P:
6 10/100 Mbps RJ45 Ports
Auto-Negotiation MDI/MDIX
PoE Ports: Port 1–4
Priority Ports: Port 1-2
LS110P:
10 10/100 Mbps RJ45 Ports
Auto-Negotiation MDI/MDIX
PoE Ports: Port 1–8
Priority Ports: Port 1-2
LS1210P:
8 10/100 Mbps + 2 10/100/1000 Mbps RJ45 Ports
Auto-Negotiation MDI/MDIX
PoE Ports: Port 1–8
10BASE-T: UTP category 3, 4, 5 cable (maximum 100 m);
EIA/TIA-568 100Ω STP (maximum 100 m)
100BASE-TX: UTP category 5, 5e cable (maximum 100 m);
EIA/TIA-568 100Ω STP (maximum 100 m)
LS1210P:
1000BASE-T: UTP category 5e cable or above (maximum
100 m);
EIA/TIA-568 100Ω STP (maximum 100 m)
Store-and-Forward
Automatically learning, automatically aging
External Power Adapter
Input:
220-240 VAC, 50/60 Hz
Output:
LS106P: 53.5 VDC/1.31 A
LS110P/LS1210P: 53.5 VDC/1.92 A
LS106P: 65 W (up to 30 W for each PoE port)
LS110P/LS1210P: 96 W (up to 30 W for each PoE port)
Yes
LS106P: 39 mm
LS110P: 105 mm
LS1210P: 105 mm
Standard
Network Media (Cable)
Interface
Power Supply
Transfer Method
MAC Address Learning
Safety Information
Keep the device away from water, re, humidity or hot environments.
Do not attempt to disassemble, repair, or modify the device. If you need service, please
contact us.
Place the device with its bottom surface downward.
Do not use damaged charger or USB cable to charge the device.
Do not use any other chargers than those recommended.
Adapter shall be installed near the equipment and shall be easily accessible.
PoE Budget
Frequently Asked Questions (FAQ)
The Power LED should be lit when the power system is working normally. If the
Power LED is not lit, please check as follows:
A1:
Make sure the AC power cord/power adapter is connected the switch with
power source properly.
A2:
Make sure the voltage of the power supply meets the requirements of the
input voltage of the switch.
A3:
Make sure the power source is on.
Q1. Why is the Power LED not lit?
It is recommended that you check the following items:
A1:
Make sure that the cable connectors are rmly plugged into the switch and the
device.
A2:
Make sure the connected device is turned on and working well.
A3:
The cable must be less than 100 meters long (328 feet). If Extend Mode is
enabled, it should be less than 250 meters (820 feet).
Q2. Why is the Link/Act LED not lit when a device is
connected to the corresponding port?
When the total power consumption of connected PoE devices exceeds the
maximum, the PoE port with a smaller port number has a higher priority. The
system will cut o power to the ports with larger port numbers to ensure supplying
to other ports.
Take LS106P as an example. If port 1, 2 and 4 are consuming 15 W respectively,
and an additional PoE device with 25 W is inserted to port 3, the system will cut o
the power of port 4 to compensate for the overload.
Q3. Why are PoE ports not supplying power for PoE
devices?
A1:
Before upgrading a connected PoE powered device (PD), disable PoE Auto
Recovery to avoid the PD’s damage.
A2:
When a PD does not send data packets to the switch for a long period in
certain scenarios (e.g. an IPC in sleep mode), disable PoE Auto Recovery to
avoid the PD repeatedly rebooting.
Q4. What should I notice before using the PoE Auto
Recovery feature?
EU declaration of conformity
TP-Link hereby declares that the device is in compliance with the essential requirements and
other relevant provisions of directives 2014/30/EU, 2014/35/EU, 2011/65/EU and (EU)2015/863.
The original EU declaration of conformity may be found at https://www.tp-link.com/en/support/ce/
UK declaration of conformity
TP-Link hereby declares that the device is in compliance with the essential requirements and
other relevant provisions of the Electromagnetic Compatibility Regulations 2016 and Electrical
Equipment (Safety) Regulations 2016.
The original UK declaration of conformity may be found at https://www.tp-link.com/support/ukca
Wall Mountable
Distance Between
Mounting Holes
For technical support and other information, please visit
https://www.tp-link.com/support/?type=smb, or simply scan the QR
code.
To ask questions, find answers, and communicate with TP-Link users
or engineers, please visit https://community.tp-link.com/business to
join TP-Link Community.
Operating Temperature
Storage Temperature
Operating Humidity
Storage Humidity
0 C to 40 C (32 ˚ ˚ ˚F to 104 ˚F)
-40 C to 70 C (-40 ˚ ˚ ˚F to 158 ˚F)
10% to 90%RH non-condensing
5% to 90%RH non-condensing
Environmental and Physical Specications
