Purpose: Ethernet cables have 4 pairs of wires (”twisted pairs”). It is important

that the pairs correctly go to connector pins 1,2 ; 3,6 ; 4,5 ; and 7,8. The Pocket CAT

tests for the proper pairing and if there is an error it will report it to you (”split pairs”) .

Connecting cables to tester:

Installed cables: Connect the Main unit to the wall jack and the Remote to the

patch panel or far-end wall jack.

Patch cables: Attach the Main unit and Remote directly to the cable ends.

Power ON and test:

STEP 1: Press the ON button. Press again to commence test.

STEP 2: When the PASS/FAIL LEDs light, press the FAULT CHECK button to isolate

any problems to an individual pair.

Coax Testing: Coax is displayed using the 4/5 LEDs. The coax remote is in the pouch.

CTX200

RUGGEDIZED / CUSHIONED

TESTS RJ45/CAT CABLES TO TIA568 SPECS

INCLUDES MULTI-PAIR

TONE GENERATOR

TESTS COAX CABLES

For RJ45 and COAX cables

FEATURES

✔ Tests both RJ45-CAT5/6 and coax cables.

✔ Ruggedized for field use. Small and easy to carry.

✔ PASS/FAIL results appear in one second.

✔ Each pair’s status is highlighted.

✔ Complete TIA568 test performed. Continuity, opens / shorts,

reversals and split pairs.

✔ Tone mode for tracing cables and troubleshooting.

✔ Auto-off (12 seconds) to conserve battery life.

✔ Low battery indicator.

✔ Belt clip, battery (9V) and pouch included.

CABLE TESTING

TONE MODE

Purpose: Tone is used to locate a cable’s far end. A tone is placed on the cable by the

Pocket CAT Main unit. A probe (available separately) locates the tone at the far

end of the cable.

Connect the cable: Plug the cable into the tester’s Main unit.

Power ON and tone: Press the ON button. Hold the TONE button for 7 secs to turn

ON the tone. Press the TONE button repeatedly to select the pair you wish to tone.

The tone is loudest when you select the entire cable (including the shield).

CONNECTING TO THE POCKET CAT

Testing patch cables

Slide drawer open and

connect cable to the

connector

Testing installed cables

Remove drawer and connect

to the far end of the cable

Remote

connector

POCKET CAT FACEPLATE

WARNING. DO NOT USE

ON LIVE CIRCUITS!

Pair/shield

tested

Remote

connector

drawer (push to

slide or remove)

PASS/FAIL

indicator

FAILURE DESCRIPTIONS

OPEN: A wire is disconnected

SHORT: A wire makes contact with another w

CROSS (REVERSAL): A twisted pair gets flip

on one side of the cable

SPLIT: One wire from each of two different pa

gets swapped on both ends of the cab

Press to test

all pairs

automatically

Press to test pairs

individually.

Hold 7 secs for tone.

Press again to select pair.

Note: The remote connector

for coax testing is located in

the pouch.

Coax uses 4/5

Cable diagrams inside

7003 132nd Place SE, Newcastle, WA 98059 USA

+1.425.917.8380 ● FAX +1.425.917.8379 ●

cs@bytebrothers.com

Network T

Network Test and Repair T

est and Repair T

est and Repair Tools

ools

Network Test and Repair Tools

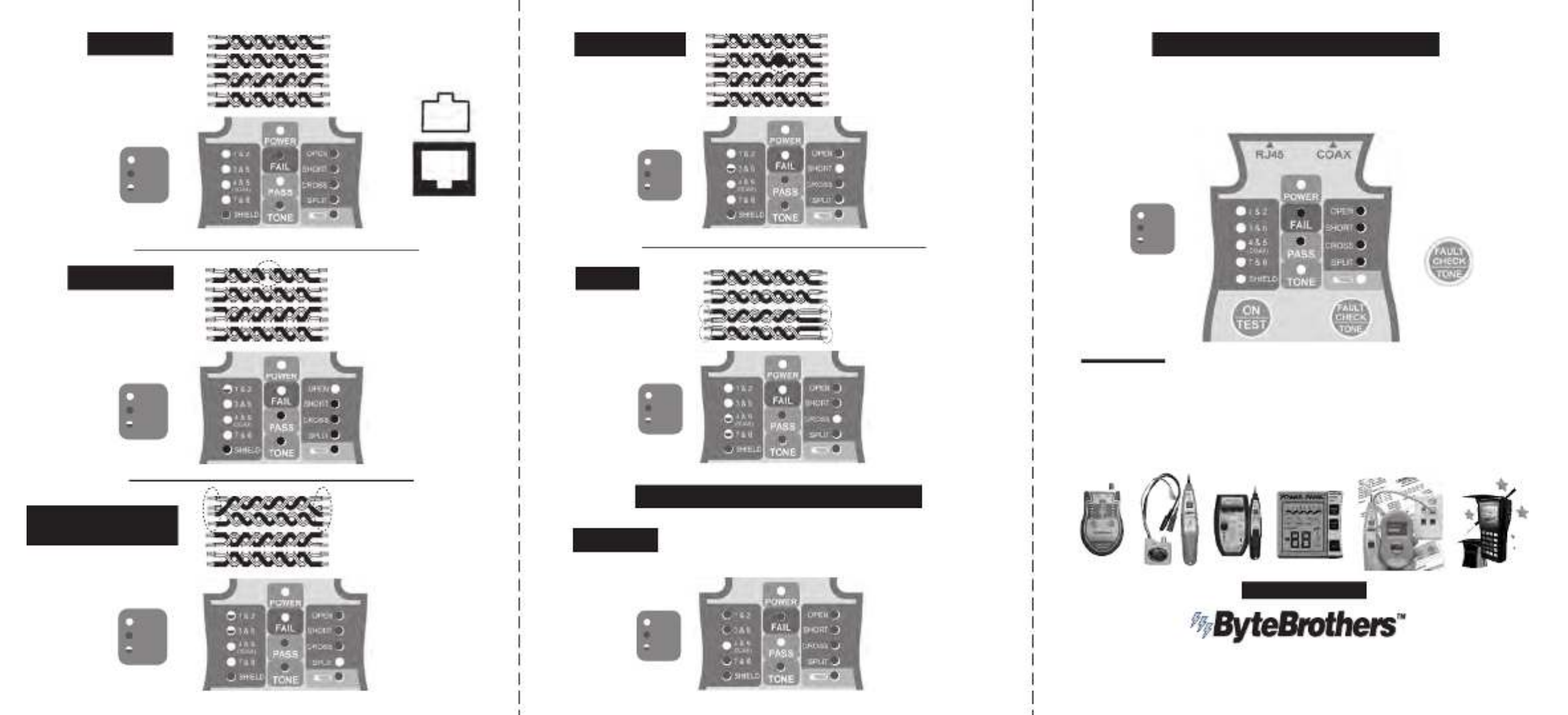

Orange/White

Orange

Green/White

Green

Blue

Blue/White

Brown/White

Brown

Orange/White

Orange

Green/White

Green

Blue

Blue/White

Brown/White

Brown

EIA/TIA 568B

STRAIGHT THRU CABLE

(MOST POPULAR)

GOOD CABLE

OPEN on PAIR 1-2

OFF

BLINK

Orange/White

Orange

Green/White

Green

Blue

Blue/White

Brown/White

Brown

Orange/White

Orange

Green/White

Green

Blue

Blue/White

Brown/White

Brown

SPLIT PAIRS

(PAIRS 1,2 AND 3,6 SPLIT)

SHORT on PAIR 3-6

OFF

BLINK

OFF

BLINK

Orange/White

Orange

Green/White

Green

Blue/White

Blue

Brown/White

Brown

CROSSED

A WIRE ON BOTH

PAIRS 4-5 AND 7-8

IS FLIPPED (CROSSED)

OFF

BLINK

Limited Warranty

The manufacturer warrants to the original consumer that this product is in good w

order for a period of one year from the date of manufacture or date of purchas

During this period the product will be repaired or replaced without charge for eit

parts or labor. The warranty does not cover damage caused by connection to hig

voltage sources such as telephones or Power over Ethernet (PoE). Repair or

replacement as provided under this warranty is the exclusive remedy of the purc

OFF

BLINK

COAXIAL (”COAX”) CABLE

OFF

BLINK

LEDs

GOOD CABLEThe Pocket CAT uses LED 4&5 to display the status of a coax

cable test. Connect the near end of the cable to the BNC

connector. Connect the far end to the coax terminator (pouch).

WWW.BYTEBROTHERS.COM

Power ON and tone: Hold the TONE button for 7 secs to turn ON

the tone. Press the TONE button repeatedly to select the pair(s) you

wish to tone. Select the setting that gives the loudest tone.

Note: Requires an inductive probe to detect tone (available separately

OFF

BLINK

LEDs

USING TONE TO LOCATE A CABLE END

TONE “ON”

(ALL PAIRS + SHIELD) TONE IS COMPATIBLE

WITH MOST POPULAR

PROBES (INCLUDING

BYTE BROTHERS

PROBES).

Hold 7 secs for

tone. Press again

to select pair(s).

1 2 3 4 5 6 7 8

PIN# PIN#

RJ45 SOCKET/PLUG

PIN DIAGRAM

Produkt Specifikationer

Mærke:	Triplett
Kategori:	Kabler til computere og periferiudstyr
Model:	CTX200
Produktfarve:	Grå
LED-indikatorer:	Ja
Driftsspænding:	9 V
Kabeltype:	RJ45, CAT5/6, coax
