Owner’s Manual
SmartRack
®
Premium
Vertical Cable Managers
6" Models: SRCABLEVRT6HD, SRCABLEVRT6HDFC, SRCABLEVRT6HD2
12” Models: SRCABLEVRT12HD, SRCABLEVRT12HD2
1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support
Copyright © 2021 Tripp Lite. All rights reserved.
Español 10 • Français 19 • Русский 28
WARRANTY REGISTRATION
Register your product today and be
automatically entered to win an ISOBAR
®
surge protector in our monthly drawing!
tripplite.com/warranty
2

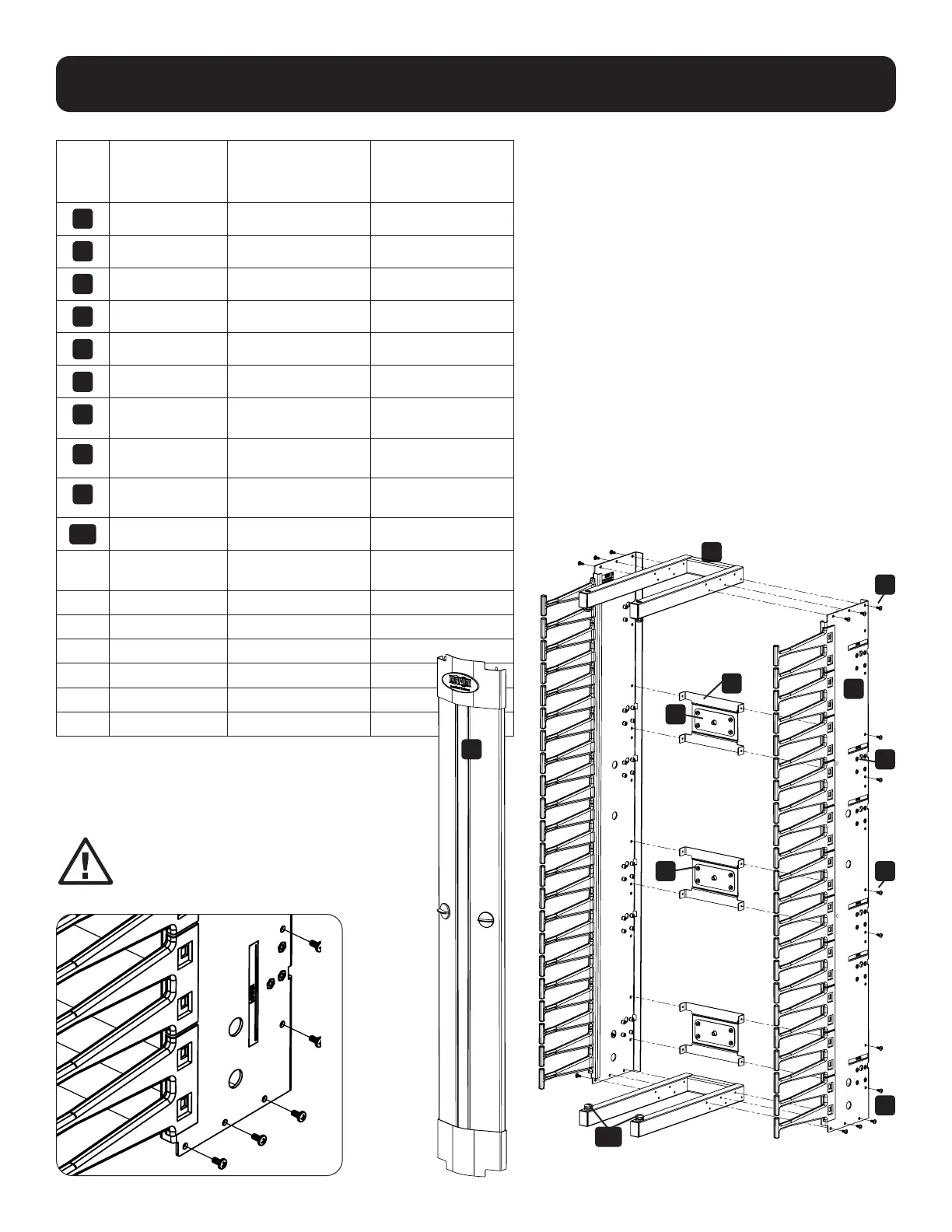

Assembly
Item
No. Description
Qty:
SRCABLEVRT6HD,
SRCABLEVRT6HDFC
Qty:
SRCABLEVRT6HD2,
SRCABLEVRT6HD2F
1
Door Assembly 2 4
2
Weldment 4 8
3
Tie Plate 6 12
4
Cross Bracket 6 12
5
Left Side Panel 2 4
6
Right Side Panel 2 4
7
M4 x 6 mm
Flat Head Screw
6 12
8
M4 x 8 mm
Tap Screw
50 100
9
M4 x 8 mm
Pan Head Screw
24 48
10
Door Bushing 8 16
11* M4 x 12 mm
Pan Head Screw
18 36
12* Mounting Button 6 12
13* Mounting Bracket 6 8
14** 1/2" Hex Bolt 4 8
15** 1/2" Hex Nut 4 8
16** Metal Spacer 4 8
17** 1/2" Washer 4 8
6
3
2
8
10
9 8
When assembling, note the
orientation of the side panels.
The labels “lower”
should be
orientated
on the bottom.
7
8
4
cable duct explode_1.AI 1 2/10/2021 1:22:48 PM
1
*Not shown: Refer to Single-Depth Installation for details.
**Not shown: Refer to Alternate Rack Mounting for details.


Produkt Specifikationer

Mærke: Tripp Lite
Kategori: Kabler til computere og periferiudstyr
Model: SRCABLEVRT12HD
Type: Kabelbakkepanel
Bredde: 306.83 mm
Dybde: 347.98 mm
Højde: 2103.63 mm
Vægt: 25850 g
Antal pr. pakke: 1 stk
Produktfarve: Sort
Pakkevægt: 28980 g
Pakkedybde: 1135.1 mm
Pakkebredde: 421.6 mm
Pakkehøjde: 420.1 mm
Husmateriale: Stål
Bæredygtighedscertifikater: EAC, RoHS
Overholdelse af bæredygtighed: Ja
Monteringssæt: Ja
