Side 1/12
Installation and User Guide
Camera and Electronic Products for Integrators
©2008 Vaddio - All Rights Reserved. Reproduction in whole or in part without written permission is prohibited. Specifications and pricing subject to change.
Vaddio, WallVIEW, EZIM, HSDS, Quick-Connect, and PowerRite are registered trademarks of Vaddio, Inc. All other trademarks are property of their
respective owners. Document Number 341-660 Rev. B
W E E ALLVIEW™ PRO AGLE YE WITH HSDS™
Vaddio™ PRO Series Cable System with
HSDS for the Polycom® EagleEye High
Denition PTZ Camera
OVERVIEW
The Vaddio WallVIEW PRO EagleEye (Figure 1) is built
for the Polycom EagleEye high definition PTZ Camera
(camera not included). The WallVIEW PRO system
uses high speed differential signaling (HSDS), an active
transmission system that delivers low-loss, high
definition video over Cat. 5 cabling distances up to 500’
(152.4m)
The WallVIEW PRO EagleEye system is capable of
sending video resolution up to 1080i 16:9 format (the
Polycom EagleEye camera is 720p only). WallVIEW
PRO will autoconfigure to either NTSC or PAL video
standards.
The WallVIEW EagleEye system also has many new features including in-camera IR forwarding that allows
the use of the Polycom IR remote, and eliminates the need for an external IR repeater. Other features
include analog component video outputs (Y,Pb, Pr), four position distance adjustment for CAT. 5 cabling, Y-
Gain adjustment, 1-RU rack mount Quick-Connect™ PRO Universal System with HSDS, and the EZ
Interface Module (EZIM) and custom break out cable to interface between the EZIM and EagleEye camera.
Like all Vaddio WallVIEW systems, the Thin Profile Wall Mount and mounting hardware is included.
INTENDED USE
Before installing the Vaddio WallVIEW PRO EagleEye Camera System, please read the entire manual
thoroughly. All Vaddio camera systems are designed for use indoors. Outdoor operation is not
recommended, has not been tested, and could damage the camera and/or create a potentially unsafe
operating condition. Use only the Vaddio PowerRite power supply provided.
SAVE THESE INSTRUCTIONS
The information contained in this manual will help you install the Vaddio WallVIEW PRO systems. For
reference, Vaddio keeps copies of Specifications, Installation and User Guides and most pertinent product
drawings for the Vaddio product line on the website. These documents can be downloaded from
www.vaddio.com free of charge.
IMPORTANT SAFEGUARDS
Read and understand all instructions before using. Do not operate the any electrical device if it has been
dropped or damaged. In this case, a Vaddio technician must examine the product before operating. To
reduce the risk of electric shock, do not immerse in water or other liquids and avoid extremely humid
conditions.
INFORMATION
Vaddio has prepared a number of TechNotes, specifications and drawings designed to inform and educate
integrators on the value and the specific uses of Vaddio products.
Figure 1:
WallVIEW PRO EagleEye System with EagleEye camera
(not included), Wall Mount and EZIM
Use only the power supply provided with the Vaddio WallVIEW PRO products.
Use of any unauthorized power supply will void any and all warranties.
WallVIEW Universal PRO EagleEye Installation and User Guide 341-660 Rev. B Page 2 of 12
Polycom HDX-9000
Series Codec
Polycom
Breakout
Cable
UNPACKING
Carefully remove all of the parts from the packaging. Unpack and identify the following parts for the
WallVIEW PRO EagleEye system (Note: The EagleEye camera is not supplied with this system):
• One (1) - Vaddio EZ Interface Module (EZIM)
• One (1) - Vaddio EZIM to EagleEye adapter cable
• One (1) - Vaddio Quick-Connect PRO Universal with HSDS (1-RU Rack Mountable)
• One (1) - Vaddio Thin Profile WallVIEW PRO EagleEye Wall Mount
• One (1) - DB-9 to RJ-45 adapter (998-1004-232) for Polycom HDC 7000, 8000 and 9000 Series Codecs
• One (1) - 36V PowerRite™ Power Supply with AC Cord Set
• One (1) - 2-position Phoenix Connector for IR
• Mounting Hardware
• Documentation and Manuals
INSTALLATION
All WallVIEW products are specifically designed for installation on a vertical wall surface with CAT. 5 cable
connectivity for Power, Video and Control signaling. Installation is simplified in that no custom cables or
expensive multi-coax plenum cables are needed and no power outlets are required near the camera bracket.
All cabling is routed to the head-end using Cat. 5 cables. All RJ-45 connectors need to be terminated
TIA/EIA 568B or A. The use of RJ-45 “EZ” connectors is not recommended.
Before Installing
• Locate the camera mounting location paying close attention to camera viewing angles, lighting conditions,
possible line of site obstructions, and checking for in-wall obstructions. Pick a mounting location to
optimize the performance of the camera.
• Pre-wire all cabling as required from the camera location to the head end equipment.
• The camera mount can be mounted directly to a 2-gang wall box or to drywall using the supplied anchors.

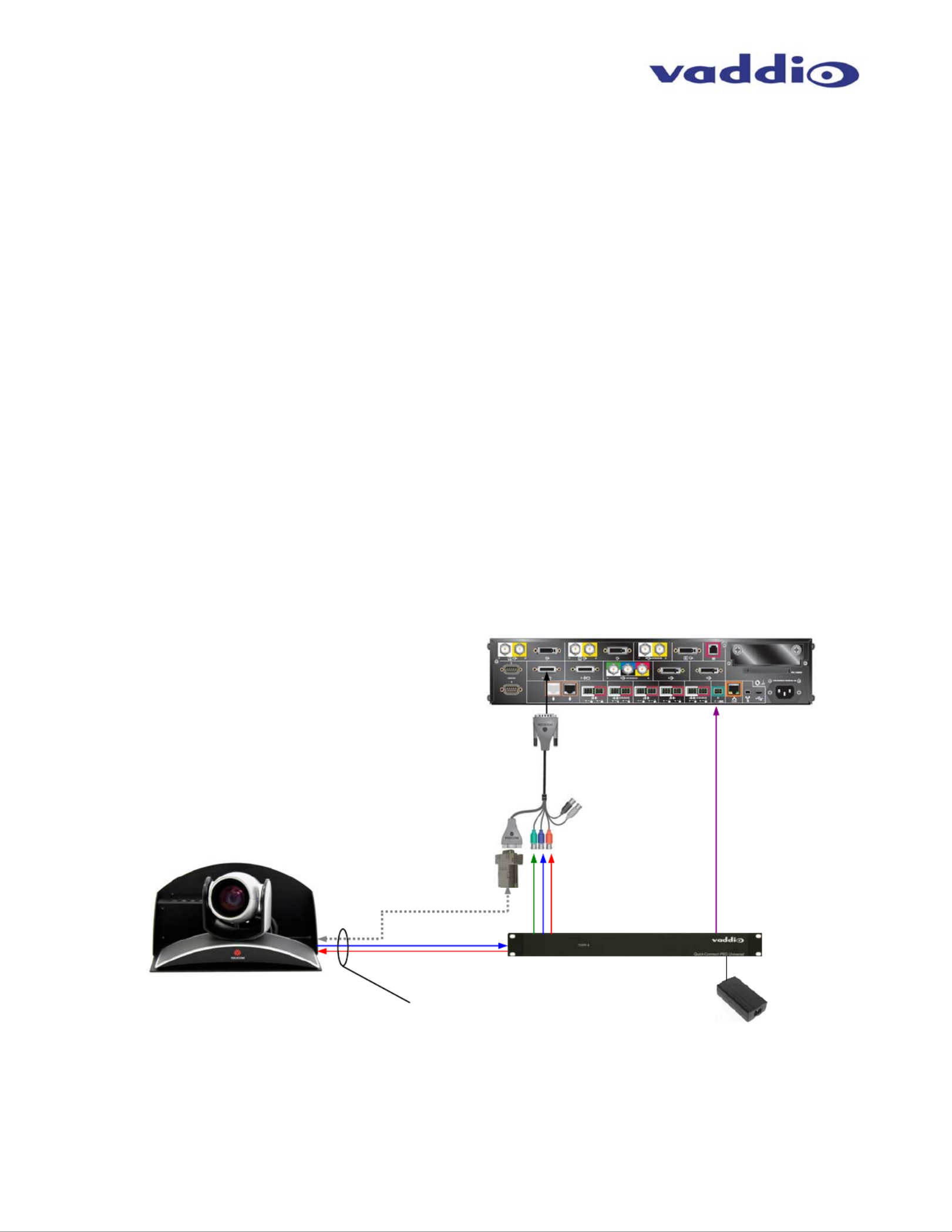

Wiring Diagram Example for HDX 9000 Series:
Figure 2: The WallVIEW EagleEye connected to an HDX 9000 series codec uses the RJ-45 to DB-9 adapter supplied. IR is fed
out of the Quick-Connect rack mount unit to the IR port on the back of the HDX 9000 series codec for IR forwarding from the
camera. The Power, Video and Control Cat. 5 cables can be run up to 500 from the Quick-Connect box to the EZ Interface
Module (EZIM), which connects to the camera. See Step 7 for additional information on HDX 9000 IR wiring. NOTE: The single
wire coming out of the back of the RJ-45 to DB-9 adapter is for use with the HDX 7000 / 8000 series codecs only.
Component Video
(Y, Pb, Pr) to
breakout cable
36 VDC
PowerRite
Power Supply
IR Output
WallVIEW EagleEye with
Camera (not included),
Wall Mount and EZIM
Quick-Connect PRO
Up to 500’ (152.4m) of CAT. 5
for Power
,
Video and Control
Power Cat. 5
Video Cat. 5
RS-232 Cat. 5 to
DB-9 Adapter
IR Input
