Document Number 411-0068-31 Rev B – October 2023
Installation Guide for the
EasyIP PCC and PCC Mini
Four-Camera Joystick Controllers
Overview
This guide provides information about:
n
EasyIP PCC four-camera joystick controller, 999-57755-000 (worldwide)
n
PCC Mini four-camera joystick controller, 999-57750-000 (worldwide)
This guide covers:
n
Controls and connections
n
Tips for a successful installation
n
Connection diagram
n
Equipment power-on
Complete product information is available in the Complete Manual
for the EasyIP PCCFour-Camera Joystick Controller.
Features
n
Simple control of up to four cameras:
o
EasyIP PCC for EasyIP cameras
o
PCC Mini for other Vaddio cameras
n
Three-axis Hall effect joystick
n
Illuminated pushbuttons for camera selection
n
Web interface for operation and administrative control
n
Use with the Vaddio Device Controller or manage from your PC
n
Your EasyIP Switch powers the EasyIP PCC; a PoE+ mid-span power injector powers the PCC Mini
A quick look at the camera controller

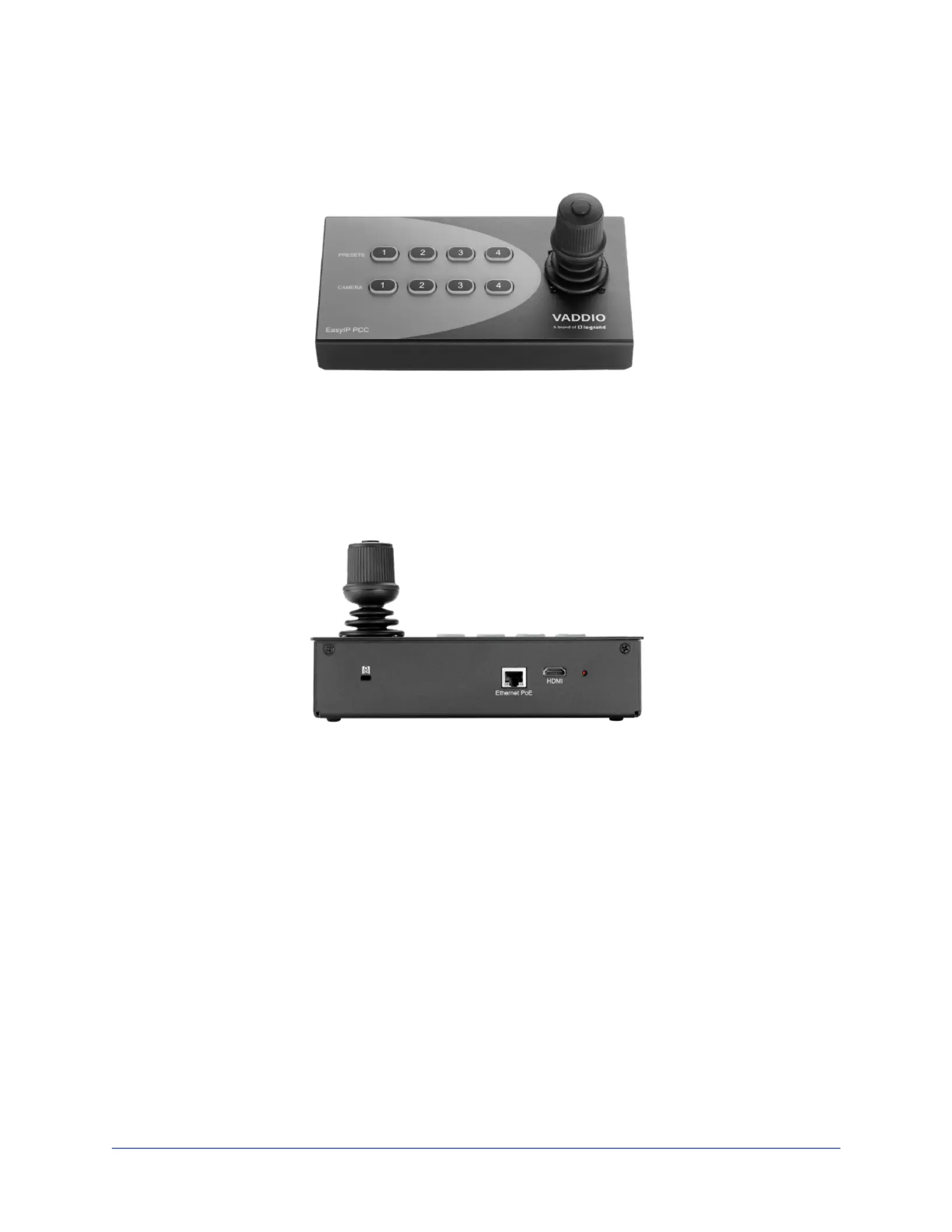

The EasyIP PCC and PCC Mini look identical except for the model information.
Camera buttons (lower row)– Select the camera to use for the next shot (the preview camera). The
buttons are only illuminated if they are assigned to cameras.
Preset buttons (upper row) – Use these buttons to select presets 1 through 4 on the selected preview
camera. The buttons are only illuminated if the corresponding presets have been stored on the camera.
Joystick – Left/right to pan, forward/back to tilt, twist to zoom.
Kensington lock slot – Keep your joystick from adventuring away into the wide, wonderful world.
PoE+ Gigabit Ethernet port – Power and network connectivity, including access to cameras.
Courtesy HDMI output – Video from the camera you are currently controlling.
IP button – Press to overlay the device's IP address on the HDMI video output display.
Installation Guide for the EasyIP PCC Four-Camera Joystick Controller
2
